Coleman
Furnace

Model # UGAE075BUA Official Coleman gas furnace

Here are the diagrams and repair parts for Official Coleman UGAE075BUA gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Burner 2702-308P
#20

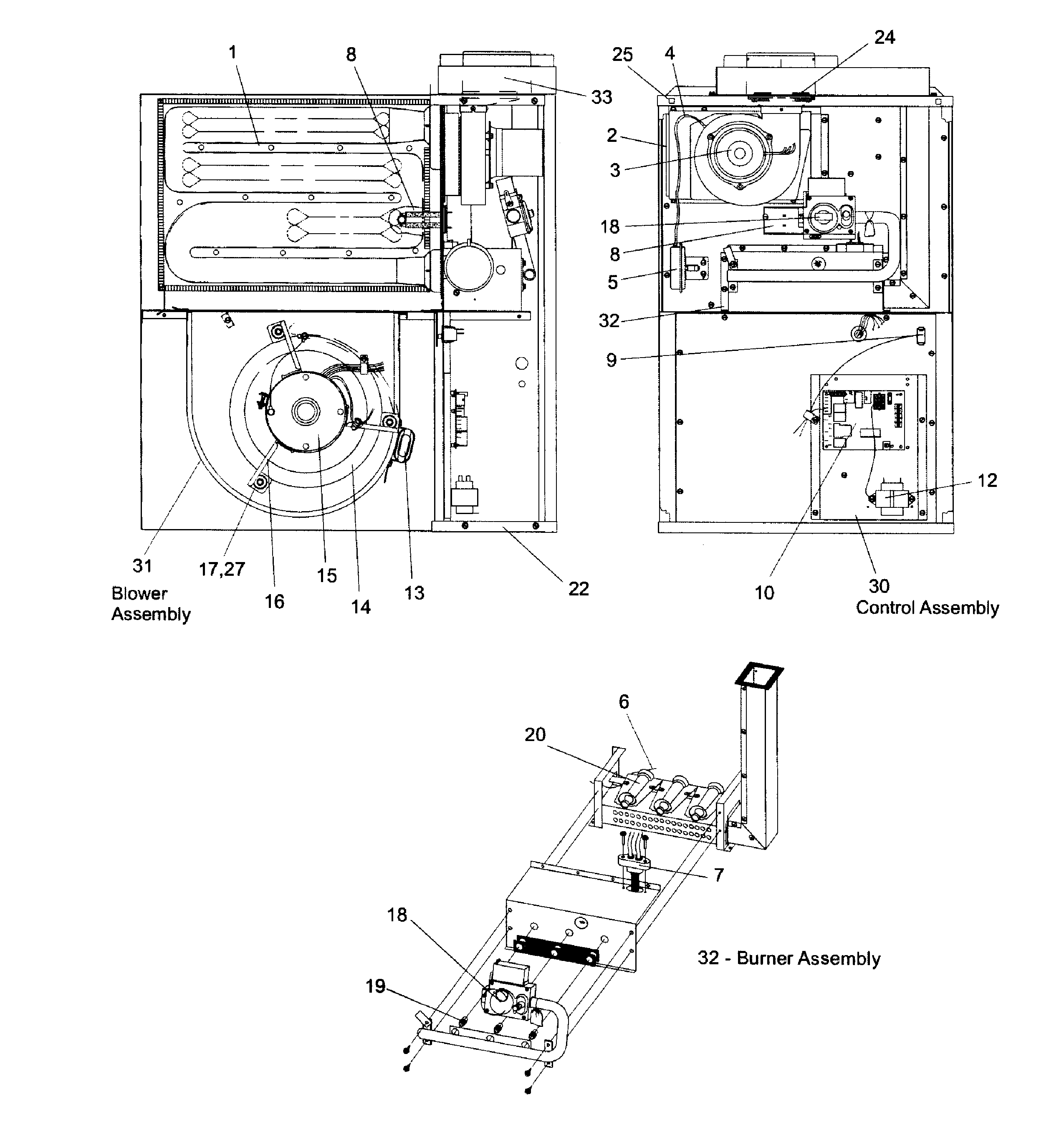

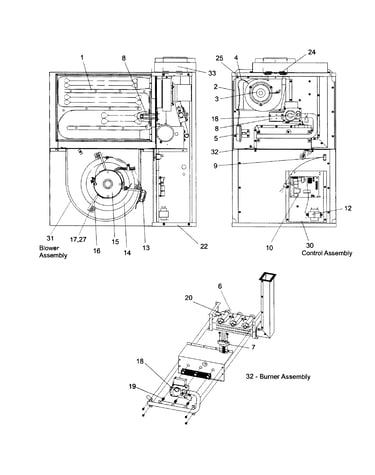

Gas furnace diagram

Burner

Part #2702-308P

The manufacturer no longer makes this part, and there's no substitute part

Furnace Transformer (replaces 026-34032-000) 2940A3541
#12

Gas furnace diagram

Furnace transformer (replaces 026-34032-000)

Part #2940A3541

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower 37322099041
#31

Gas furnace diagram

Furnace blower

Part #37322099041

The manufacturer no longer makes this part, and there's no substitute part

Orifice,gas-ng 5000-7000ft 9900-0861
#19C

Gas furnace diagram

Orifice,gas-ng 5000-7000ft

Part #9900-0861

The manufacturer no longer makes this part, and there's no substitute part

Control Box Assembly 2702-526
#30

Gas furnace diagram

Control box assembly

Part #2702-526

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Motor 02432082000
#15

Gas furnace diagram

Furnace blower motor

Part #02432082000

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 10mf/370v 1499-4491
#13

Gas furnace diagram

Capacitor 10mf/370v

Part #1499-4491

The manufacturer no longer makes this part, and there's no substitute part

Door Switch 02427640000
#9

Gas furnace diagram

Door switch

Part #02427640000

The manufacturer no longer makes this part, and there's no substitute part

Switch 02427576000
#5

Gas furnace diagram

Switch

Part #02427576000

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 02532794000
#18

Gas furnace diagram

Gas valve

Part #02532794000

The manufacturer no longer makes this part, and there's no substitute part
