Model # AU4441AT Official Eureka upright vacuum cleaner

Here are the diagrams and repair parts for Official Eureka AU4441AT upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

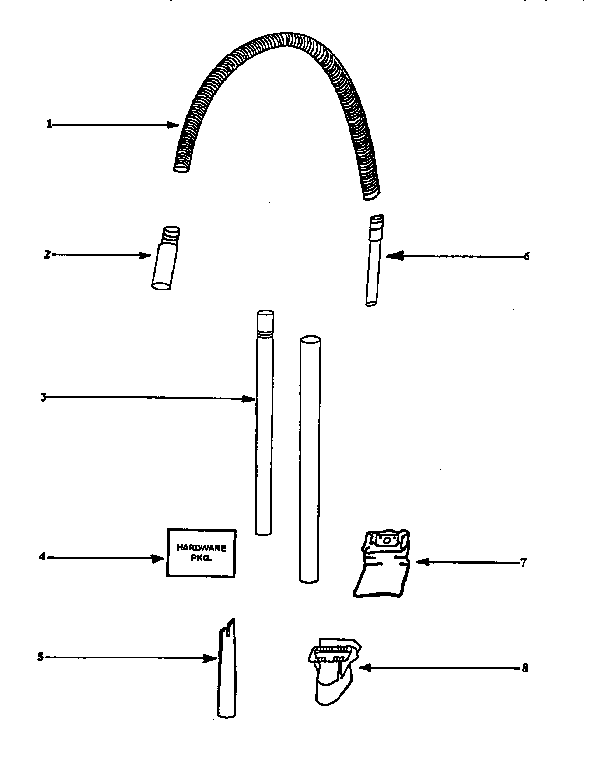

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |

Motor Shield 38688
#36

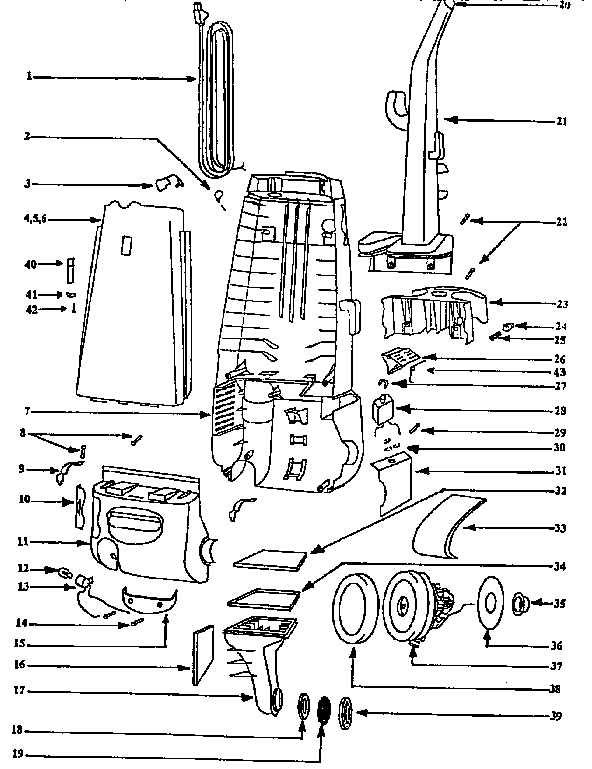

Handle and bag housing diagram

Motor shield

Part #38688

The manufacturer no longer makes this part, and there's no substitute part

Belt Guard 38063
#5

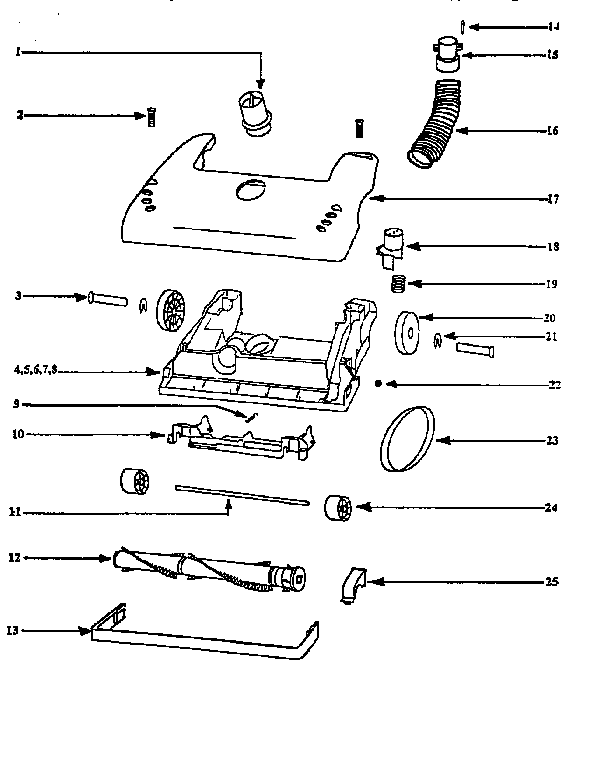

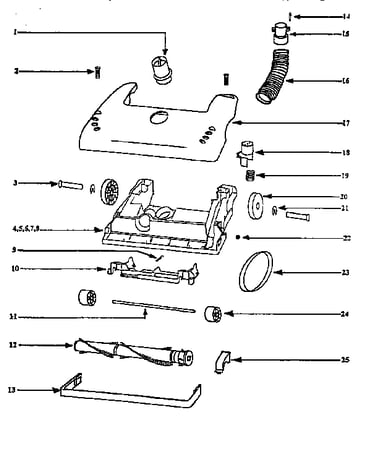

Nozzle and motor assembly diagram

Belt guard

Part #38063

The manufacturer no longer makes this part, and there's no substitute part

Flange Int 38638
#39

Handle and bag housing diagram

Flange int

Part #38638

The manufacturer no longer makes this part, and there's no substitute part

Hood Assembly 60069-12
#17

Nozzle and motor assembly diagram

Hood assembly

Part #60069-12

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-2
#6

Nozzle and motor assembly diagram

Gasket

Part #58506-2

The manufacturer no longer makes this part, and there's no substitute part

Motor 60171
#37

Handle and bag housing diagram

Motor

Part #60171

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw, 10-pack 53197-1
Carpet cleaner screw, 10-pack

Part #53197-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Guard 15234-288N
#13

Nozzle and motor assembly diagram

Vacuum furniture guard

Part #15234-288N

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Bag Level Indicator 37761-2
#40

Handle and bag housing diagram

Kenmore bag level indicator

Part #37761-2

The manufacturer no longer makes this part, and there's no substitute part

Rib Brush 60079
#8

Nozzle and motor assembly diagram

Rib brush

Part #60079

The manufacturer no longer makes this part, and there's no substitute part
