Model # ML-3/P74502-1M Official Amana radarange microwave - ml

Here are the diagrams and repair parts for Official Amana ML-3-P74502-1M radarange microwave - ml, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Torx Screw M0216616
#36

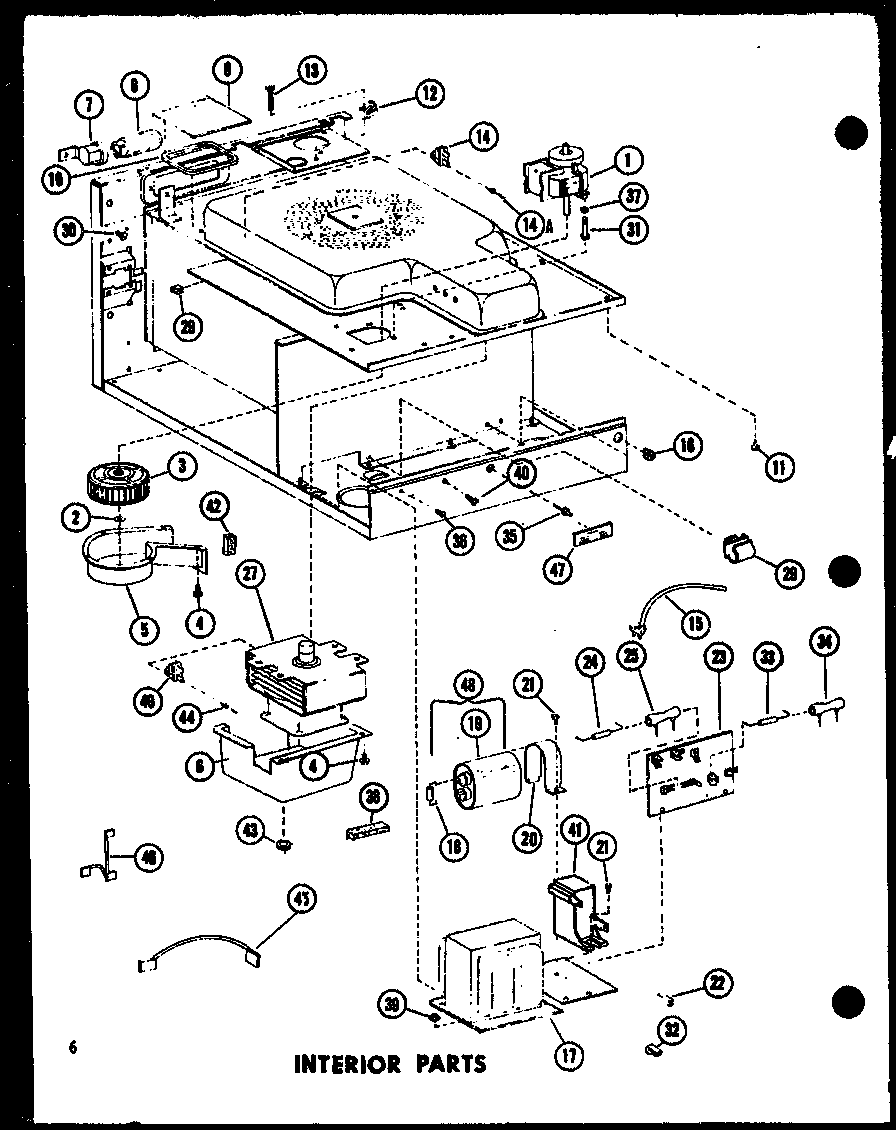

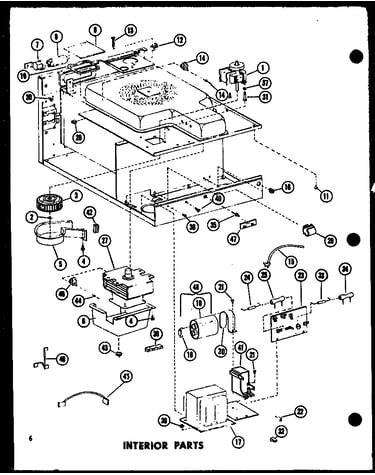

Transformer/capacitor/motor diagram

Torx screw

Part #M0216616

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0216616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bracket, Magnetron Mounting B5774401
#32

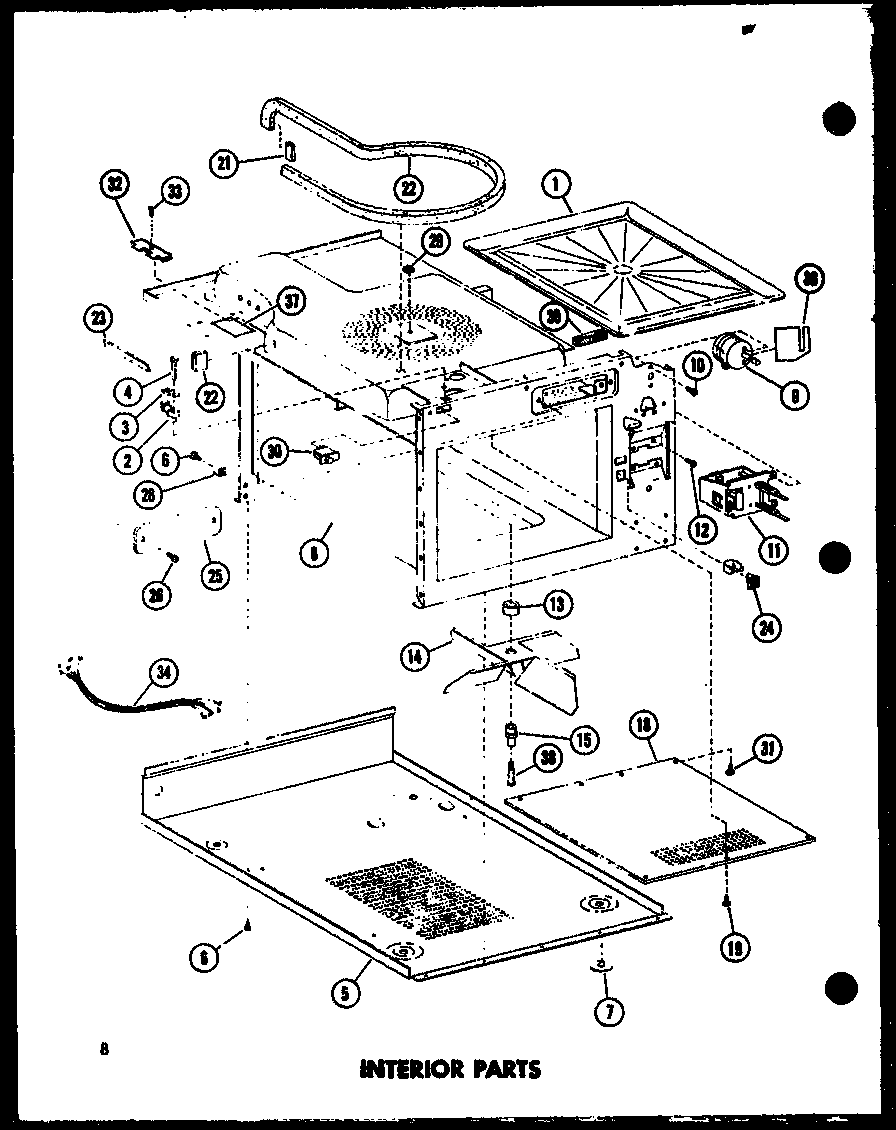

Interior parts diagram

Bracket, magnetron mounting

Part #B5774401

The manufacturer no longer makes this part, and there's no substitute part

Screw M0230015
Screw

Part #M0230015

The manufacturer no longer makes this part, and there's no substitute part

Gasket A3030333
#22

Interior parts diagram

Gasket

Part #A3030333

The manufacturer no longer makes this part, and there's no substitute part

Insualtor, For Transformer Terminal #1 M0325301
#22

Transformer/capacitor/motor diagram

Insualtor, for transformer terminal #1

Part #M0325301

The manufacturer no longer makes this part, and there's no substitute part

Grommet A3258801
#43

Transformer/capacitor/motor diagram

Grommet

Part #A3258801

The manufacturer no longer makes this part, and there's no substitute part

Screw, T.f, (outer Door To Handle) M0253719
#18

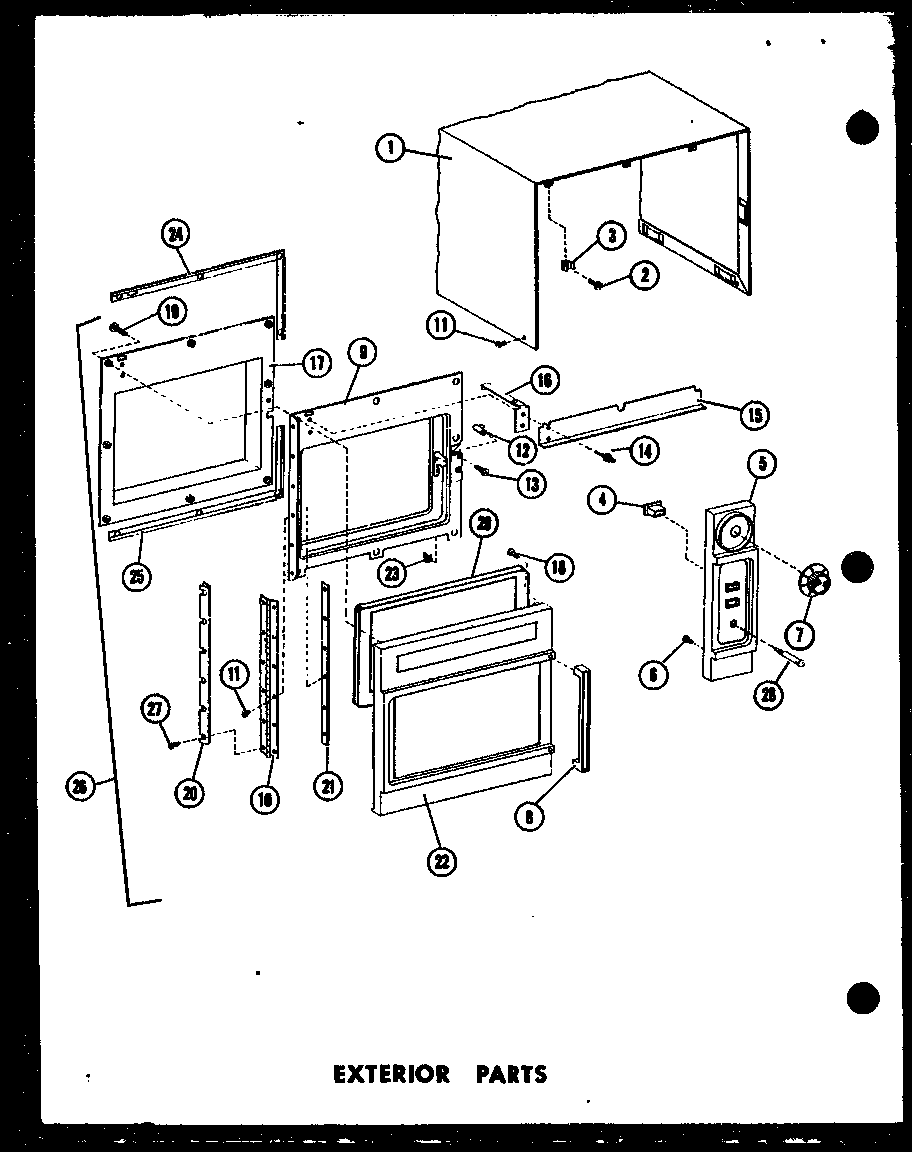

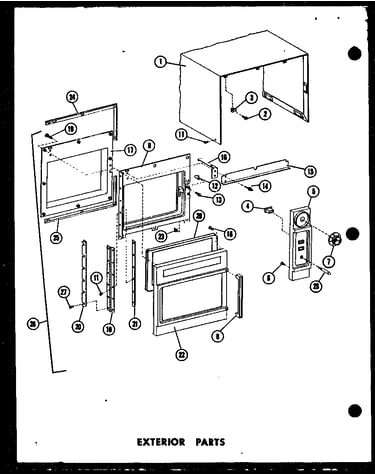

Exterior parts diagram

Screw, t.f, (outer door to handle)

Part #M0253719

The manufacturer no longer makes this part, and there's no substitute part

Cover Window Light A3213701
#9

Transformer/capacitor/motor diagram

Cover window light

Part #A3213701

The manufacturer no longer makes this part, and there's no substitute part

Terminal M0320901
#28

Interior parts diagram

Terminal

Part #M0320901

The manufacturer no longer makes this part, and there's no substitute part

Bushing Arm, Bottom C3696903
#2

Interior parts diagram

Bushing arm, bottom

Part #C3696903

The manufacturer no longer makes this part, and there's no substitute part
