GE
Room Air Conditioner

Model # AZ21E06D3CV6 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ21E06D3CV6 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Room Air Conditioner Rotary Switch WP28X56
#80

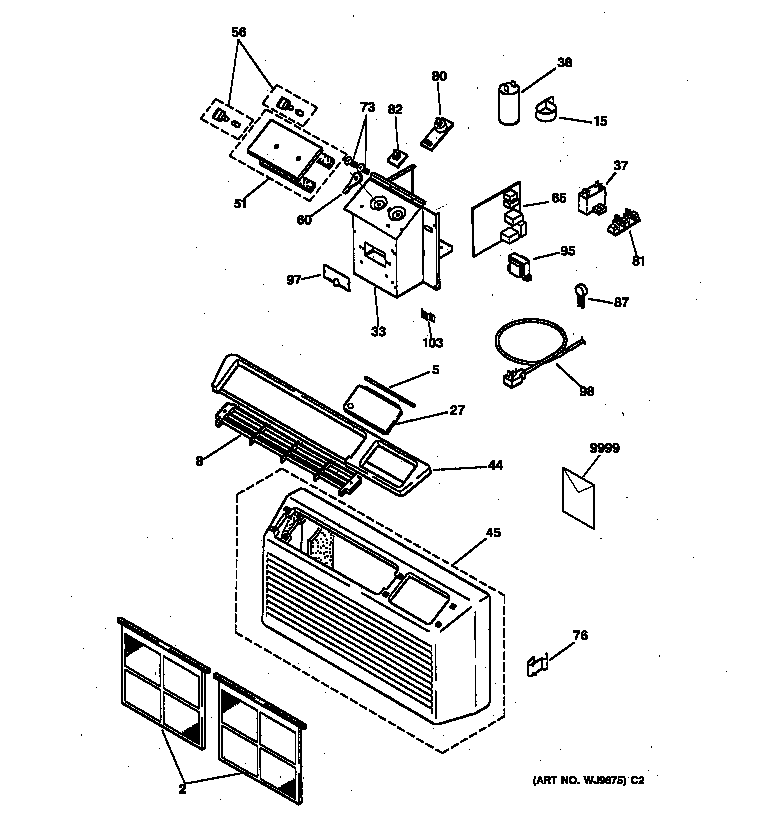

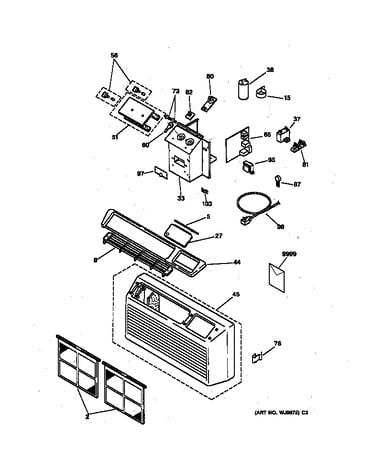

Controls & grill asm. diagram

Room air conditioner rotary switch

Part #WP28X56

$88.34 |
6% OFF Phone Price : $94.34
In Stock
Zoneline 210 49-7313
#9999B

Controls & grill asm. diagram

Zoneline 210

Part #49-7313

Replaced by #49-7365

?
Manufacturer substitution
This part replaces 49-7313. Substitute parts can look different from the original.
$8.49
In Stock
Capillary WJ53X128
#10

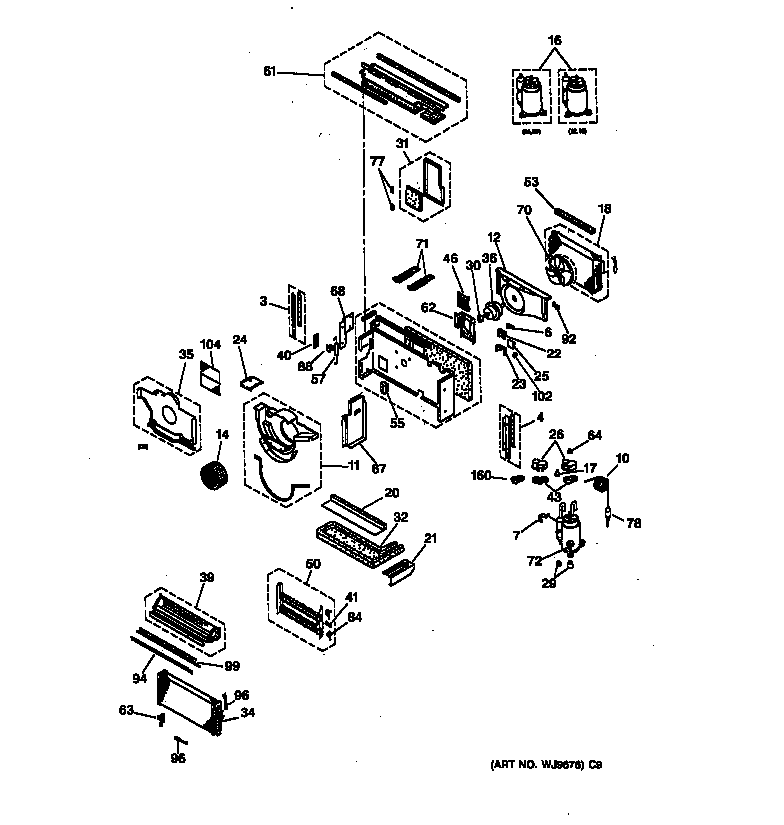

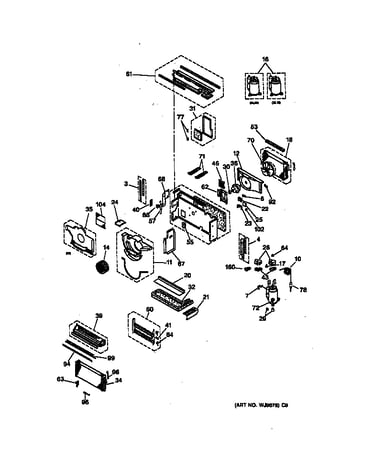

Motor, compressor & system components diagram

Capillary

Part #WJ53X128

The manufacturer no longer makes this part, and there's no substitute part

Terminal Base WP27X42
#81

Controls & grill asm. diagram

Terminal base

Part #WP27X42

The manufacturer no longer makes this part, and there's no substitute part

Clip WP2X36
#76

Controls & grill asm. diagram

Clip

Part #WP2X36

The manufacturer no longer makes this part, and there's no substitute part

Reinforcement Angle WP1X35
#94

Motor, compressor & system components diagram

Reinforcement angle

Part #WP1X35

The manufacturer no longer makes this part, and there's no substitute part

Shd Drip Try WP79X64
#21

Motor, compressor & system components diagram

Shd drip try

Part #WP79X64

The manufacturer no longer makes this part, and there's no substitute part

Knob Assembly WP12X14
#56

Controls & grill asm. diagram

Knob assembly

Part #WP12X14

The manufacturer no longer makes this part, and there's no substitute part

Fan Outdoor Asm WP73X06
#70

Motor, compressor & system components diagram

Fan outdoor asm

Part #WP73X06

The manufacturer no longer makes this part, and there's no substitute part

Seal/gsk Kit WJ43X411
#30

Motor, compressor & system components diagram

Seal/gsk kit

Part #WJ43X411

The manufacturer no longer makes this part, and there's no substitute part
