Electric Range

Model # RB533GW4 Official GE electric range

Here are the diagrams and repair parts for Official GE RB533GW4 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forRB533GW4 Ranges

  • Range Oven Light Bulb WX12X1510
    #1024

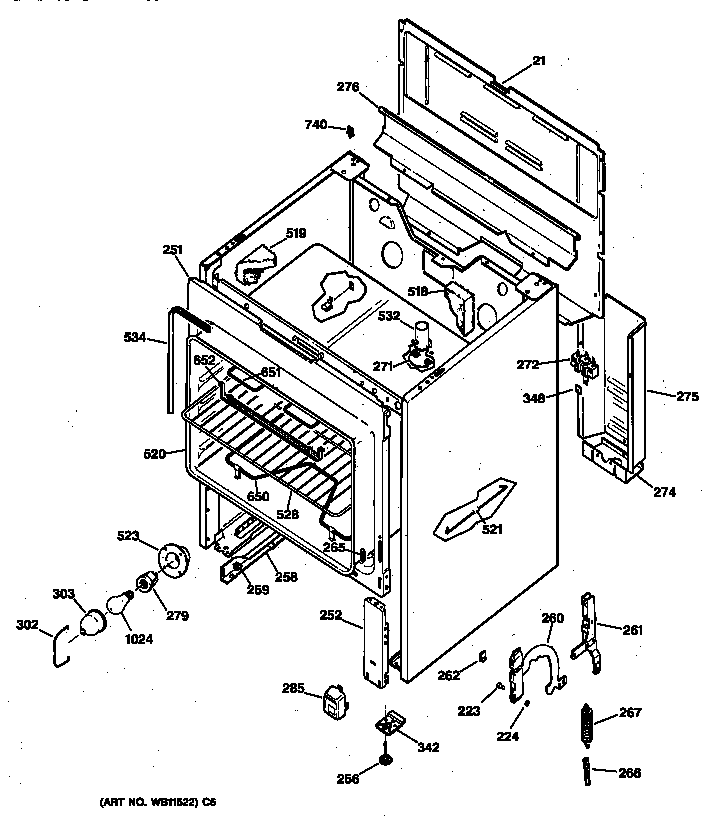

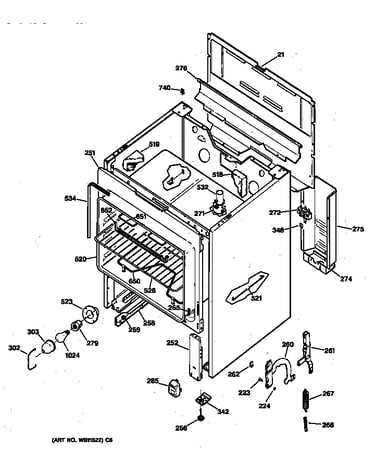

    Body parts diagram

    Range oven light bulb

    Part #WX12X1510

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces WX12X1510. Substitute parts can look different from the original.
    BEST SELLER
    $13.61
    15% OFF Phone Price : $16.03
    In Stock
  • Range Drip Pan WB32X5075
    #154

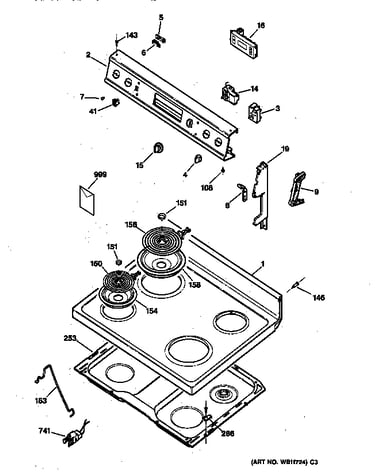

    Control panel & cooktop diagram

    Range drip pan

    Part #WB32X5075

    Replaced by #WB31K10265

    ?
    Manufacturer substitution
    This part replaces WB32X5075. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $7.82
    11% OFF Phone Price : $8.82
    In Stock
  • Trim WB7X7195
    #359

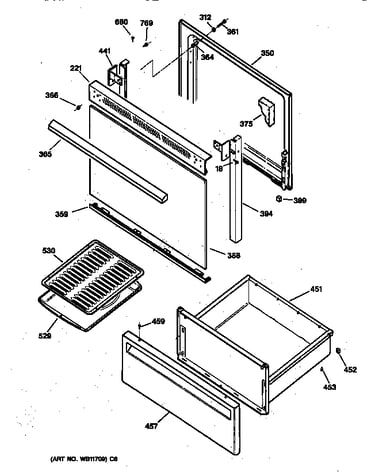

    Door & drawer parts diagram

    Trim

    Part #WB7X7195

    Replaced by #WB07K10232

    ?
    Manufacturer substitution
    This part replaces WB7X7195. Substitute parts can look different from the original.
    This item is not returnable
    $22.91
    21% OFF Phone Price : $28.91
    In Stock
  • Range Oven Control Thermostat WB20X5071
    #14

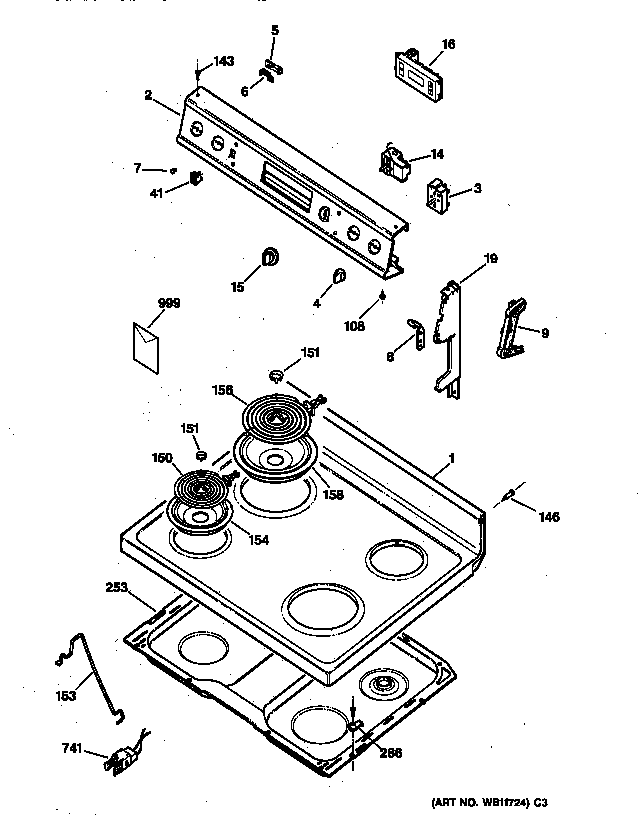

    Control panel & cooktop diagram

    Range oven control thermostat

    Part #WB20X5071

    $143.73
    8% OFF Phone Price : $155.73
    In Stock
  • Grid Broiler Pan WB48X5107
    #530

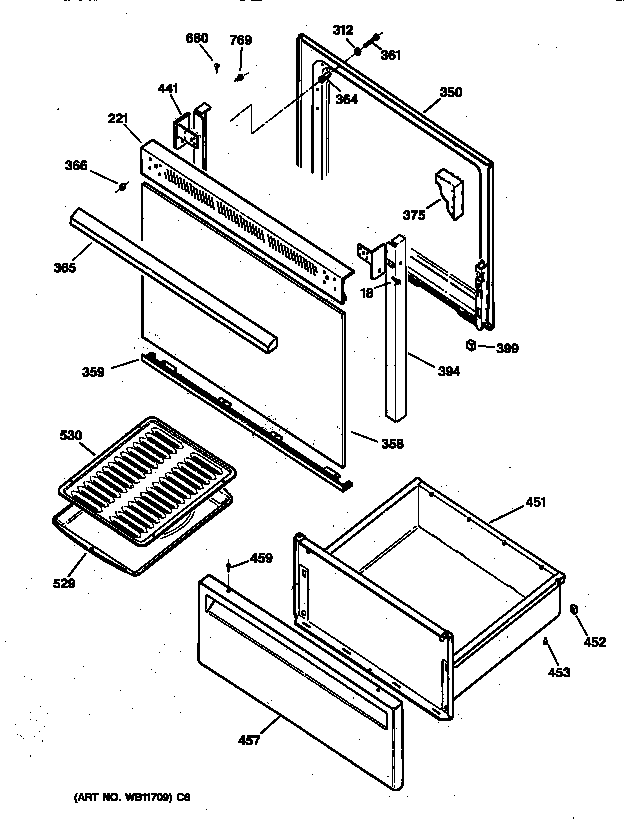

    Door & drawer parts diagram

    Grid broiler pan

    Part #WB48X5107

    Replaced by #WB48X10056

    ?
    Manufacturer substitution
    This part replaces WB48X5107. Substitute parts can look different from the original.
    $31.87
    16% OFF Phone Price : $37.87
    In Stock
  • Lamp Switch WB24X5347
    #41

    Control panel & cooktop diagram

    Lamp switch

    Part #WB24X5347

    Replaced by #WB24T10042

    ?
    Manufacturer substitution
    This part replaces WB24X5347. Substitute parts can look different from the original.
    $22.73
    21% OFF Phone Price : $28.73
    In Stock
  • Broiler Pan WB49X5547
    #529

    Door & drawer parts diagram

    Broiler pan

    Part #WB49X5547

    Replaced by #WB48X10056

    ?
    Manufacturer substitution
    This part replaces WB49X5547. Substitute parts can look different from the original.
    $31.87
    16% OFF Phone Price : $37.87
    In Stock
  • Screw WB1X500
    #769

    Door & drawer parts diagram

    Screw

    Part #WB1X500

    Replaced by #WB1X500D

    ?
    Manufacturer substitution
    This part replaces WB1X500. Substitute parts can look different from the original.
    This item is not returnable
    $8.22
    11% OFF Phone Price : $9.22
    In Stock
  • Refrigerator Screw WR1X1850
    #680

    Door & drawer parts diagram

    Refrigerator screw

    Part #WR1X1850

    This item is not returnable
    $7.95
    11% OFF Phone Price : $8.95
    In Stock
  • Range Bake Element WB44X10009
    #650

    Body parts diagram

    Range bake element

    Part #WB44X10009

    $72.51
    8% OFF Phone Price : $78.51
    In Stock
