Maytag
Countertop Microwave

Model # CME501 Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag CME501 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

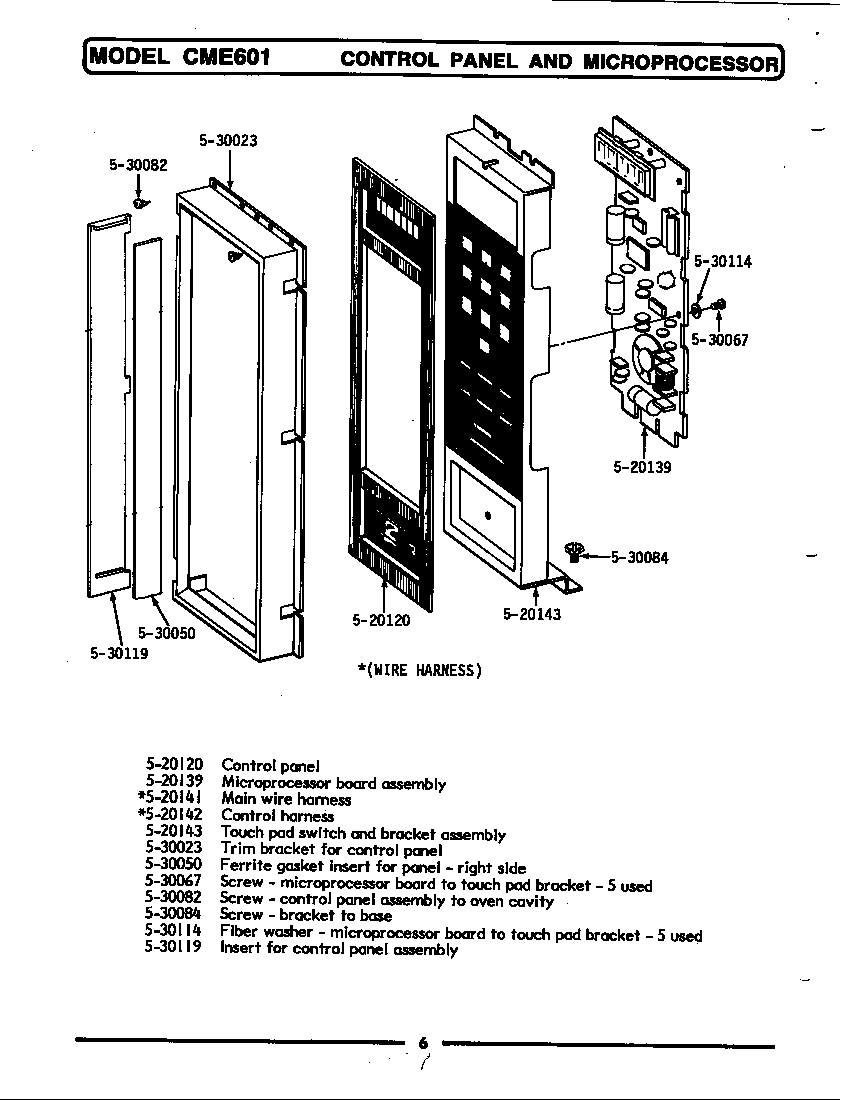

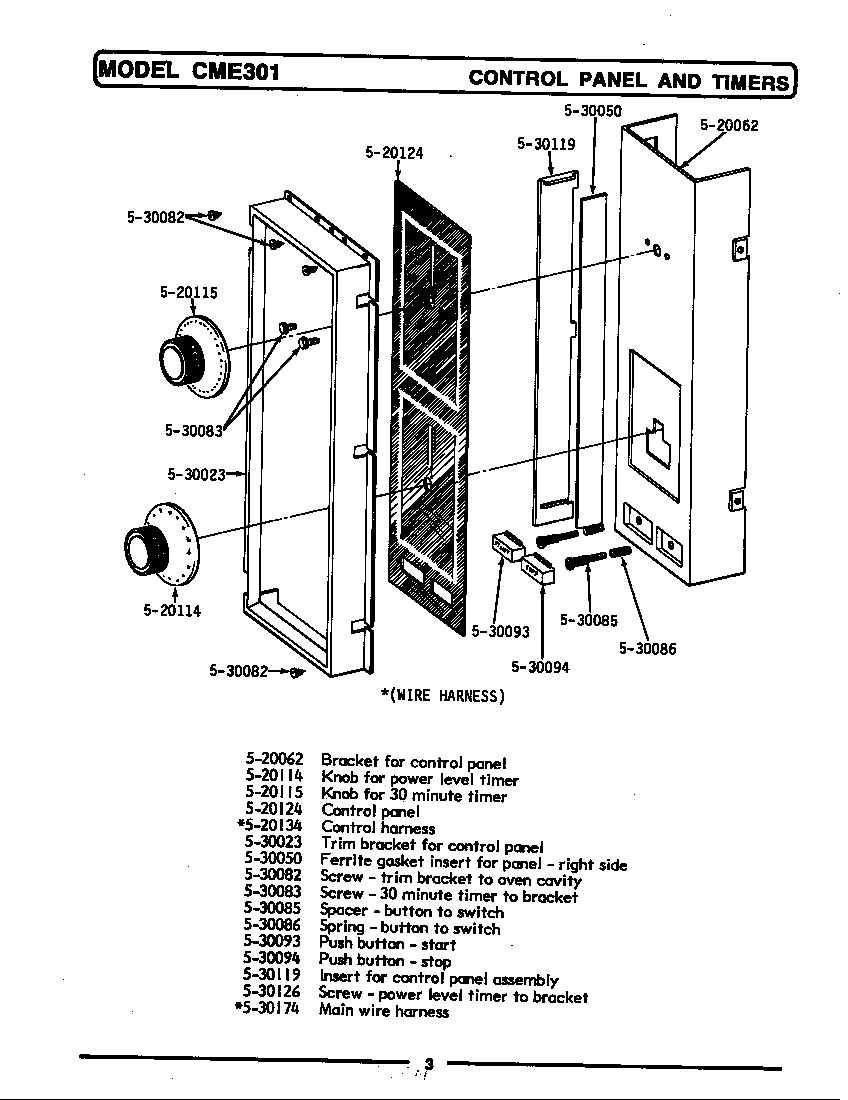

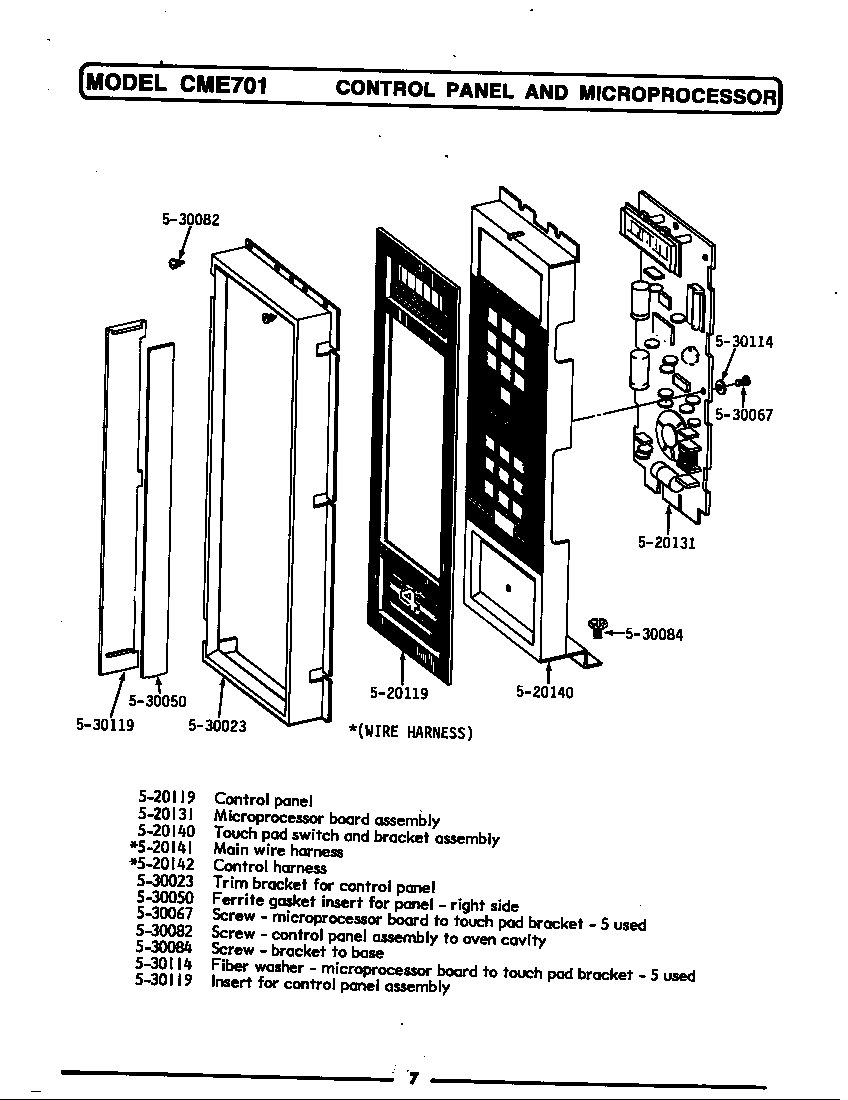

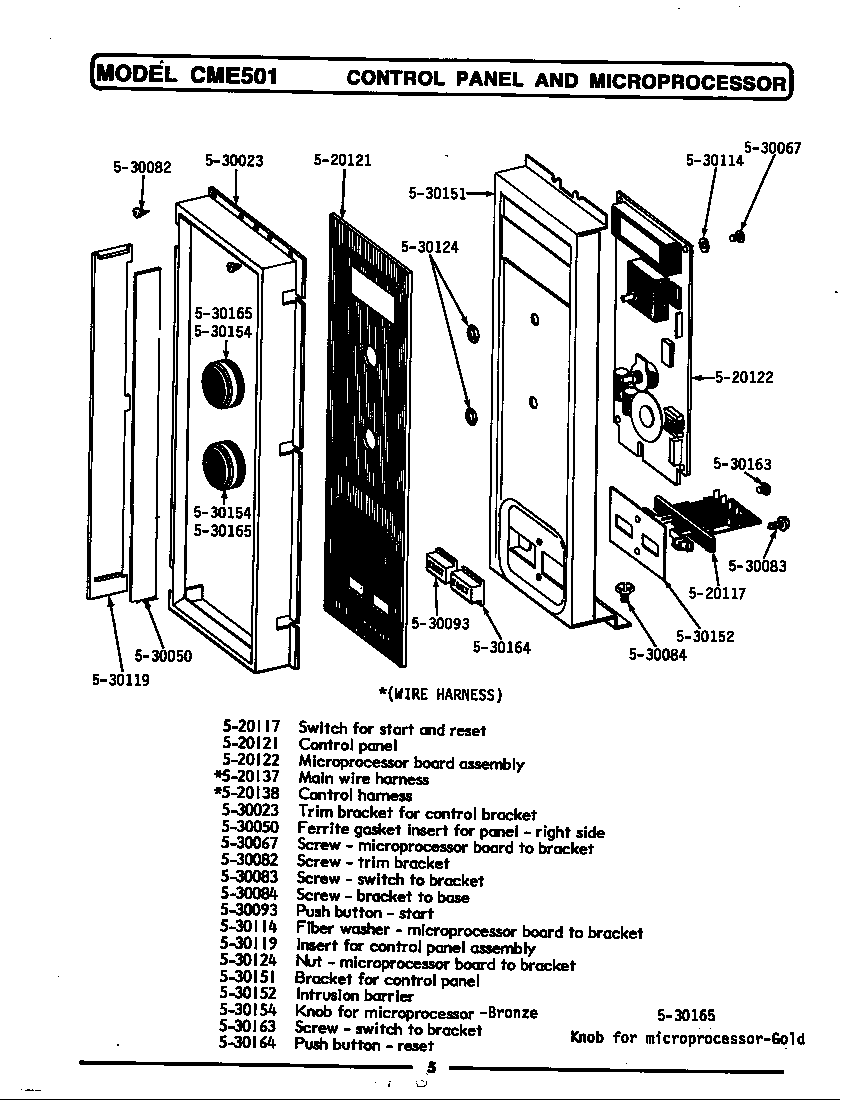

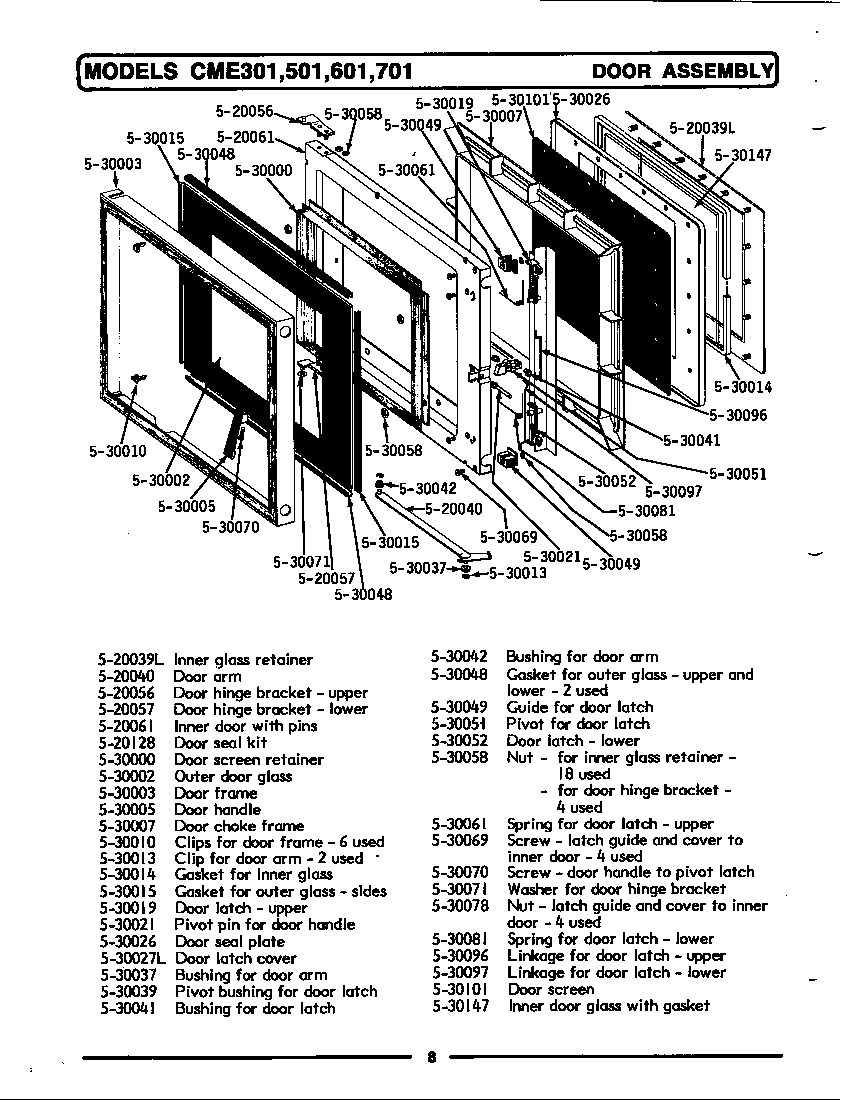

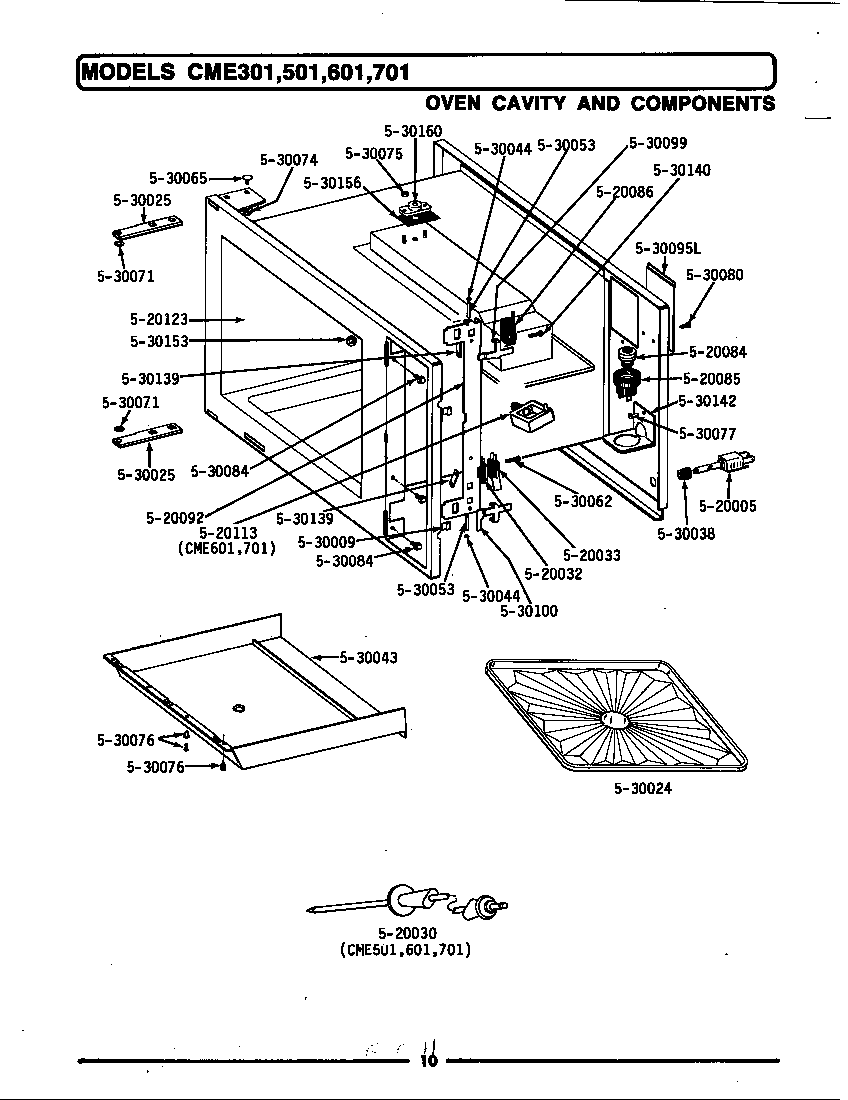

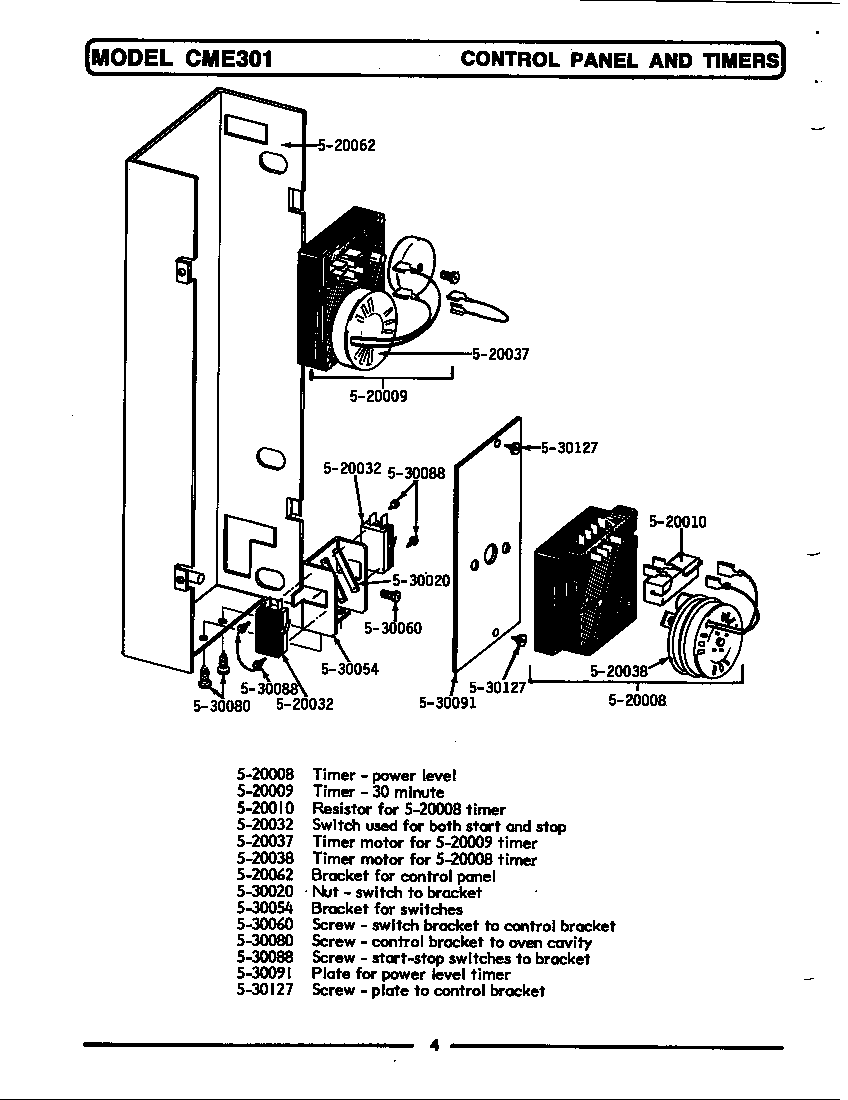

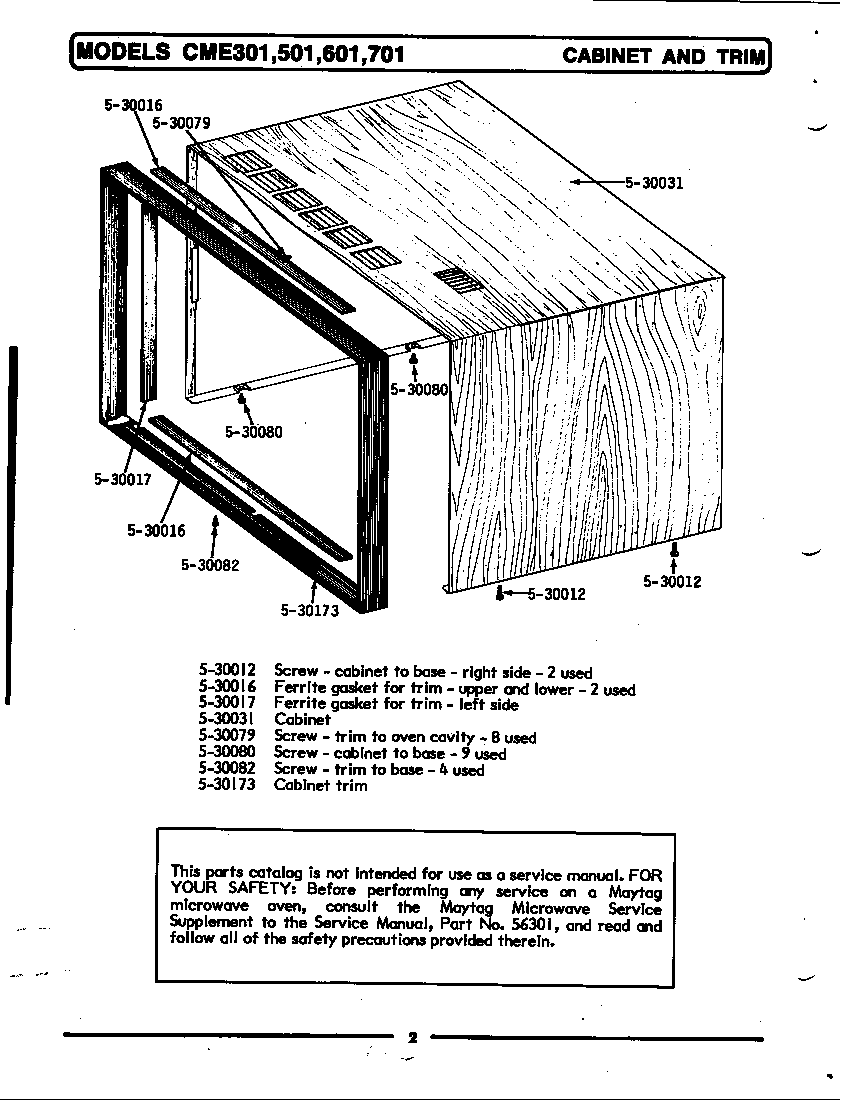

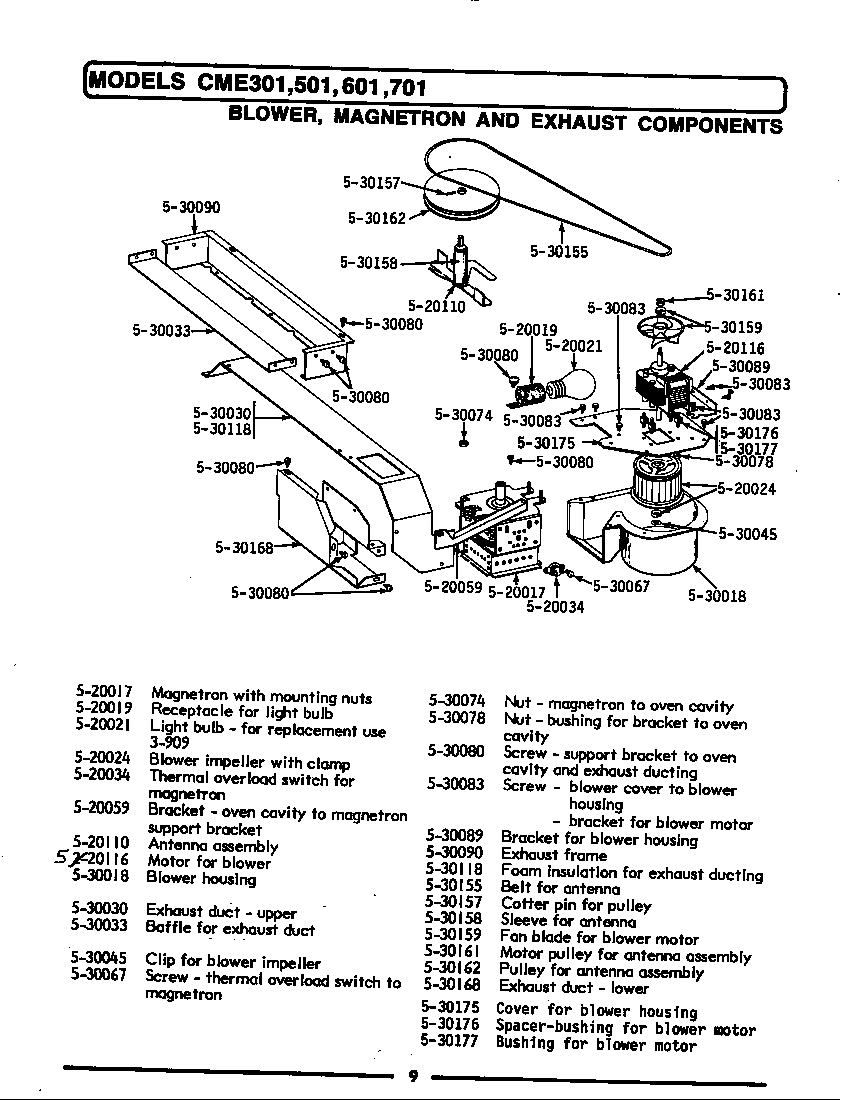

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Screw 580021
#13

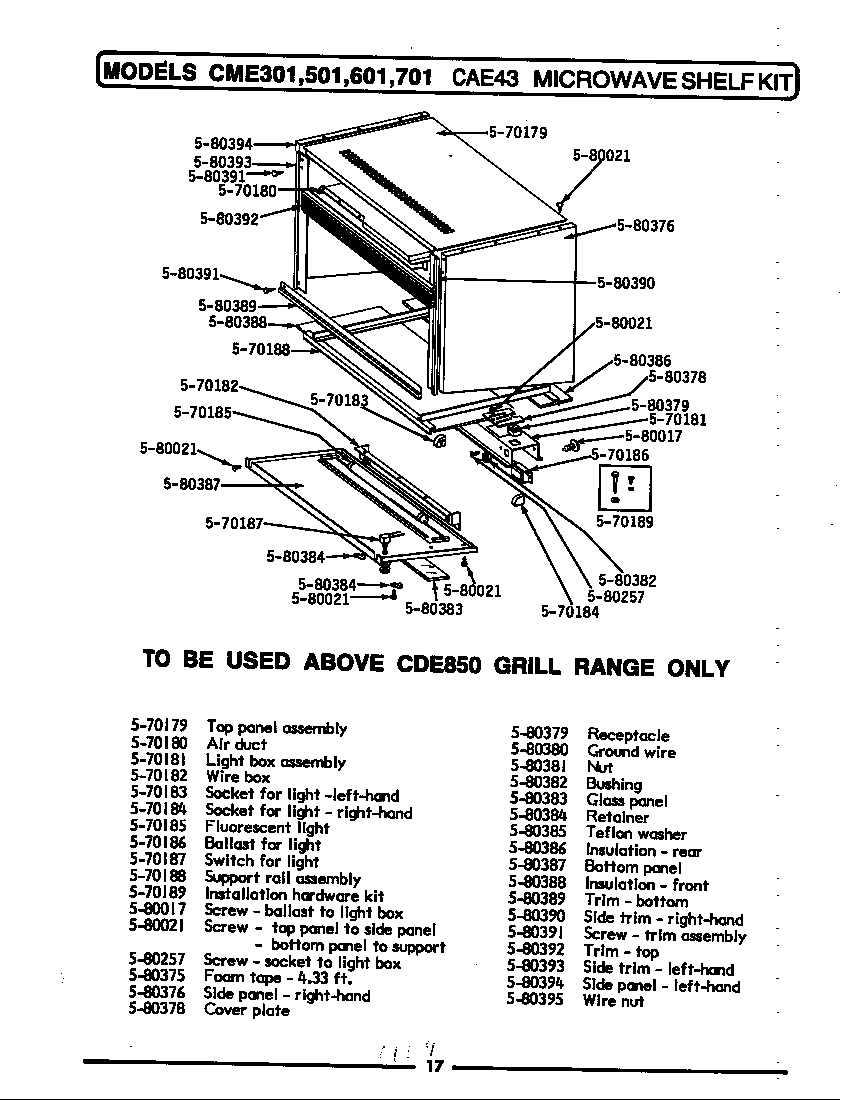

Microwave shelf kit diagram

Screw

Part #580021

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 580021. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
"screw, #8 X" 530080
"screw, #8 x"

Part #530080

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 530080. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 580079
#3

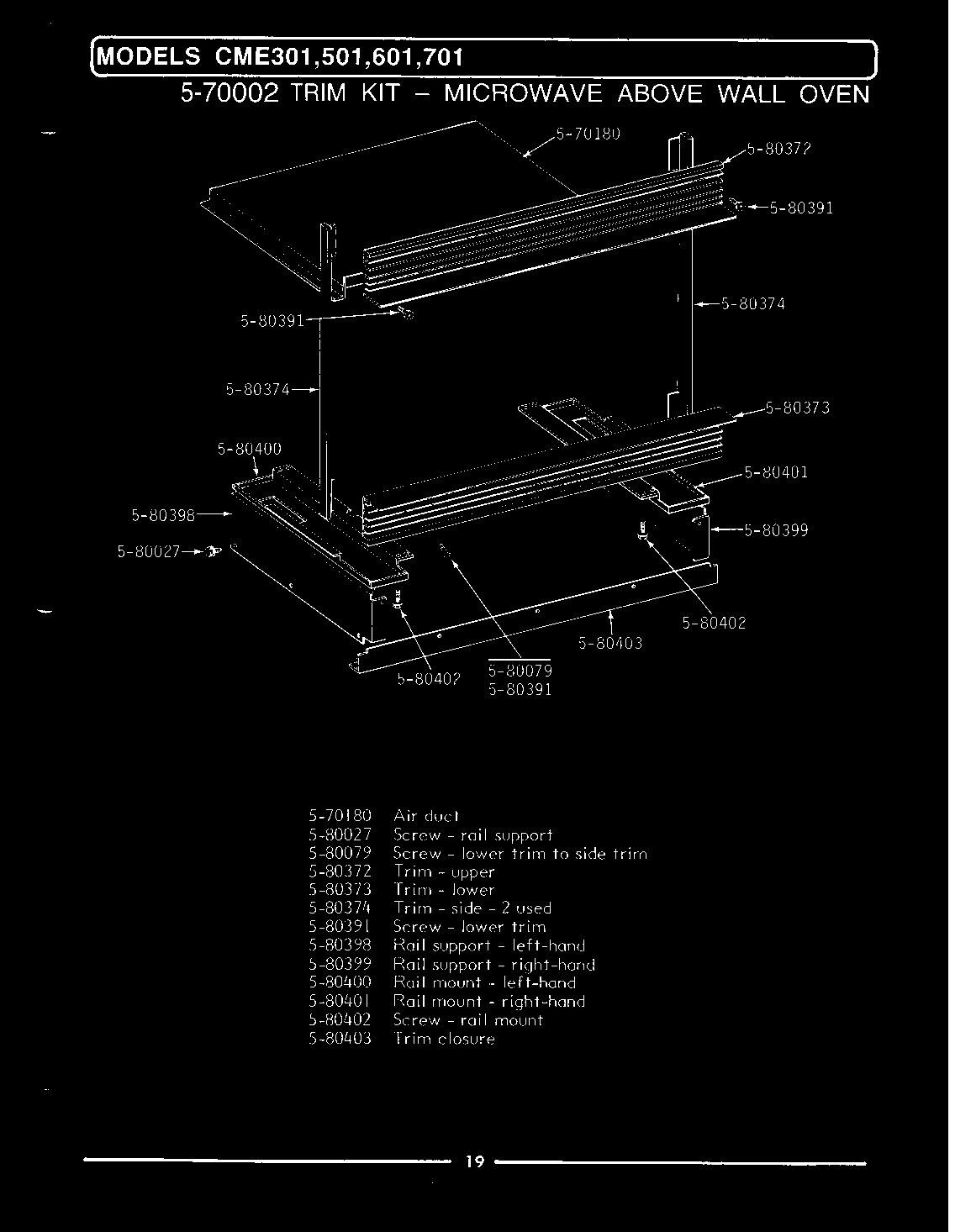

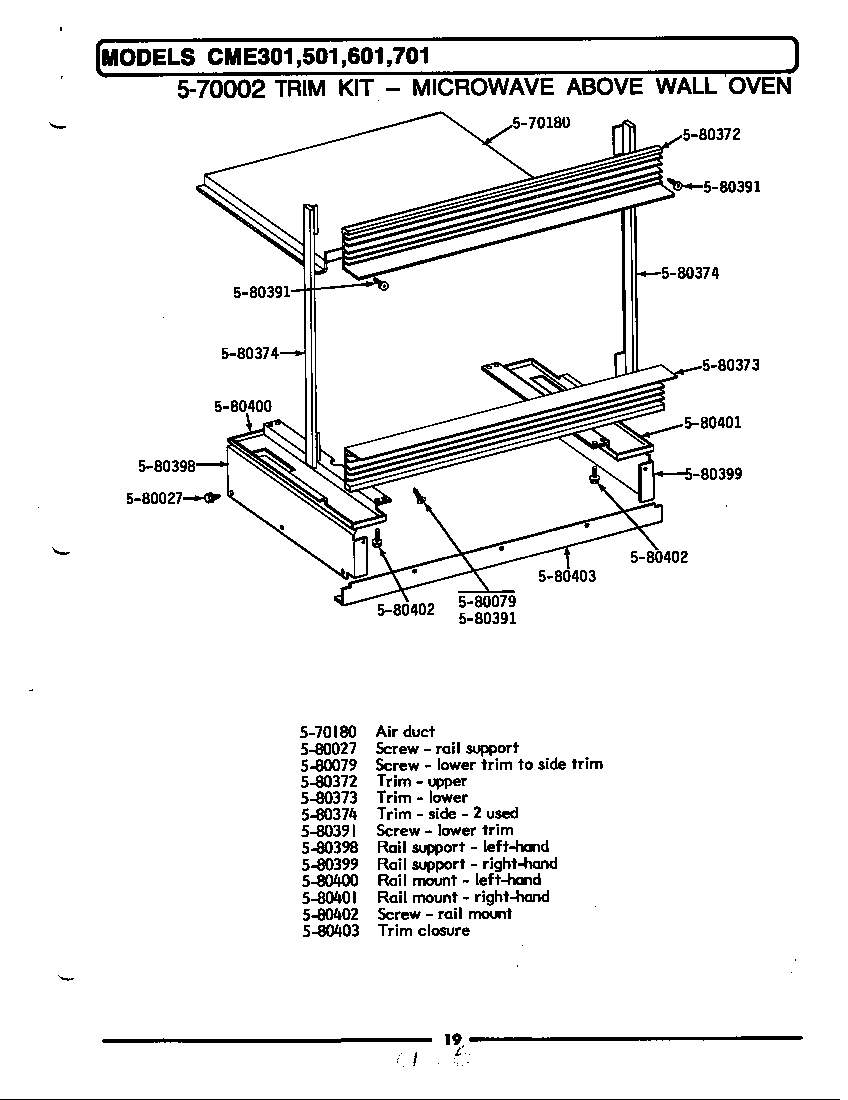

Trim kit (above wall oven) diagram

Screw

Part #580079

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 580079. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 580402
#12

Trim kit (above wall oven) diagram

Screw

Part #580402

Replaced by #WP71001171

?
Manufacturer substitution
This part replaces 580402. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 580027
#2

Trim kit (above wall oven) diagram

Screw

Part #580027

Replaced by #M0216703

?
Manufacturer substitution
This part replaces 580027. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw 530083
Screw

Part #530083

Replaced by #M0216703

?
Manufacturer substitution
This part replaces 530083. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw 580017
#12

Microwave shelf kit diagram

Screw

Part #580017

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 580017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut 580381
#21

Microwave shelf kit diagram

Nut

Part #580381

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 580381. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Power Relay 520130
#13

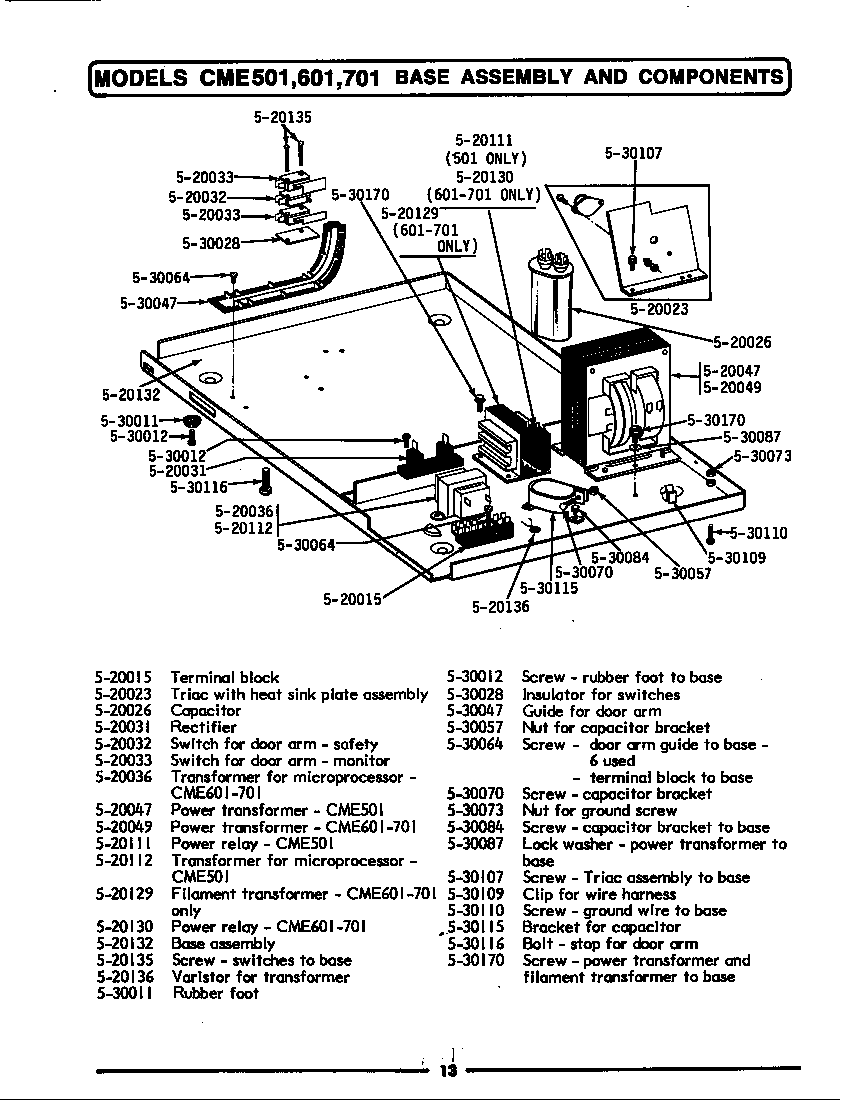

Base assembly & components (501,601,701) (cme501) (cme601) (cme701) diagram

Power relay

Part #520130

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 530087
Lock washer

Part #530087

The manufacturer no longer makes this part, and there's no substitute part
