Model # LC-60LC6400U Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-60LC6400U lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Screw LX-BZA207WJF7
#18

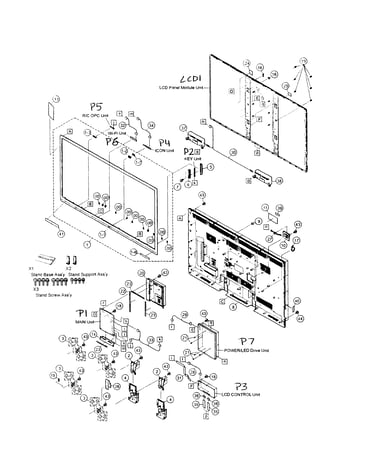

Cabinet parts diagram

Screw

Part #LX-BZA207WJF7

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Neck CANGKD276WJ01
#X2

Cabinet parts diagram

Television stand neck

Part #CANGKD276WJ01

The manufacturer no longer makes this part, and there's no substitute part

Icon Pcb DUNTKG014FM01
#P4

Cabinet parts diagram

Icon pcb

Part #DUNTKG014FM01

The manufacturer no longer makes this part, and there's no substitute part

Wire Holder LHLDWA124WJKZ
#16

Cabinet parts diagram

Wire holder

Part #LHLDWA124WJKZ

The manufacturer no longer makes this part, and there's no substitute part

Television Remote Control Electronic Control Board DUNTKG015FM01
#P5

Cabinet parts diagram

Television remote control electronic control board

Part #DUNTKG015FM01

The manufacturer no longer makes this part, and there's no substitute part

Ferrite RCORFA061WJZZ
#36

Cabinet parts diagram

Ferrite

Part #RCORFA061WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Vesa Angle CANGKD484WJ31
#3

Cabinet parts diagram

Vesa angle

Part #CANGKD484WJ31

The manufacturer no longer makes this part, and there's no substitute part

Screw XEBS830P12000
#44

Cabinet parts diagram

Screw

Part #XEBS830P12000

The manufacturer no longer makes this part, and there's no substitute part

Connector Cord QCNW-M505WJQZ
#32

Cabinet parts diagram

Connector cord

Part #QCNW-M505WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Cover,ac GCOVAD981WJ3A
#10

Cabinet parts diagram

Cover,ac

Part #GCOVAD981WJ3A

The manufacturer no longer makes this part, and there's no substitute part
