Model # 867741441 Official Kenmore oil-fired basement furnace

Here are the diagrams and repair parts for Official Kenmore 867741441 oil-fired basement furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Furnace Blower Fan Wheel 601210
#2B

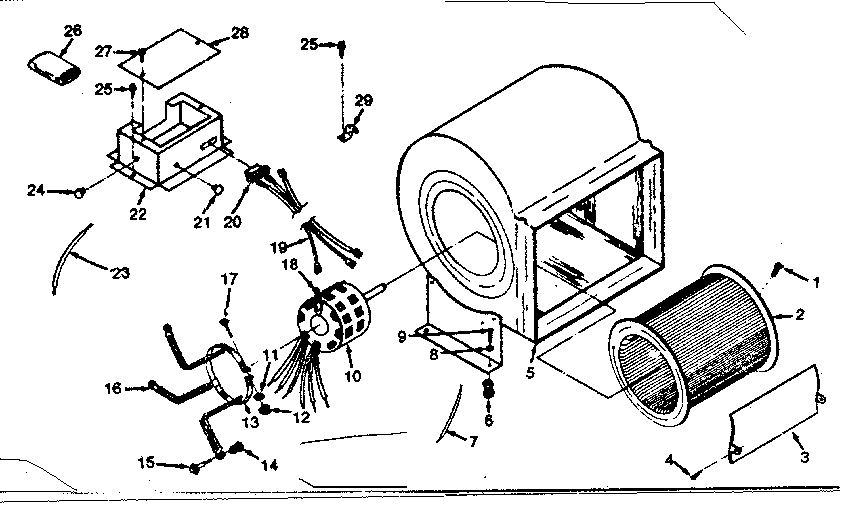

Blower assembly diagram

Furnace blower fan wheel

Part #601210

$194.16
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#2A

Blower assembly diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Blower Motor 604006
#10

Blower assembly diagram

Blower motor

Part #604006

Replaced by #1012514

?
Manufacturer substitution
This part replaces 604006. Substitute parts can look different from the original.
$345.23 |
$12.00 OFF Phone Price : $357.23
In Stock
Furnace Blower Fan Motor Mounting Kit 609227

#NI

All parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Coupling 610466
#21

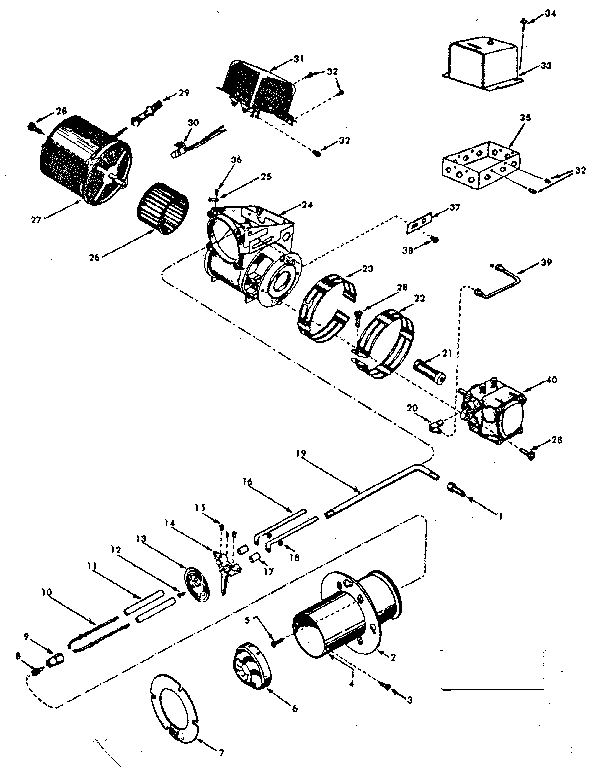

Functional replacement parts diagram

Coupling

Part #610466

$31.62
In Stock
Fan Relay 92840

#NI

All parts diagram

Fan relay

Part #92840

The manufacturer no longer makes this part, and there's no substitute part

Gasket 602104
#36

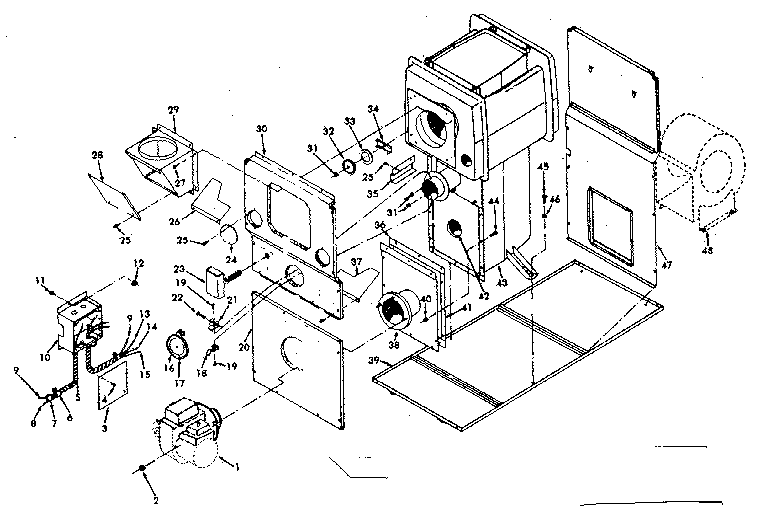

Burner assembly diagram

Gasket

Part #602104

Replaced by #1007882

?
Manufacturer substitution
This part replaces 602104. Substitute parts can look different from the original.
$93.62
In Stock
Screw 609206
#15

Blower assembly diagram

Screw

Part #609206

Replaced by #1050254

?
Manufacturer substitution
This part replaces 609206. Substitute parts can look different from the original.
$125.18
In Stock
Air Filter 64502
#7

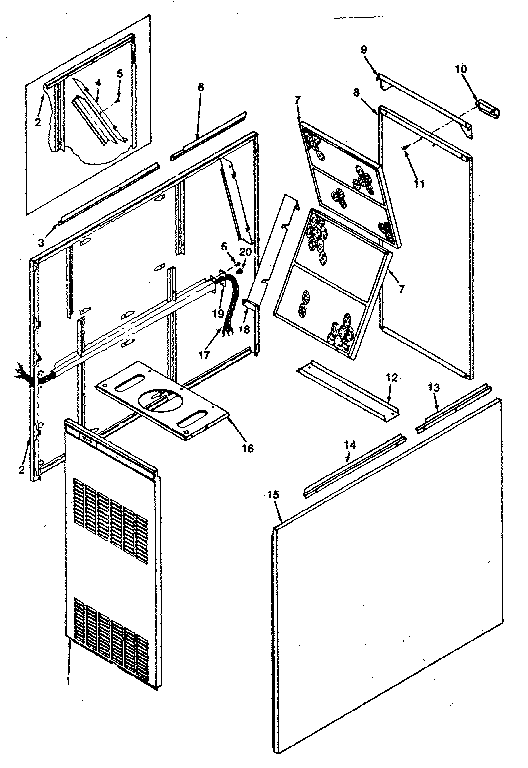

Furnace body diagram

Air filter

Part #64502

The manufacturer no longer makes this part, and there's no substitute part

Comb Chamber 606639
#42B

Burner assembly diagram

Comb chamber

Part #606639

Replaced by #1007852

?
Manufacturer substitution
This part replaces 606639. Substitute parts can look different from the original.
$426.37
In Stock
