Model # RF263TEAEWW/AA-04 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF263TEAEWW-AA-04 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

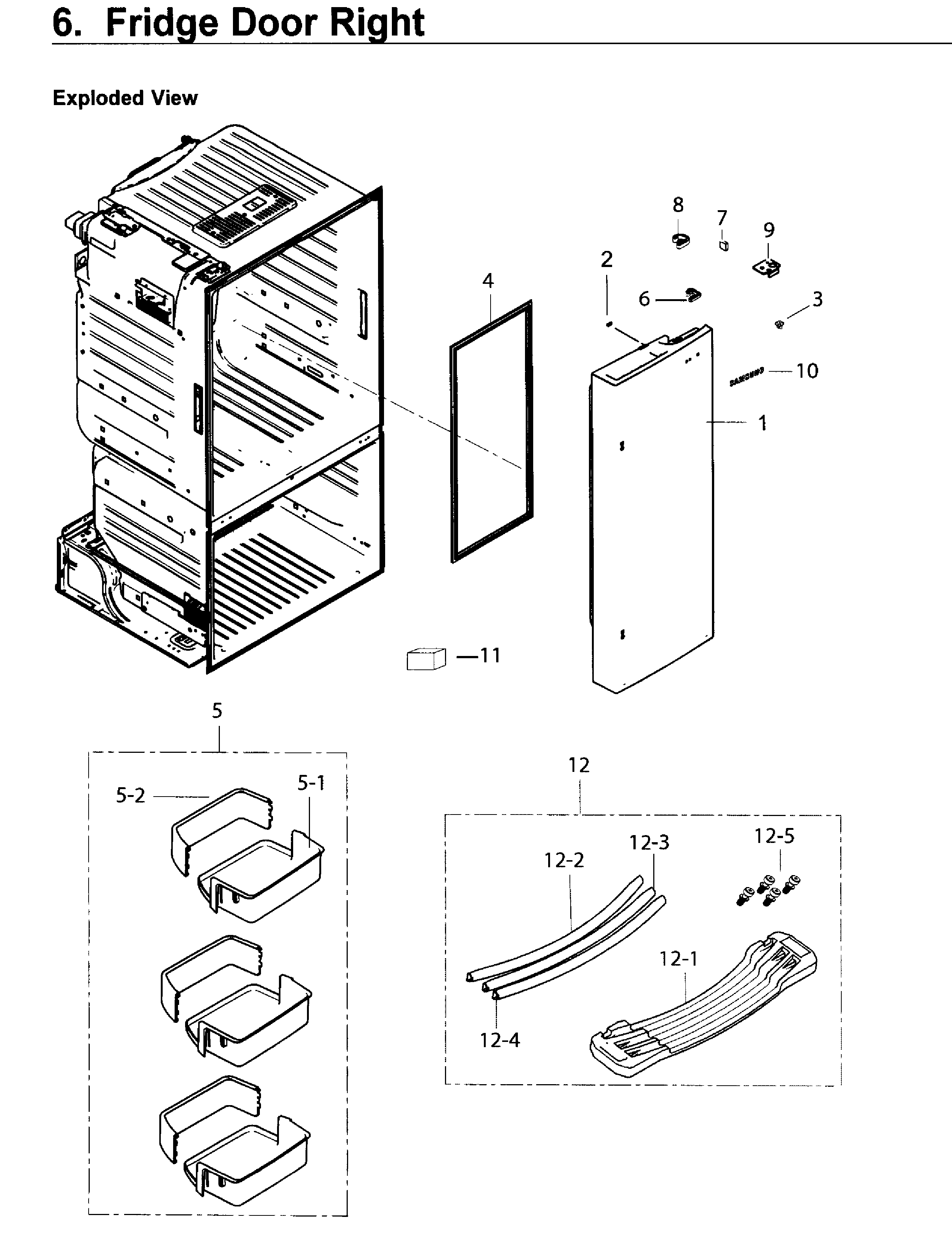

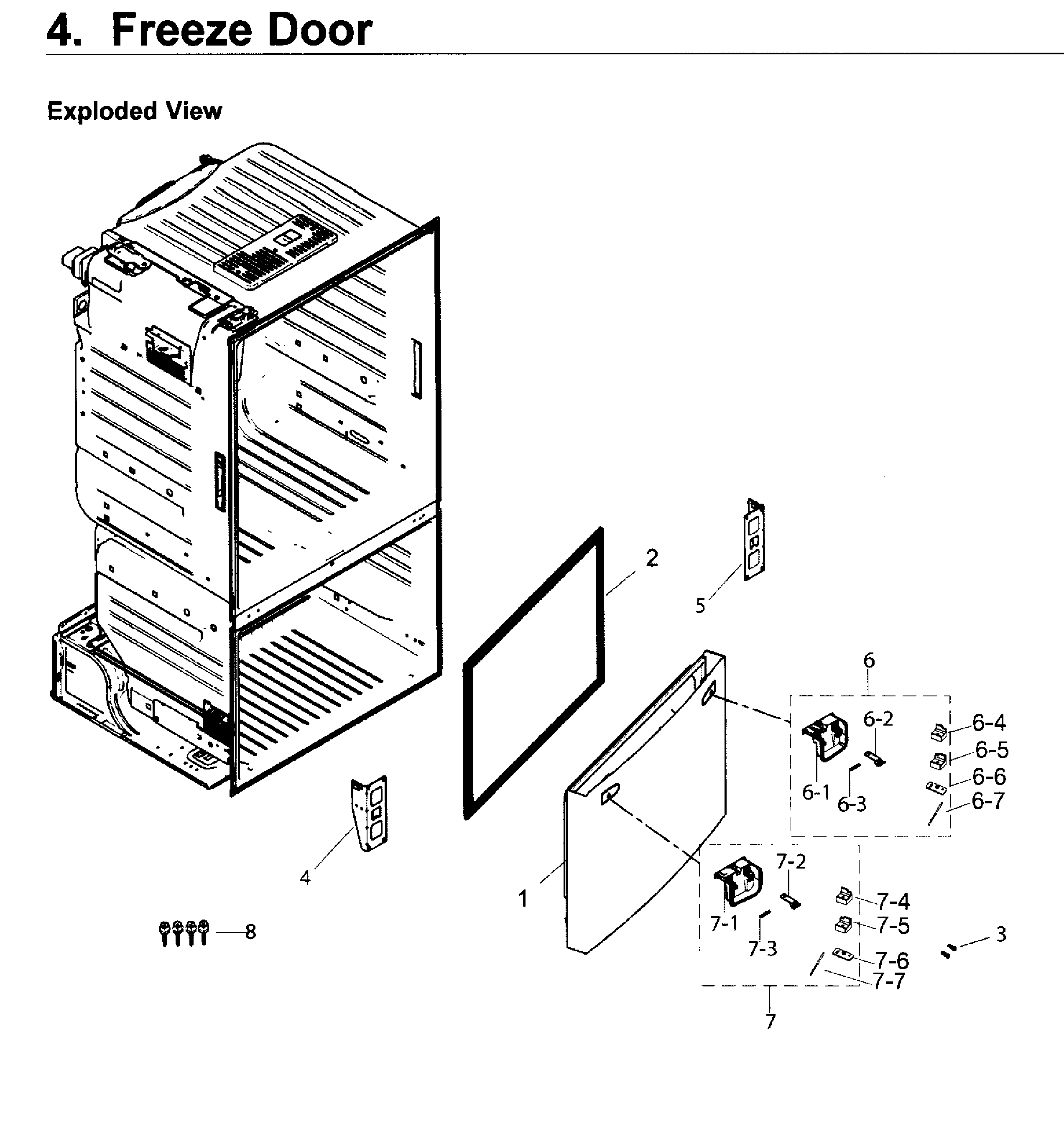

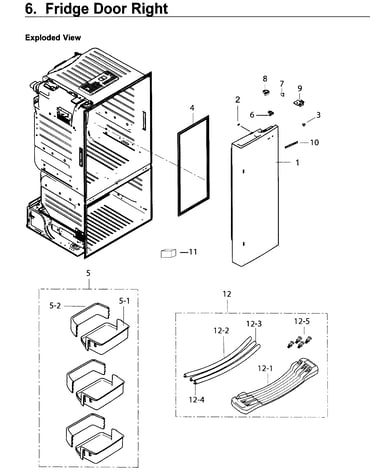

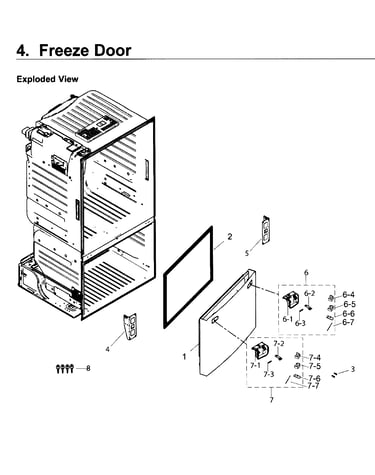

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 313 parts  |
Refrigerator Ice Maker Assembly DA97-15217A
#17

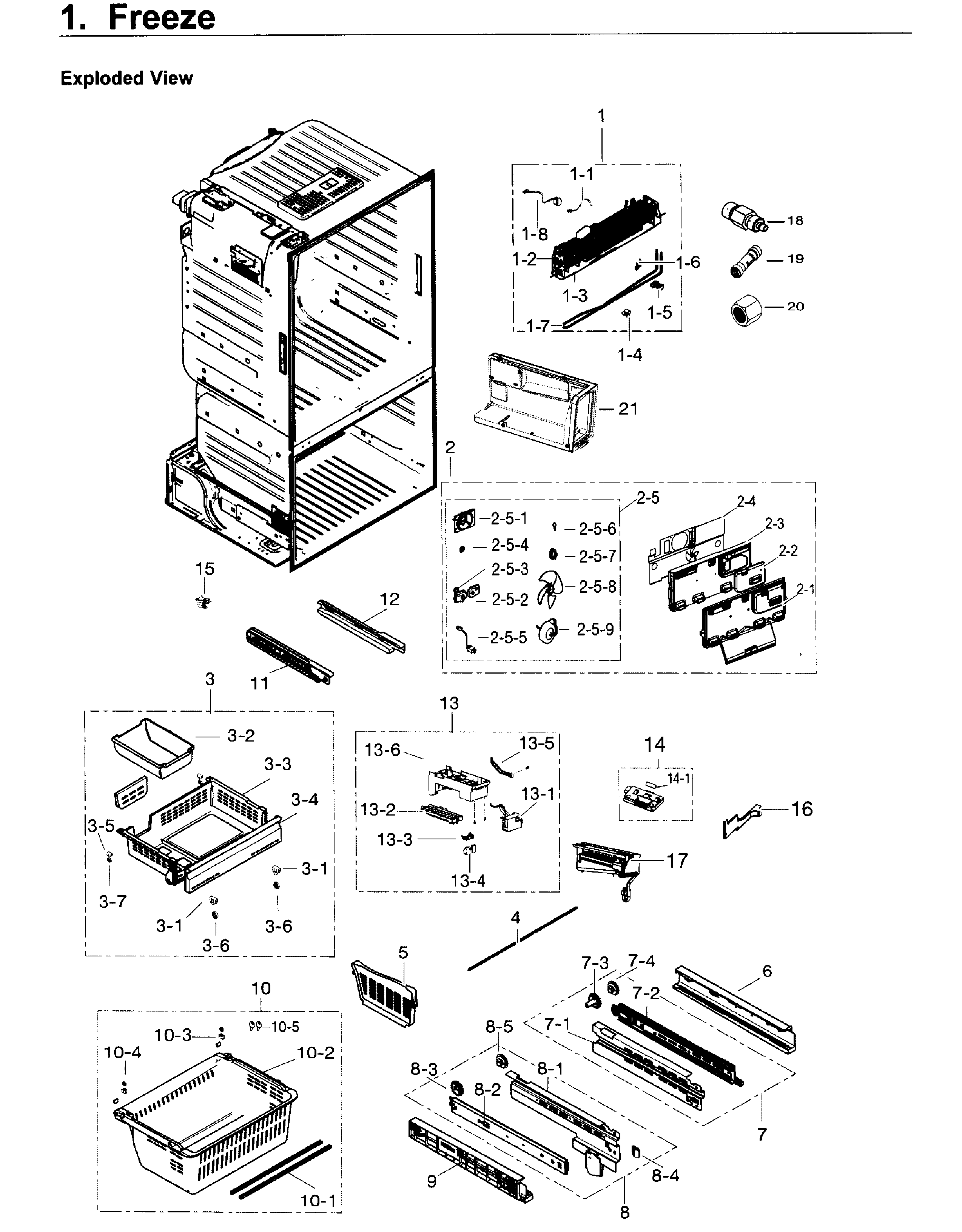

Freezer / icemaker diagram

Refrigerator ice maker assembly

Part #DA97-15217A

Replaced by #DA97-15217D

?
Manufacturer substitution
This part replaces DA97-15217A. Substitute parts can look different from the original.
BEST SELLER
$103.20 |
10% OFF Phone Price : $115.20
In Stock
Refrigerator Ice Maker Evaporator Fan DA97-12540A
#21

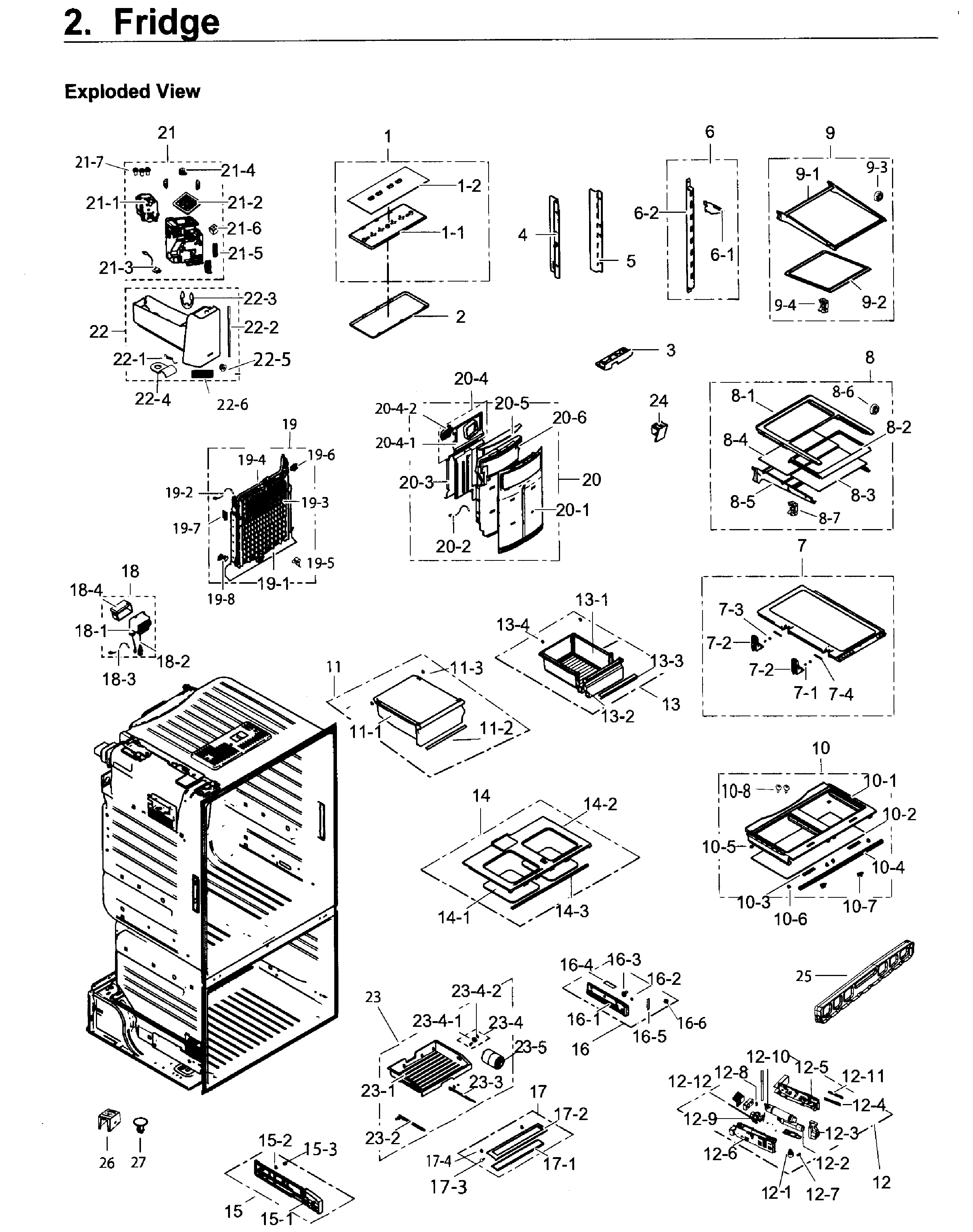

Fridge diagram

Refrigerator ice maker evaporator fan

Part #DA97-12540A

Replaced by #DA97-12540G

?
Manufacturer substitution
This part replaces DA97-12540A. Substitute parts can look different from the original.
BEST SELLER
$232.17 |
8% OFF Was : $252.36
In Stock
Refrigerator Temperature Sensor DA32-10104N
Refrigerator temperature sensor

Part #DA32-10104N

BEST SELLER
$25.45 |
19% OFF Phone Price : $31.45
In Stock
Refrigerator Ice Container Assembly DA97-12604D
#22

Fridge diagram

Refrigerator ice container assembly

Part #DA97-12604D

Replaced by #DA97-14474C

?
Manufacturer substitution
This part replaces DA97-12604D. Substitute parts can look different from the original.
BEST SELLER
$162.88 |
7% OFF Phone Price : $174.88
In Stock
Refrigerator Evaporator Fan Assembly DA97-12609A
#20

Fridge diagram

Refrigerator evaporator fan assembly

Part #DA97-12609A

Replaced by #DA97-12609C

?
Manufacturer substitution
This part replaces DA97-12609A. Substitute parts can look different from the original.
BEST SELLER
$228.37 |
5% OFF Phone Price : $240.37
In Stock
Refrigerator Ice Maker Assembly (replaces Da61-05227a, Da97-07603a) DA97-07603B
#13

Freezer / icemaker diagram

Refrigerator ice maker assembly (replaces da61-05227a, da97-07603a)

Part #DA97-07603B

BEST SELLER
$164.41 |
7% OFF Phone Price : $176.41
In Stock
Refrigerator Protector DA47-00243B
#1-8

Freezer / icemaker diagram

Refrigerator protector

Part #DA47-00243B

Replaced by #DA47-00243K

?
Manufacturer substitution
This part replaces DA47-00243B. Substitute parts can look different from the original.
BEST SELLER
$42.63 |
12% OFF Phone Price : $48.63
In Stock
Refrigerator Dispenser Ice Chute Cap And Gasket Assembly DA97-12594A
#9

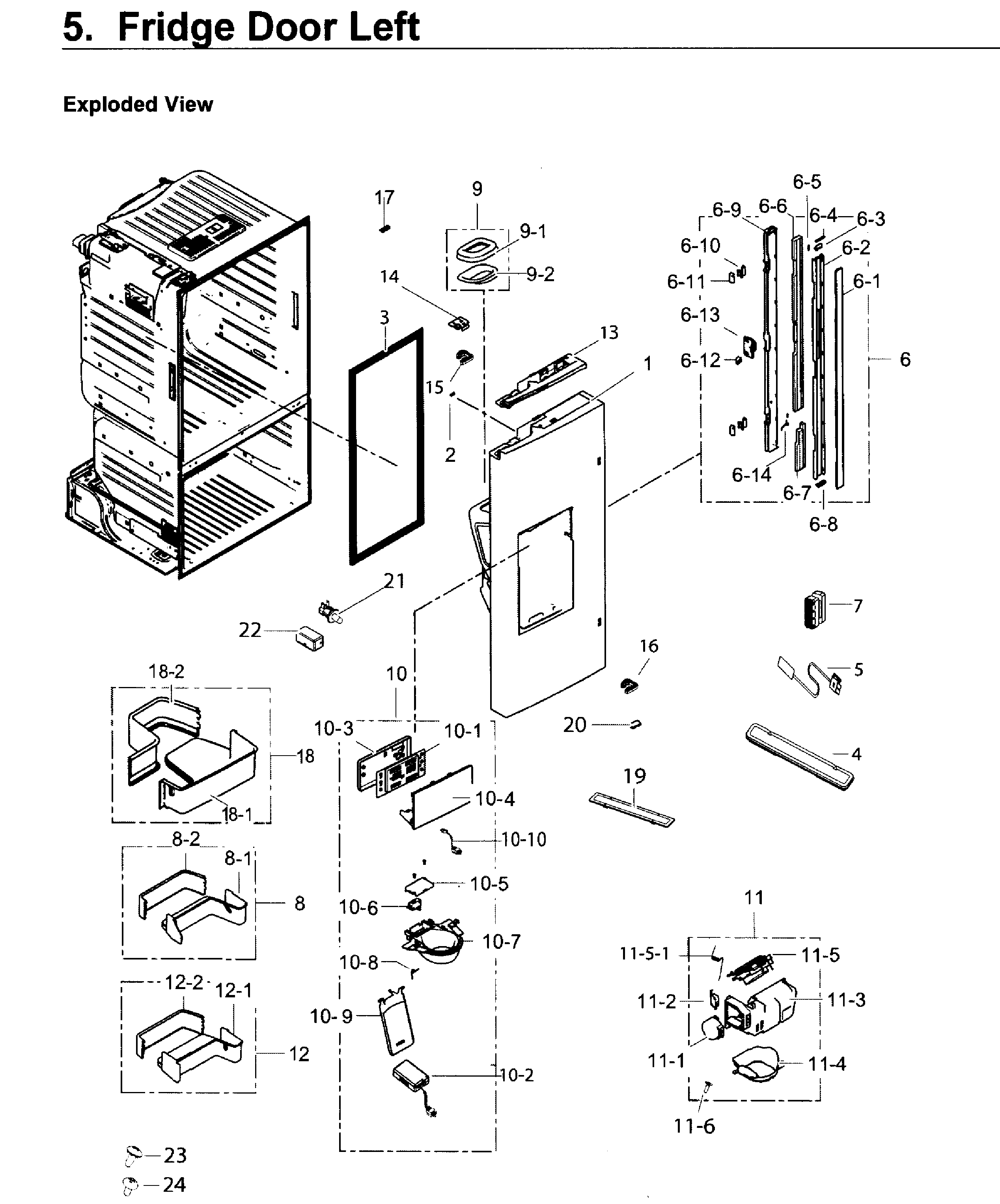

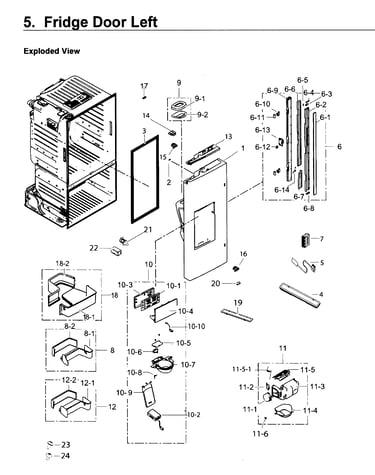

Fridge door l diagram

Refrigerator dispenser ice chute cap and gasket assembly

Part #DA97-12594A

BEST SELLER
$48.04 |
11% OFF Phone Price : $54.04
Back Order
Refrigerator Ice Maker Service Kit DA82-02714A
#0

Freezer / icemaker diagram

Refrigerator ice maker service kit

Part #DA82-02714A

BEST SELLER
$375.65 |
$12.00 OFF Phone Price : $387.65
In Stock
Refrigerator Compressor MSV172AL2J/SM1
#11

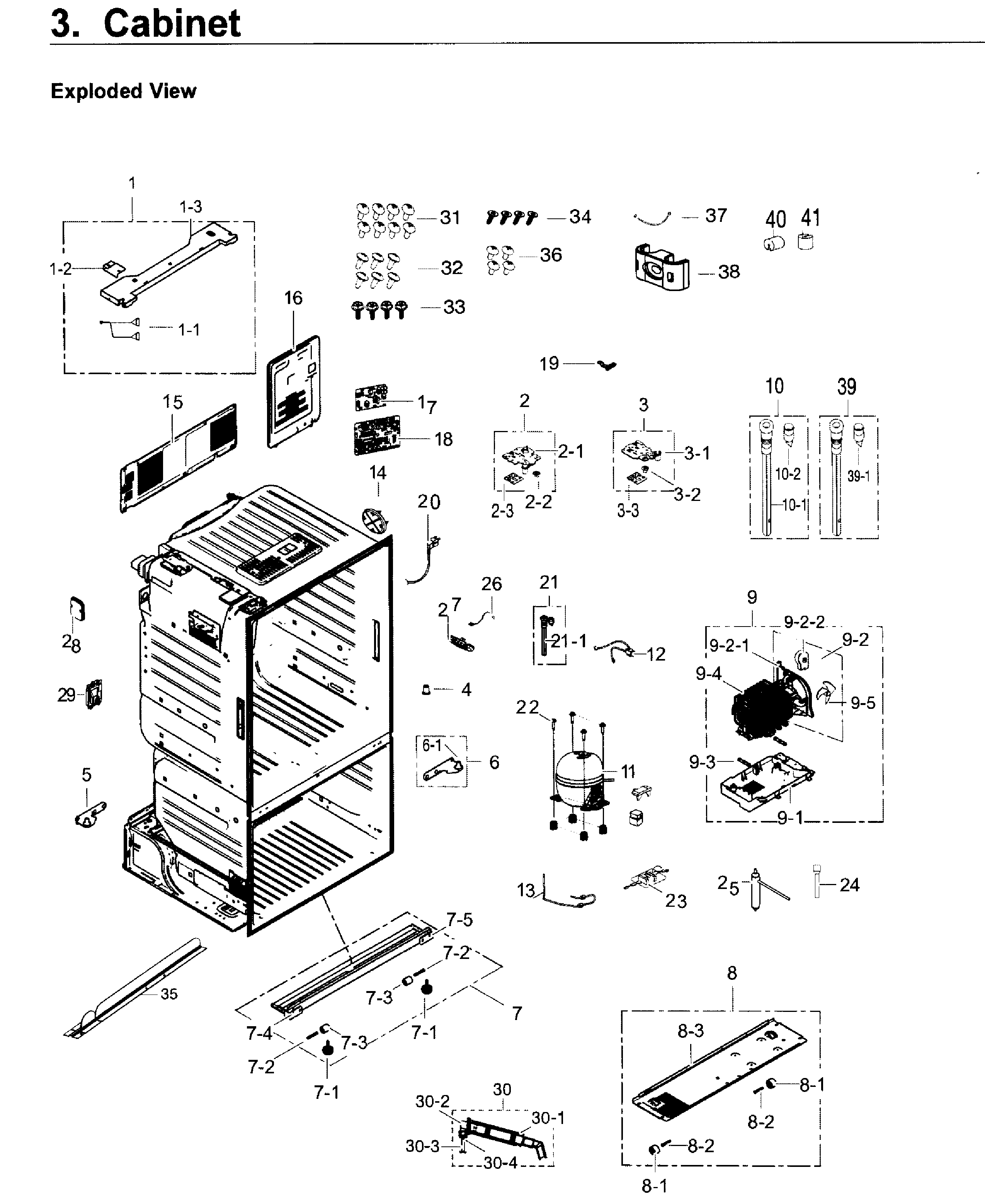

Cabinet diagram

Refrigerator compressor

Part #MSV172AL2J/SM1

Replaced by #MSV172AL2J/SM3

?
Manufacturer substitution
This part replaces MSV172AL2J/SM1. Substitute parts can look different from the original.
BEST SELLER
$225.77 |
5% OFF Phone Price : $237.77
In Stock
