Kenmore
Gas Range

Model # 9117218610 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 9117218610 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

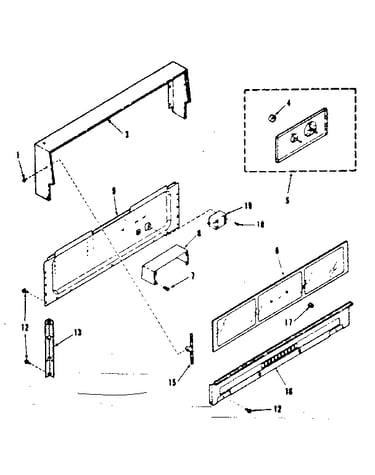

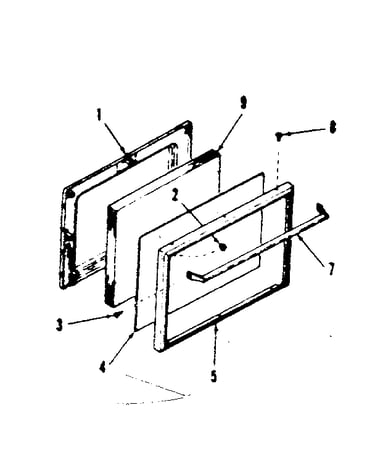

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Washer 106462
#8

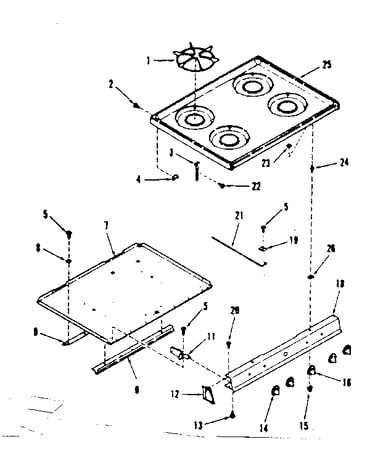

Main top section diagram

Washer

Part #106462

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces 106462. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Instruction Kit 331596
#24

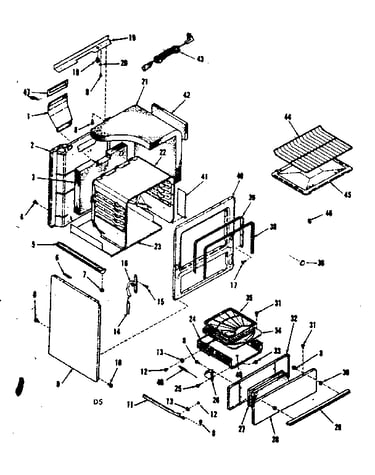

Body section diagram

Instruction kit

Part #331596

This item is not returnable
$2.16
In Stock
Ge Screw 120855
#18

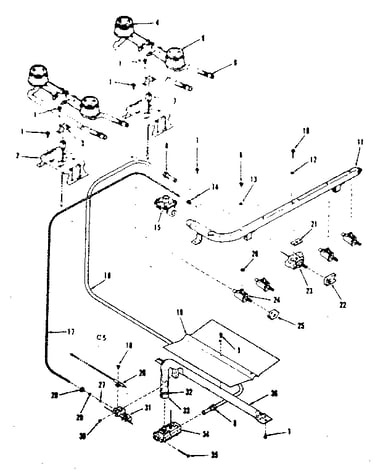

Burner section diagram

Ge screw

Part #120855

This item is not returnable
$7.14
In Stock
Washer 310218
#26

Main top section diagram

Washer

Part #310218

This item is not returnable
$2.16
In Stock
Screw 311484
#4

Body section diagram

Screw

Part #311484

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 311484. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 327320
Screw

Part #327320

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces 327320. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw (white) 327621
Screw (white)

Part #327621

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces 327621. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw 321162
#22

Main top section diagram

Screw

Part #321162

Replaced by #WB1X1116

?
Manufacturer substitution
This part replaces 321162. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Control Valve 321755
#34

Burner section diagram

Control valve

Part #321755

The manufacturer no longer makes this part, and there's no substitute part

Rivet 70275
#12

Body section diagram

Rivet

Part #70275

The manufacturer no longer makes this part, and there's no substitute part
