Kenmore
Space Heater

Model # 143840654 Official Kenmore automatic wood burning circulator

Here are the diagrams and repair parts for Official Kenmore 143840654 automatic wood burning circulator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Door Feed 67367
#23

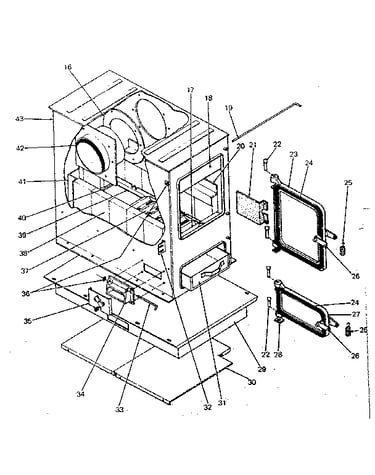

Replacement parts diagram

Door feed

Part #67367

The manufacturer no longer makes this part, and there's no substitute part

Blower Kit 42-84066

#NI

All parts diagram

Blower kit

Part #42-84066

The manufacturer no longer makes this part, and there's no substitute part

Support 66080
#39

Replacement parts diagram

Support

Part #66080

The manufacturer no longer makes this part, and there's no substitute part

Glass Rope 88042
#24

Replacement parts diagram

Glass rope

Part #88042

The manufacturer no longer makes this part, and there's no substitute part

Grate 40055
#37

Replacement parts diagram

Grate

Part #40055

The manufacturer no longer makes this part, and there's no substitute part

Cabinet End 67194
#11

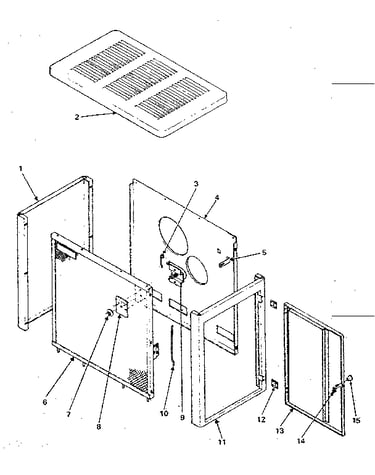

Cabinet diagram

Cabinet end

Part #67194

The manufacturer no longer makes this part, and there's no substitute part

Adjuster 86191
#10

Cabinet diagram

Adjuster

Part #86191

The manufacturer no longer makes this part, and there's no substitute part

Handle 67567
#25

Replacement parts diagram

Handle

Part #67567

The manufacturer no longer makes this part, and there's no substitute part

Support 17150
#40

Replacement parts diagram

Support

Part #17150

The manufacturer no longer makes this part, and there's no substitute part

Ash Pilot Door 67368
#27

Replacement parts diagram

Ash pilot door

Part #67368

The manufacturer no longer makes this part, and there's no substitute part
