GE
Freestanding Ice Maker

Model # ZDIC150WWWB Official GE ice cube maker

Here are the diagrams and repair parts for Official GE ZDIC150WWWB ice cube maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

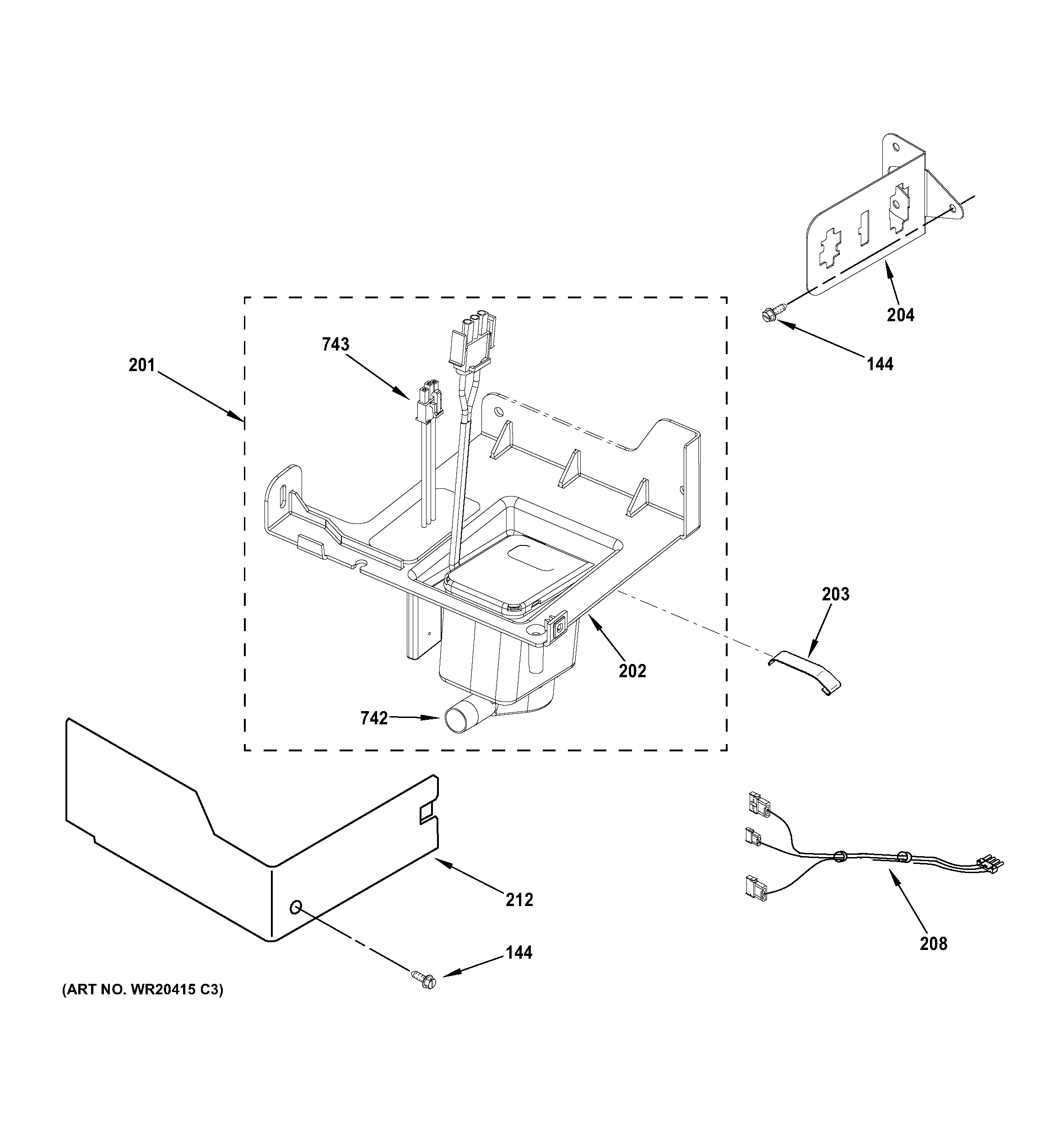

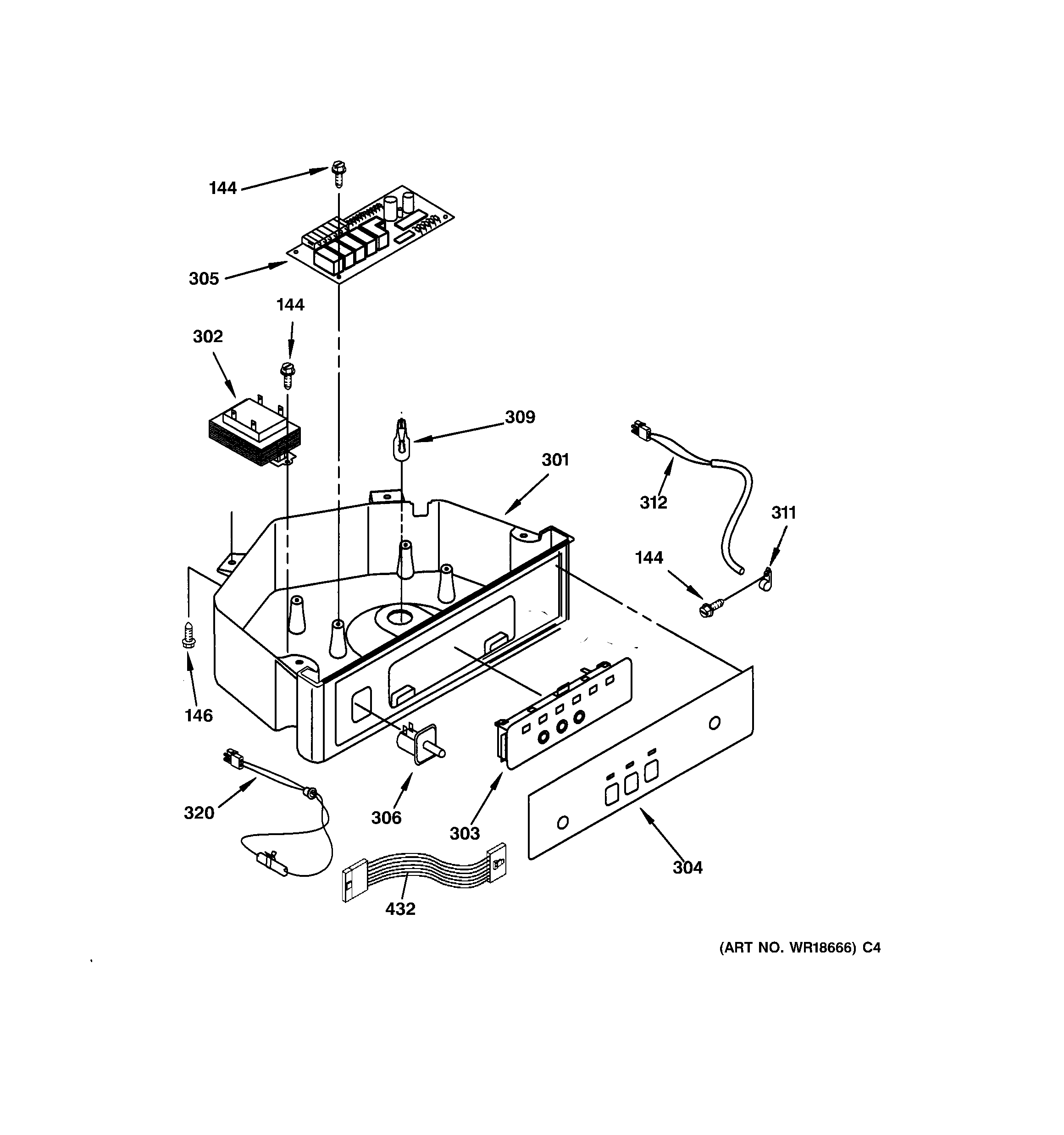

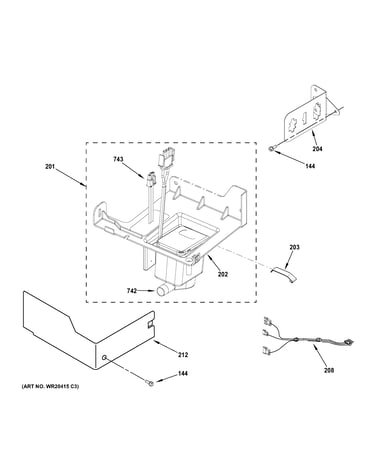

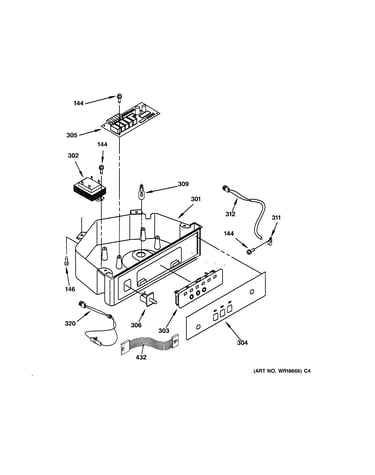

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Ice Maker Evaporator (replaces Wr85x10013, Wr85x10035, Wr85x20566) WR85X10045
#105

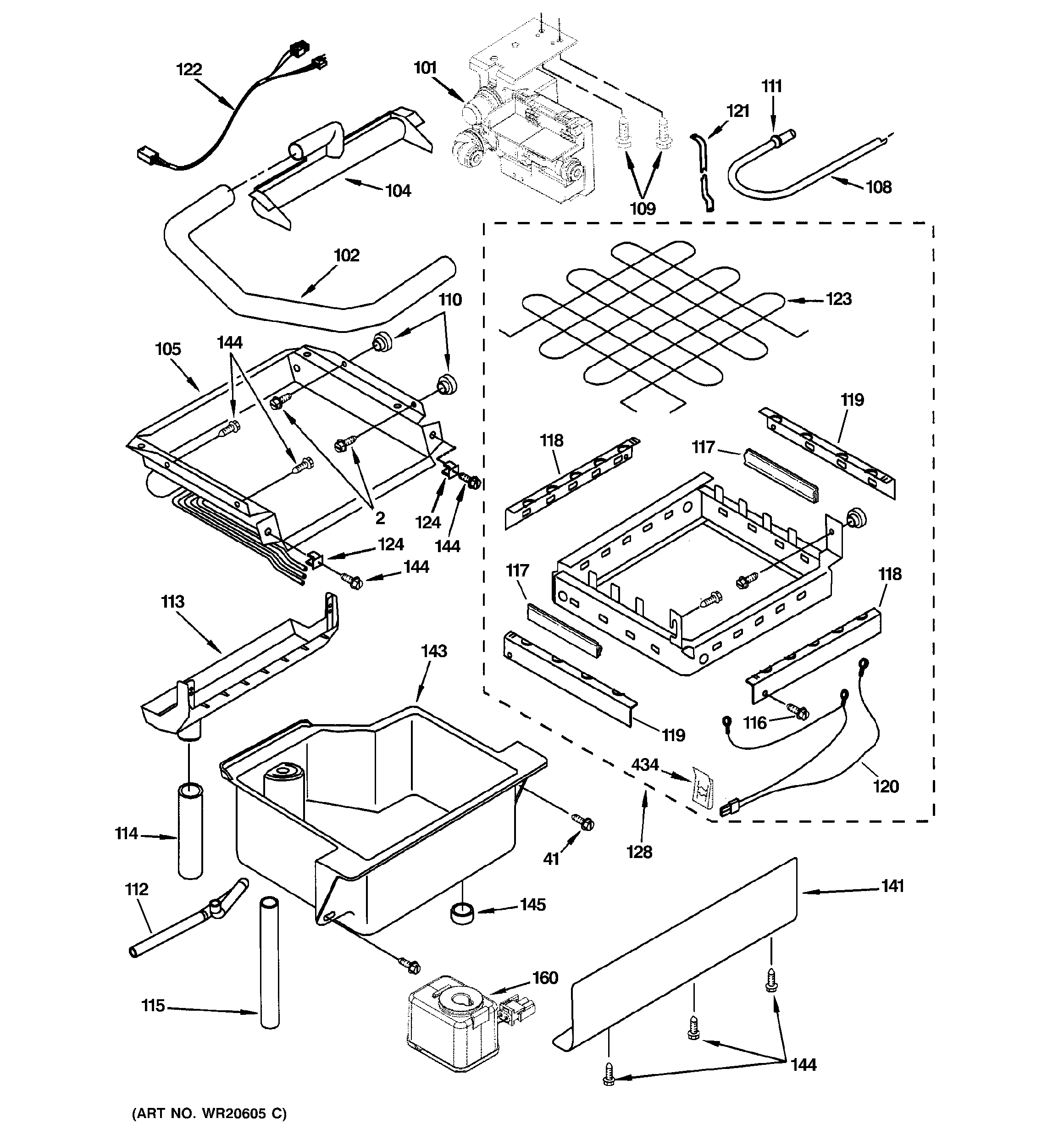

Evaporator, ice cutter grid & water diagram

Ice maker evaporator (replaces wr85x10013, wr85x10035, wr85x20566)

Part #WR85X10045

$426.20 |
$12.00 OFF Phone Price : $438.20
In Stock
Clamp WR02X12740
#417

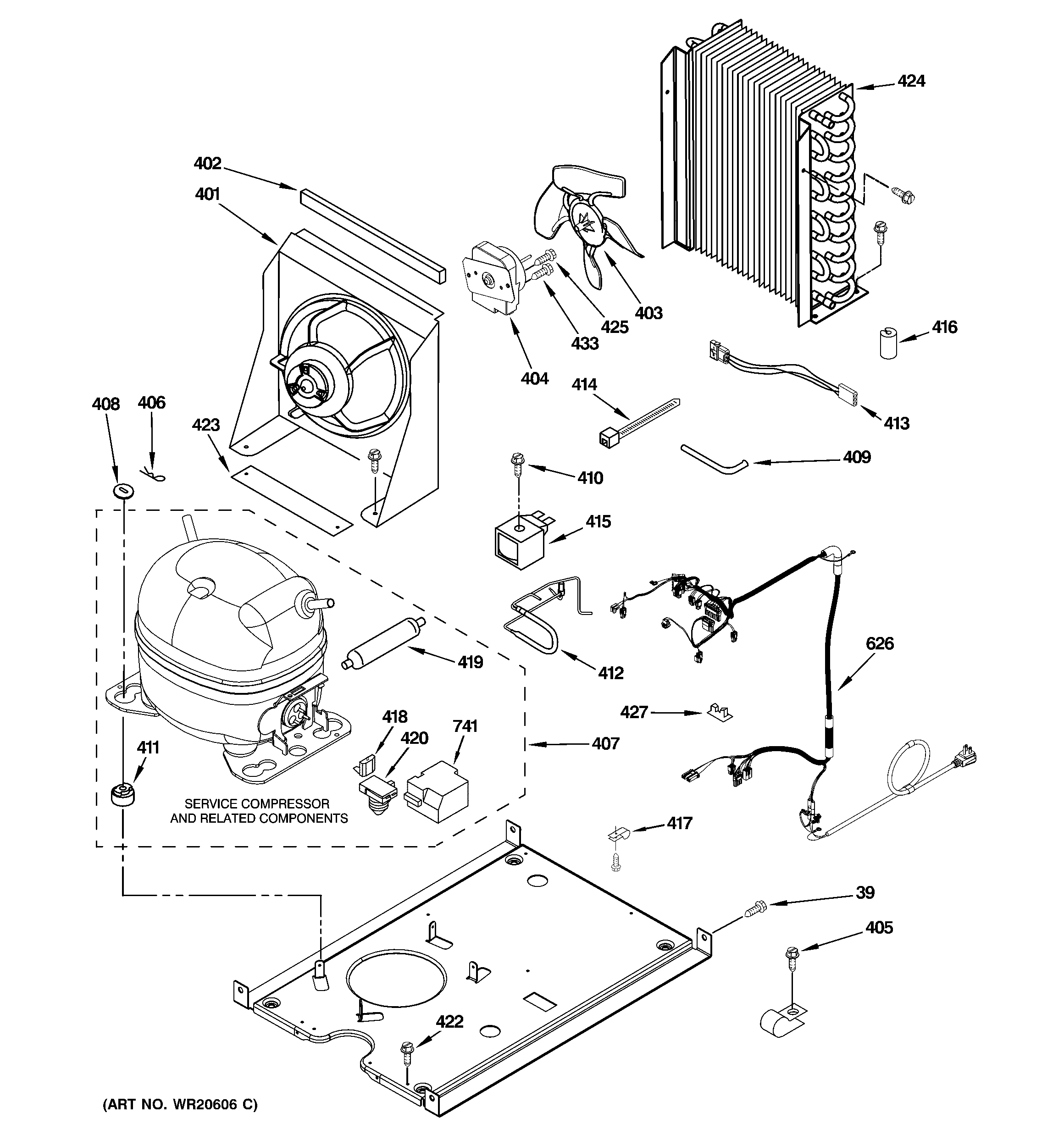

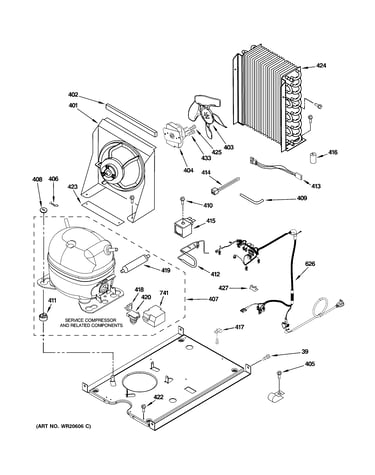

Machine compartment diagram

Clamp

Part #WR02X12740

$19.95
In Stock
Clamp WR01X10808
#14

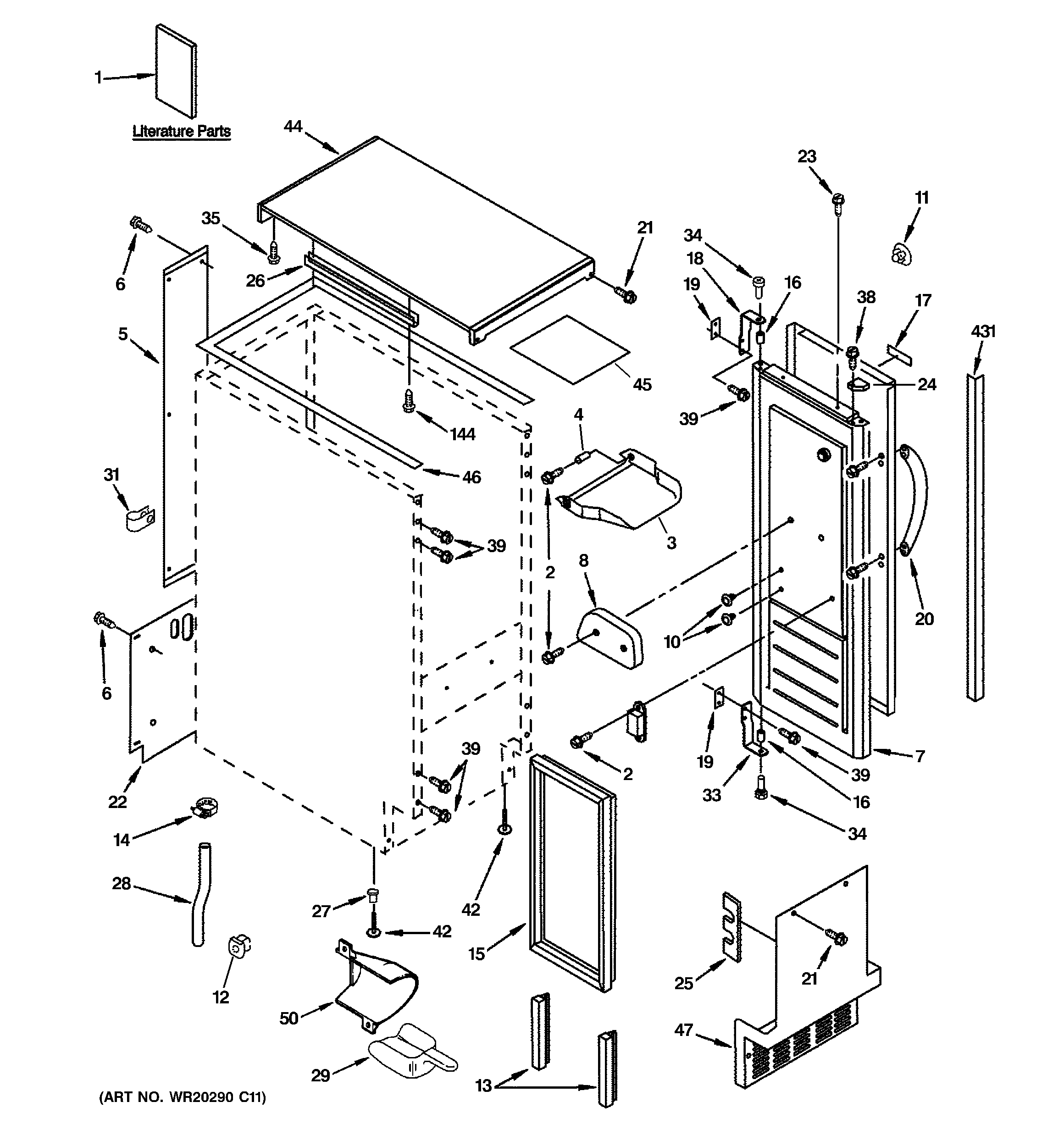

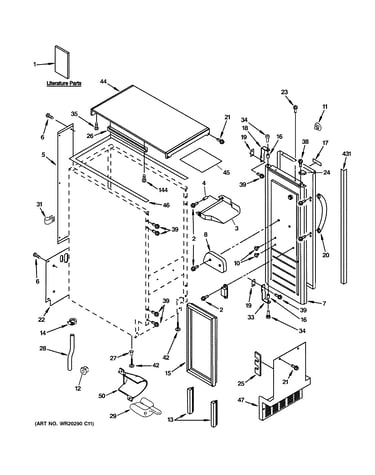

Cabinet, liner & door parts diagram

Clamp

Part #WR01X10808

This item is not returnable
$5.74
In Stock
Cutter Guide WR02X12214
#117

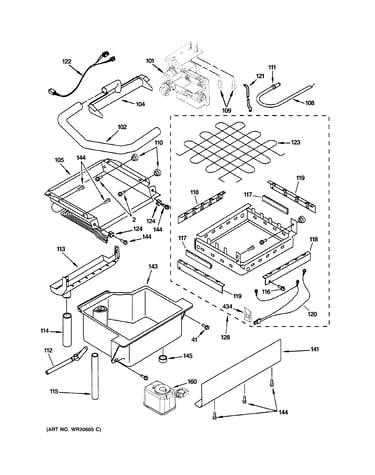

Evaporator, ice cutter grid & water diagram

Cutter guide

Part #WR02X12214

$24.01 |
20% OFF Phone Price : $30.01
In Stock
Nameplate WR04X10167
#17

Cabinet, liner & door parts diagram

Nameplate

Part #WR04X10167

$72.47
In Stock
Shim -4 WR02X12737
#408

Machine compartment diagram

Shim -4

Part #WR02X12737

$17.40
In Stock
Gasket Top P WR24X10181
#46

Cabinet, liner & door parts diagram

Gasket top p

Part #WR24X10181

$101.85
In Stock
Foam Pad WR14X10250
#402

Machine compartment diagram

Foam pad

Part #WR14X10250

$19.81
In Stock
Ice Maker Wire Harness WR23X10574
#626

Machine compartment diagram

Ice maker wire harness

Part #WR23X10574

$298.40
In Stock
Screw WR01X10816
#410

Machine compartment diagram

Screw

Part #WR01X10816

This item is not returnable
$6.54
In Stock
