Model # RST399UL Official Caloric gas self-cleaning range

Here are the diagrams and repair parts for Official Caloric RST399UL gas self-cleaning range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

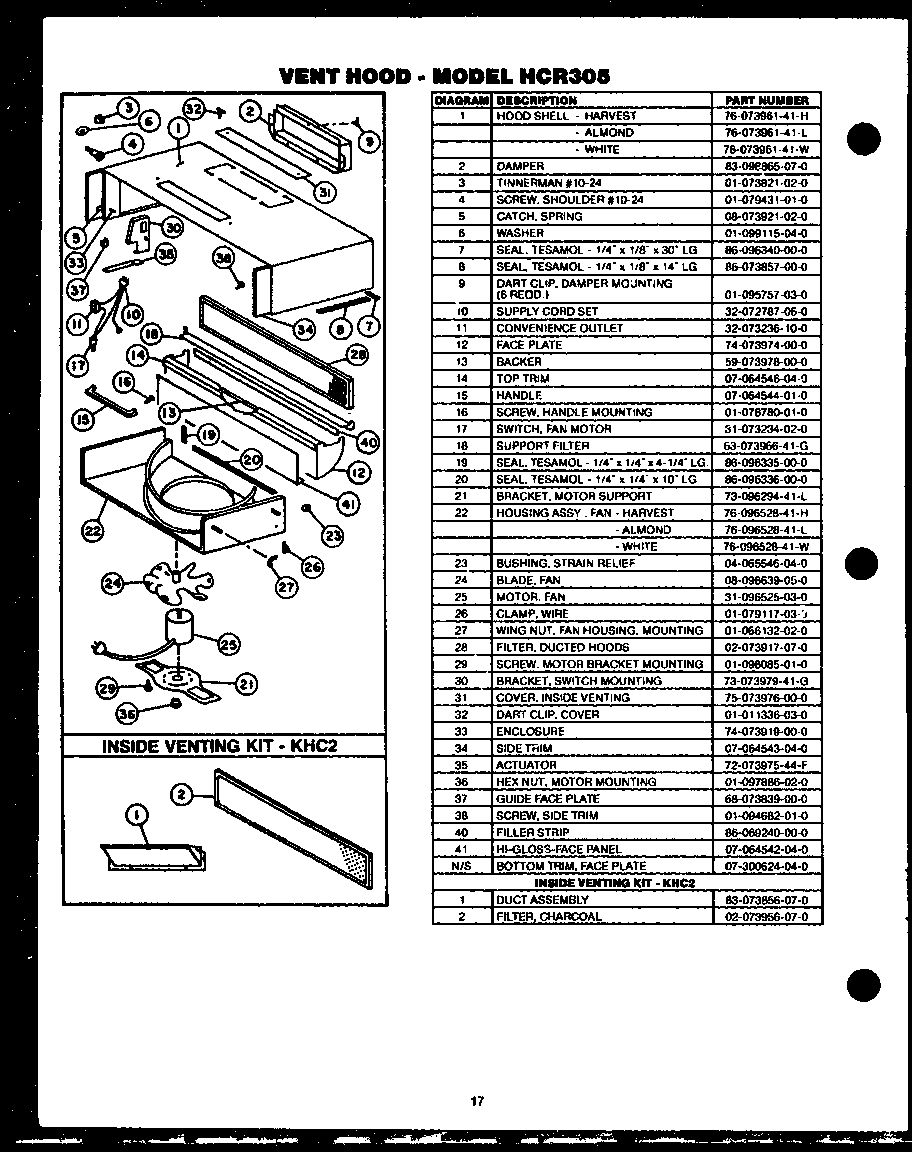

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 253 parts  |

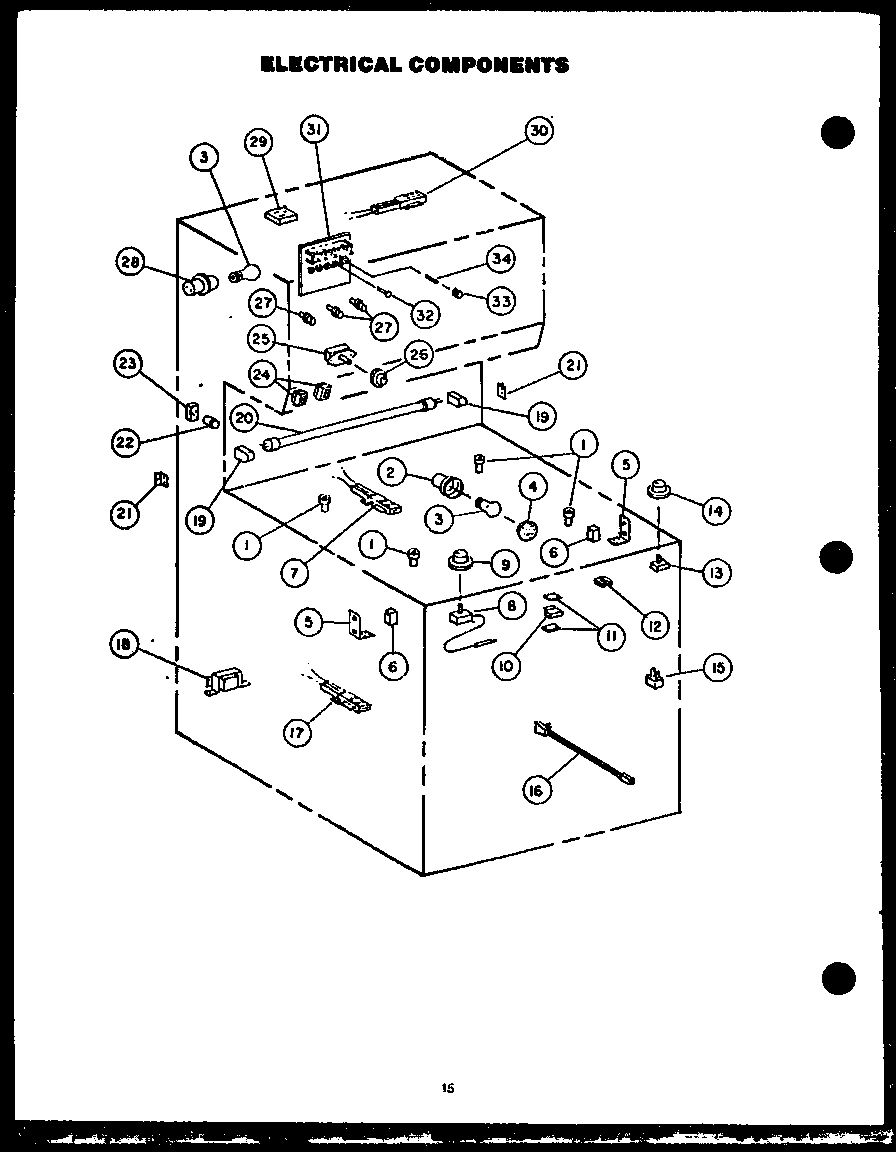

Switch, Lico 31-300521-02-0
Switch, lico

Part #31-300521-02-0

Replaced by #WPY0300521

?
Manufacturer substitution
This part replaces 31-300521-02-0. Substitute parts can look different from the original.
$51.09
In Stock
Extrusion, Left 07-304031-04-0
#15

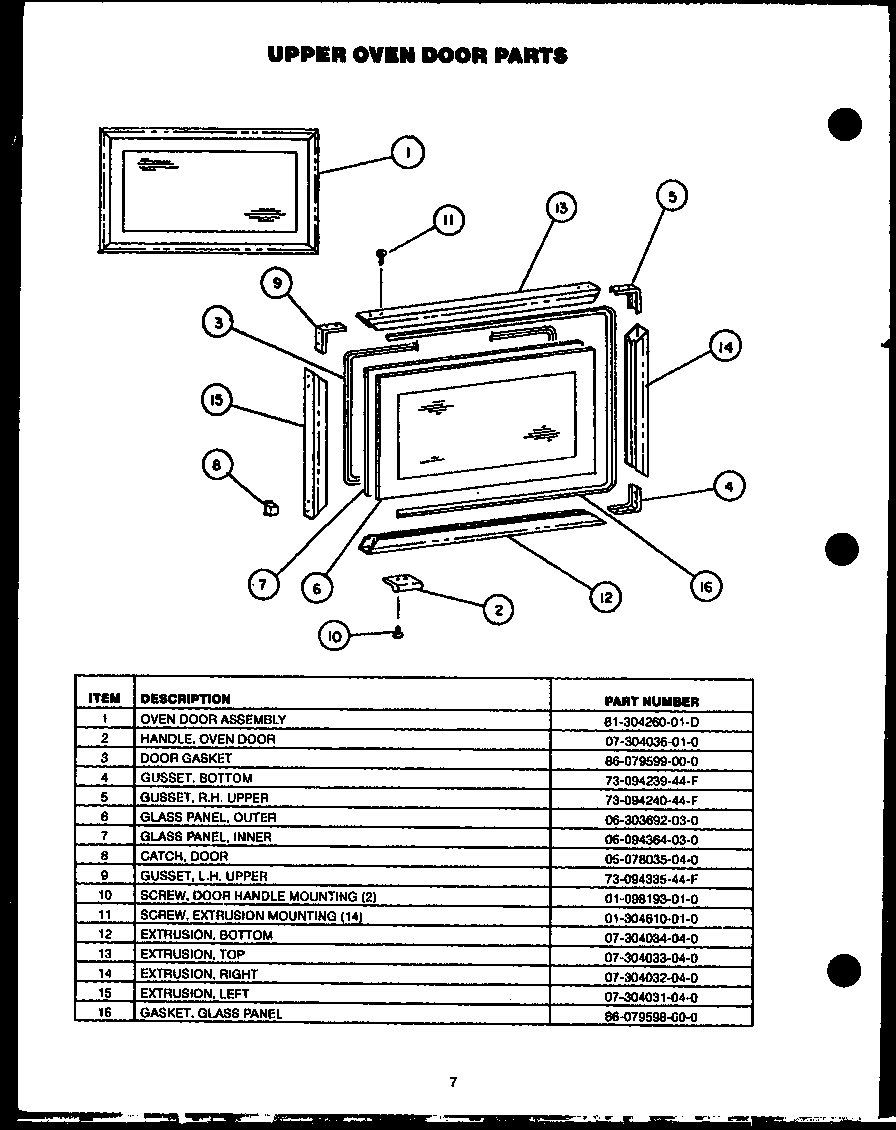

Upper oven door parts diagram

Extrusion, left

Part #07-304031-04-0

The manufacturer no longer makes this part, and there's no substitute part

Heat Baffle 74-301275-41-G
#9

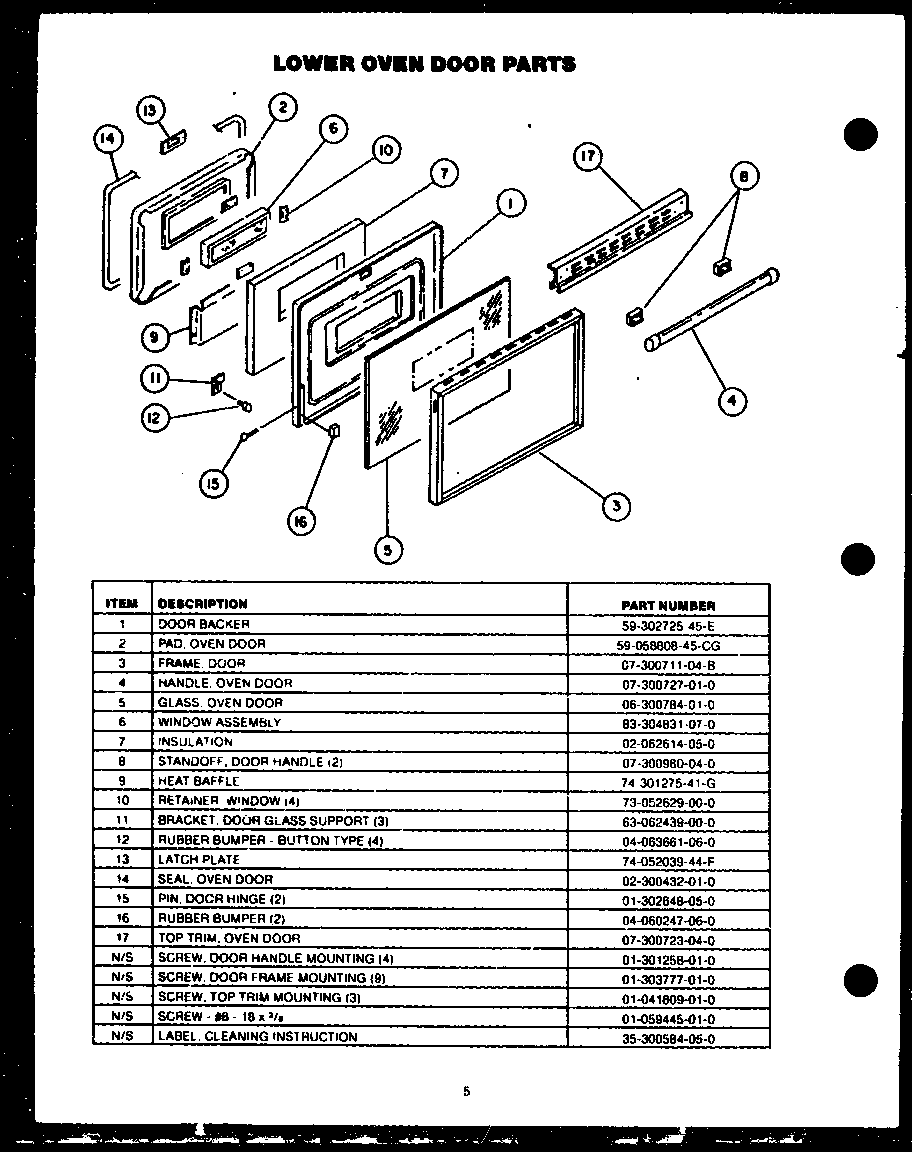

Lower oven door parts diagram

Heat baffle

Part #74-301275-41-G

The manufacturer no longer makes this part, and there's no substitute part

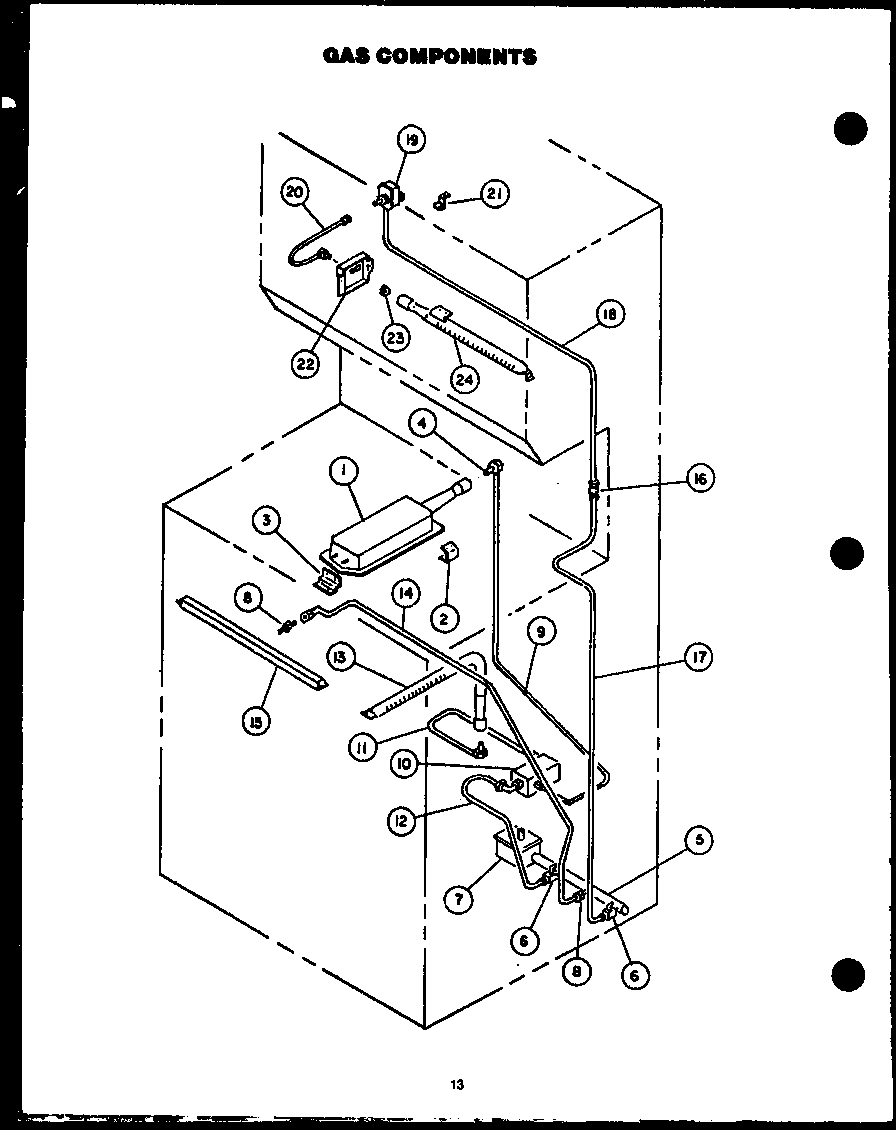

Dual Gas Valve 33-300664-02-0
Dual gas valve

Part #33-300664-02-0

The manufacturer no longer makes this part, and there's no substitute part

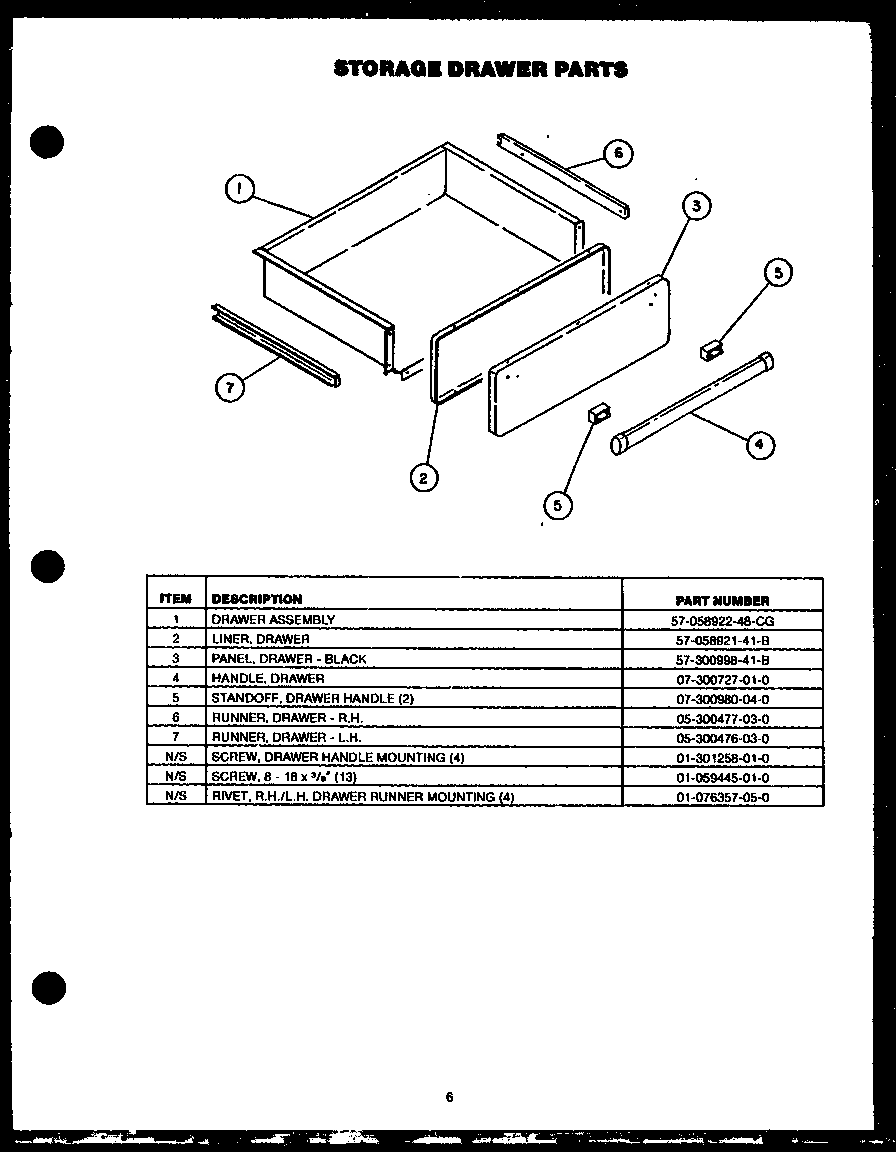

Track, Storage Drawer - L.h. 05-300474-03-0
#6

Oven cabinet assembly diagram

Track, storage drawer - l.h.

Part #05-300474-03-0

The manufacturer no longer makes this part, and there's no substitute part

End Panel, L.h. - White 65-303646-41-W
#11A

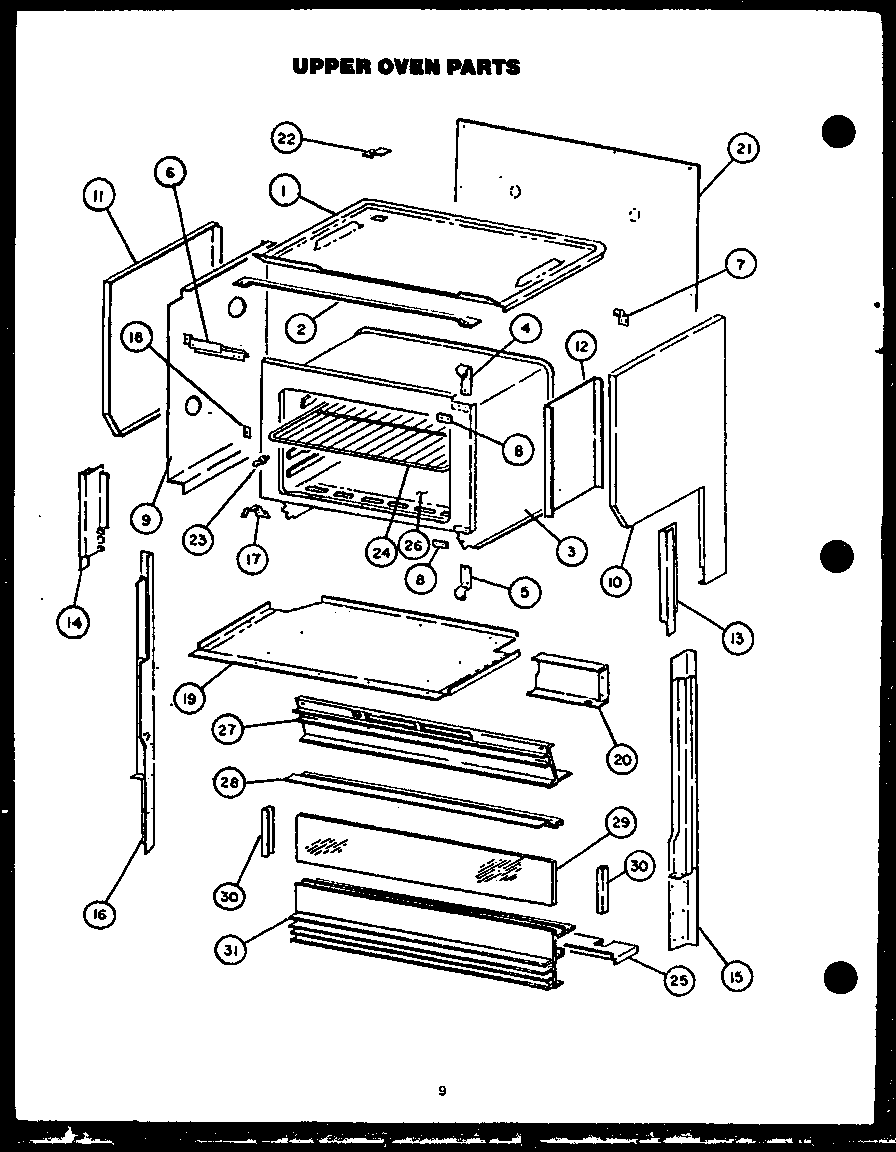

Upper oven parts diagram

End panel, l.h. - white

Part #65-303646-41-W

The manufacturer no longer makes this part, and there's no substitute part

Clip, Tinnerman (4) 01-304365-02-0
#7

Sealed burner parts diagram

Clip, tinnerman (4)

Part #01-304365-02-0

The manufacturer no longer makes this part, and there's no substitute part

Nut, Broil Burner Ignitor Shield (2) 01-078790-02-0

#NI

All parts diagram

Nut, broil burner ignitor shield (2)

Part #01-078790-02-0

The manufacturer no longer makes this part, and there's no substitute part

Label, Cleaning Instruction 35-300584-05-0

#NI

All parts diagram

Label, cleaning instruction

Part #35-300584-05-0

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Mounting Bracket 66-304259-01-0
#4

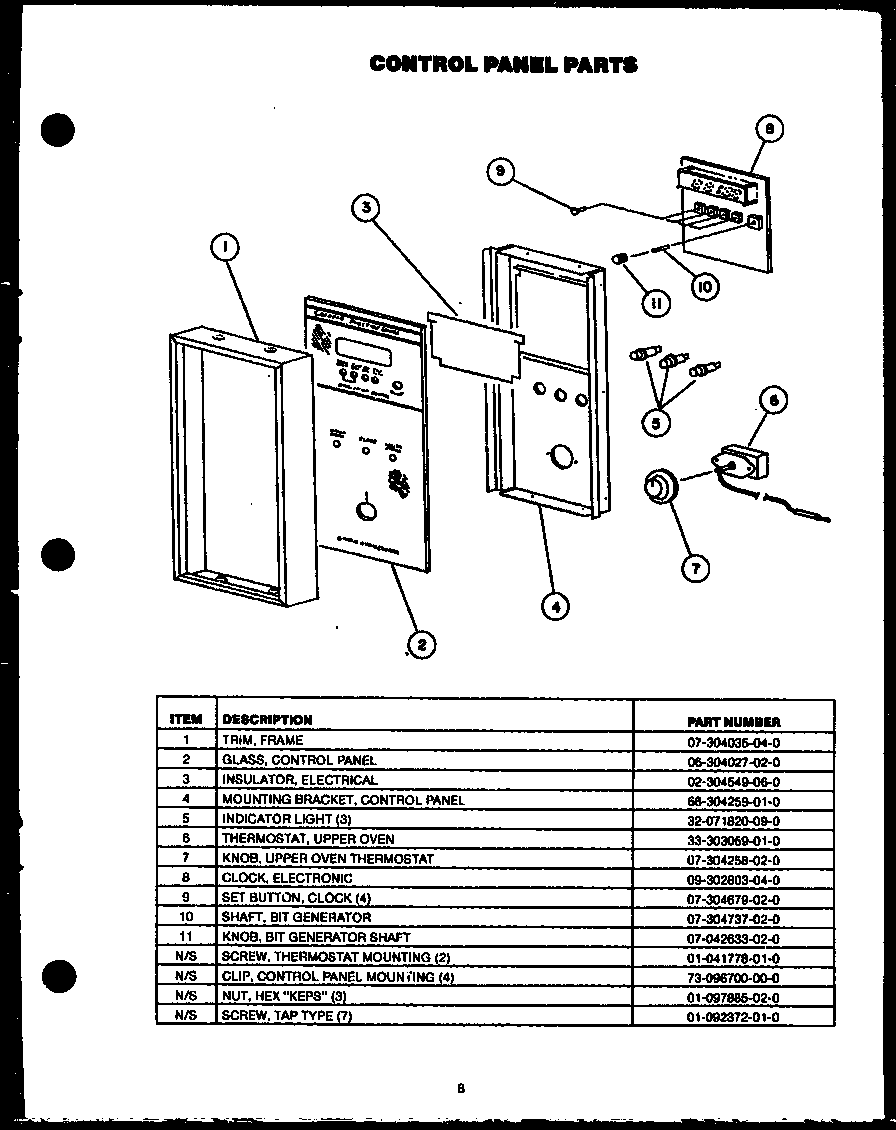

Control panel parts diagram

Control panel mounting bracket

Part #66-304259-01-0

The manufacturer no longer makes this part, and there's no substitute part
