Model # RST399UL Official Caloric gas self-cleaning range

Here are the diagrams and repair parts for Official Caloric RST399UL gas self-cleaning range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

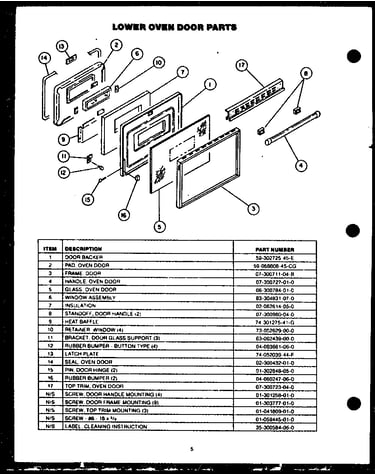

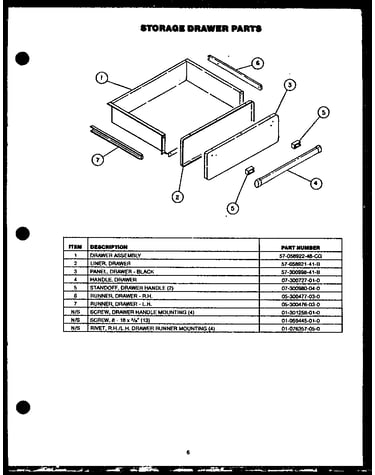

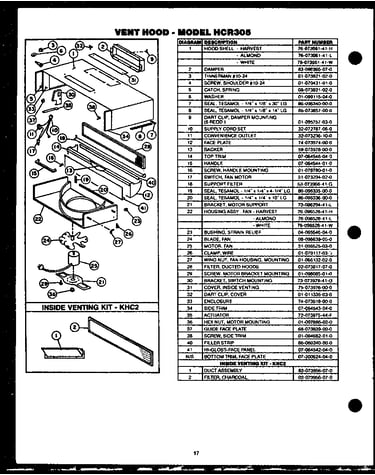

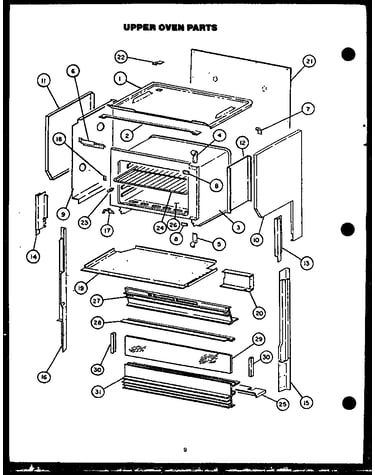

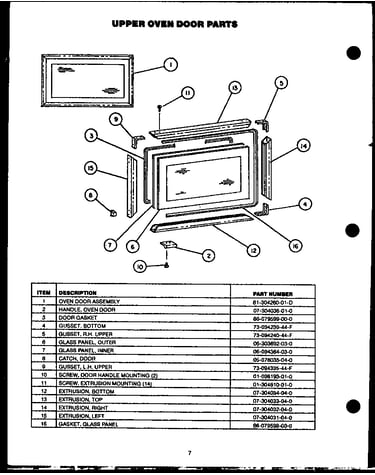

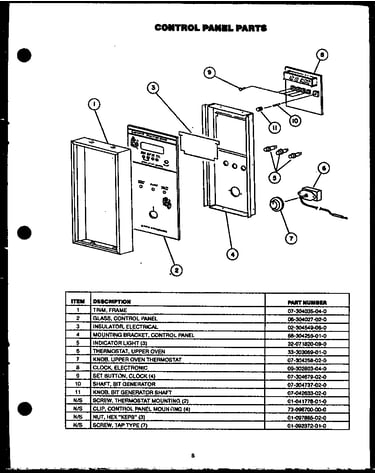

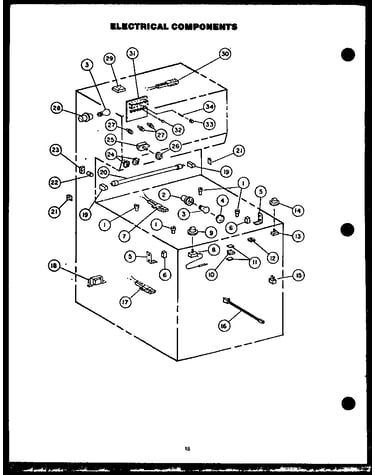

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 253 parts  |
Switch, Lico 31-300521-02-0
Switch, lico

Part #31-300521-02-0

Replaced by #WPY0300521

?
Manufacturer substitution
This part replaces 31-300521-02-0. Substitute parts can look different from the original.
$51.09
In Stock
Trim, Main Top - R.h. 07-302981-04-0
#14

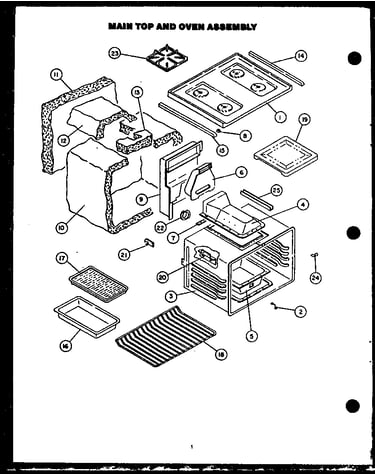

Main top/oven assembly diagram

Trim, main top - r.h.

Part #07-302981-04-0

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Door Latch Mounting 73-058918-00-0
#18

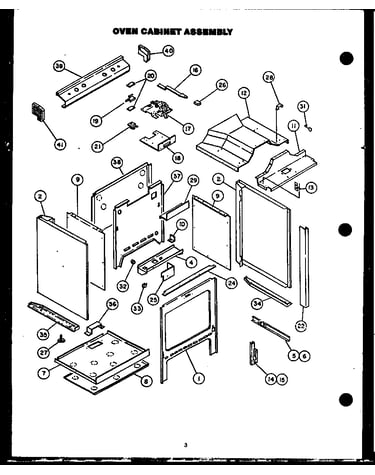

Oven cabinet assembly diagram

Bracket, door latch mounting

Part #73-058918-00-0

The manufacturer no longer makes this part, and there's no substitute part

Assembly - Hood And Tubing 34-300685-02-0
#11

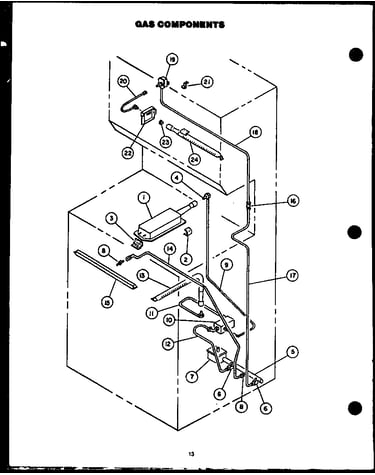

Gas components diagram

Assembly - hood and tubing

Part #34-300685-02-0

The manufacturer no longer makes this part, and there's no substitute part

Insulation Retainer Rear 73-058994-00-0
#37

Oven cabinet assembly diagram

Insulation retainer rear

Part #73-058994-00-0

The manufacturer no longer makes this part, and there's no substitute part

Plenum, Top Front - Right 74-303208-00-0
#23

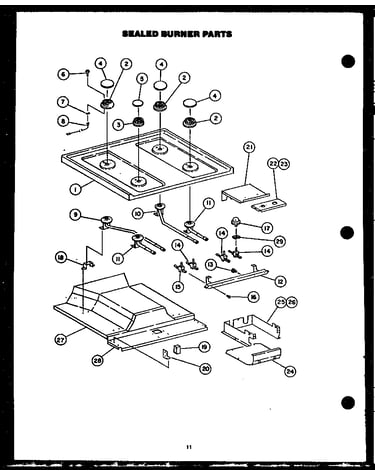

Sealed burner parts diagram

Plenum, top front - right

Part #74-303208-00-0

The manufacturer no longer makes this part, and there's no substitute part

Door Handle Mounting Screw 01-301258-01-0

#NI

All parts diagram

Door handle mounting screw

Part #01-301258-01-0

The manufacturer no longer makes this part, and there's no substitute part

Tubing - Inlet To Gas Valve 34-300684-02-0
#12

Gas components diagram

Tubing - inlet to gas valve

Part #34-300684-02-0

The manufacturer no longer makes this part, and there's no substitute part

Flue Inner 84-062770-07-0
#6

Main top/oven assembly diagram

Flue inner

Part #84-062770-07-0

The manufacturer no longer makes this part, and there's no substitute part

Knob, Top Burner (4) 07-300705-02-0
#17

Sealed burner parts diagram

Knob, top burner (4)

Part #07-300705-02-0

The manufacturer no longer makes this part, and there's no substitute part
