Model # BT18LK-4Z Official Magic Chef rv range

Here are the diagrams and repair parts for Official Magic Chef BT18LK-4Z rv range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Hinge Ov Doo 50-20171-1
#15

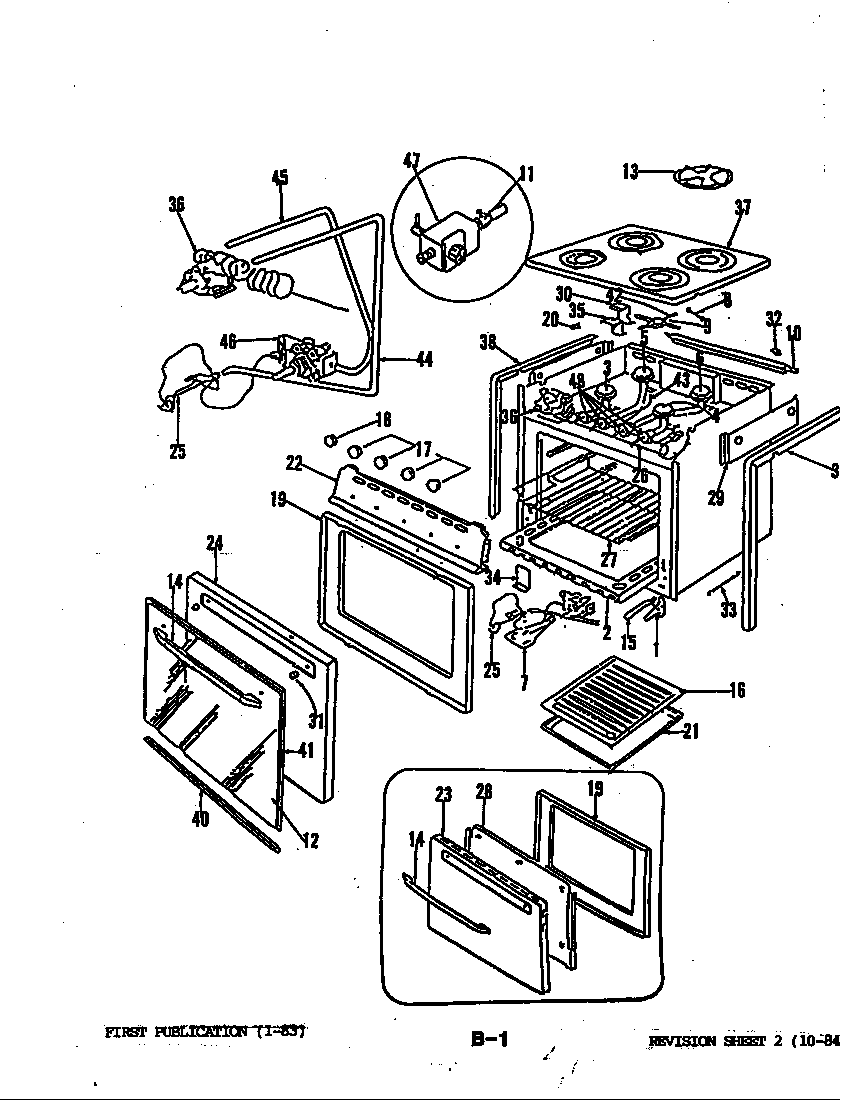

Body diagram

Hinge ov doo

Part #50-20171-1

Replaced by #12400029

?
Manufacturer substitution
This part replaces 50-20171-1. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Spacer 499-00189
#31

Body diagram

Spacer

Part #499-00189

The manufacturer no longer makes this part, and there's no substitute part

Deflector, F 50-25039
#10A

Body diagram

Deflector, f

Part #50-25039

The manufacturer no longer makes this part, and there's no substitute part

Burner 50-20216
#7

Body diagram

Burner

Part #50-20216

The manufacturer no longer makes this part, and there's no substitute part

Valve 997-626
#46

Body diagram

Valve

Part #997-626

The manufacturer no longer makes this part, and there's no substitute part

Seal 50-20317-1
#28F

Body diagram

Seal

Part #50-20317-1

The manufacturer no longer makes this part, and there's no substitute part

Knob 50-20281
#18

Body diagram

Knob

Part #50-20281

The manufacturer no longer makes this part, and there's no substitute part

Burner, L 50-21518
#5

Body diagram

Burner, l

Part #50-21518

The manufacturer no longer makes this part, and there's no substitute part

Oven Glass 50-26096
#12B

Body diagram

Oven glass

Part #50-26096

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 993-478
#36A

Body diagram

Thermostat

Part #993-478

The manufacturer no longer makes this part, and there's no substitute part
