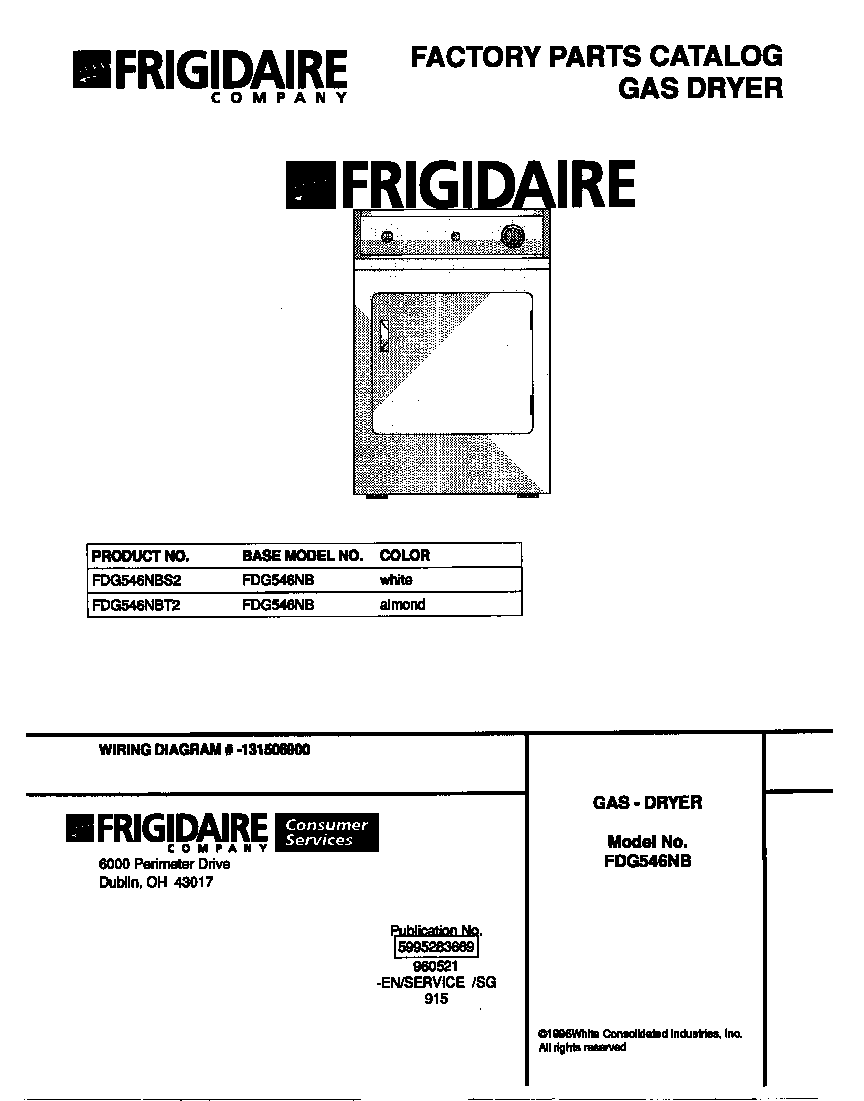

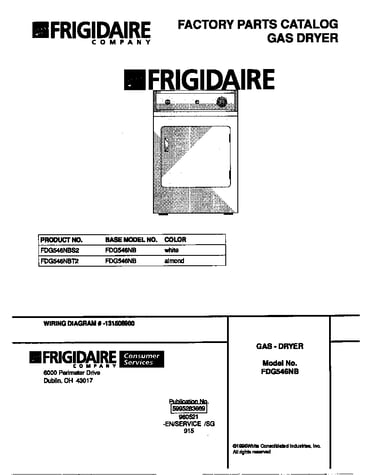

Here are the diagrams and repair parts for Official Frigidaire FDG546NBS2 gas dryer - 5995283669, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts forFDG546NBS2 Gas Dryer - 5995283669

#25

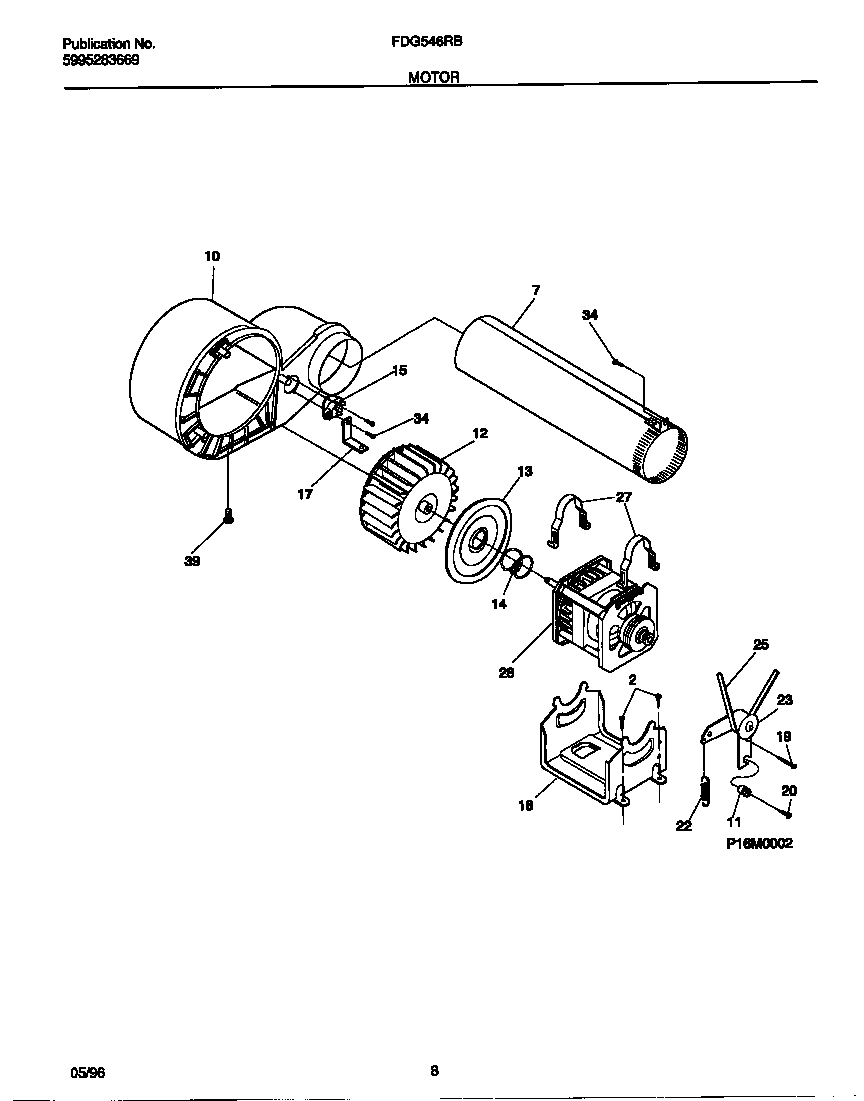

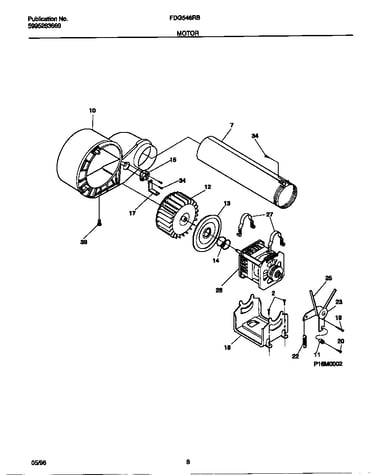

Motor diagram
Belt
Part #5303283471
Replaced by #134503600
?
Manufacturer substitution
This part replaces 5303283471. Substitute parts can look different from the original.
4.2 (24)
$8.43 |
11% OFF Phone Price : $9.43
In Stock
Qty
#NI
All parts diagram
Dryer drum bearing kit
Part #5303281153
4.6 (21)
$36.47 |
14% OFF Phone Price : $42.47
In Stock
Qty
#12

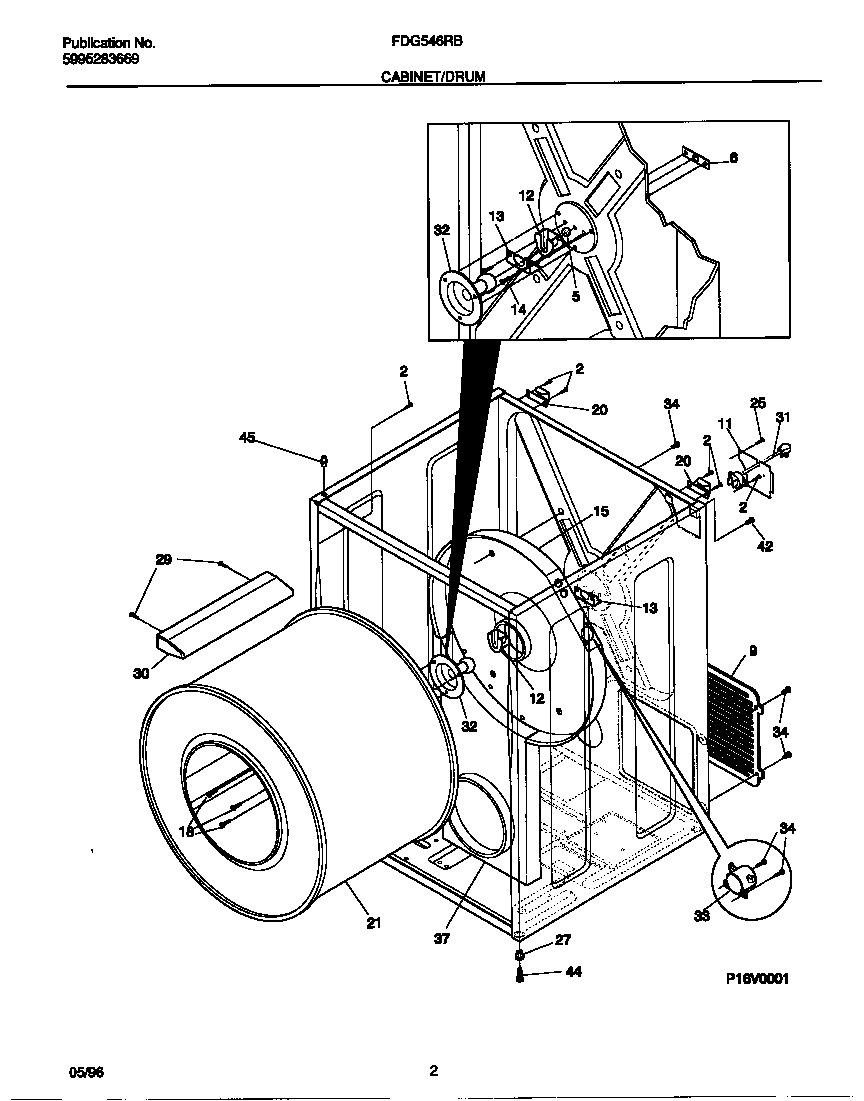

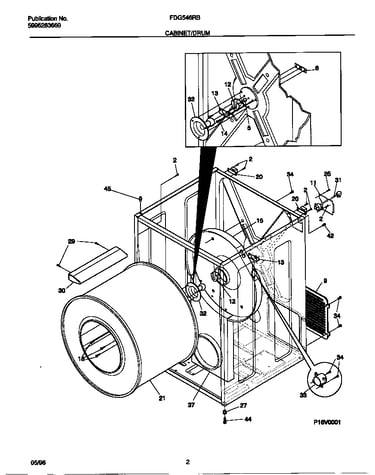

Cabinet/drum diagram
Bearing
Part #5303281008
Replaced by #131825900
?
Manufacturer substitution
This part replaces 5303281008. Substitute parts can look different from the original.
2.5 (4)
This item is not returnable
$6.36 |
14% OFF Phone Price : $7.36
In Stock
Qty
#20

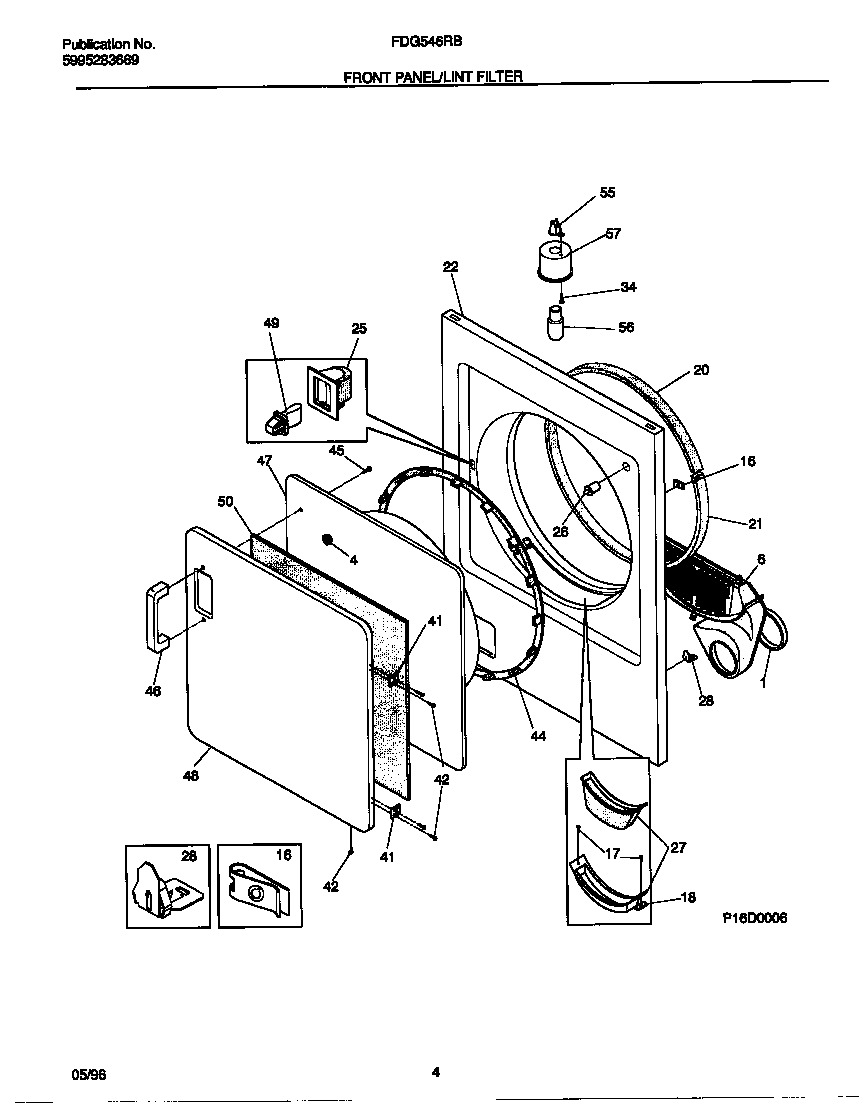

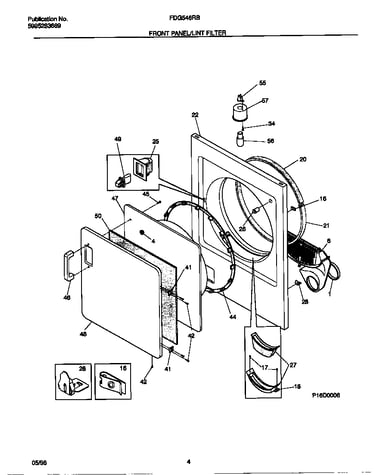

Front panel/lint filter diagram
Glide
Part #131154800
Replaced by #5303937139
?
Manufacturer substitution
This part replaces 131154800. Substitute parts can look different from the original.
4.4 (14)
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Qty
#25
Front panel/lint filter diagram
Catch
Part #5307521419
Replaced by #131658800
?
Manufacturer substitution
This part replaces 5307521419. Substitute parts can look different from the original.
3.9 (42)
$42.13 |
12% OFF Phone Price : $48.13
In Stock
Qty
#72

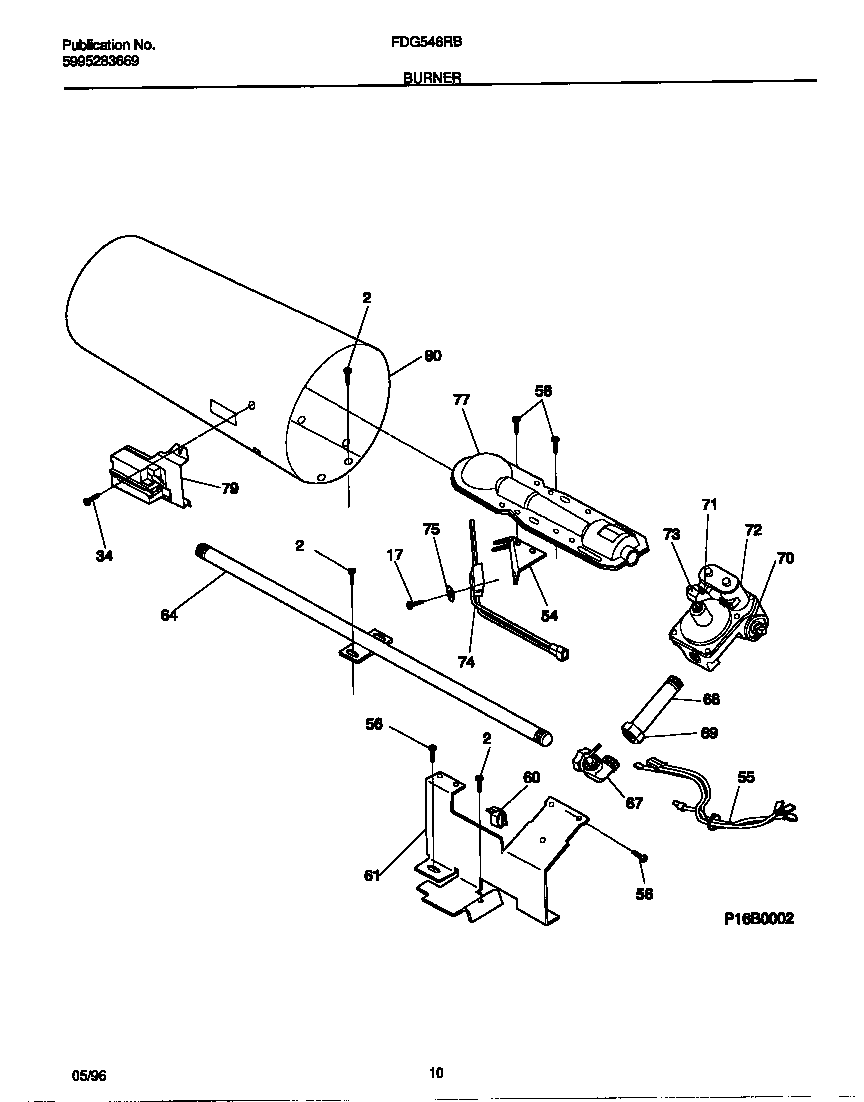

Burner diagram
Coil
Part #5308015680
Replaced by #5303931775
?
Manufacturer substitution
This part replaces 5308015680. Substitute parts can look different from the original.
5 (8)
$35.66 |
14% OFF Phone Price : $41.66
In Stock
Qty
#71
Burner diagram
Coil
Part #5300622602
Replaced by #5303931775
?
Manufacturer substitution
This part replaces 5300622602. Substitute parts can look different from the original.
5 (8)
$35.66 |
14% OFF Phone Price : $41.66
In Stock
Qty
#13
Cabinet/drum diagram
Bracket
Part #5303281023
Replaced by #131724301
?
Manufacturer substitution
This part replaces 5303281023. Substitute parts can look different from the original.
$12.91 |
13% OFF Phone Price : $14.91
In Stock
Qty
Dryer screw, #8-18 x 0.375-in
Part #131243700
$55.42
In Stock
Qty
#5
Cabinet/drum diagram
Dryer grounding ball
Part #5303281019
1 (1)
$18.88 |
10% OFF Phone Price : $20.88
In Stock
Qty
