Room Air Conditioner

Model # AEW24DSL1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEW24DSL1 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AEW24DSL1 Room Air Conditioner
Remote WJ26X10354
#70

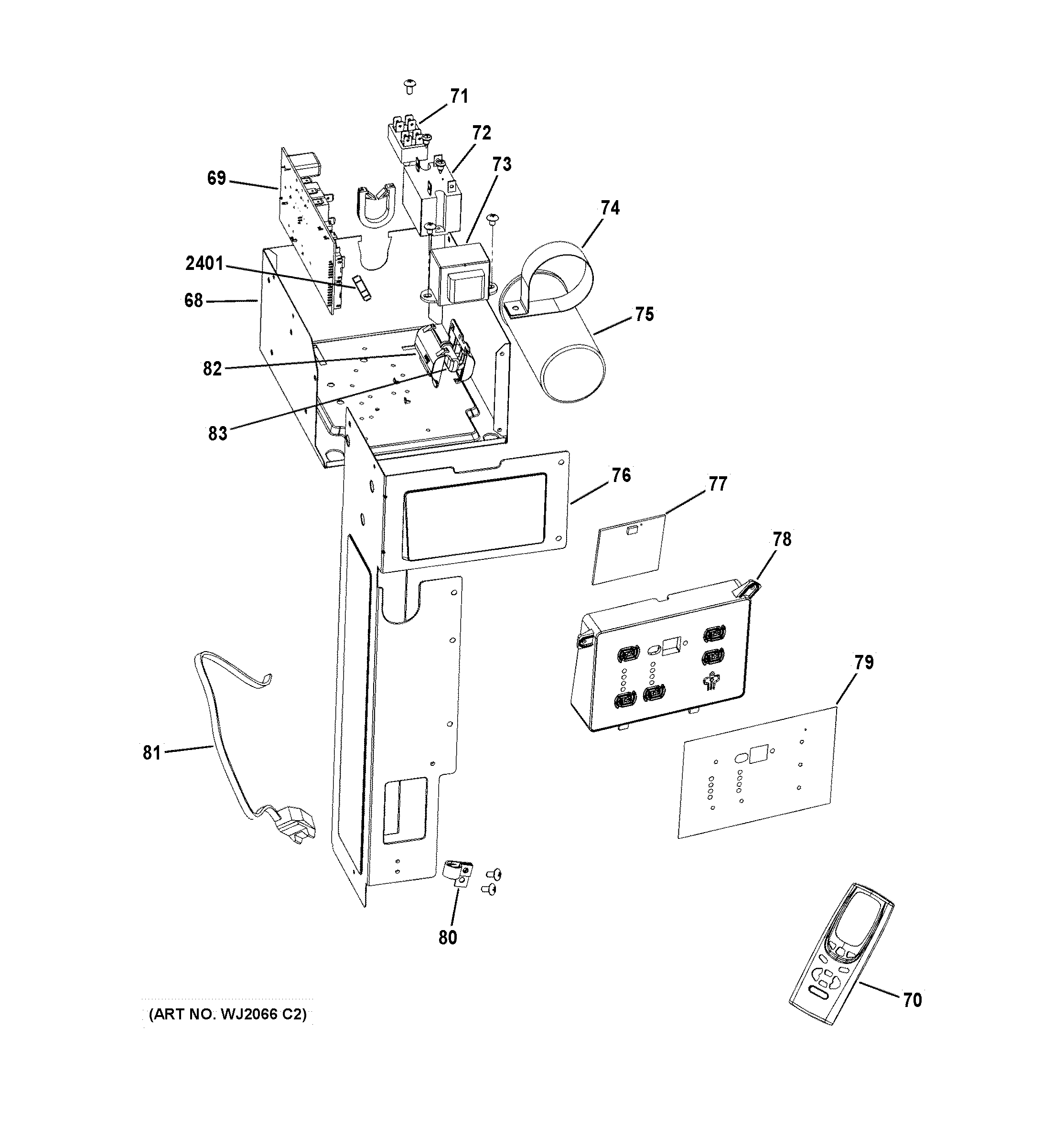

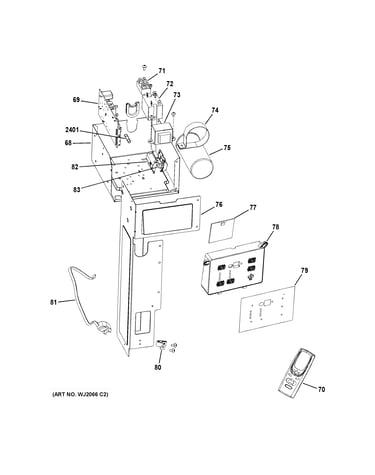

Control parts diagram

Remote

Part #WJ26X10354

Replaced by #WJ26X20522

?
Manufacturer substitution
This part replaces WJ26X10354. Substitute parts can look different from the original.
$53.70 |
10% OFF Phone Price : $59.70
In Stock
Form Gasket WJ43X10082
#40

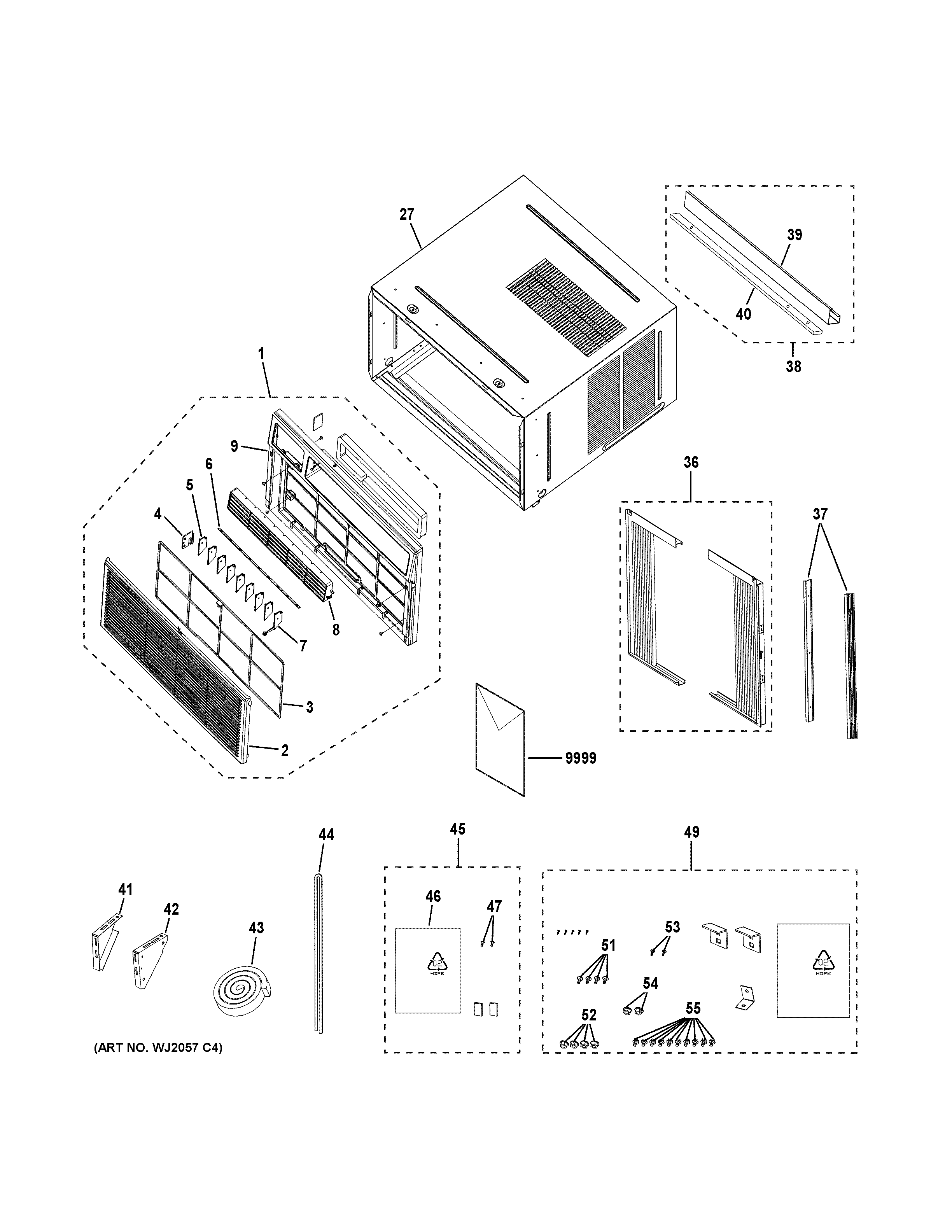

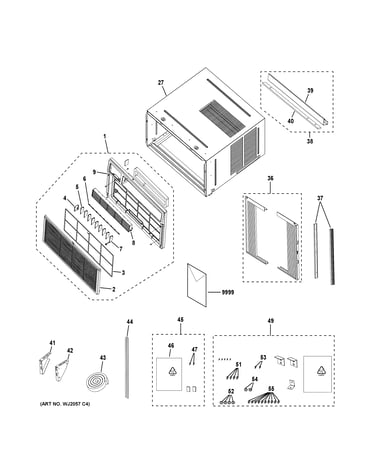

Grille & chassis parts diagram

Form gasket

Part #WJ43X10082

$8.37
In Stock
Evaporator WJ88X10240
#65

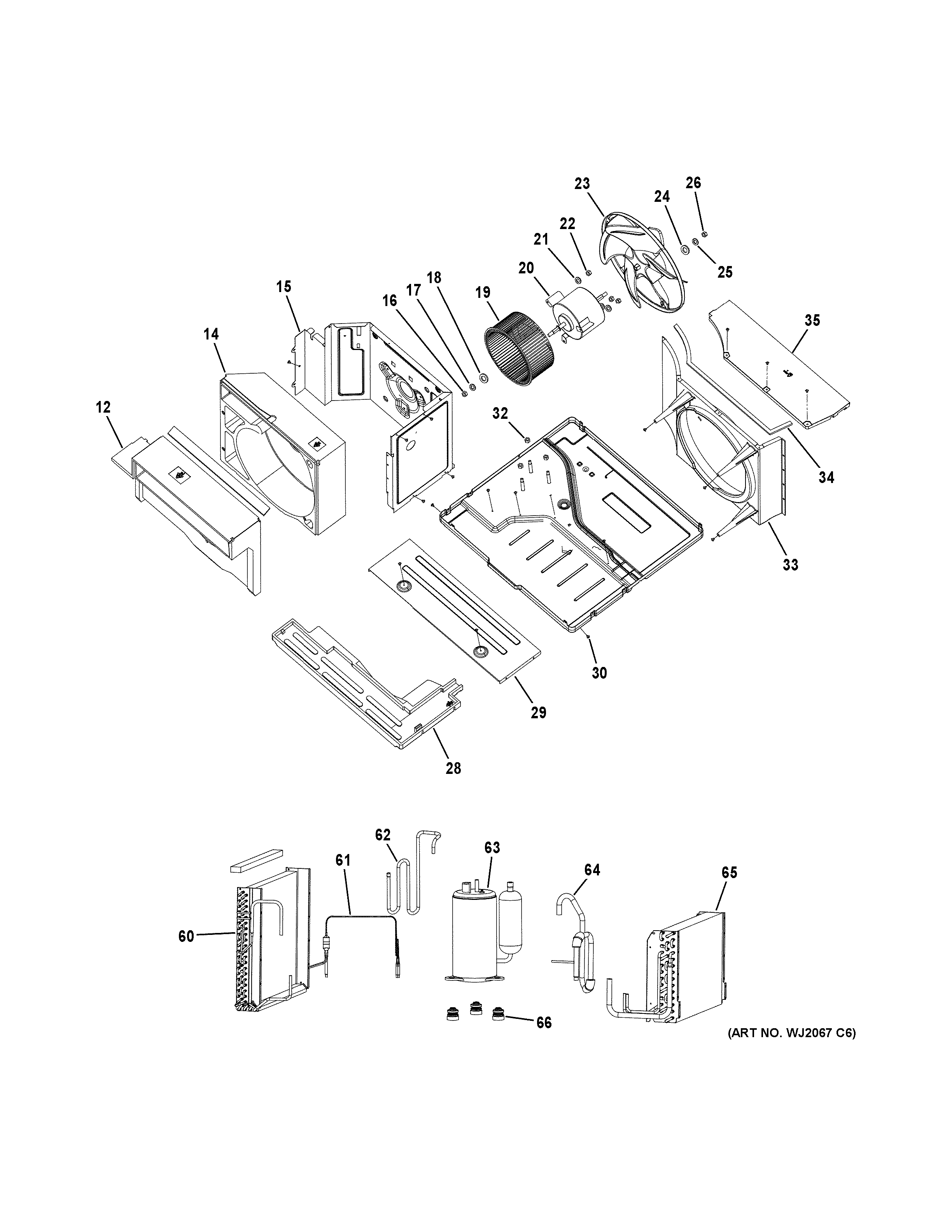

Base pan & unit parts diagram

Evaporator

Part #WJ88X10240

$223.04
In Stock
Room Air Conditioner Window Sash Gasket WJ43X10080
#44

Grille & chassis parts diagram

Room air conditioner window sash gasket

Part #WJ43X10080

$9.51
In Stock
Curtain WJ71X10714
#38

Grille & chassis parts diagram

Curtain

Part #WJ71X10714

$81.60
In Stock
Condenser Assembly WJ87X10263
#60

Base pan & unit parts diagram

Condenser assembly

Part #WJ87X10263

$241.67
In Stock
Electric Control WJ26X10346
#78

Control parts diagram

Electric control

Part #WJ26X10346

This item is not returnable
$27.70
In Stock
Gasket WJ43X10075
#18

Base pan & unit parts diagram

Gasket

Part #WJ43X10075

$9.51
In Stock
Nut With Was WJ01X10335
#32

Base pan & unit parts diagram

Nut with was

Part #WJ01X10335

$8.37
In Stock
Plate WJ79X10246
#35

Base pan & unit parts diagram

Plate

Part #WJ79X10246

$39.89
In Stock
