Room Air Conditioner

Model # AHY08LZW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AHY08LZW1 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AHY08LZW1 Room Air Conditioner
Filter WJ85X23869
#20

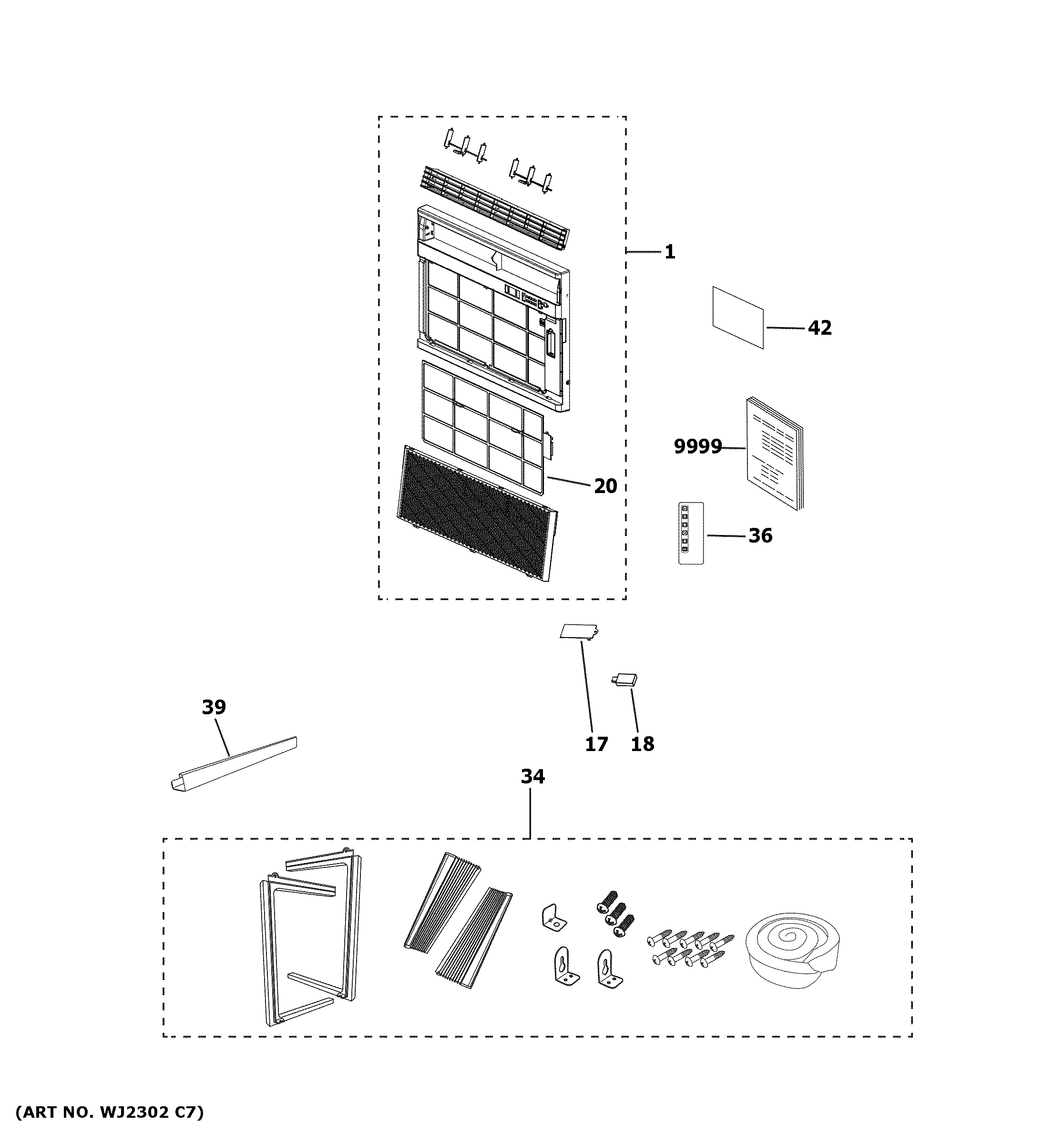

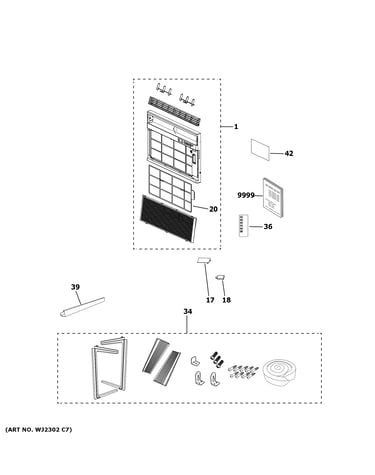

Room air conditioner diagram

Filter

Part #WJ85X23869

This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
User Interface Overlay WJ71X27868
#42

Room air conditioner diagram

User interface overlay

Part #WJ71X27868

$19.54
In Stock
Top Rail WJ86X23668
#39

Room air conditioner diagram

Top rail

Part #WJ86X23668

$16.84 |
11% OFF Phone Price : $18.84
In Stock
Front Panel Assembly WJ71X26257
#1

Room air conditioner diagram

Front panel assembly

Part #WJ71X26257

$43.11
In Stock
Cover Board WJ76X23891
#17

Room air conditioner diagram

Cover board

Part #WJ76X23891

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Room Air Conditioner Wi-fi Module WJ01X23911
#18

Room air conditioner diagram

Room air conditioner wi-fi module

Part #WJ01X23911

$65.31 |
8% OFF Phone Price : $71.31
In Stock
Installation Part WJ43X22102
#34

Room air conditioner diagram

Installation part

Part #WJ43X22102

Replaced by #WJ43X23877

?
Manufacturer substitution
This part replaces WJ43X22102. Substitute parts can look different from the original.
$52.57 |
10% OFF Phone Price : $58.57
In Stock
Remote Contr WJ26X25653
#36

Room air conditioner diagram

Remote contr

Part #WJ26X25653

Replaced by #WJ26X27734

?
Manufacturer substitution
This part replaces WJ26X25653. Substitute parts can look different from the original.
$24.00
In Stock
Pm Owners And Install 49-5000469
#9999

Room air conditioner diagram

Pm owners and install

Part #49-5000469

The manufacturer no longer makes this part, and there's no substitute part
