Model # RKD395 Official Caloric gas range/microwave combo

Here are the diagrams and repair parts for Official Caloric RKD395 gas range/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 285 parts  |
Igniter Kit 0087699
Igniter kit

Part #0087699

Replaced by #786324

?
Manufacturer substitution
This part replaces 0087699. Substitute parts can look different from the original.
$46.23 |
11% OFF Phone Price : $52.23
In Stock
Oven Rack 0067810
#20

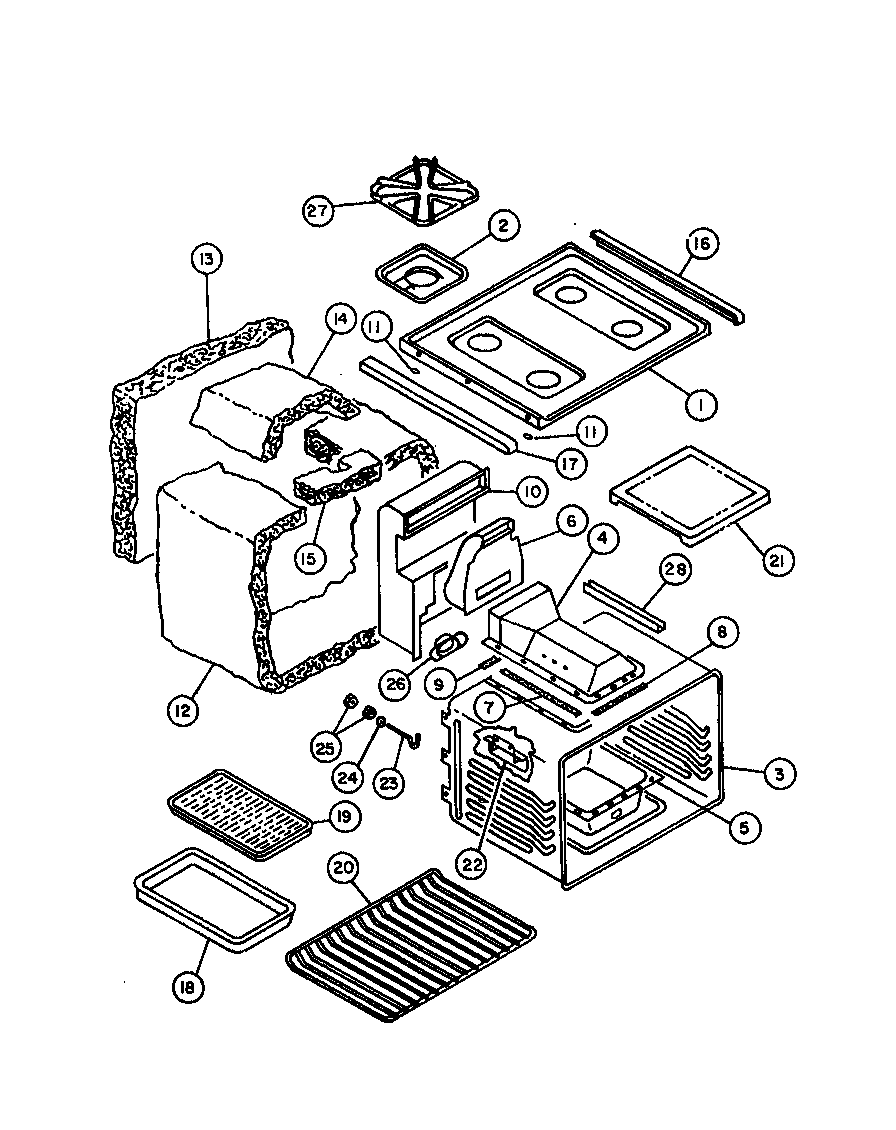

Main top/lower oven assy diagram

Oven rack

Part #0067810

Replaced by #WP314763J

?
Manufacturer substitution
This part replaces 0067810. Substitute parts can look different from the original.
$35.63 |
14% OFF Phone Price : $41.63
In Stock
Fluorescent Lamp 0071927
#9A

Lower oven electrical components diagram

Fluorescent lamp

Part #0071927

Replaced by #WP95292

?
Manufacturer substitution
This part replaces 0071927. Substitute parts can look different from the original.
$63.98
In Stock
Burner Bowl 0063990
#2

Main top/lower oven assy diagram

Burner bowl

Part #0063990

Replaced by #WP786333

?
Manufacturer substitution
This part replaces 0063990. Substitute parts can look different from the original.
$14.69 |
12% OFF Phone Price : $16.69
In Stock
Capacitor 0087067
#1438

Microwave oven components diagram

Capacitor

Part #0087067

Replaced by #59001651

?
Manufacturer substitution
This part replaces 0087067. Substitute parts can look different from the original.
$31.49
In Stock
Mounting Clip 0070927
#15

Lower oven electrical components diagram

Mounting clip

Part #0070927

Replaced by #WPY0070927

?
Manufacturer substitution
This part replaces 0070927. Substitute parts can look different from the original.
This item is not returnable
$4.80
In Stock
Electrode 29 0068867
#14

Lower oven electrical components diagram

Electrode 29

Part #0068867

Replaced by #4157608

?
Manufacturer substitution
This part replaces 0068867. Substitute parts can look different from the original.
$69.19 |
8% OFF Phone Price : $75.19
In Stock
Sub 59117, E 0068866
#13

Lower oven electrical components diagram

Sub 59117, e

Part #0068866

Replaced by #4157608

?
Manufacturer substitution
This part replaces 0068866. Substitute parts can look different from the original.
$69.19 |
8% OFF Phone Price : $75.19
In Stock
Fuse 5amp 0072211
#24

Lower oven electrical components diagram

Fuse 5amp

Part #0072211

Replaced by #WPY0072211

?
Manufacturer substitution
This part replaces 0072211. Substitute parts can look different from the original.
$34.76
In Stock
Pressure Regulator 0063684
#17

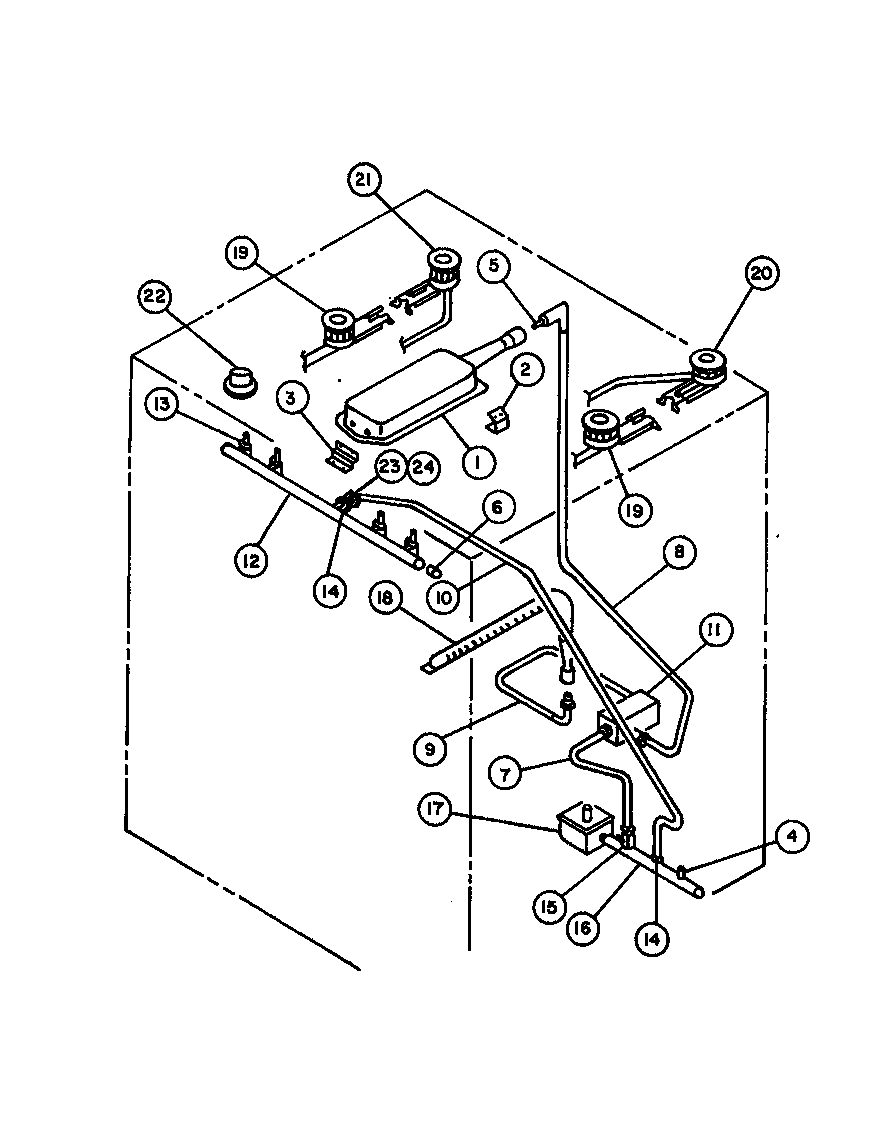

Gas components diagram

Pressure regulator

Part #0063684

The manufacturer no longer makes this part, and there's no substitute part
