Amana
Side-By-Side Refrigerator

Model # SX22J-P1104029W Official Amana side-by-side refrigerator/freezer - j model

Here are the diagrams and repair parts for Official Amana SX22J-P1104029W side-by-side refrigerator/freezer - j model, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

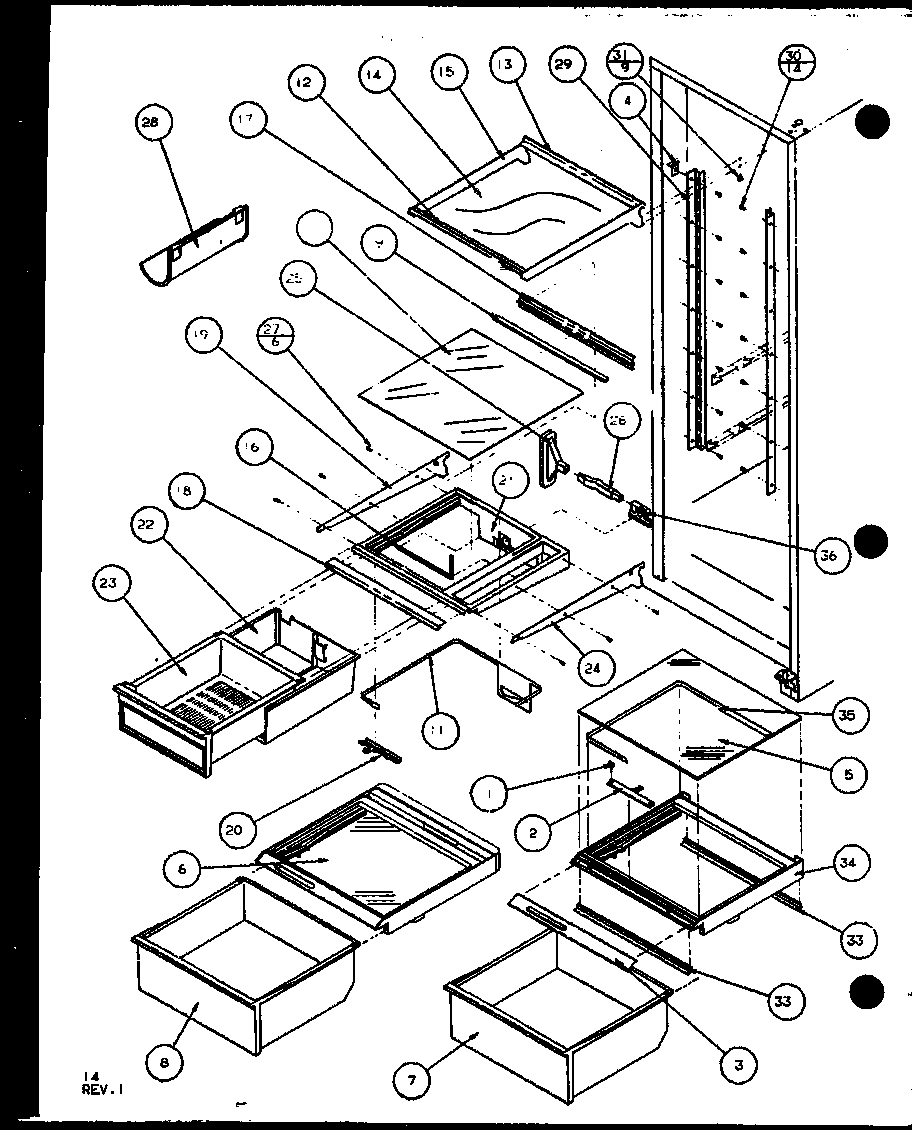

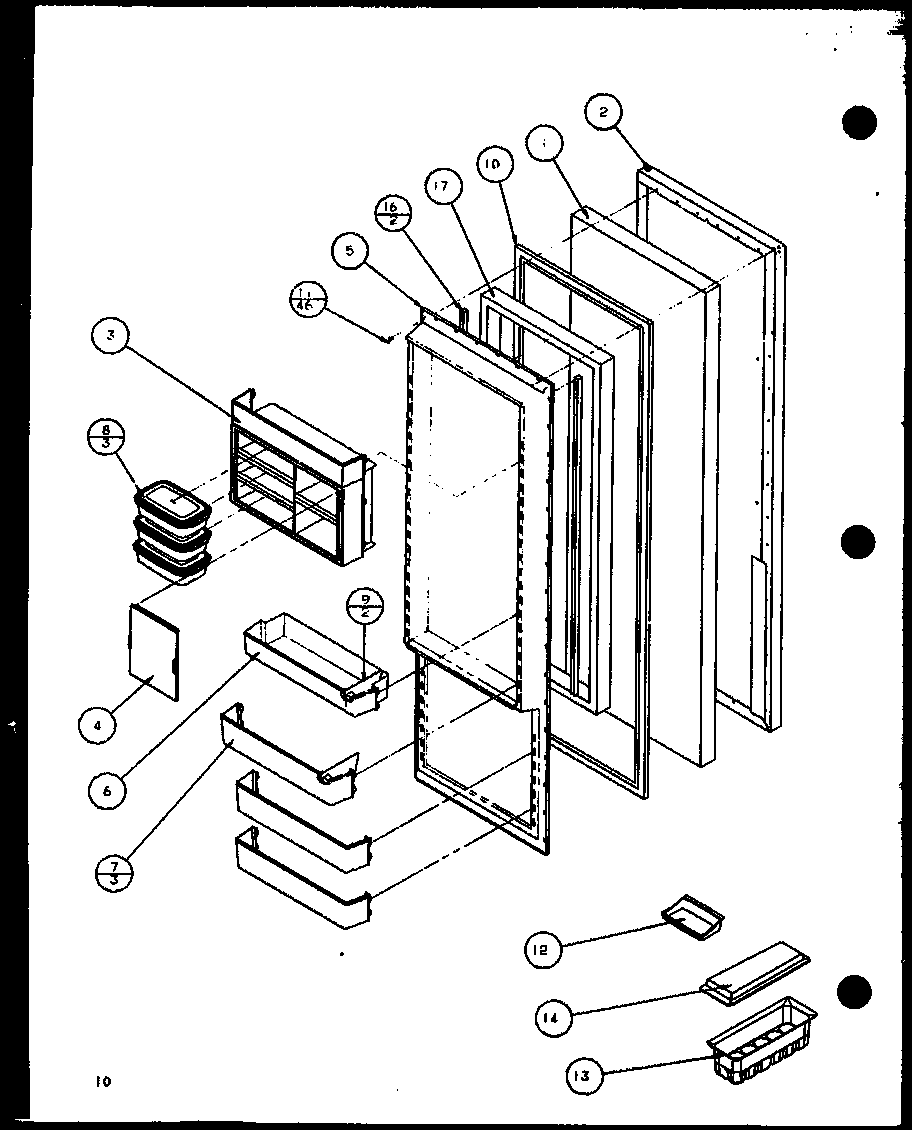

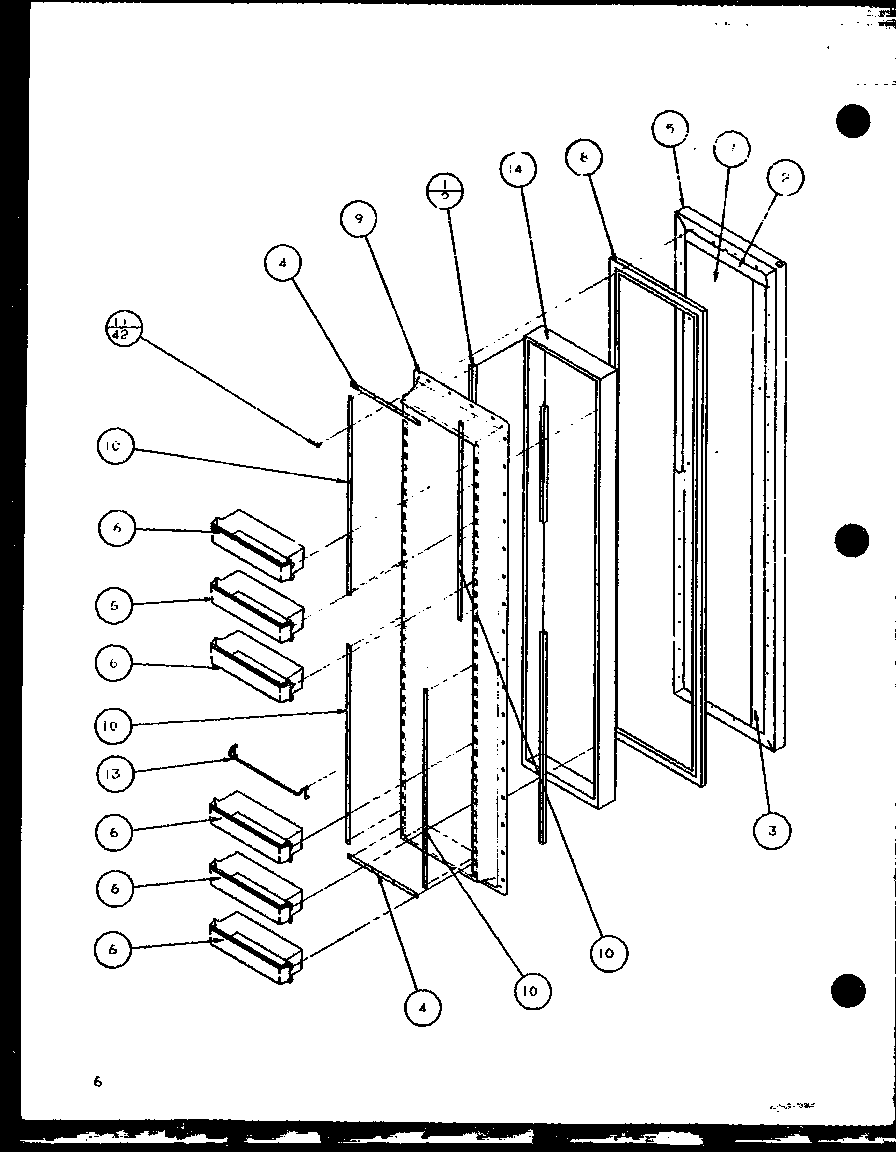

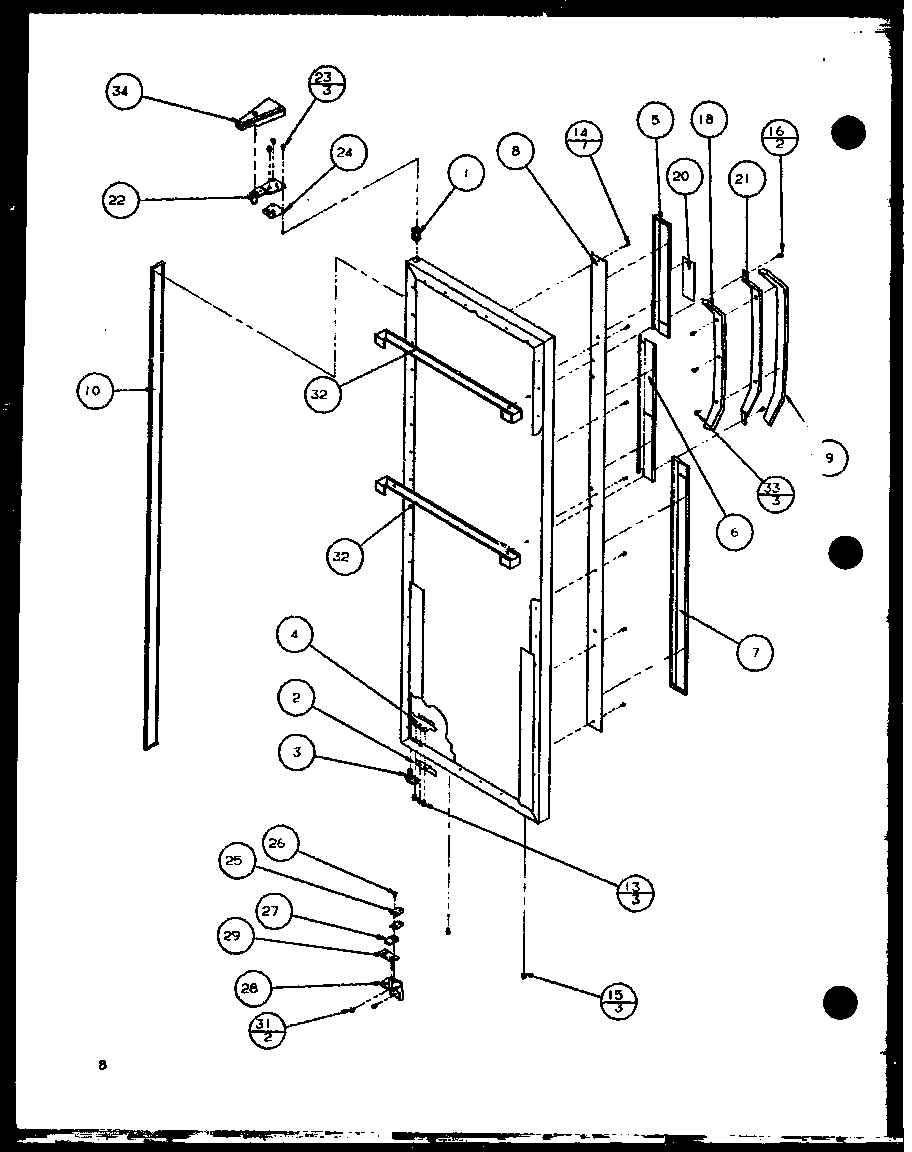

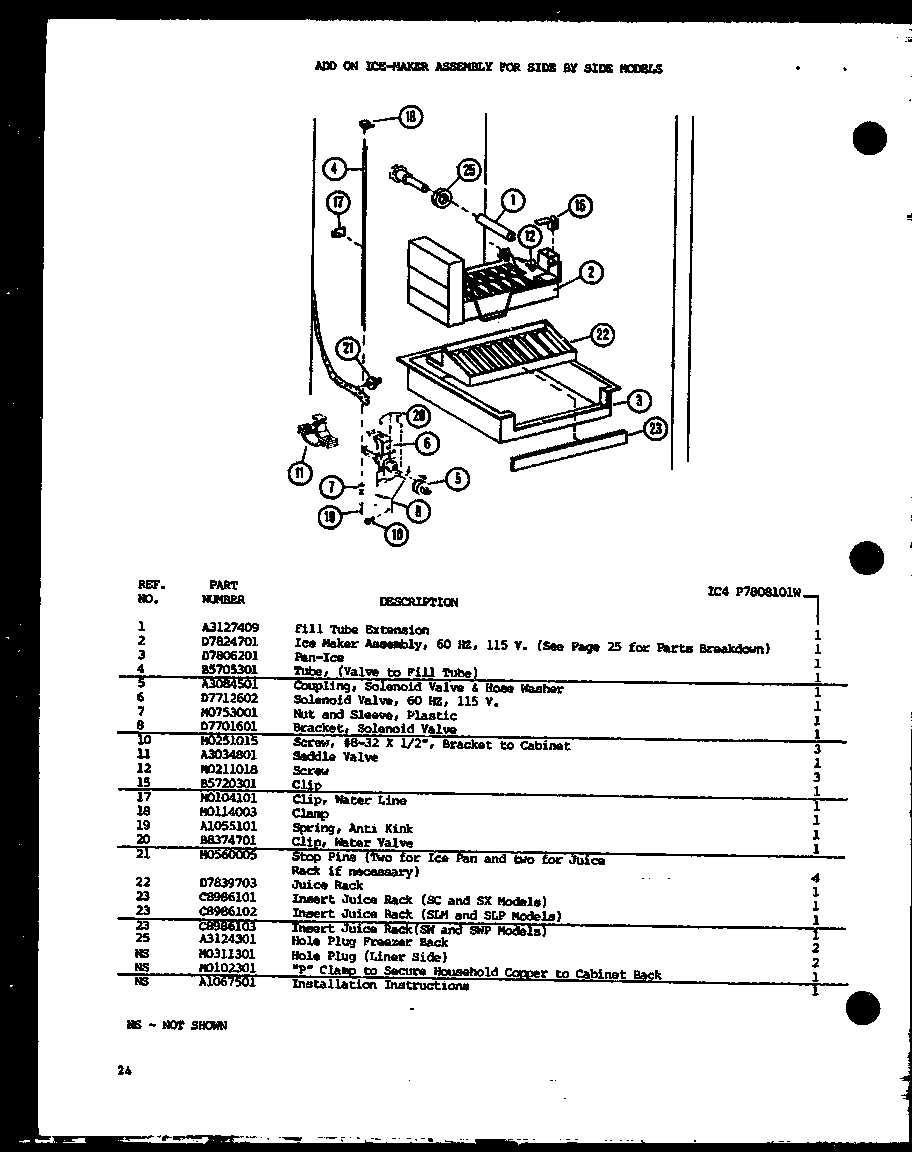

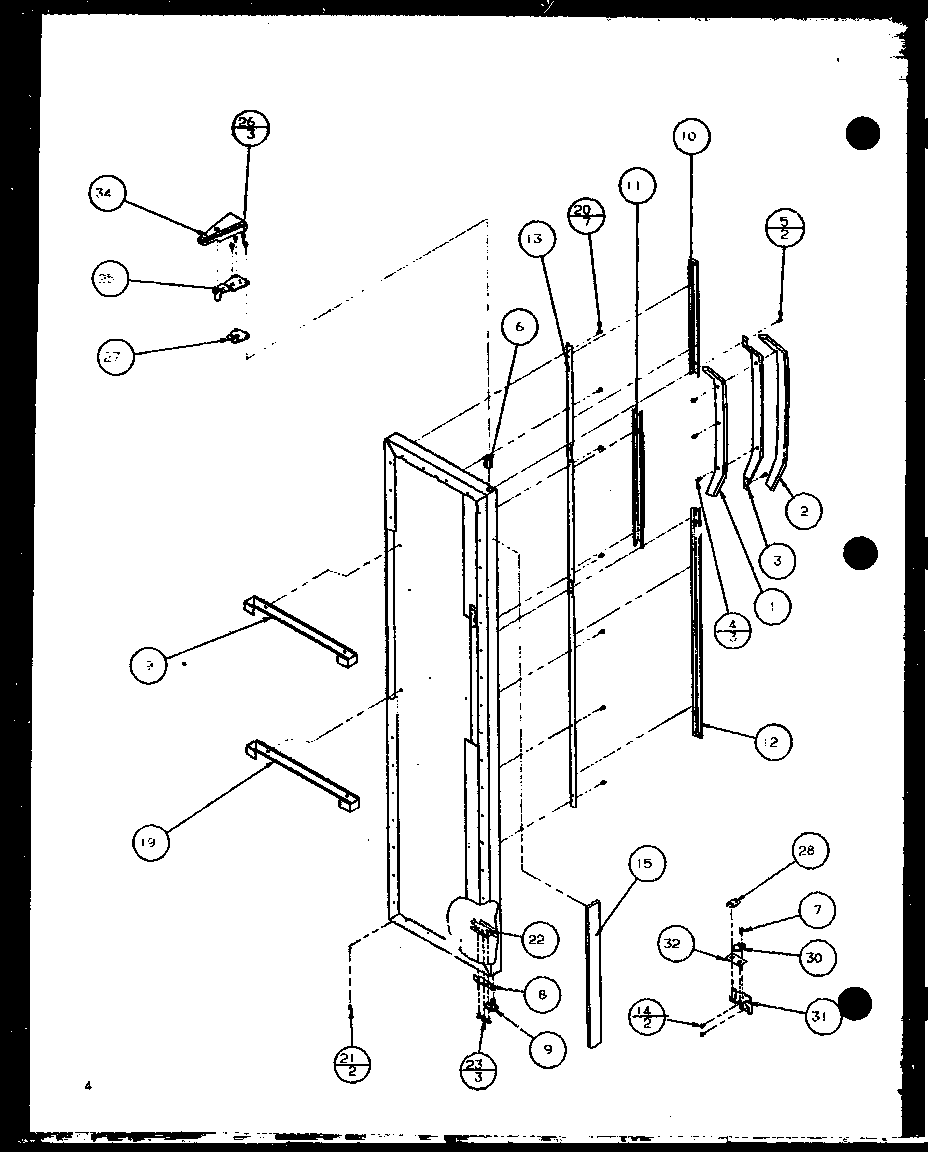

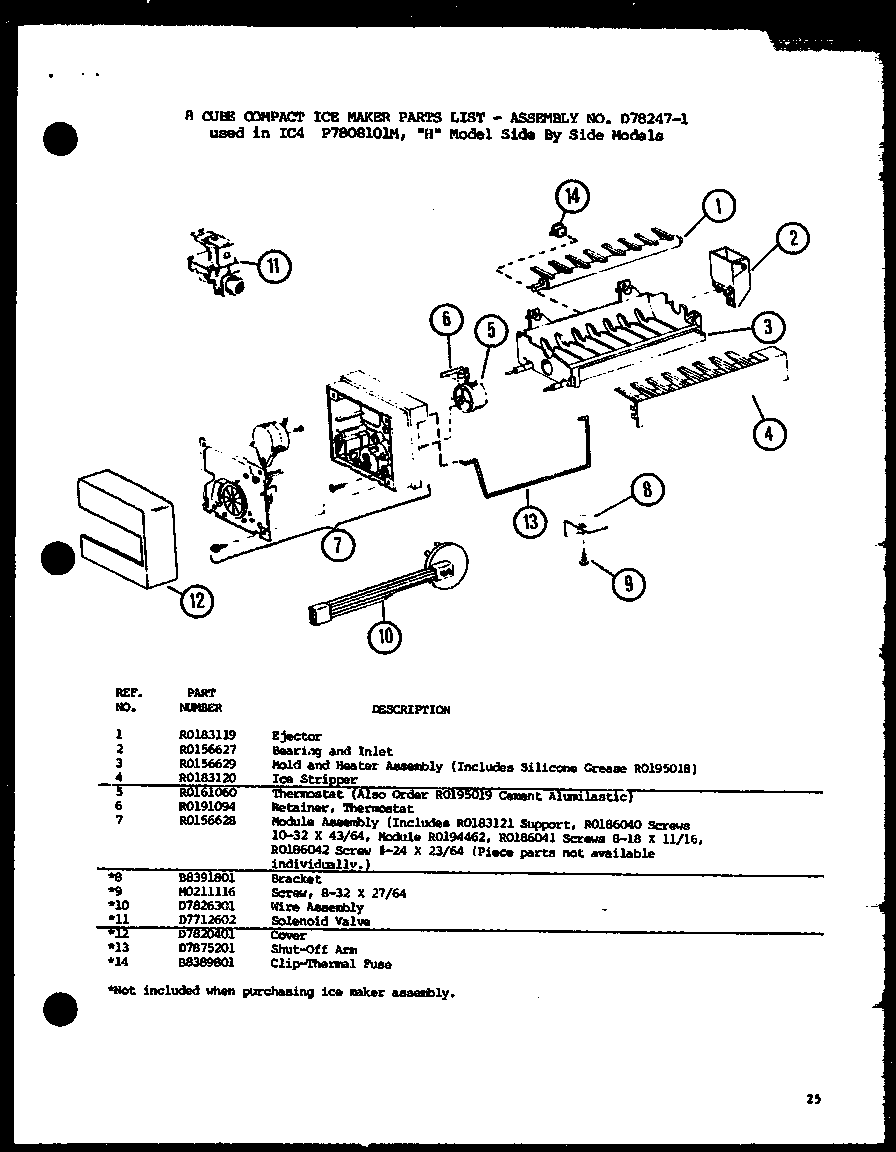

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 336 parts  |
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#15

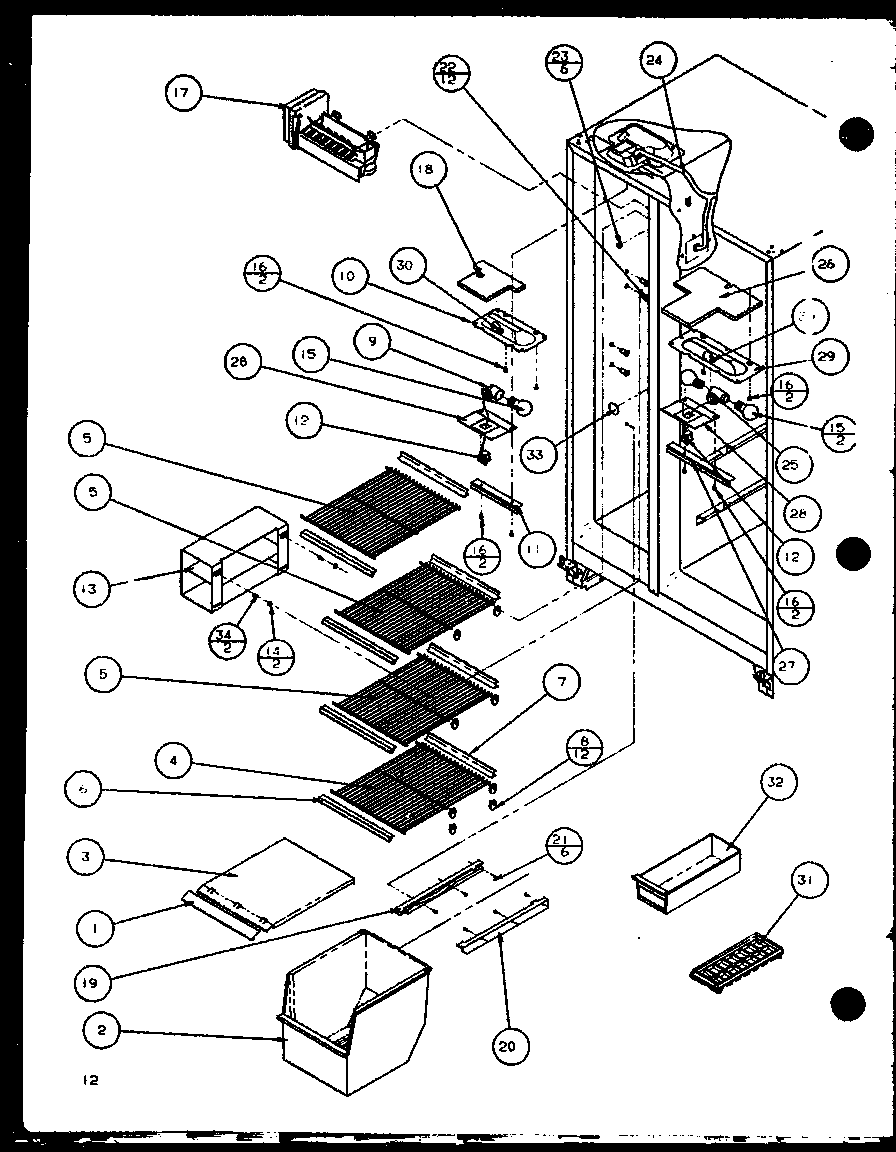

Freezer shelving and refrigerator light (sx22j/p7870118w) (sx22j/p1104029w) (sx25j/p7870105w) (sx25j/p1104025w) diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Switch C3680304
#12

Freezer shelving and refrigerator light (sx22j/p7870118w) (sx22j/p1104029w) (sx25j/p7870105w) (sx25j/p1104025w) diagram

Switch

Part #C3680304

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680304. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Relay 10097201
#21C

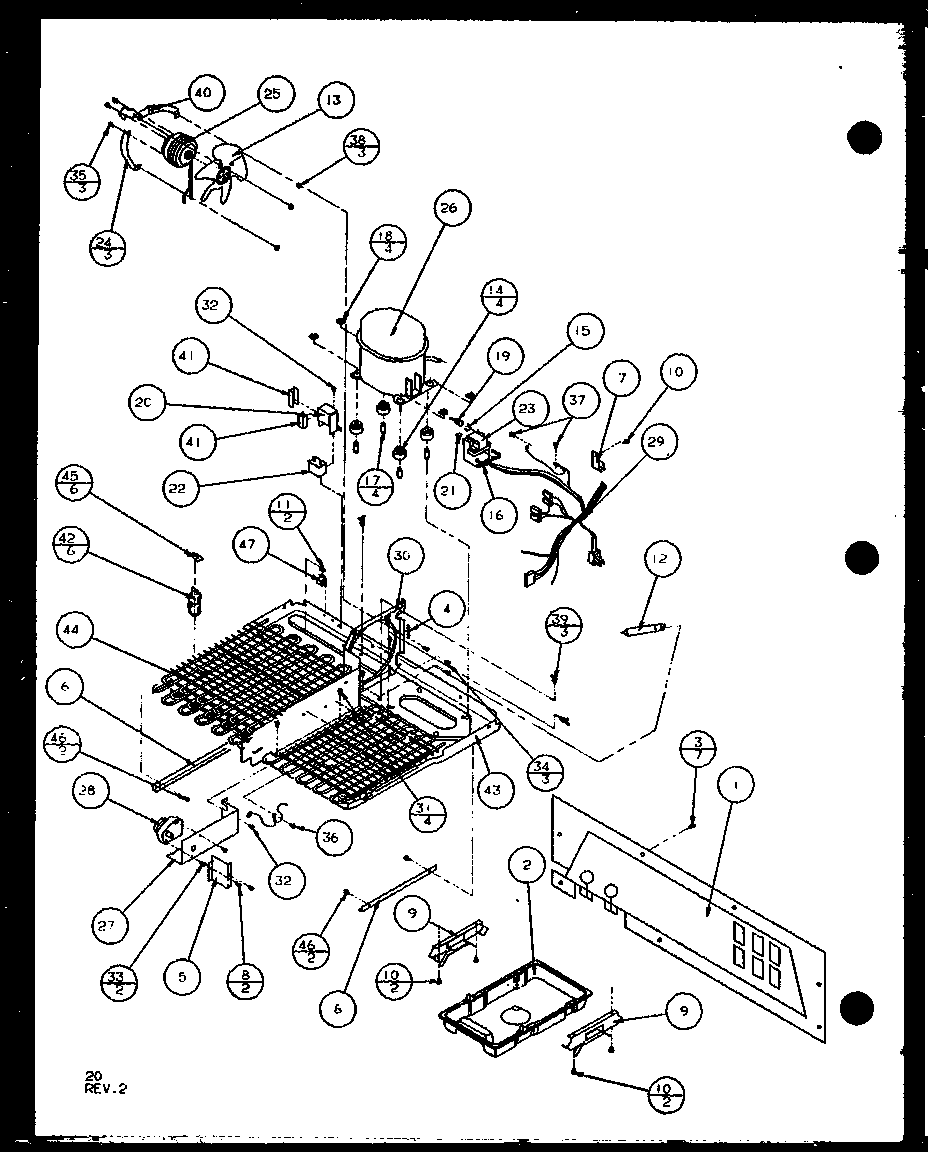

Machine compartment (sx22j/p7870118w) (sx22j/p1104029w) (sx25j/p7870105w) (sx25j/p1104025w) diagram

Refrigerator relay

Part #10097201

Replaced by #WPW10189190

?
Manufacturer substitution
This part replaces 10097201. Substitute parts can look different from the original.
BEST SELLER
$71.10 |
8% OFF Phone Price : $77.10
In Stock
Drier B5715001
#12

Machine compartment (sx22j/p7870118w) (sx22j/p1104029w) (sx25j/p7870105w) (sx25j/p1104025w) diagram

Drier

Part #B5715001

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B5715001. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Fan Motor D7584002
#25

Machine compartment (sx22j/p7870118w) (sx22j/p1104029w) (sx25j/p7870105w) (sx25j/p1104025w) diagram

Refrigerator fan motor

Part #D7584002

Replaced by #833697

?
Manufacturer substitution
This part replaces D7584002. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Capacitor C8931604
#22B

Machine compartment (sx22j/p7870118w) (sx22j/p1104029w) (sx25j/p7870105w) (sx25j/p1104025w) diagram

Refrigerator capacitor

Part #C8931604

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Tubing B5705320
#6

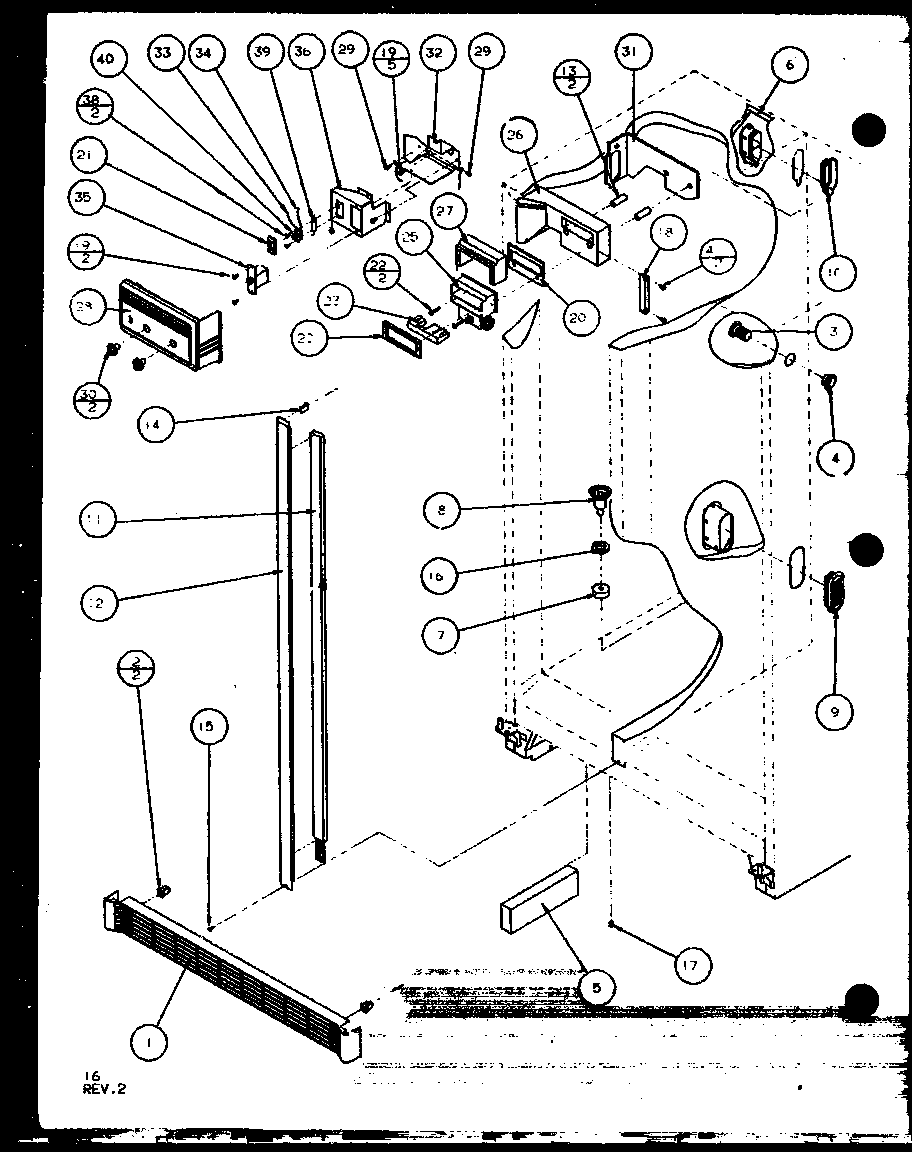

Refrigerator freezer control and cabinet parts (sx22j/p7870118w) (sx22j/p1104029w) (sx25j/p7870105w) (sx25j/p1104025w) diagram

Refrigerator tubing

Part #B5705320

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705320. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Refrigerator Grommet A1017202
#30

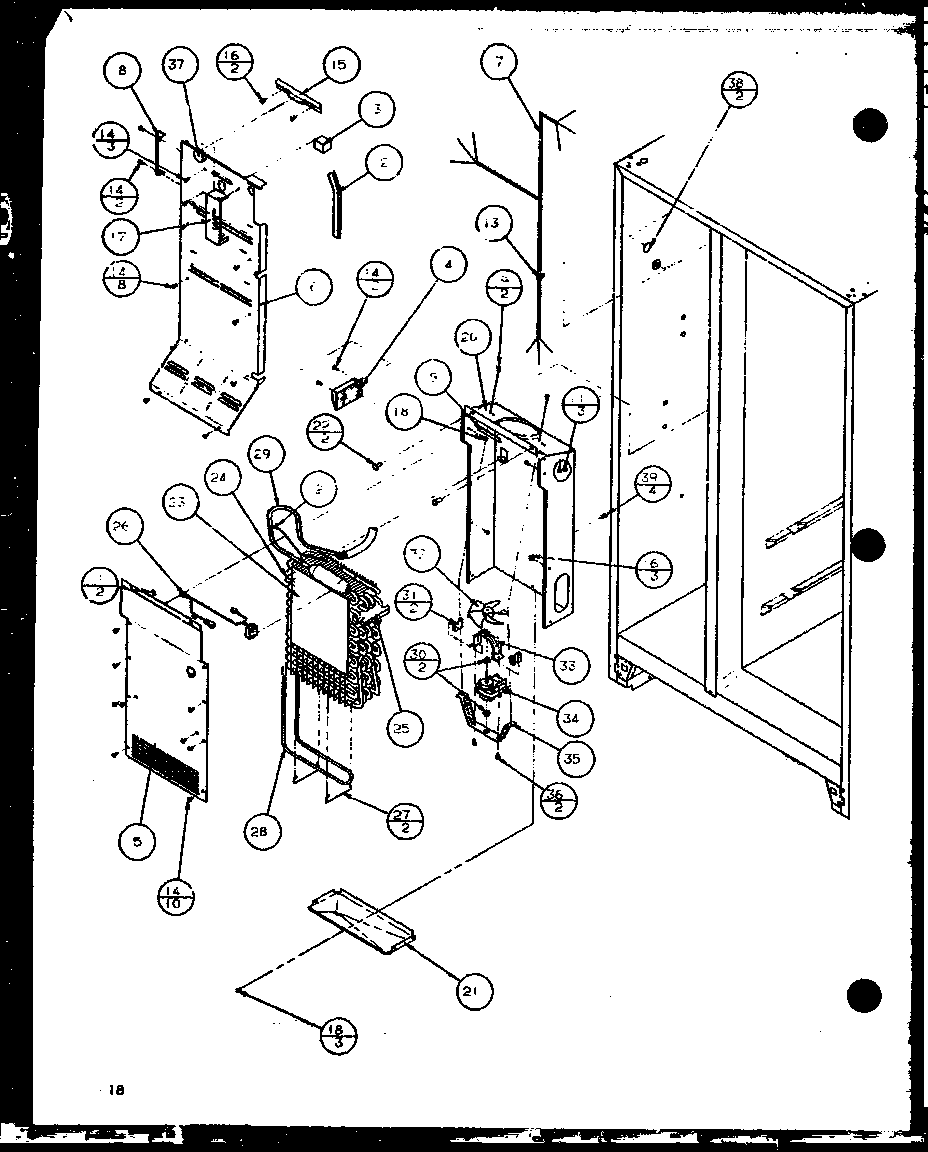

Freezer evaporator and air handling (sx22j/p7870118w) (sx22j/p1104029w) (sx25j/p7870105w) (sx25j/p1104025w) diagram

Refrigerator grommet

Part #A1017202

Replaced by #WP2264462

?
Manufacturer substitution
This part replaces A1017202. Substitute parts can look different from the original.
This item is not returnable
$26.89 |
18% OFF Phone Price : $32.89
In Stock
Evaporator Motor C8891601
#34

Freezer evaporator and air handling (sx22j/p7870118w) (sx22j/p1104029w) (sx25j/p7870105w) (sx25j/p1104025w) diagram

Evaporator motor

Part #C8891601

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Roller M0520102
#8

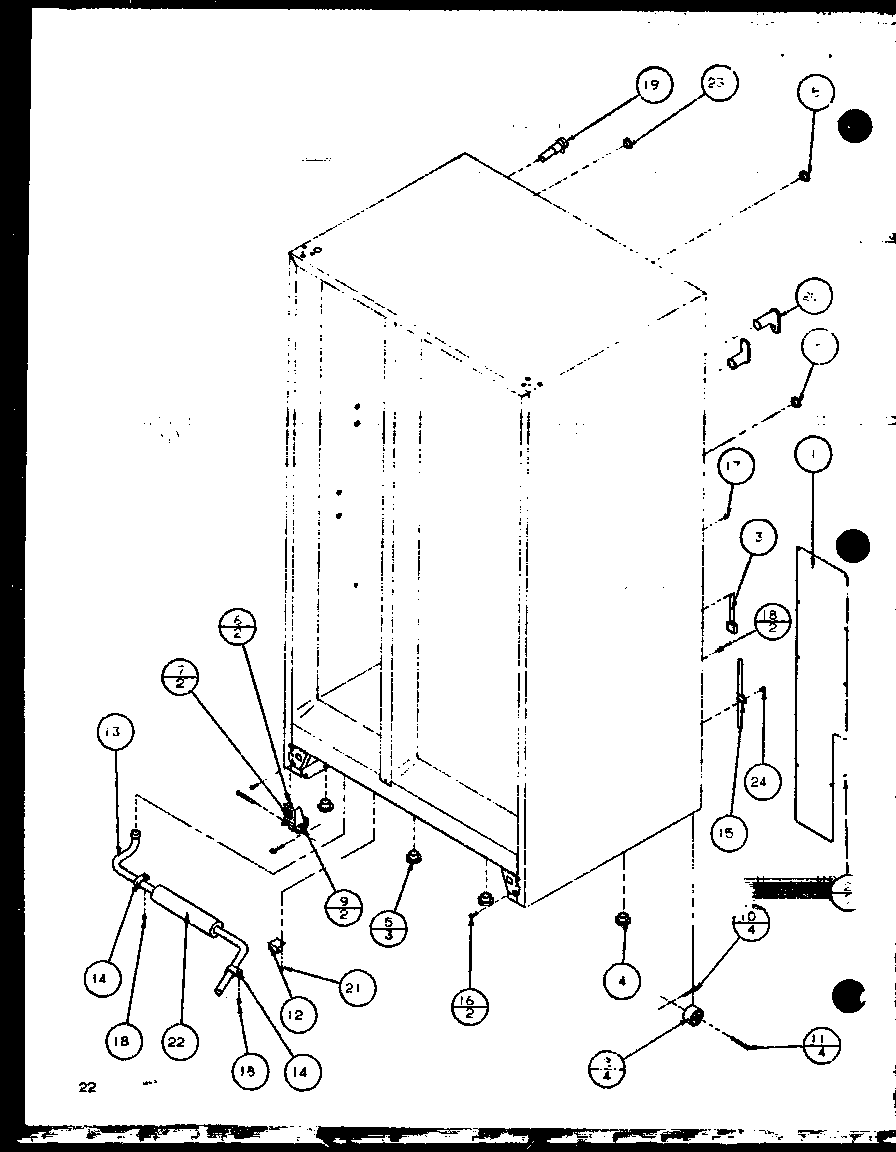

Drain (sx22j/p7870118w) (sx22j/p1104029w) (sx25j/p7870105w) (sx25j/p1104025w) diagram

Refrigerator roller

Part #M0520102

The manufacturer no longer makes this part, and there's no substitute part
