Model # KGCG2240 Official KitchenAid gas cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCG2240 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |

Broiler Box Tee Bolt CC-04780
#9

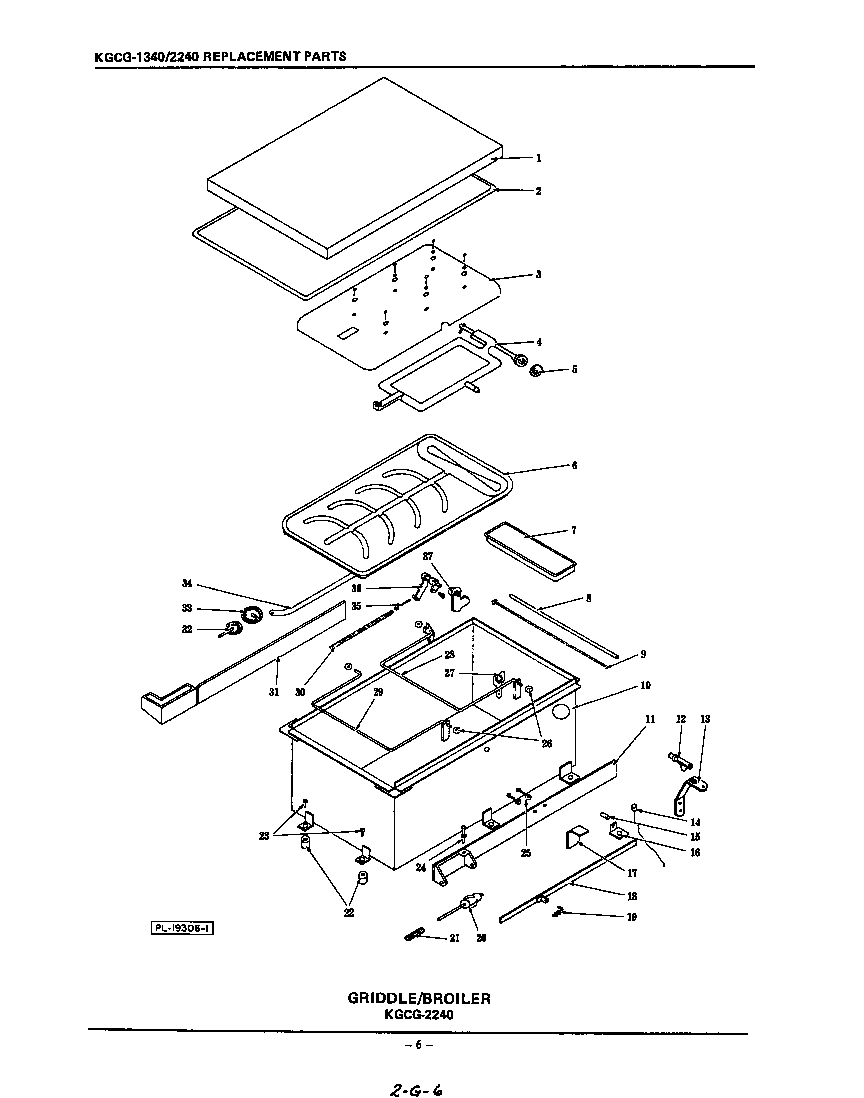

Griddle/broiler parts diagram

Broiler box tee bolt

Part #CC-04780

The manufacturer no longer makes this part, and there's no substitute part

Broiler Box Reinforcement Plate - Left CC-30105
#31

Griddle/broiler parts diagram

Broiler box reinforcement plate - left

Part #CC-30105

The manufacturer no longer makes this part, and there's no substitute part

Broiler Cam Lever And Bearing CC-00553
#37J

Griddle/broiler parts diagram

Broiler cam lever and bearing

Part #CC-00553

The manufacturer no longer makes this part, and there's no substitute part

Cam Shaft Spring CC-04203
#21

Griddle/broiler parts diagram

Cam shaft spring

Part #CC-04203

The manufacturer no longer makes this part, and there's no substitute part

Burner Knob 305177-5
#25

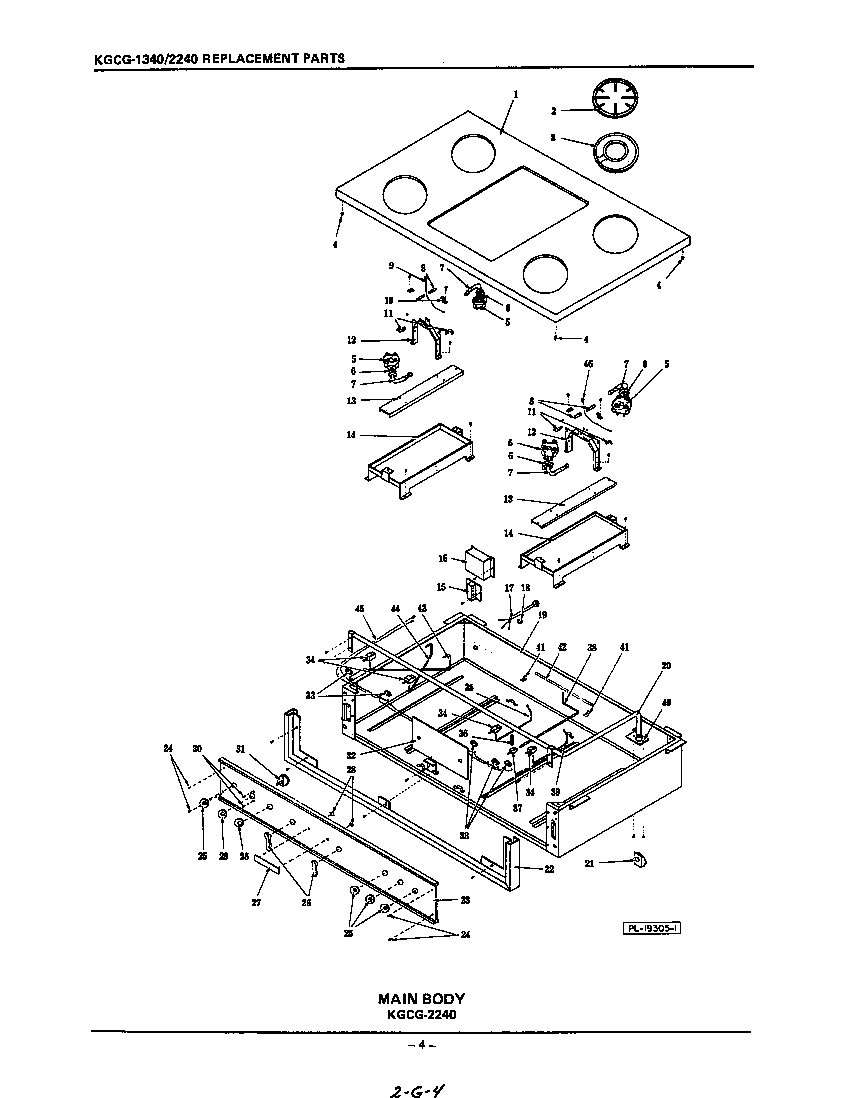

Main body diagram

Burner knob

Part #305177-5

The manufacturer no longer makes this part, and there's no substitute part

Venturi, Front CC-31706
#10

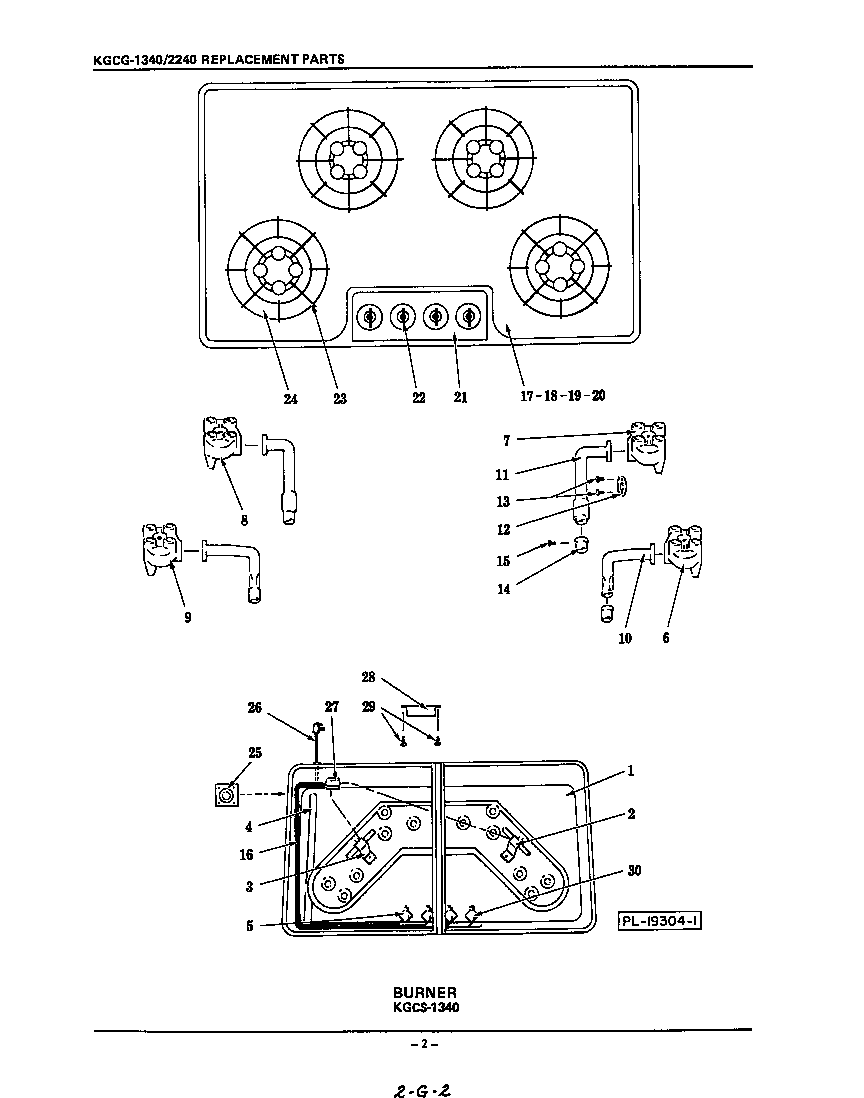

Burner parts diagram

Venturi, front

Part #CC-31706

The manufacturer no longer makes this part, and there's no substitute part

Washer, 7/16 X 1 WS-29-89
#26

Griddle/broiler parts diagram

Washer, 7/16 x 1

Part #WS-29-89

The manufacturer no longer makes this part, and there's no substitute part

Sleeve, 1/4 Od X 1/8 Long CC-00048
#37E

Griddle/broiler parts diagram

Sleeve, 1/4 od x 1/8 long

Part #CC-00048

The manufacturer no longer makes this part, and there's no substitute part

Burner Neck Bearing CC-04773
#27

Griddle/broiler parts diagram

Burner neck bearing

Part #CC-04773

The manufacturer no longer makes this part, and there's no substitute part

Valve Assembly CC-70758
#5

Burner parts diagram

Valve assembly

Part #CC-70758

The manufacturer no longer makes this part, and there's no substitute part
