Model # B1HA030A06 Official York heat pump

Here are the diagrams and repair parts for Official York B1HA030A06 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

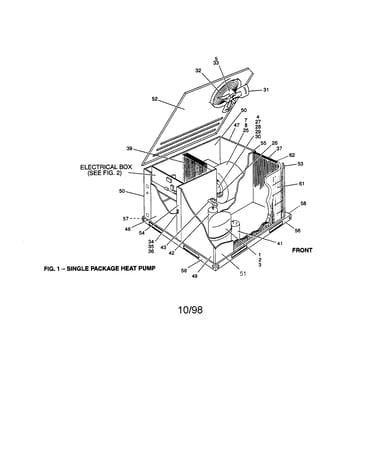

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Central Air Conditioner Electronic Control Board 031-01264-002

#6

All parts diagram

Central air conditioner electronic control board

Part #031-01264-002

The manufacturer no longer makes this part, and there's no substitute part

Rev Valve 025-29134-000

#43

All parts diagram

Rev valve

Part #025-29134-000

The manufacturer no longer makes this part, and there's no substitute part

Fan Wheel 026-32088-702

#26

All parts diagram

Fan wheel

Part #026-32088-702

The manufacturer no longer makes this part, and there's no substitute part

Plug, Plastic (drain Pan) 028-08567-000

#65

All parts diagram

Plug, plastic (drain pan)

Part #028-08567-000

The manufacturer no longer makes this part, and there's no substitute part

Accessories--electrical: Electric Heater (15.kw) 208/230-1-60 (see Note 3) 2NH04501506

#NI

All parts diagram

Accessories--electrical: electric heater (15.kw) 208/230-1-60 (see note 3)

Part #2NH04501506

The manufacturer no longer makes this part, and there's no substitute part

Header (cond) 373-18494-050

#37A

All parts diagram

Header (cond)

Part #373-18494-050

The manufacturer no longer makes this part, and there's no substitute part

Panel Access (blower) 373-18640-001

#47

All parts diagram

Panel access (blower)

Part #373-18640-001

The manufacturer no longer makes this part, and there's no substitute part

Rubber Boot 028-04133-000

#7

All parts diagram

Rubber boot

Part #028-04133-000

The manufacturer no longer makes this part, and there's no substitute part

Accessories--electrical: Pressure Safety Kit (see Note 3) 2PK04700824

#NI

All parts diagram

Accessories--electrical: pressure safety kit (see note 3)

Part #2PK04700824

The manufacturer no longer makes this part, and there's no substitute part

Panel, Access (elect. Ctl's) 373-16331-001

#48

All parts diagram

Panel, access (elect. ctl's)

Part #373-16331-001

The manufacturer no longer makes this part, and there's no substitute part
