Craftsman
Gas Walk-Behind Mower

Model # 917374910 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917374910 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Lawn & Garden Equipment Nut 409148
#33

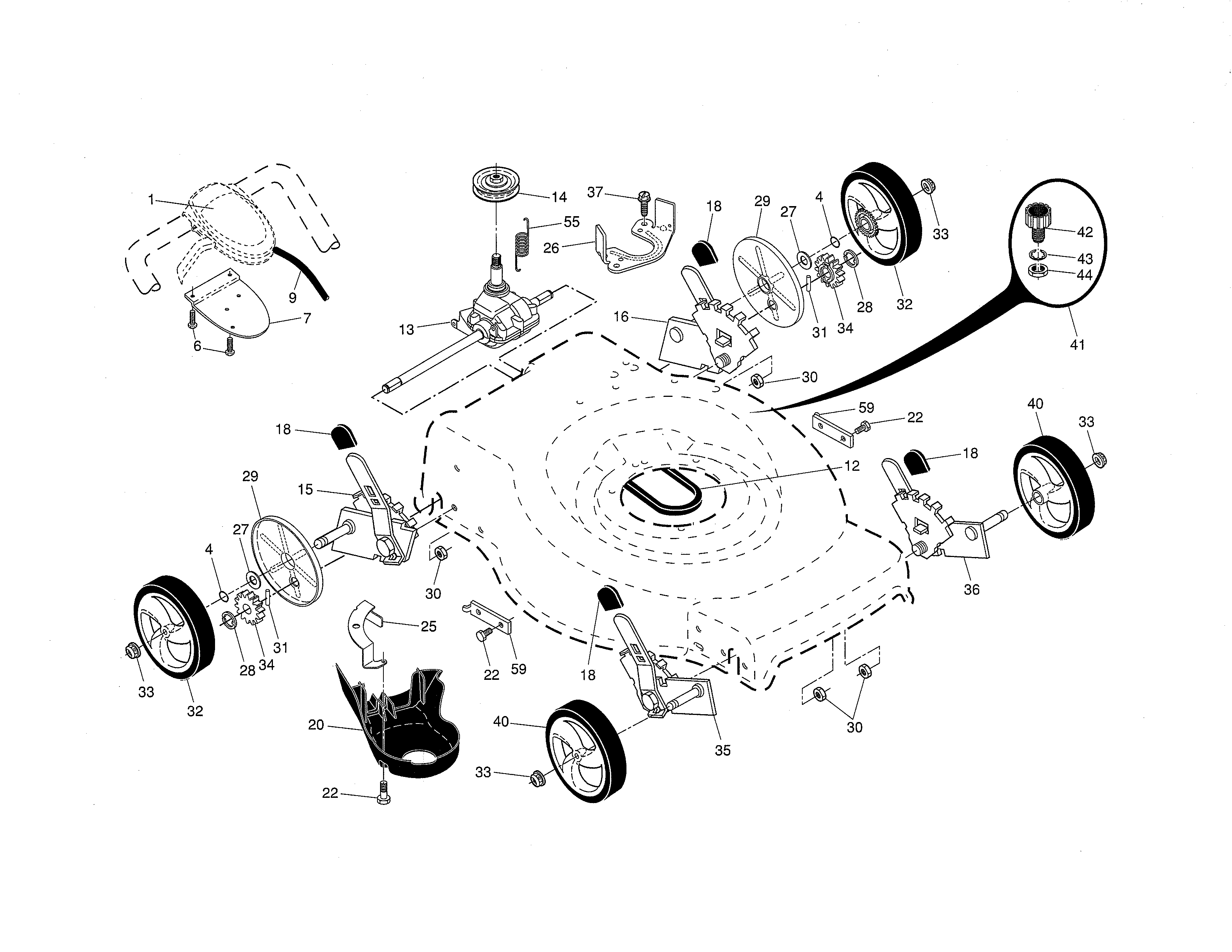

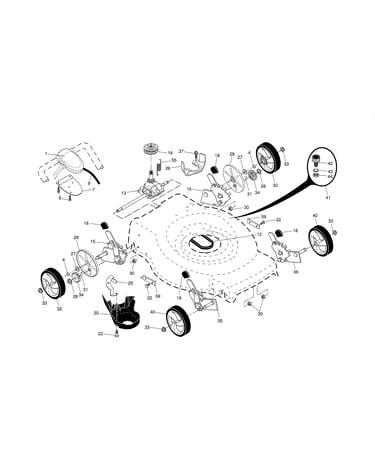

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#12

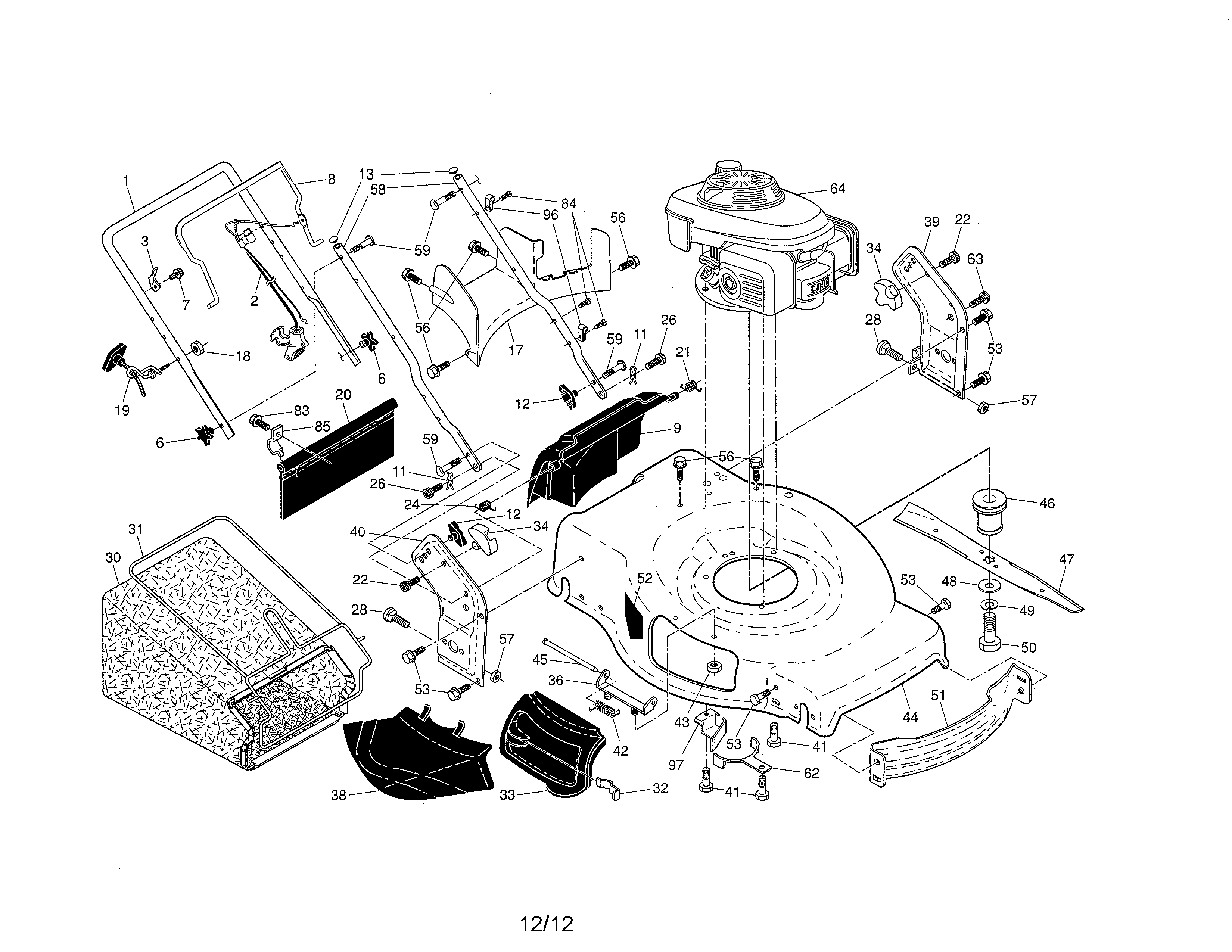

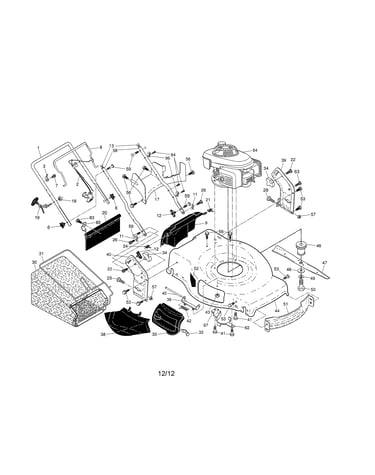

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Wheel Dust Cover (replaces 189403, 532189403, 5321894-03) 581840401
#29

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover (replaces 189403, 532189403, 5321894-03)

Part #581840401

BEST SELLER
$8.22 |
11% OFF Phone Price : $9.22
In Stock
Handle Bolt 191574
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Adjuster Assembly 431142
#16

Drive control/gear case/wheels diagram

Adjuster assembly

Part #431142

Replaced by #581497908

?
Manufacturer substitution
This part replaces 431142. Substitute parts can look different from the original.
BEST SELLER
$26.08 |
19% OFF Phone Price : $32.08
In Stock
Adjuster Assembly 431144
#15

Drive control/gear case/wheels diagram

Adjuster assembly

Part #431144

Replaced by #581497907

?
Manufacturer substitution
This part replaces 431144. Substitute parts can look different from the original.
BEST SELLER
$20.58 |
23% OFF Phone Price : $26.58
In Stock
Return Spring 406558
#55

Drive control/gear case/wheels diagram

Return spring

Part #406558

Replaced by #532406558

?
Manufacturer substitution
This part replaces 406558. Substitute parts can look different from the original.
BEST SELLER
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Lawn Mower Wheel (replaces 405745x427, 405745x460, 532413584) 581685301
#32

Drive control/gear case/wheels diagram

Lawn mower wheel (replaces 405745x427, 405745x460, 532413584)

Part #581685301

BEST SELLER
$41.18 |
13% OFF Phone Price : $47.18
In Stock
Nut 132004
#18

Engine/housing/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn Mower Grass Bag Frame Assembly 446432
#31

Engine/housing/handle diagram

Lawn mower grass bag frame assembly

Part #446432

Replaced by #585054703

?
Manufacturer substitution
This part replaces 446432. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$32.98 |
15% OFF Phone Price : $38.98
In Stock
