Model # 21759980 Official Craftsman 5.5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 21759980 5.5-hp outboard motor, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
21759980 5.5-HP Outboard Motor
Clip 631022
#13

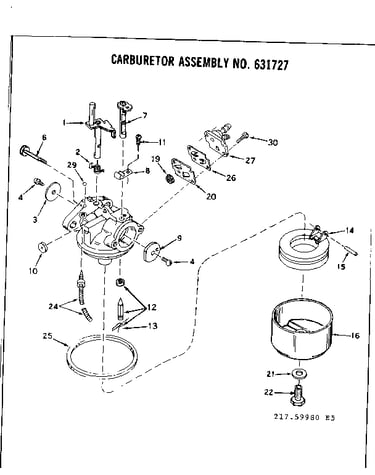

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Gasket 510274
#18

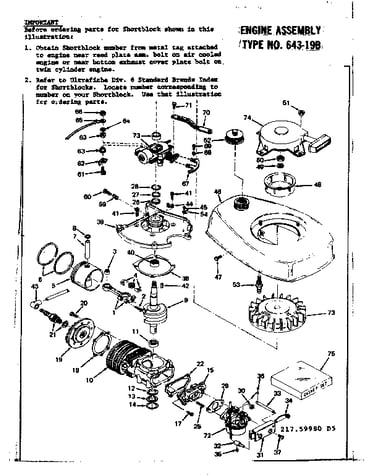

Engine assembly type #643-19b diagram

Gasket

Part #510274

The manufacturer no longer makes this part, and there's no substitute part

Piston 310230
#5

Engine assembly type #643-19b diagram

Piston

Part #310230

The manufacturer no longer makes this part, and there's no substitute part

Ring Set 310190
#6

Engine assembly type #643-19b diagram

Ring set

Part #310190

The manufacturer no longer makes this part, and there's no substitute part

Gasket 631334
#21

Carburetor assembly diagram

Gasket

Part #631334

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#59

Engine assembly type #643-19b diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

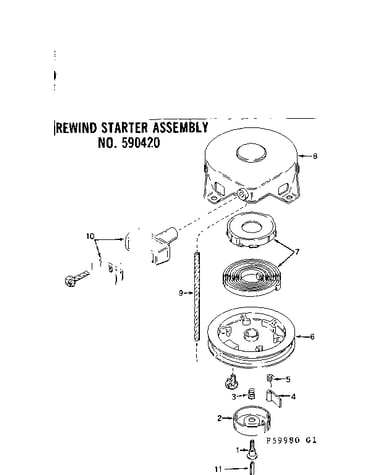

Starter 590420
Starter

Part #590420

The manufacturer no longer makes this part, and there's no substitute part

Bushing 96032
#33

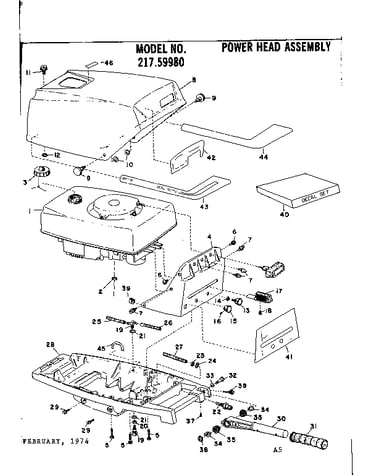

Power head assembly diagram

Bushing

Part #96032

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Oil Seal 96516
#10

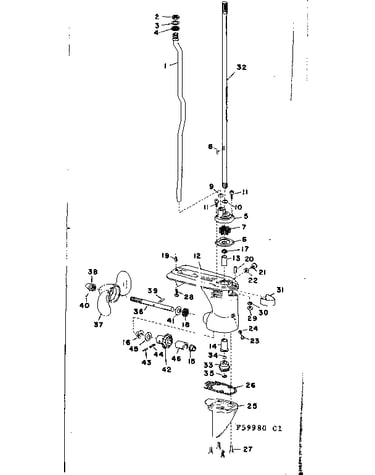

Gear housing asm diagram

Preway boat motor oil seal

Part #96516

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Propeller Nut 26011
#38

Gear housing asm diagram

Preway boat motor propeller nut

Part #26011

The manufacturer no longer makes this part, and there's no substitute part
