Samsung
Room Air Conditioner

Model # AW0790/XAA Official Samsung air conditioner

Here are the diagrams and repair parts for Official Samsung AW0790-XAA air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Flange Nut DB60-30018A
#22

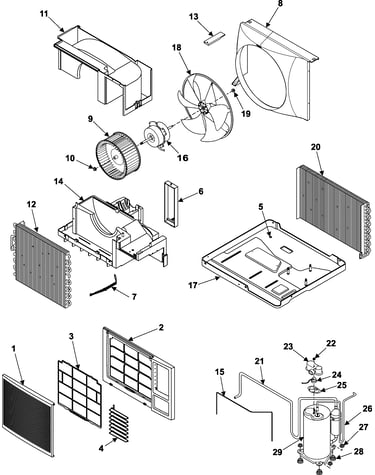

Chassis assembly diagram

Flange nut

Part #DB60-30018A

This item is not returnable
$2.59
In Stock
Cap DB63-10365A
#10

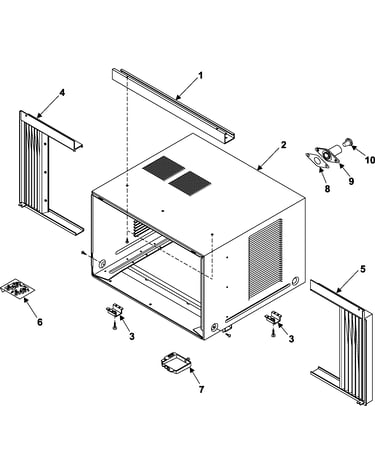

Outer case assembly diagram

Cap

Part #DB63-10365A

This item is not returnable
$2.59
In Stock
Flange Nut DB60-30020A
#10

Chassis assembly diagram

Flange nut

Part #DB60-30020A

This item is not returnable
$2.59
In Stock
Capillary Tube DB62-00342C
#15B

Chassis assembly diagram

Capillary tube

Part #DB62-00342C

The manufacturer no longer makes this part, and there's no substitute part

Overload Protector DB47-20001V
#24

Chassis assembly diagram

Overload protector

Part #DB47-20001V

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly DB90-20212E
#17

Chassis assembly diagram

Base assembly

Part #DB90-20212E

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly PD-SM12D-P1
#3

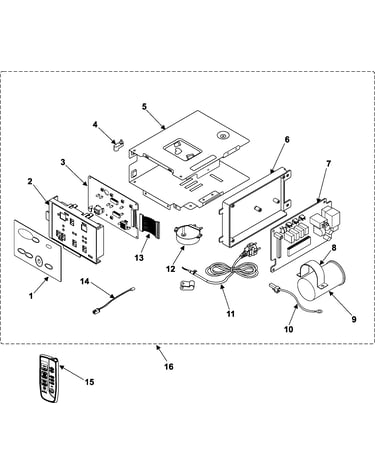

Control assembly diagram

Pcb assembly

Part #PD-SM12D-P1

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan DB67-20043A
#7

Outer case assembly diagram

Drain pan

Part #DB67-20043A

The manufacturer no longer makes this part, and there's no substitute part

Filter-mos DB74-10110A
#3A

Chassis assembly diagram

Filter-mos

Part #DB74-10110A

The manufacturer no longer makes this part, and there's no substitute part

Flange Nut DB60-30004A
#19

Chassis assembly diagram

Flange nut

Part #DB60-30004A

The manufacturer no longer makes this part, and there's no substitute part
