Model # 25348022893 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25348022893 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

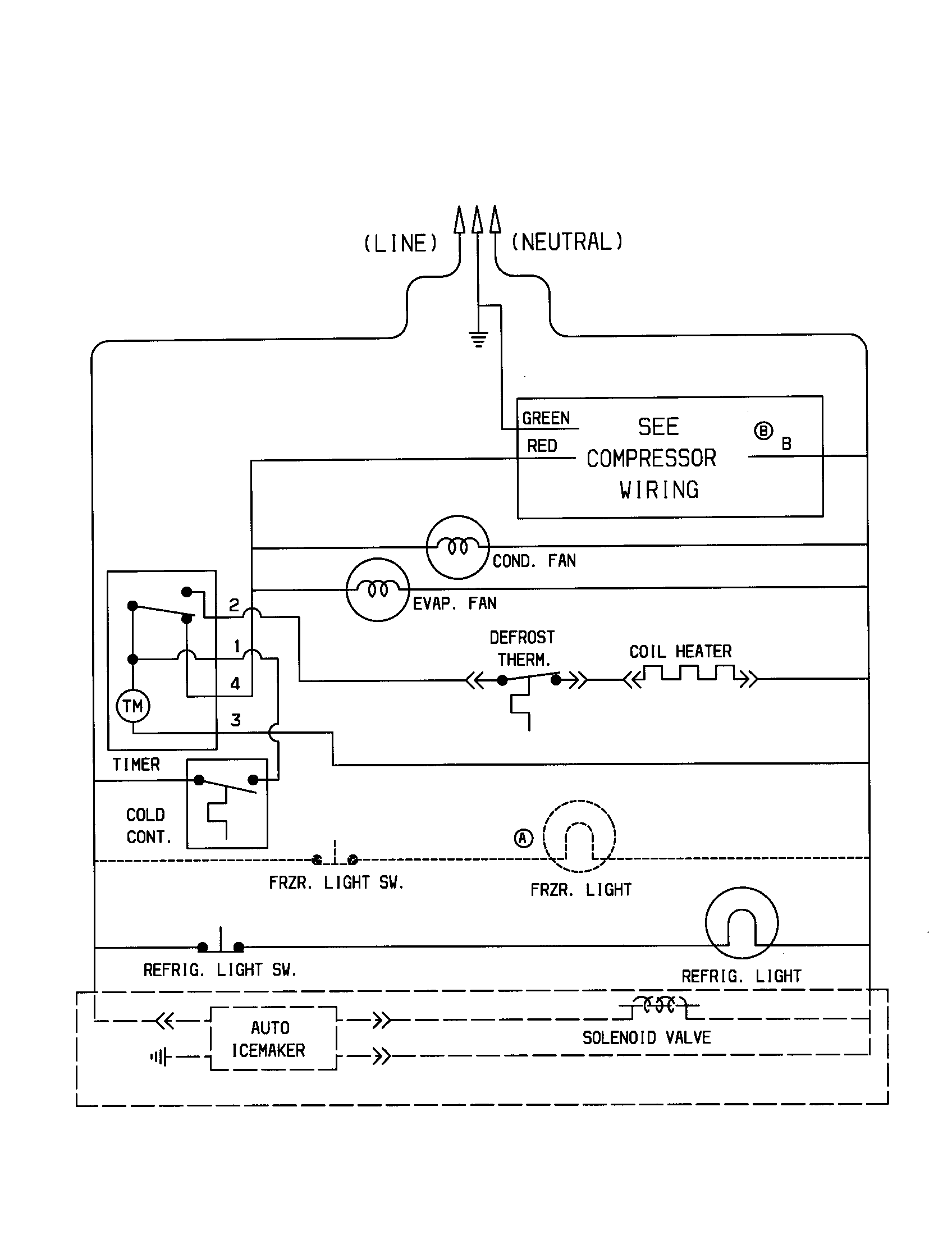

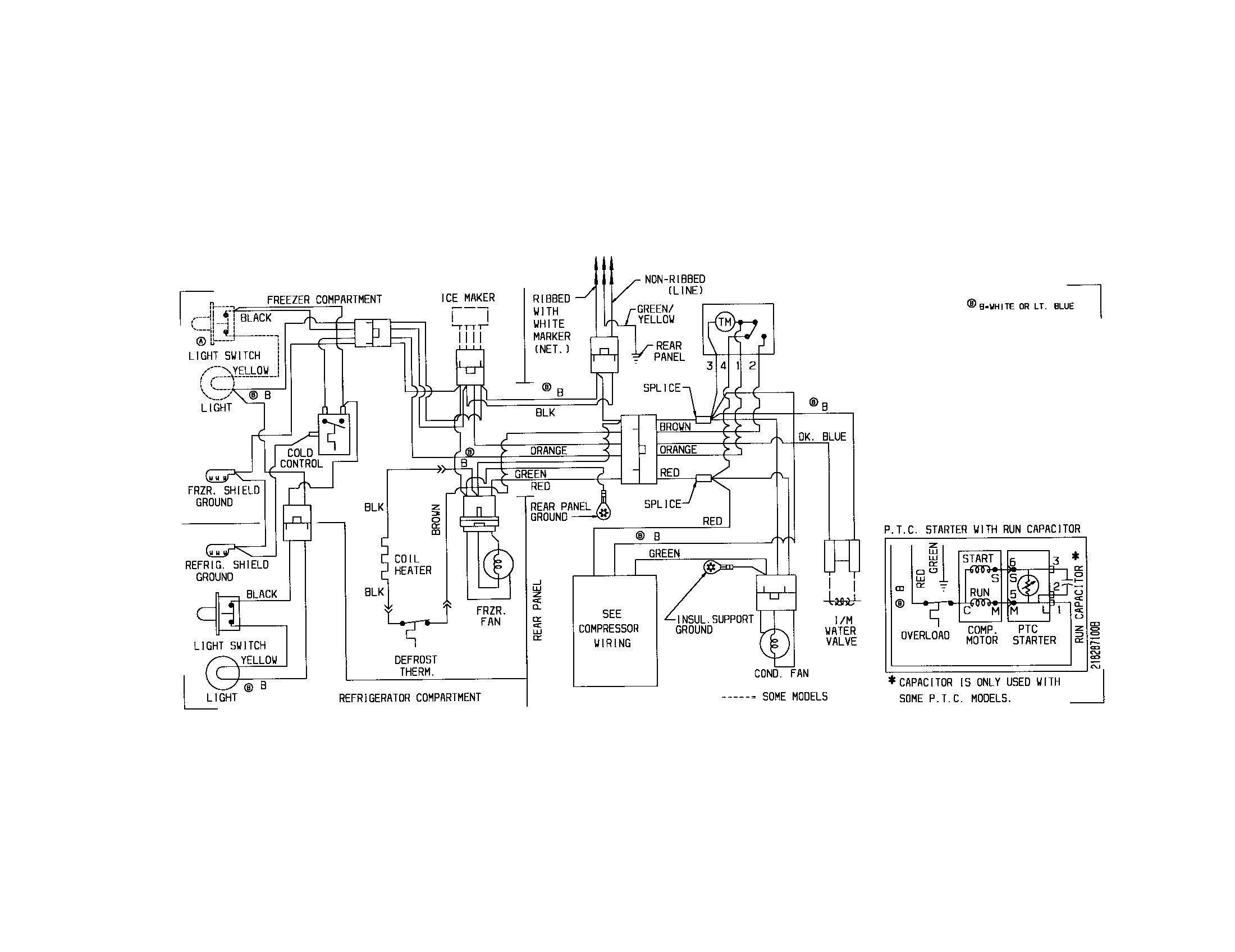

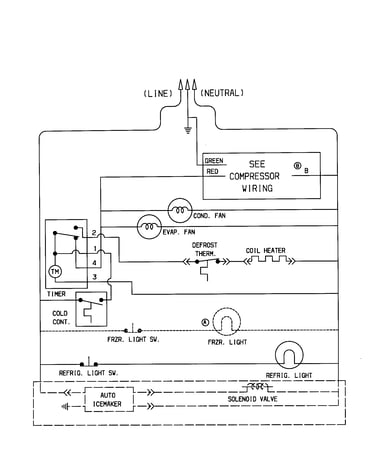

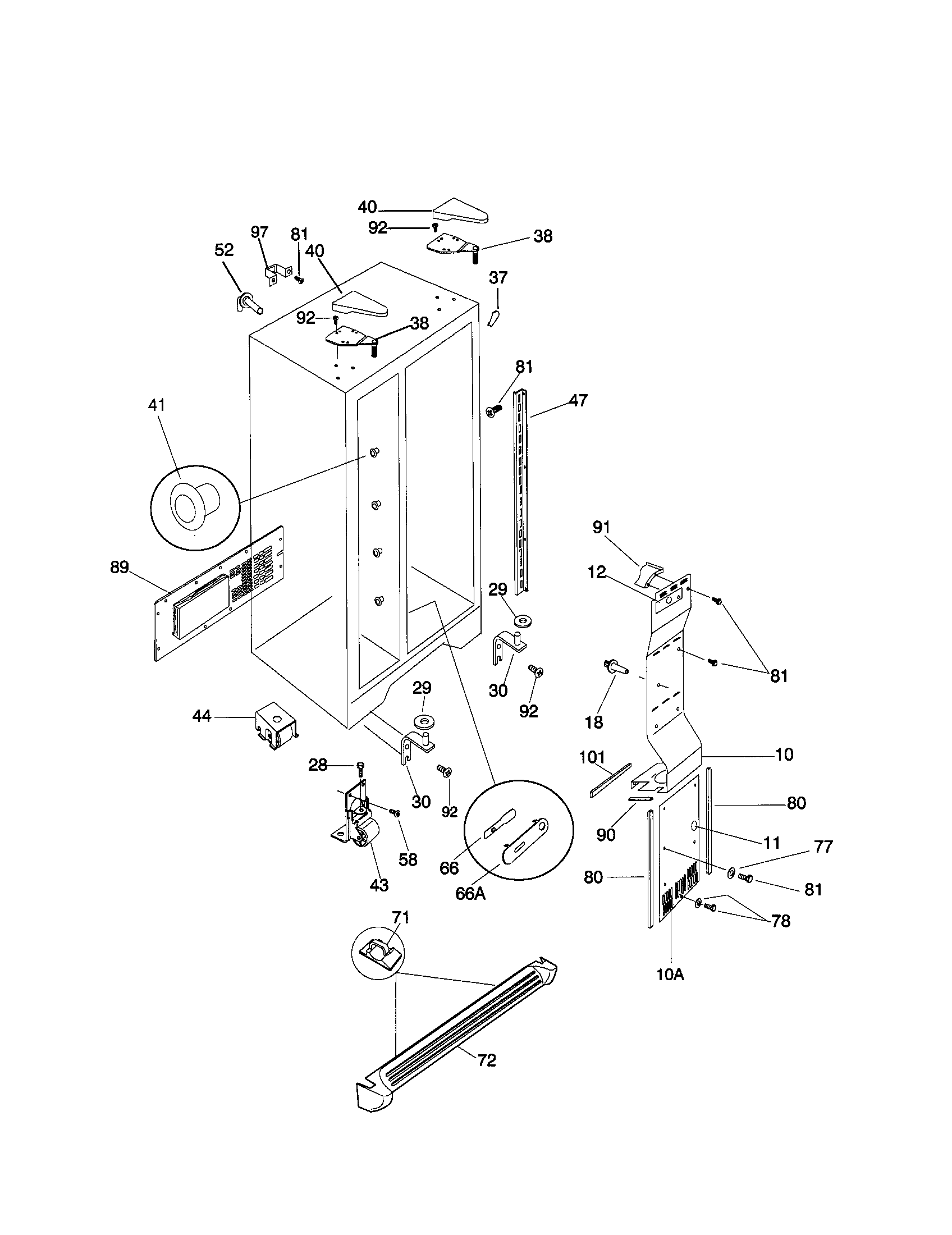

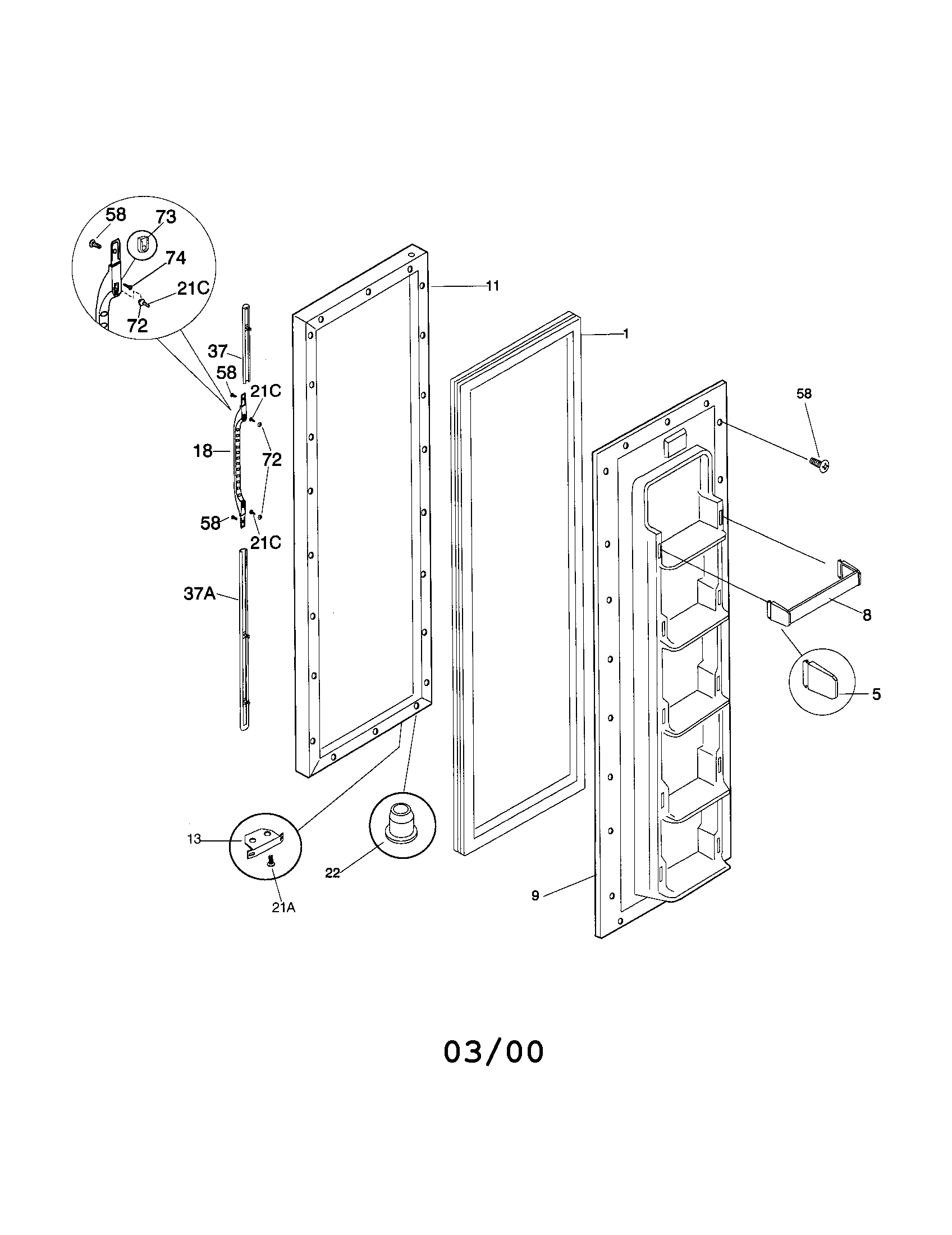

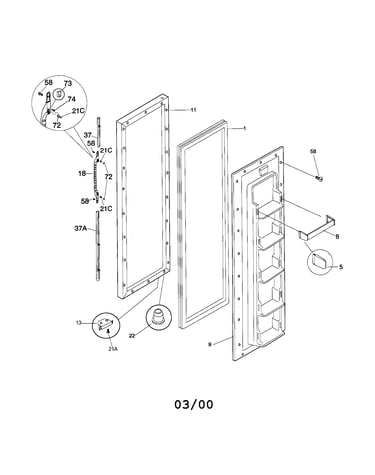

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 208 parts  |
Refrigerator Filter Drier 218944001
#4

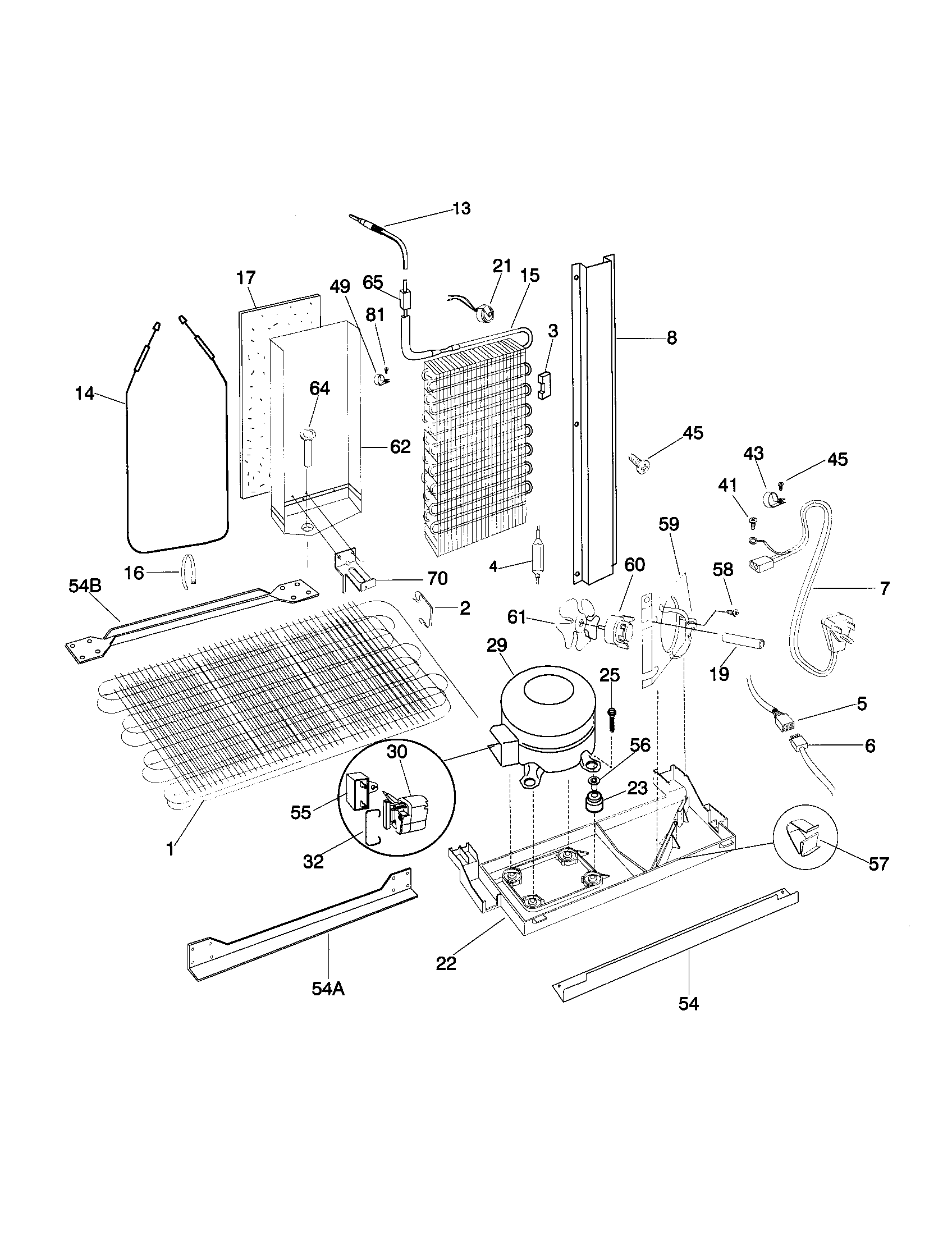

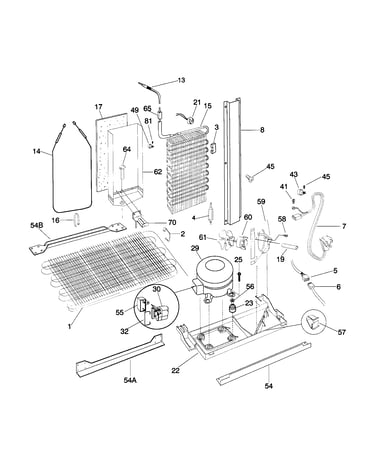

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

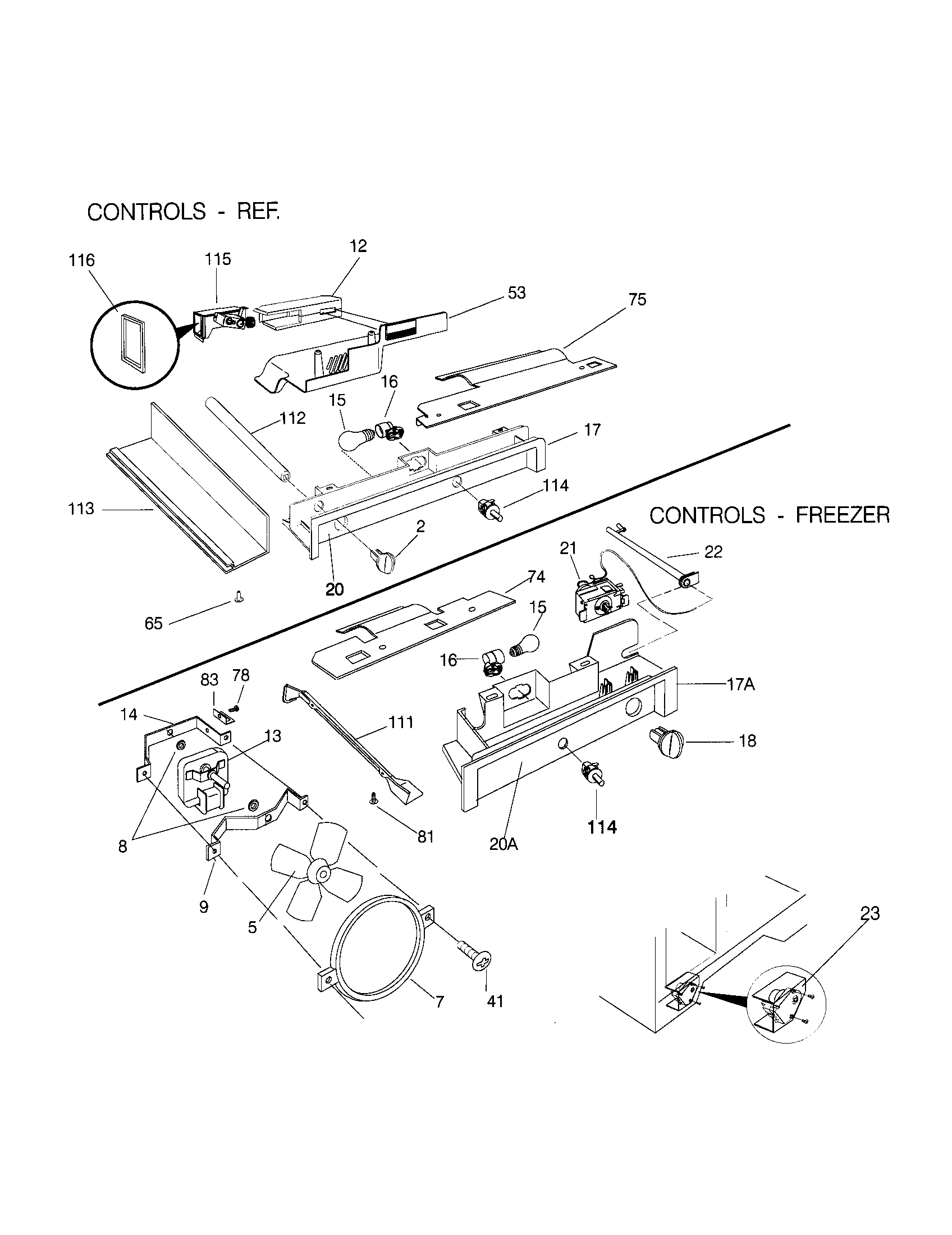

Controls diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Refrigerator Strap 5308000110
#16

System diagram

Refrigerator strap

Part #5308000110

BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Kelvinator Freezer Door Handle Mounting Block (replaces 218396701) 218396700
Kelvinator freezer door handle mounting block (replaces 218396701)

Part #218396700

$36.46 |
14% OFF Phone Price : $42.46
In Stock
Refrigerator Door Bin Support 215267701
#5

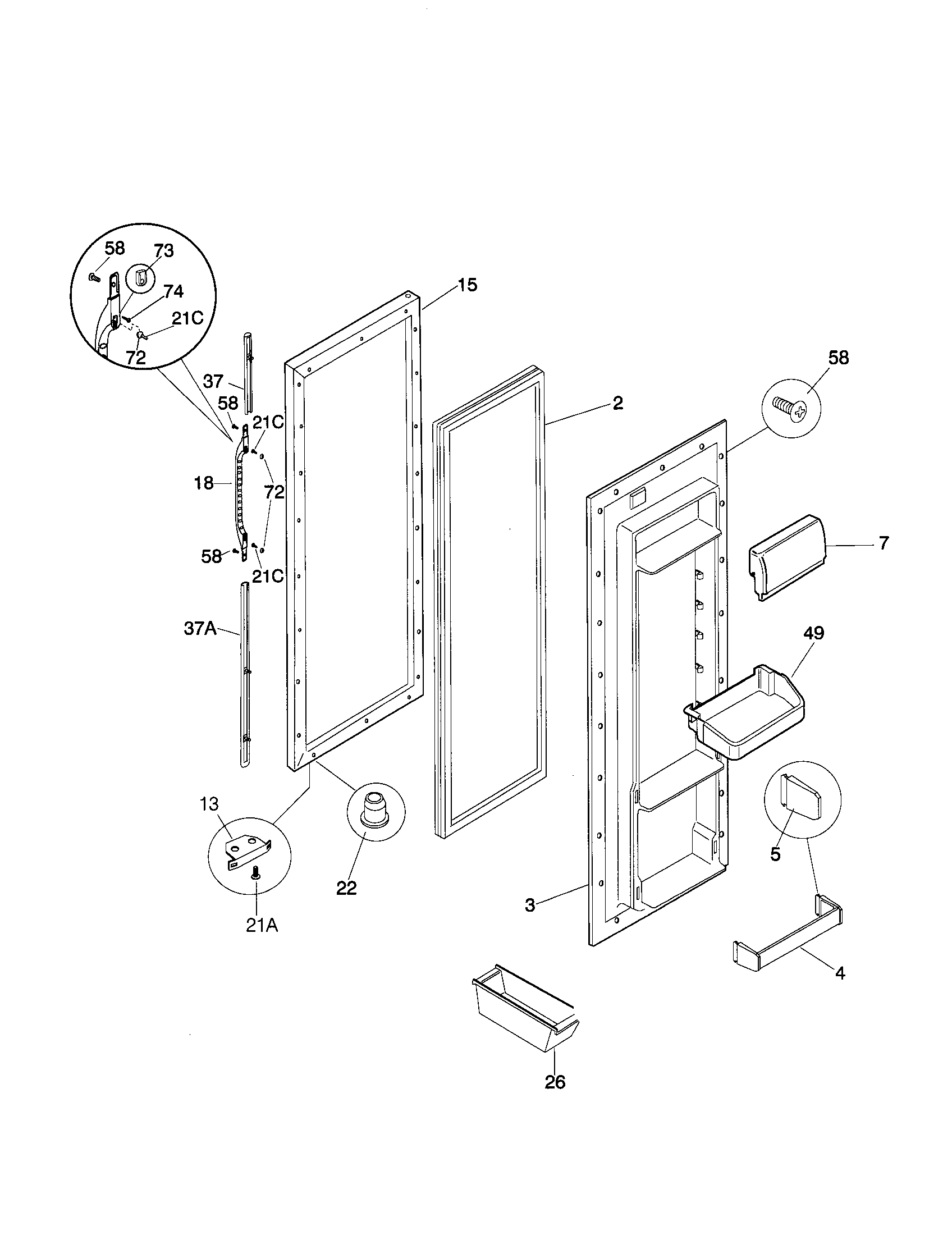

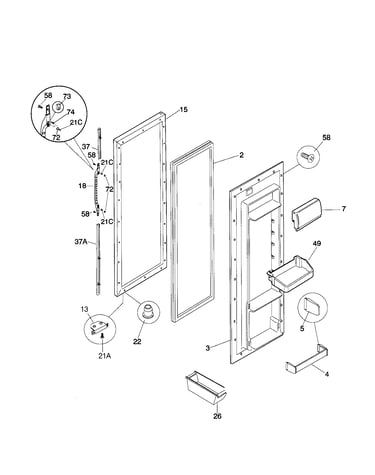

Refrigerator door diagram

Refrigerator door bin support

Part #215267701

This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Upright Freezer Door Handle Screw 215503200
Upright freezer door handle screw

Part #215503200

Replaced by #215503203

?
Manufacturer substitution
This part replaces 215503200. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Ikea Refrigerator Evaporator Fan Shaft Washer 215474201
#13A

Controls diagram

Ikea refrigerator evaporator fan shaft washer

Part #215474201

This item is not returnable
$19.39 |
9% OFF Phone Price : $21.39
In Stock
Refrigerator Ptc Starter 218721105
#30

System diagram

Refrigerator ptc starter

Part #218721105

Replaced by #5304491583

?
Manufacturer substitution
This part replaces 218721105. Substitute parts can look different from the original.
$63.18 |
9% OFF Phone Price : $69.18
In Stock
Upright Freezer Door Handle Screw 218252200
Upright freezer door handle screw

Part #218252200

Replaced by #218252201

?
Manufacturer substitution
This part replaces 218252200. Substitute parts can look different from the original.
This item is not returnable
$16.44 |
11% OFF Phone Price : $18.44
In Stock
Refrigerator Ice Cube Tray 215667501
#10

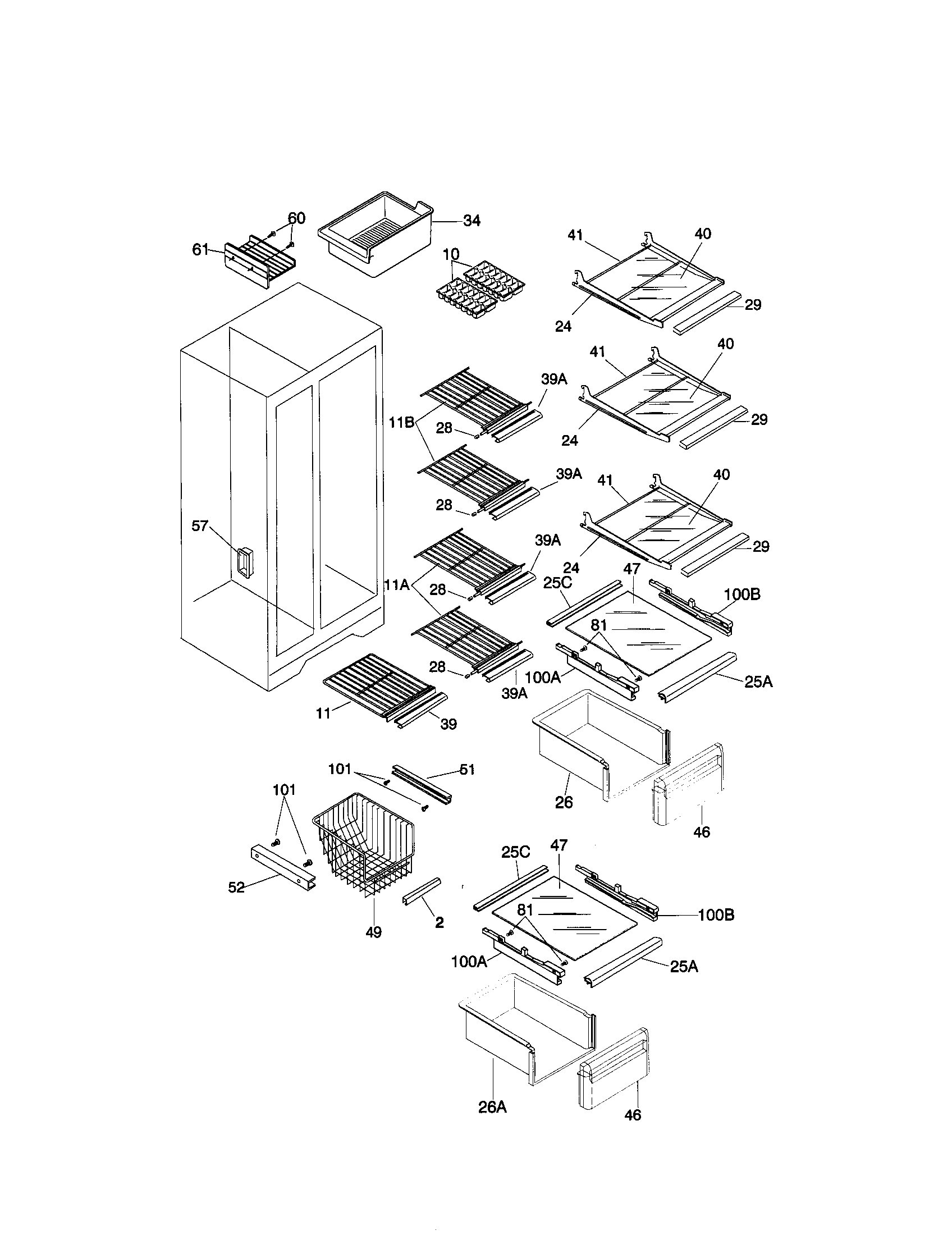

Shelves diagram

Refrigerator ice cube tray

Part #215667501

This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
