Upright Vacuum

Model # U5258-900 Official Hoover front wheel assembly

Here are the diagrams and repair parts for Official Hoover U5258-900 front wheel assembly, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
U5258-900 Vacuum Cleaners
Vacuum Screw 214793DA
#1

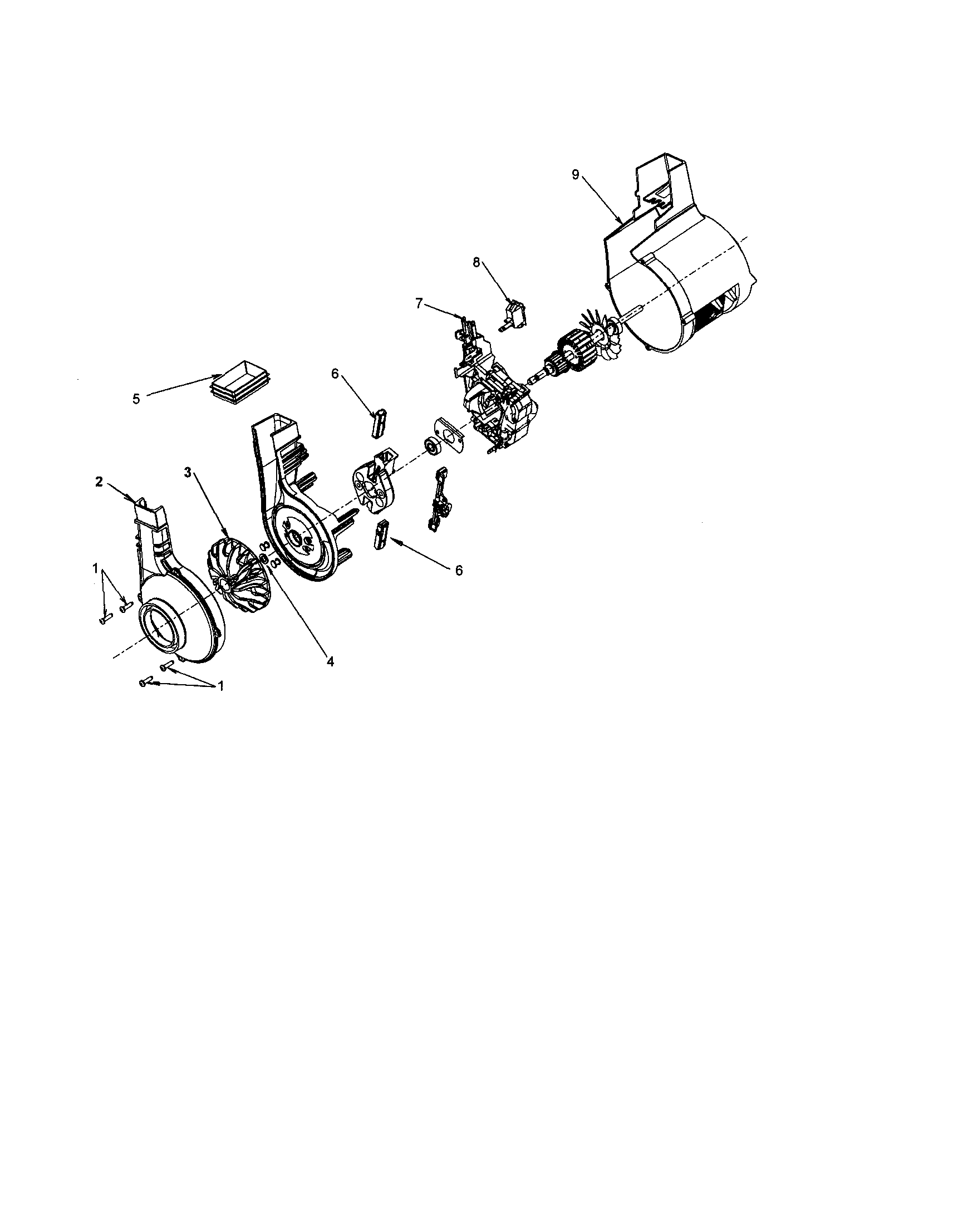

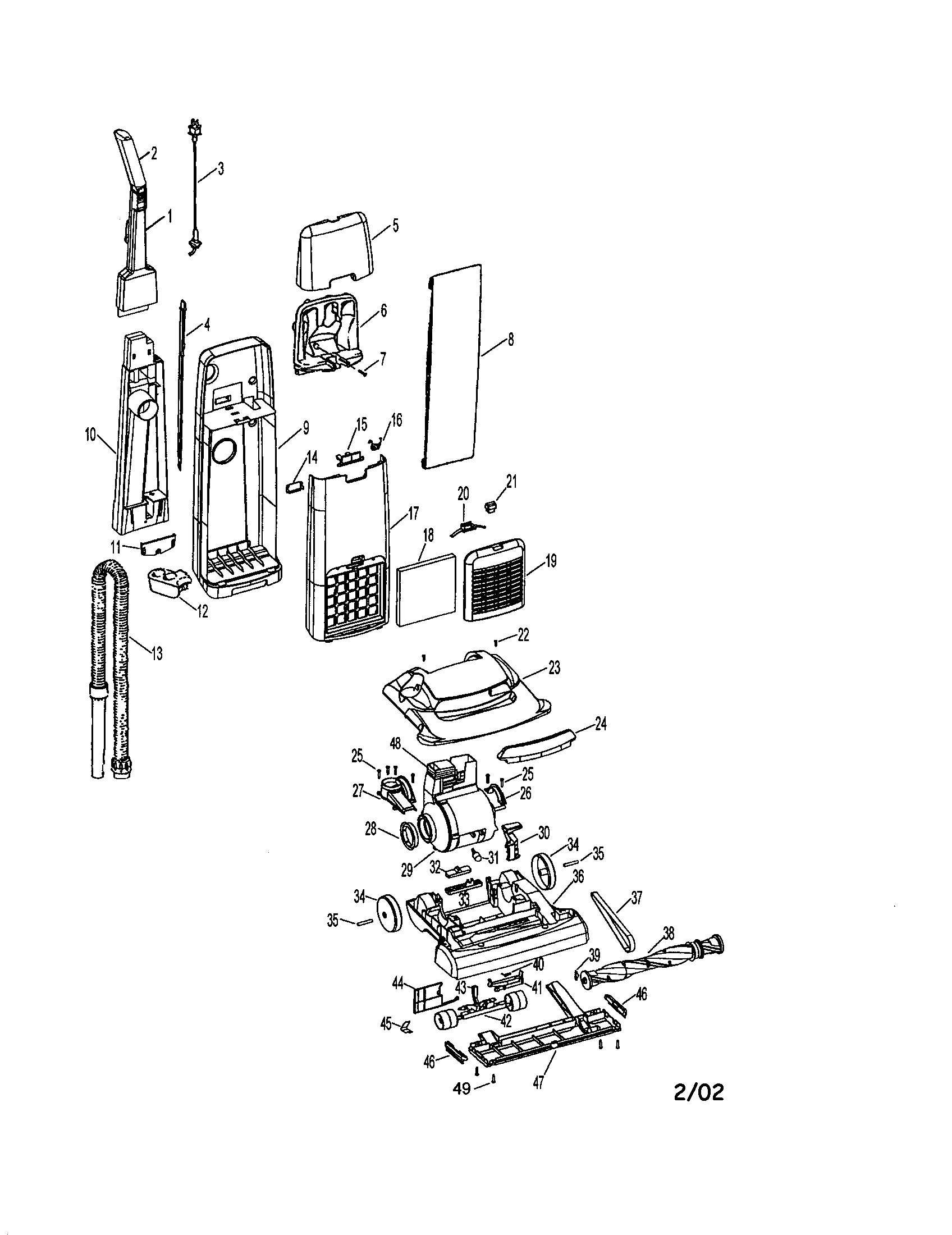

Motor assembly diagram

Vacuum screw

Part #214793DA

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Height Adjuster Cam 38563013
#41

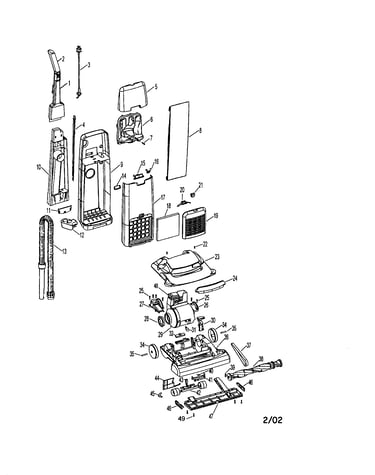

Handle assembly diagram

Vacuum height adjuster cam

Part #38563013

The manufacturer no longer makes this part, and there's no substitute part

Rod Switch 38458046
#4

Handle assembly diagram

Rod switch

Part #38458046

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Edge Brush 39511004
#46

Handle assembly diagram

Vacuum edge brush

Part #39511004

The manufacturer no longer makes this part, and there's no substitute part

Gasket 34123056

#NI03

All parts diagram

Gasket

Part #34123056

The manufacturer no longer makes this part, and there's no substitute part

Upright Vacuum Screw 21447220
#7

Handle assembly diagram

Upright vacuum screw

Part #21447220

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Allergen Filtration Bag, 3-pack 4010100Z
#8

Handle assembly diagram

Vacuum allergen filtration bag, 3-pack

Part #4010100Z

The manufacturer no longer makes this part, and there's no substitute part

Screw 21447218
#22

Handle assembly diagram

Screw

Part #21447218

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mounting Bolt And Nut 40201085

#NI01

All parts diagram

Vacuum motor mounting bolt and nut

Part #40201085

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528040
#37

Handle assembly diagram

Vacuum beater bar belt

Part #38528040

The manufacturer no longer makes this part, and there's no substitute part
