Maytag
Bottom-Mount Refrigerator

Model # MBF2262HEW13 Official Maytag bottom-mount refrigerator

Here are the diagrams and repair parts for Official Maytag MBF2262HEW13 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

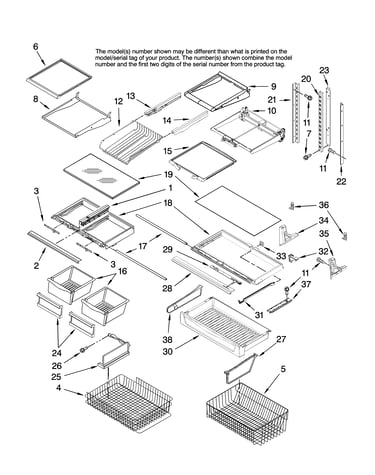

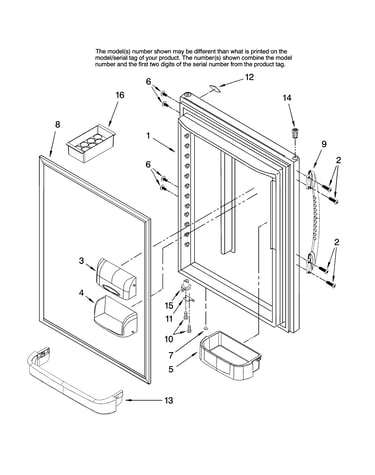

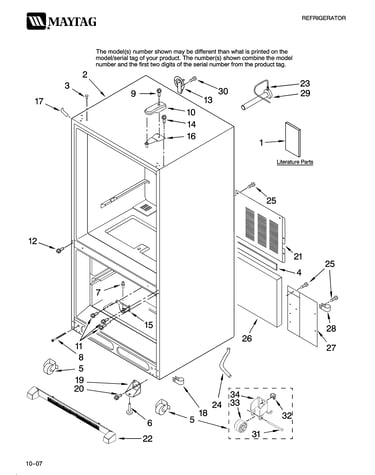

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 250 parts  |
Drier W/dye 2317845
#27

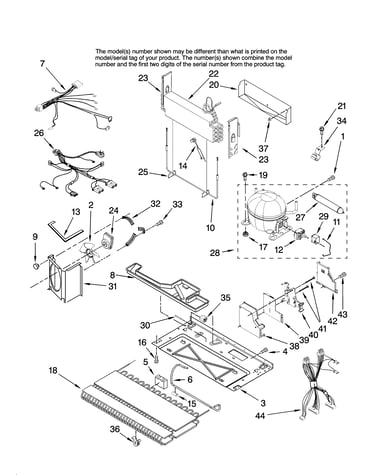

Unit parts diagram

Drier w/dye

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker W10122519
#100

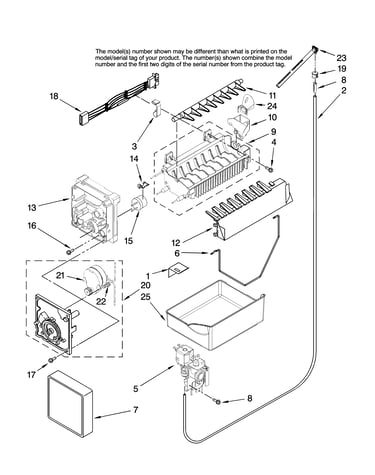

Icemaker parts, optional parts diagram

Refrigerator ice maker

Part #W10122519

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces W10122519. Substitute parts can look different from the original.
BEST SELLER
$80.74 |
7% OFF Phone Price : $86.74
In Stock
Refrigerator Evaporator Fan Blade 2169142
#24

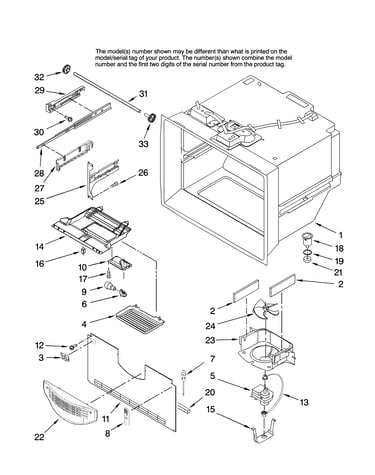

Freezer liner parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Refrigerator Run Capacitor 2264017
#29

Unit parts diagram

Refrigerator run capacitor

Part #2264017

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 2264017. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Refrigerator Dispenser Electronic Control Board 67005397
#5

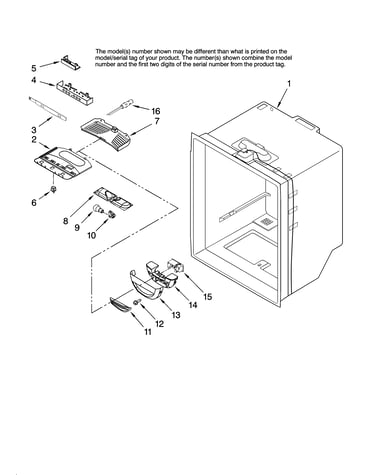

Refrigerator liner parts diagram

Refrigerator dispenser electronic control board

Part #67005397

Replaced by #WPW10207861

?
Manufacturer substitution
This part replaces 67005397. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$232.42 |
5% OFF Phone Price : $244.42
In Stock
Refrigerator Temperature Sensor (replaces 12002356, 12791403, 12791403sp, 12791404, 12791404sp, 12791405, 12791405sp, 12791406, 12791406sp, 12791407, 12791407sp, 67003871, 67004034, 8208196, 8208278, Y67003872) 12002355
Refrigerator temperature sensor (replaces 12002356, 12791403, 12791403sp, 12791404, 12791404sp, 12791405, 12791405sp, 12791406, 12791406sp, 12791407, 12791407sp, 67003871, 67004034, 8208196, 8208278, y67003872)

Part #12002355

BEST SELLER
$33.33 |
15% OFF Phone Price : $39.33
In Stock
Refrigerator Condenser Fan Motor 67004432
#24

Unit parts diagram

Refrigerator condenser fan motor

Part #67004432

The manufacturer no longer makes this part, and there's no substitute part

Motor Mold 626678
#20

Icemaker parts, optional parts diagram

Motor mold

Part #626678

Replaced by #8201515

?
Manufacturer substitution
This part replaces 626678. Substitute parts can look different from the original.
BEST SELLER
$90.42 |
6% OFF Phone Price : $96.42
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Icemaker parts, optional parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Ice Motor 626684
#21

Icemaker parts, optional parts diagram

Ice motor

Part #626684

Replaced by #W10190935

?
Manufacturer substitution
This part replaces 626684. Substitute parts can look different from the original.
BEST SELLER
$107.79 |
10% OFF Phone Price : $119.79
In Stock
