Wintair
Room Air Conditioner

Model # AW-12DR3FHU Official Wintair air conditioner

Here are the diagrams and repair parts for Official Wintair AW-12DR3FHU air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Chassis 81002332
#27

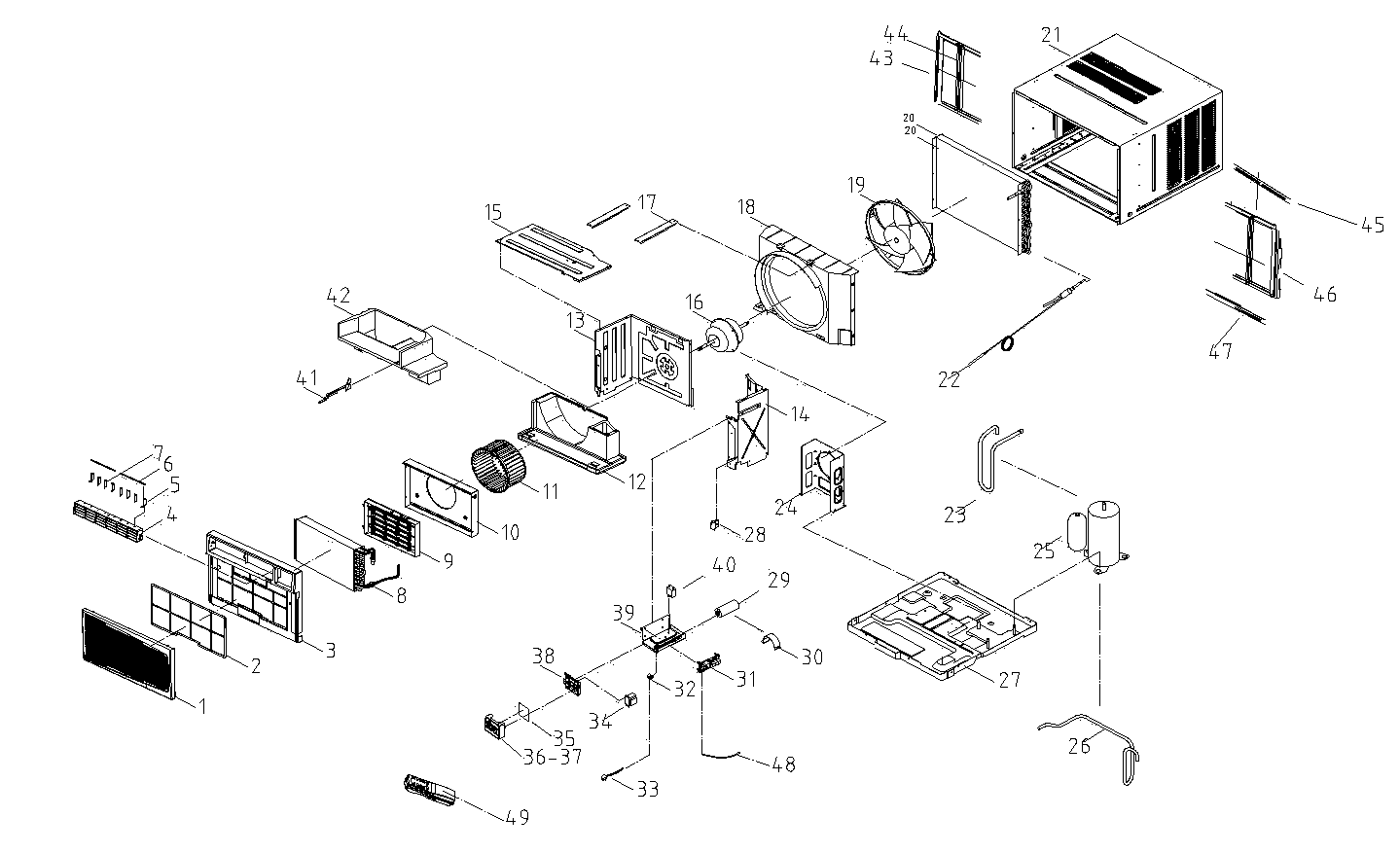

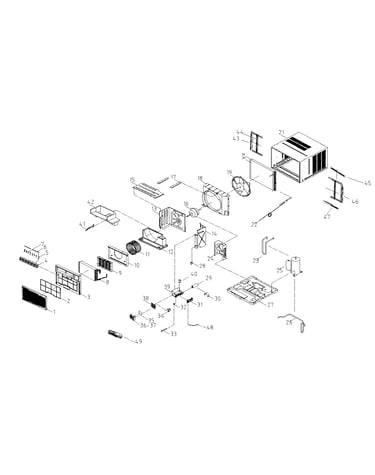

Cabinet parts diagram

Chassis

Part #81002332

The manufacturer no longer makes this part, and there's no substitute part

Operation Panel 81408276
#37

Cabinet parts diagram

Operation panel

Part #81408276

The manufacturer no longer makes this part, and there's no substitute part

Thermistor 814071
#48

Cabinet parts diagram

Thermistor

Part #814071

The manufacturer no longer makes this part, and there's no substitute part

Cabl.clamp 1203399
#28

Cabinet parts diagram

Cabl.clamp

Part #1203399

The manufacturer no longer makes this part, and there's no substitute part

Base Panel 810061127
#3

Cabinet parts diagram

Base panel

Part #810061127

The manufacturer no longer makes this part, and there's no substitute part

Suction Pipe 813034167
#26

Cabinet parts diagram

Suction pipe

Part #813034167

The manufacturer no longer makes this part, and there's no substitute part

Part Plate 8110942
#13

Cabinet parts diagram

Part plate

Part #8110942

The manufacturer no longer makes this part, and there's no substitute part

Axial Fan 1402374
#19

Cabinet parts diagram

Axial fan

Part #1402374

The manufacturer no longer makes this part, and there's no substitute part

Air Duct 8101216
#12

Cabinet parts diagram

Air duct

Part #8101216

The manufacturer no longer makes this part, and there's no substitute part

Cap Clamp 1203421
#30

Cabinet parts diagram

Cap clamp

Part #1203421

The manufacturer no longer makes this part, and there's no substitute part
