Model # S-600 Official Ryobi sander

Here are the diagrams and repair parts for Official Ryobi S-600 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |

Cushion 6360333
#20

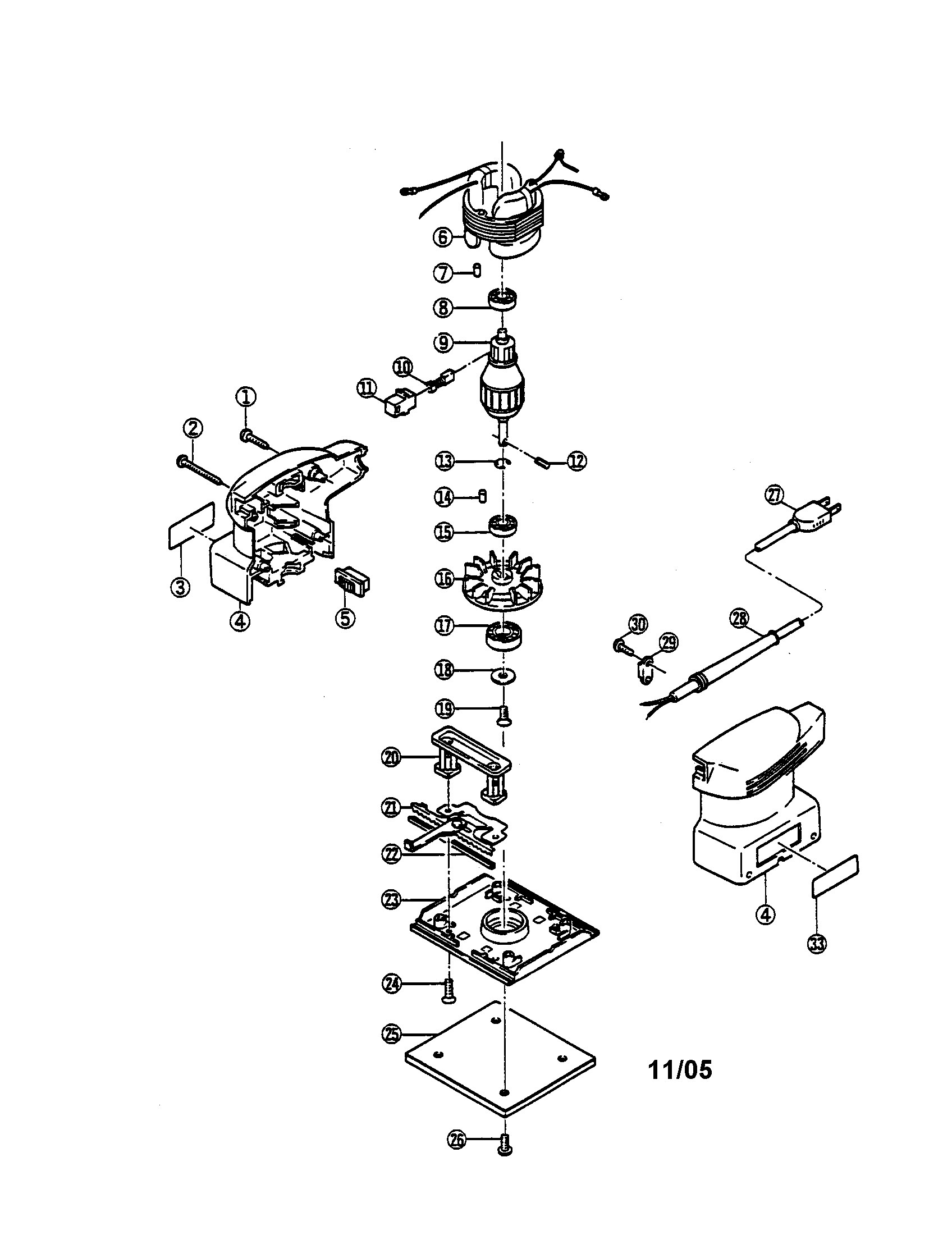

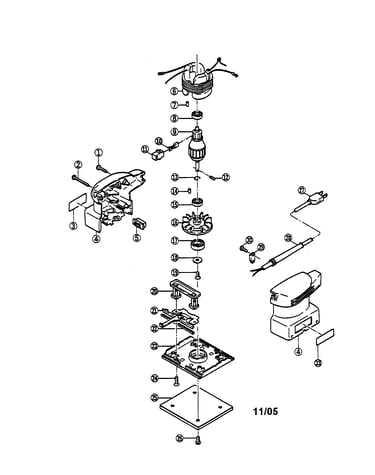

Sander diagram

Cushion

Part #6360333

The manufacturer no longer makes this part, and there's no substitute part

Fan 6490308
#16

Sander diagram

Fan

Part #6490308

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 9840627
Ball bearing

Part #9840627

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 9402512
#12

Sander diagram

Roll pin

Part #9402512

The manufacturer no longer makes this part, and there's no substitute part

Connector 6560051

#NI01

All parts diagram

Connector

Part #6560051

The manufacturer no longer makes this part, and there's no substitute part

Pad Base 6320270
#23

Sander diagram

Pad base

Part #6320270

The manufacturer no longer makes this part, and there's no substitute part

Washer 6900716
#18

Sander diagram

Washer

Part #6900716

The manufacturer no longer makes this part, and there's no substitute part

Edging (2) 3360004
#22

Sander diagram

Edging (2)

Part #3360004

The manufacturer no longer makes this part, and there's no substitute part

Flat Tapping Screw (b) M4 X 14 (4) 9160414
#24

Sander diagram

Flat tapping screw (b) m4 x 14 (4)

Part #9160414

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060425
#1

Sander diagram

Screw

Part #9060425

The manufacturer no longer makes this part, and there's no substitute part
