Hoover
Upright Vacuum

Model # 1076 Official Hoover vacuum cleaner

Here are the diagrams and repair parts for Official Hoover 1076 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

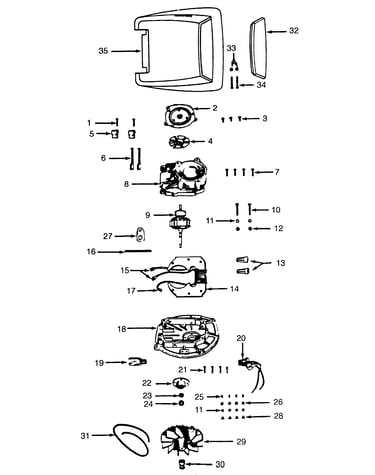

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |

Kenmore Vacuum Floor Brush Attachment Swivel 38644020
#6A

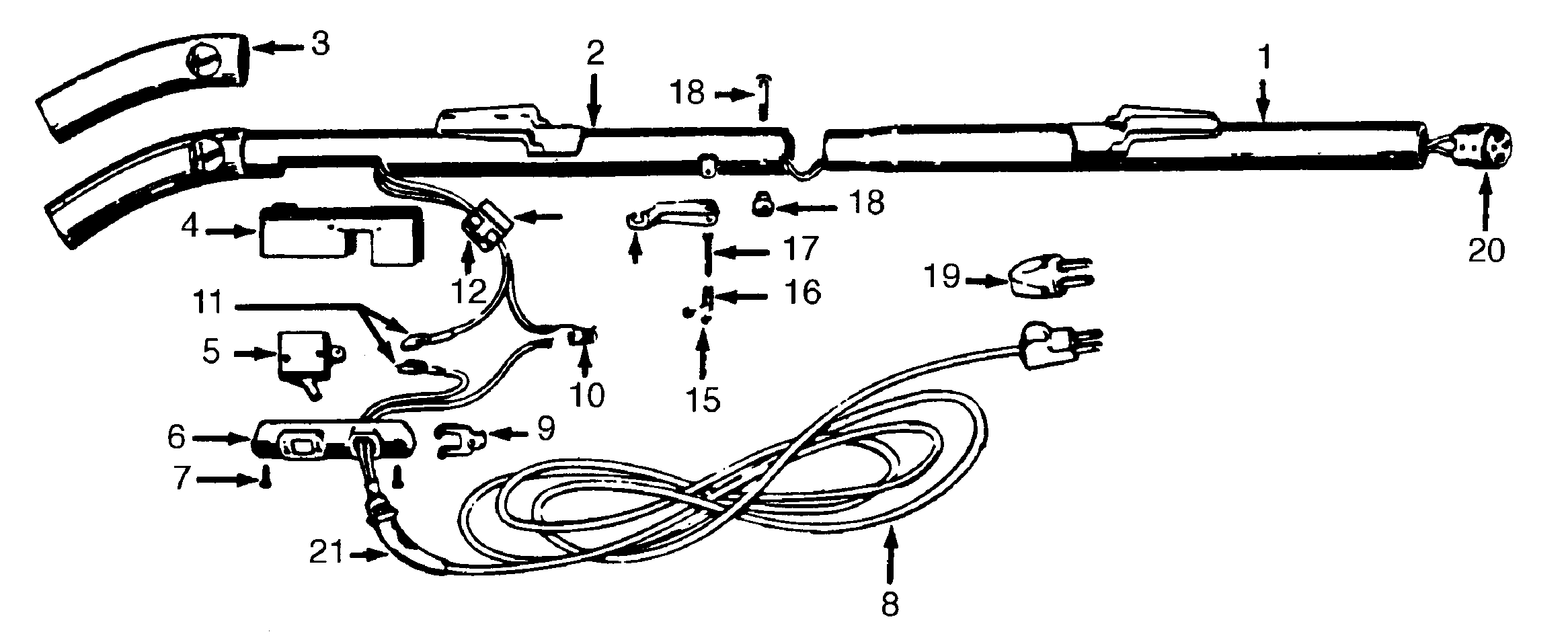

Cleaningtools diagram

Kenmore vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Sleeve Hose 32156010
#28

Cleaningtools diagram

Kenmore sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part

Wbd Bag Fl 019907--
#26

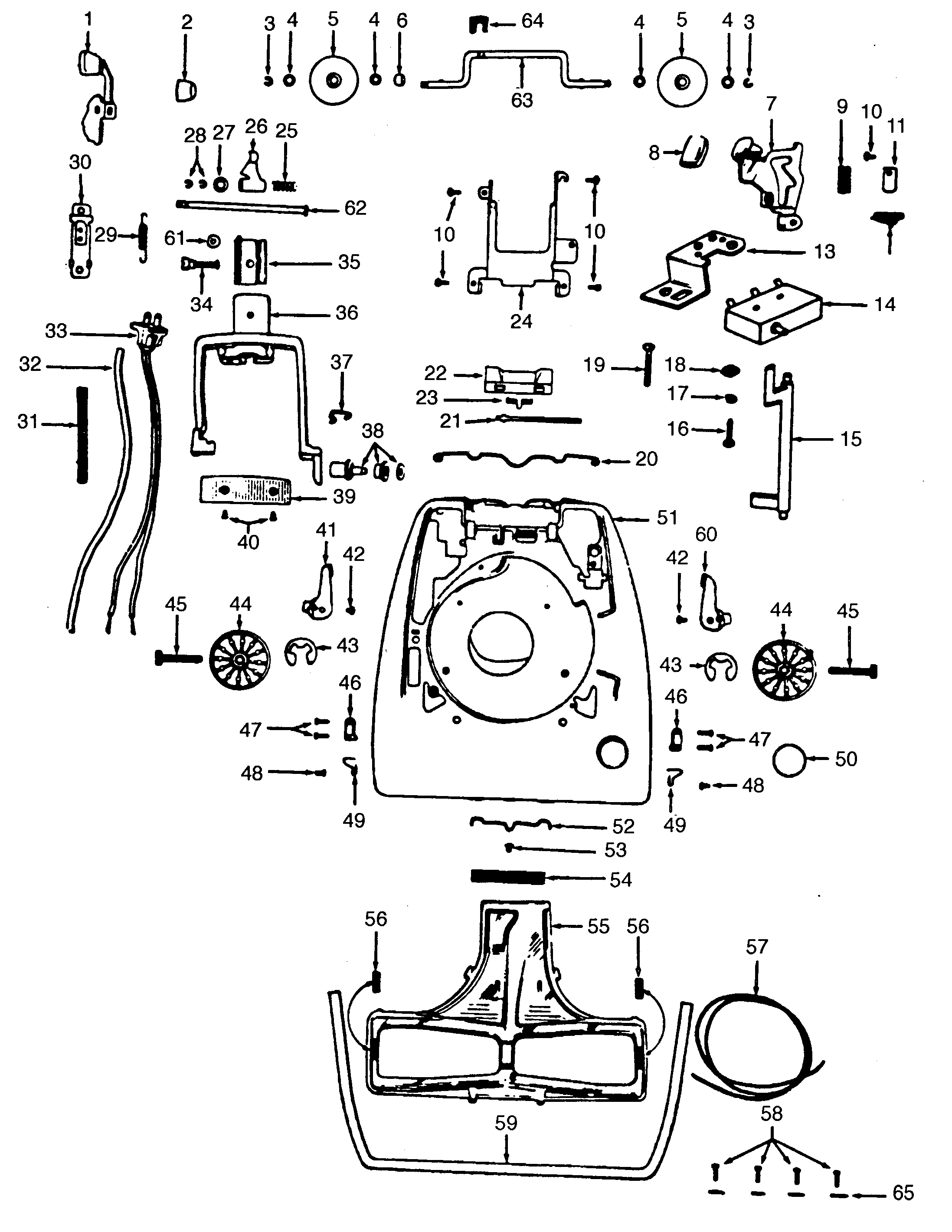

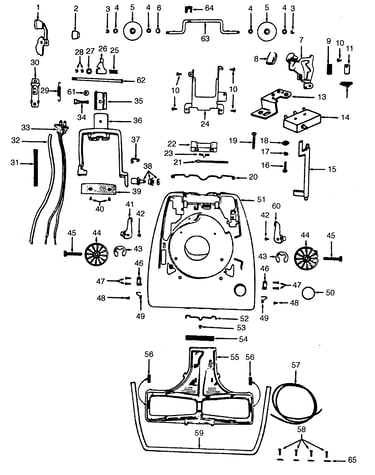

Mainbody diagram

Wbd bag fl

Part #019907--

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring 36153009
#33

Cleaningtools diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part

Lock Ring 017207AZ
#3

Mainbody diagram

Lock ring

Part #017207AZ

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Screw 21465314
#7

Handle diagram

Kenmore vacuum screw

Part #21465314

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Crevice Tool 38617017
#11

Cleaningtools diagram

Kenmore vacuum crevice tool

Part #38617017

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Crevice Tool 38617024
#11A

Cleaningtools diagram

Kenmore crevice tool

Part #38617024

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hoover Vacuum Bag, Type A, 3-pack 4010001A
#12

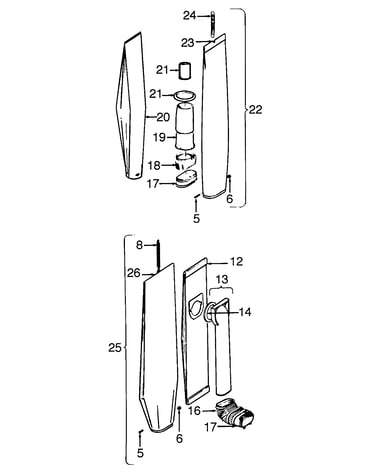

Outerbag diagram

Kenmore hoover vacuum bag, type a, 3-pack

Part #4010001A

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 048969--
Twist-on wire connector

Part #048969--

The manufacturer no longer makes this part, and there's no substitute part
