Kenmore
Upright Vacuum

Model # 11631732000 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 11631732000 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Vacuum Drive Belt 4369591
#29

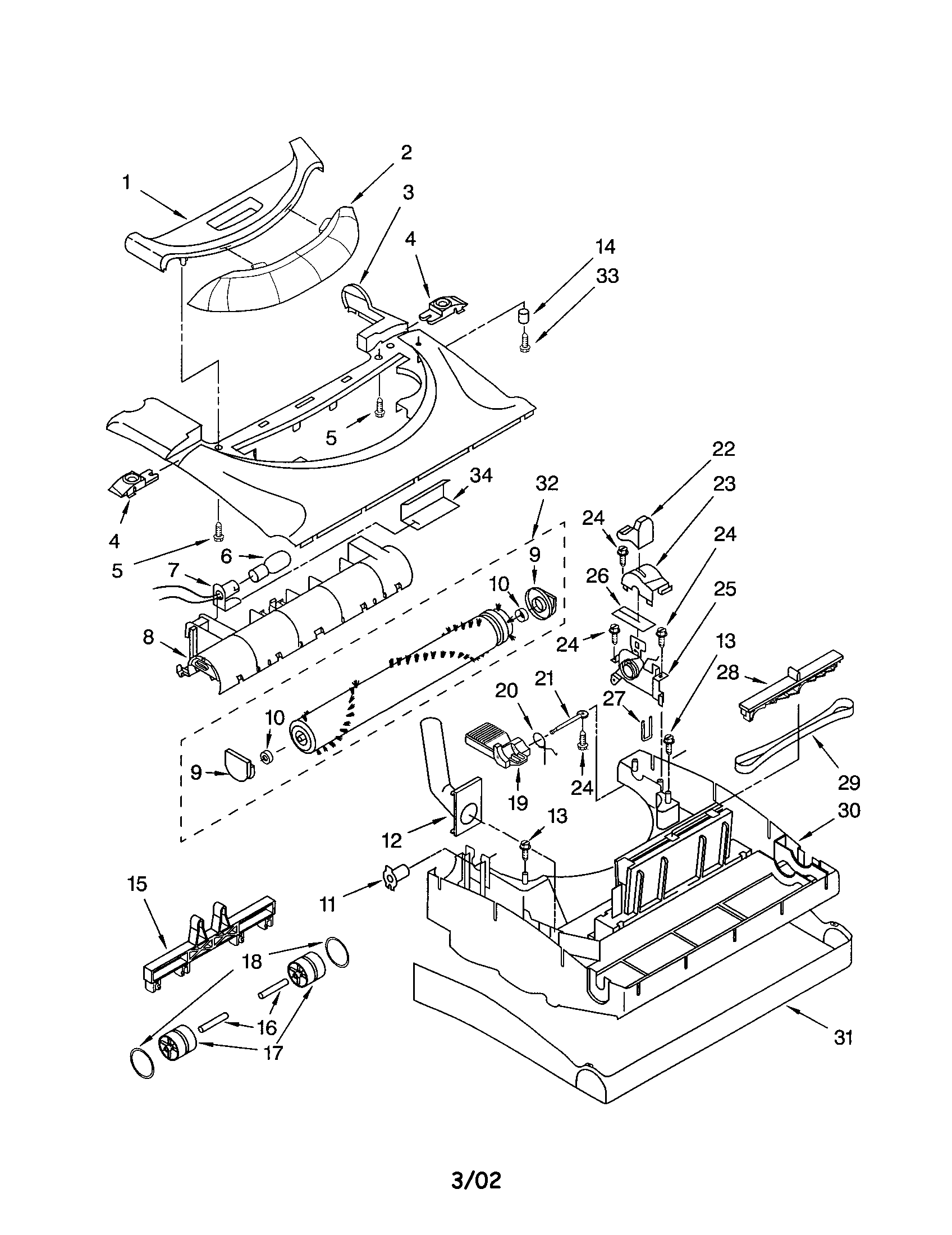

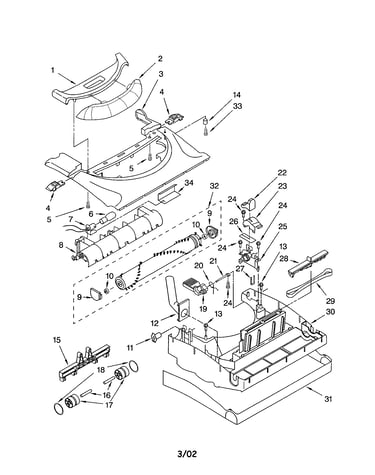

Nozzle diagram

Vacuum drive belt

Part #4369591

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Switch 4368653
#3

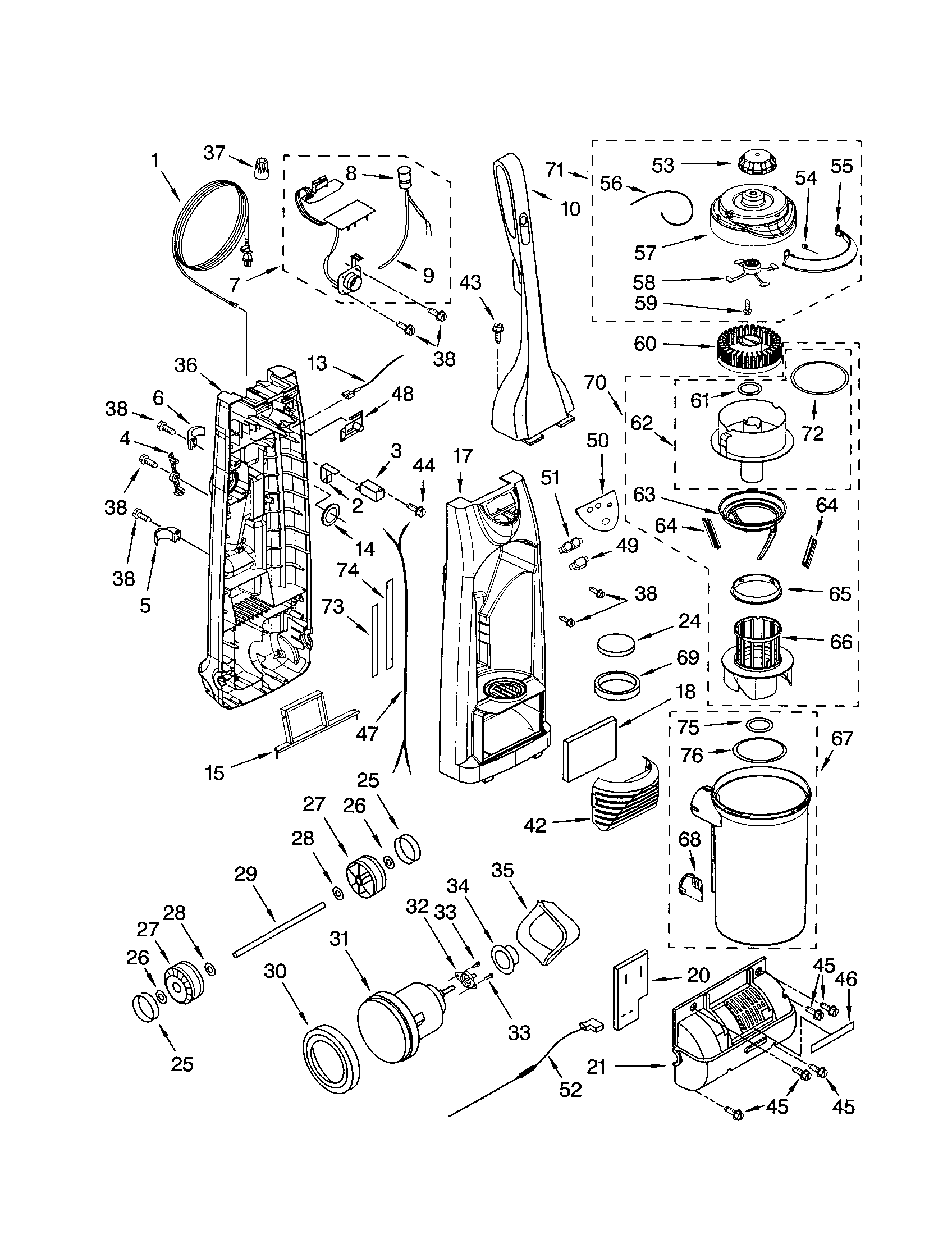

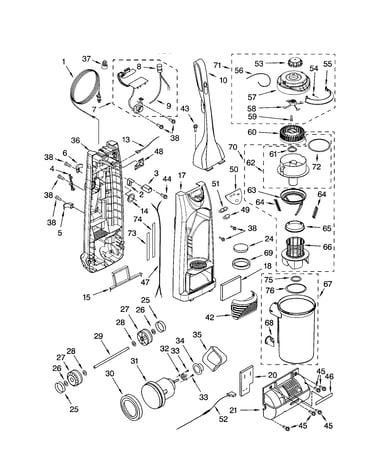

Dust compartment and motor diagram

Vacuum handle switch

Part #4368653

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#2

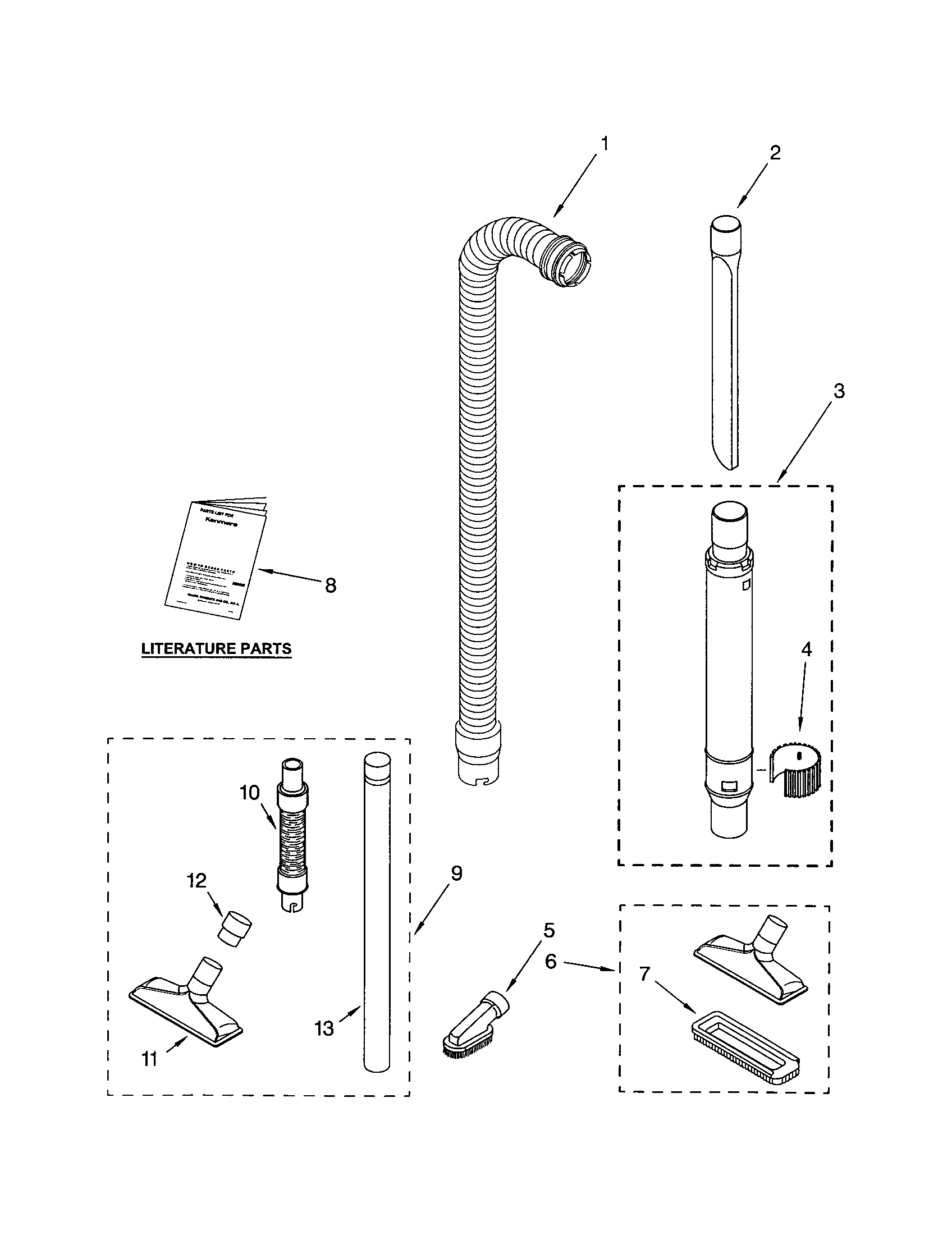

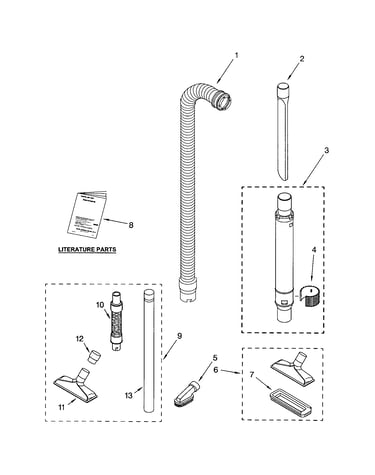

Hose and attachment diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 436810
#7

Hose and attachment diagram

Brush holder

Part #436810

The manufacturer no longer makes this part, and there's no substitute part

Bearing Support 8174964
#9

Nozzle diagram

Bearing support

Part #8174964

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Knob 4369542
#28

Nozzle diagram

Vacuum knob

Part #4369542

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Nozzle 8191552
#3

Nozzle diagram

Vacuum nozzle

Part #8191552

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Owner's Manual LIT8191585
#8

Hose and attachment diagram

Vacuum owner's manual

Part #LIT8191585

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Suction Control Button 4368996
#4

Hose and attachment diagram

Vacuum suction control button

Part #4368996

The manufacturer no longer makes this part, and there's no substitute part
