Crosley
Side-By-Side Refrigerator

Model # CRSE234JSM2 Official Crosley refrigerator

Here are the diagrams and repair parts for Official Crosley CRSE234JSM2 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

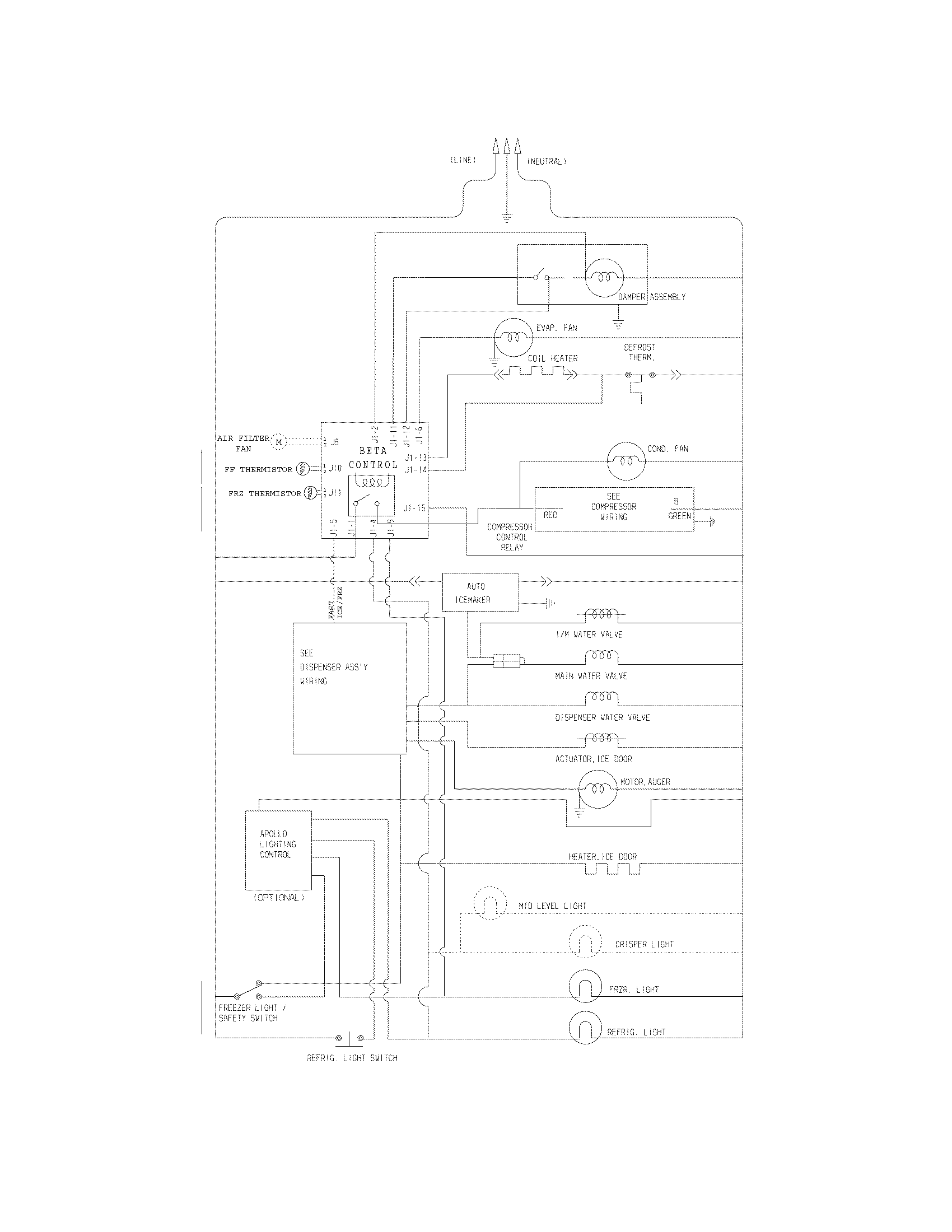

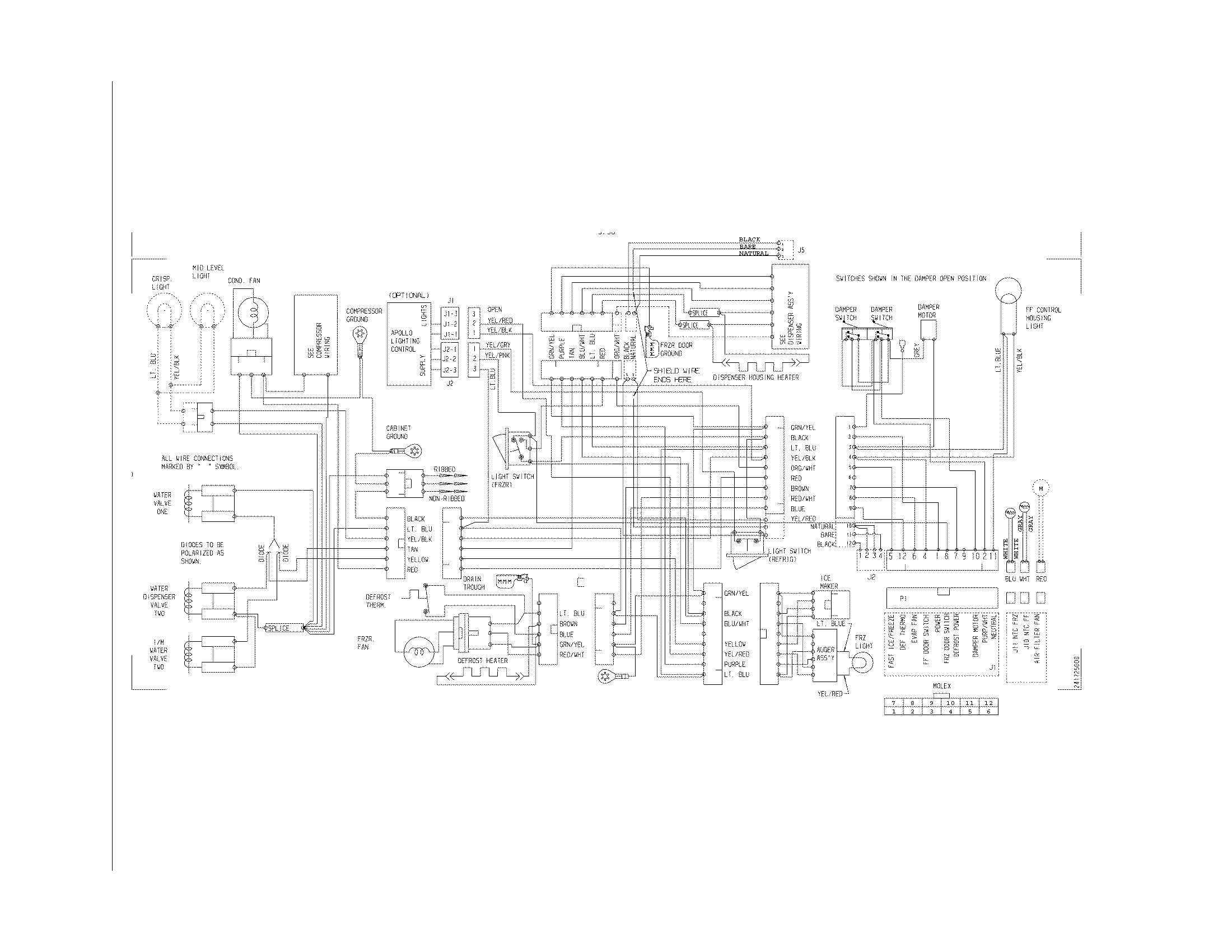

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 328 parts  |
Refrigerator Filter Drier 218944001
#4

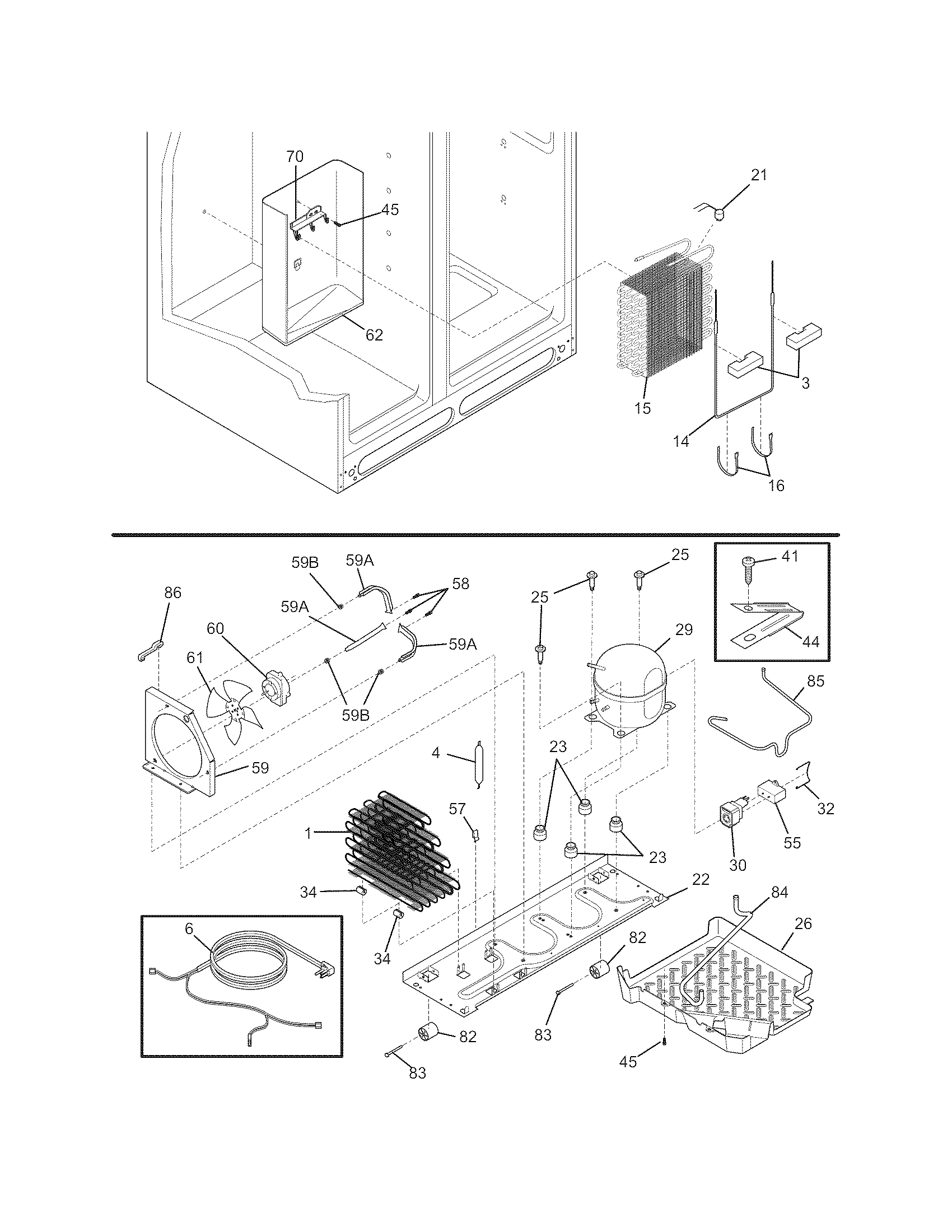

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Refrigerator Evaporator Fan Blade 5308000010
#5

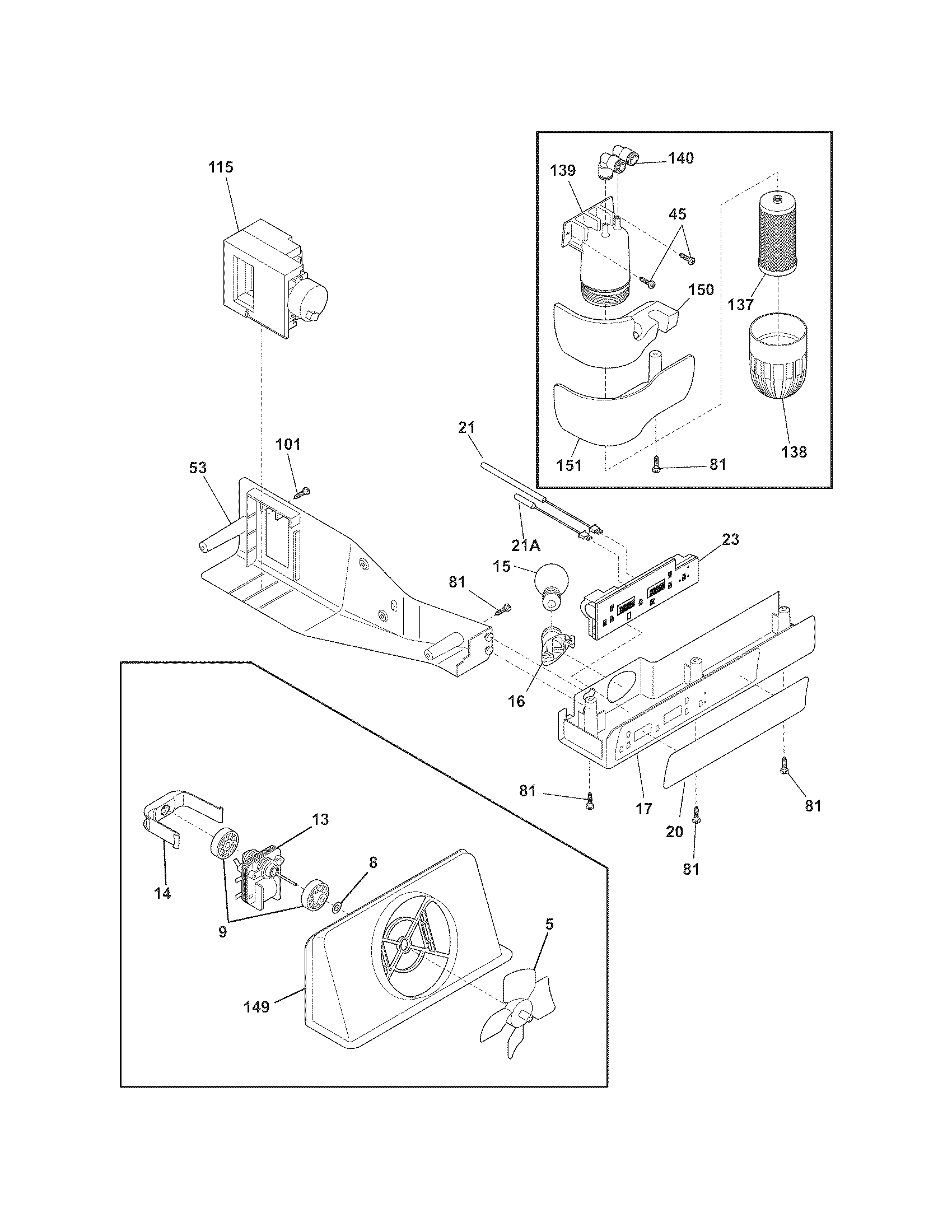

Controls diagram

Refrigerator evaporator fan blade

Part #5308000010

BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Refrigerator Filter 240389102
#137

Controls diagram

Refrigerator filter

Part #240389102

Replaced by #WFCB

?
Manufacturer substitution
This part replaces 240389102. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$34.98
In Stock
Kenmore Refrigerator Ice Container Assembly (replaces 240323813) 241860803
#NI

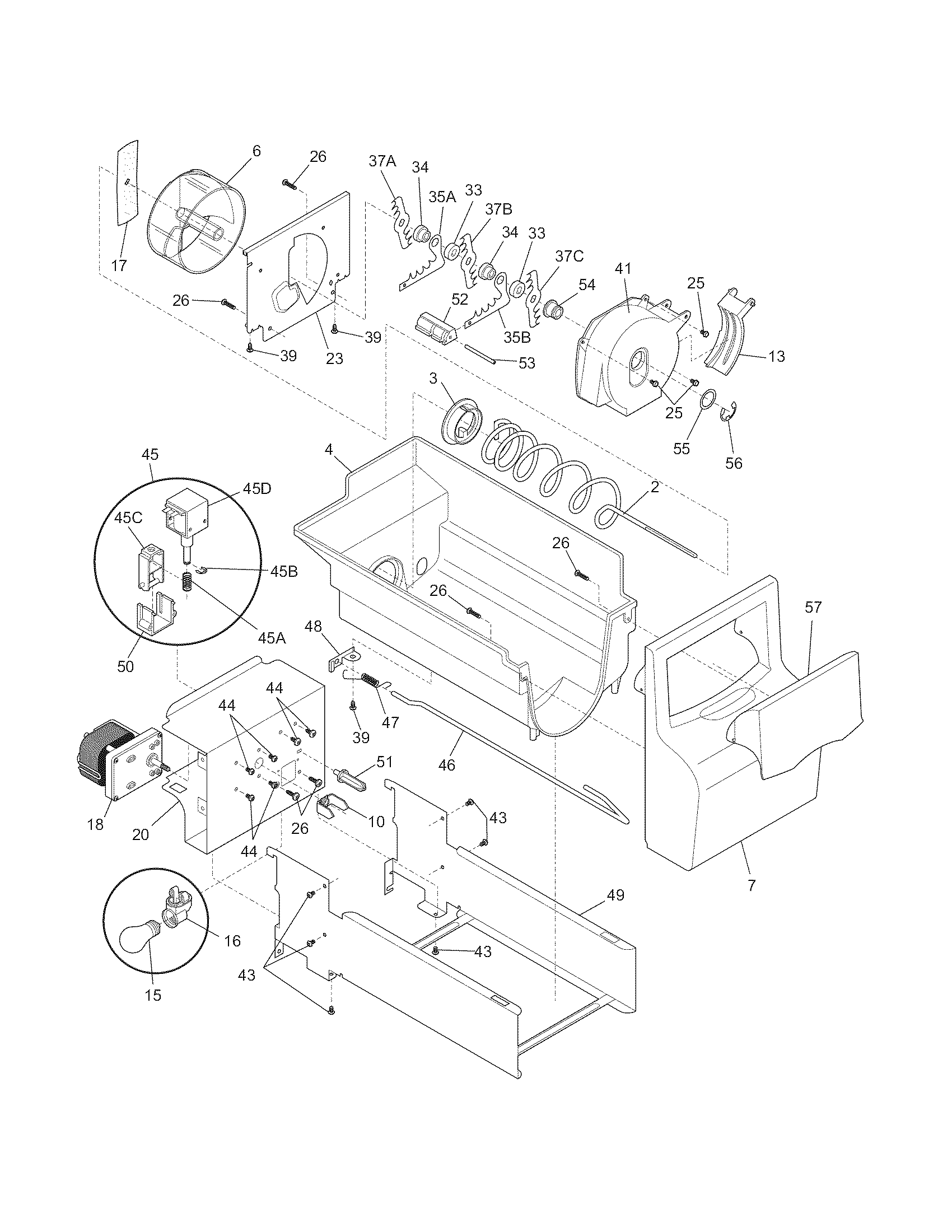

Ice container diagram

Kenmore refrigerator ice container assembly (replaces 240323813)

Part #241860803

BEST SELLER
$162.71 |
7% OFF Phone Price : $174.71
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigerator Solenoid Assembly 241675701
#45

Ice container diagram

Refrigerator solenoid assembly

Part #241675701

Replaced by #241675704

?
Manufacturer substitution
This part replaces 241675701. Substitute parts can look different from the original.
BEST SELLER
$75.50 |
7% OFF Phone Price : $81.50
In Stock
Support-cr 240350802
#100

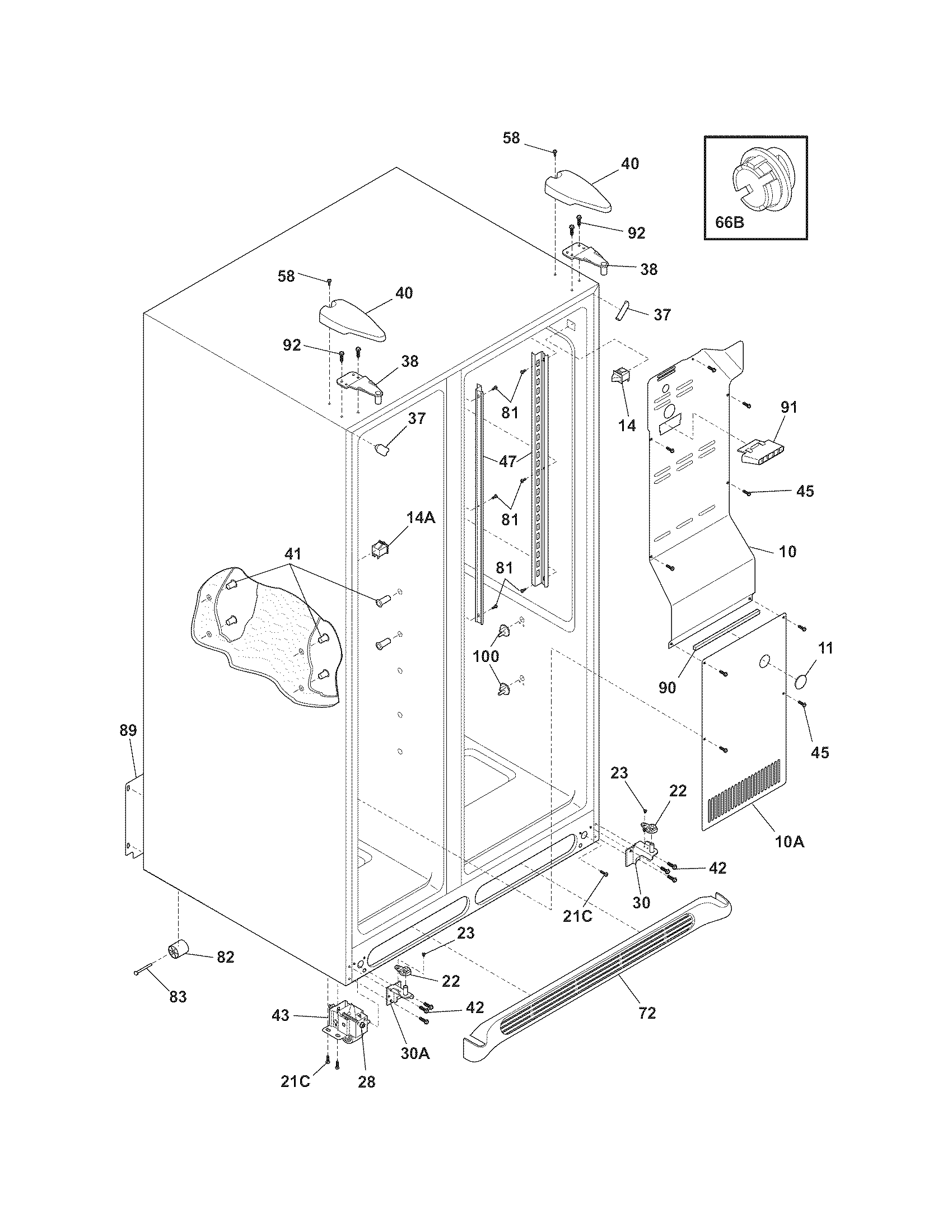

Cabinet diagram

Support-cr

Part #240350802

Replaced by #241993001

?
Manufacturer substitution
This part replaces 240350802. Substitute parts can look different from the original.
BEST SELLER
$9.72 |
9% OFF Phone Price : $10.72
In Stock
Kenmore Refrigerator Auger Motor Coupler (replaces 215285000, 215285101, 241624801, 7241726501) 241726501
#10

Ice container diagram

Kenmore refrigerator auger motor coupler (replaces 215285000, 215285101, 241624801, 7241726501)

Part #241726501

BEST SELLER
$49.31 |
11% OFF Phone Price : $55.31
In Stock
Refrigerator Dispenser Ice Chute Door Cover (replaces 5304421624, 7241688501) 241688501
#30A

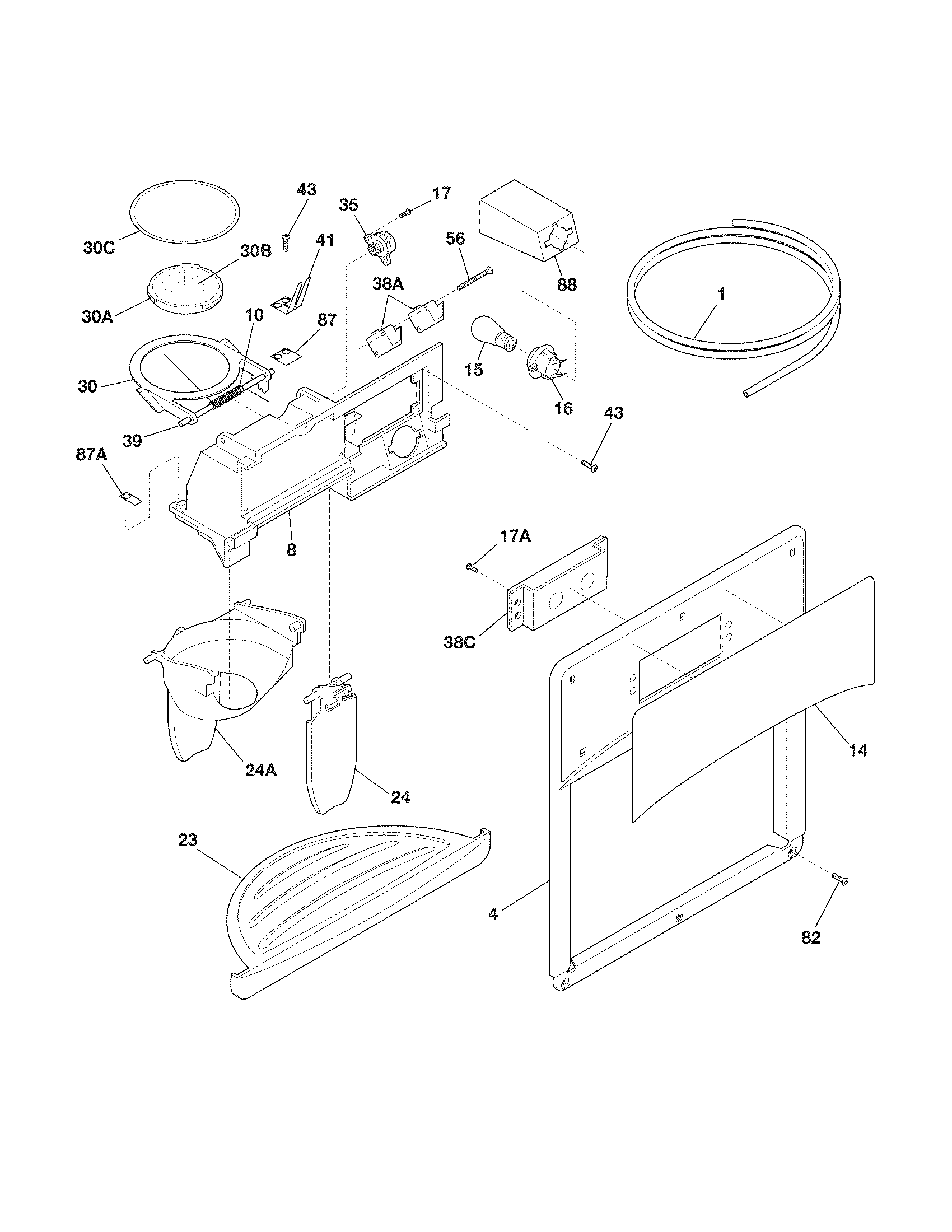

Ice & water dispenser diagram

Refrigerator dispenser ice chute door cover (replaces 5304421624, 7241688501)

Part #241688501

BEST SELLER
$42.20 |
12% OFF Phone Price : $48.20
In Stock
