Gibson
Electric Range

Model # CEC4M6WXD Official Gibson electric range - 5995219168

Here are the diagrams and repair parts for Official Gibson CEC4M6WXD electric range - 5995219168, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Lamp 5303208582
#29

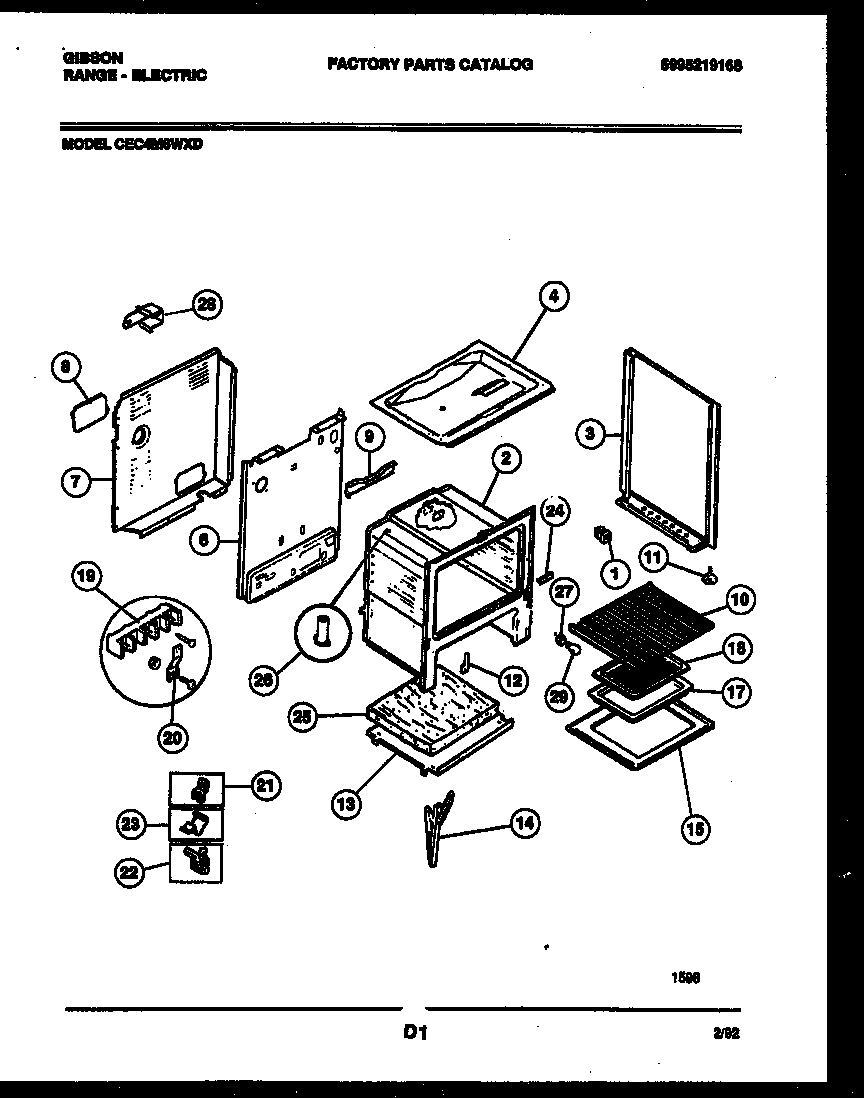

Body parts diagram

Lamp

Part #5303208582

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303208582. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Block 5306563359
#19

Body parts diagram

Block

Part #5306563359

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5306563359. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#2

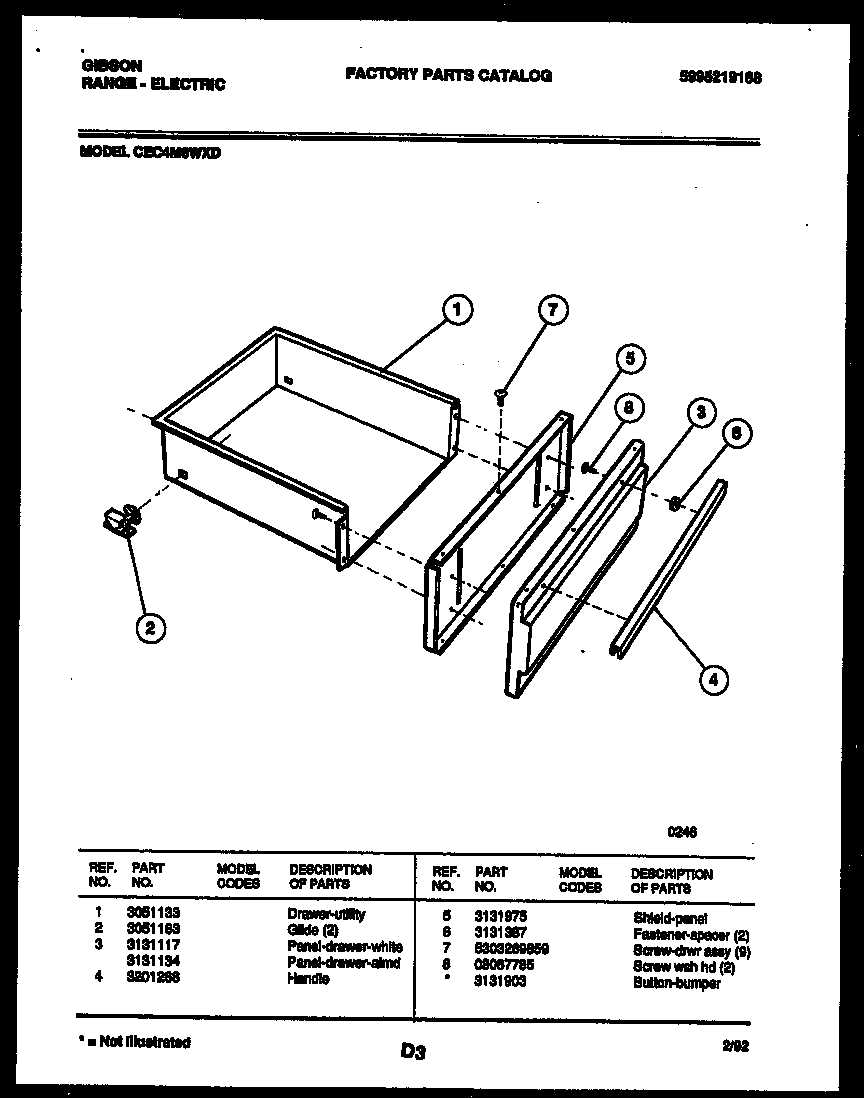

Drawer parts diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Socket 3014073
#27

Body parts diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Rack 5303131973
#10

Body parts diagram

Rack

Part #5303131973

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 5303131973. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
Range Broil Element (replaces 08067760, 3012210, 3051140) 5303051140
#4

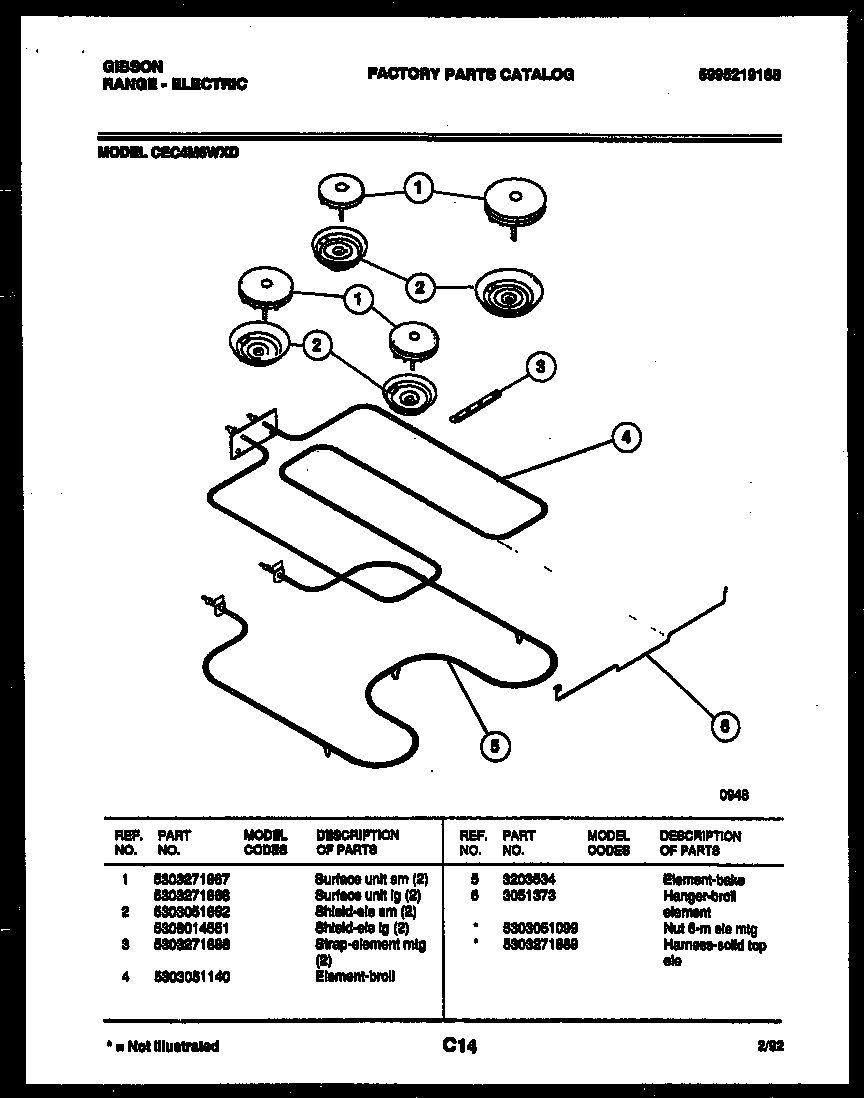

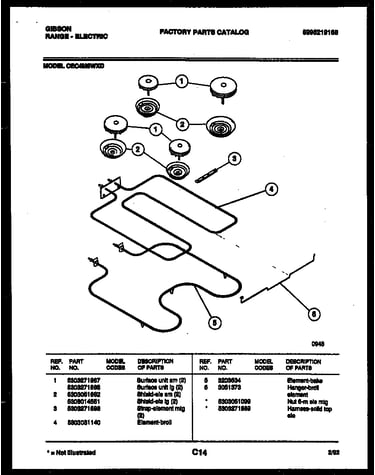

Broiler parts diagram

Range broil element (replaces 08067760, 3012210, 3051140)

Part #5303051140

This item is not returnable
$136.99 |
8% OFF Phone Price : $148.99
In Stock
Insulation 3051390
#25

Body parts diagram

Insulation

Part #3051390

Replaced by #316403803

?
Manufacturer substitution
This part replaces 3051390. Substitute parts can look different from the original.
This item is not returnable
$35.34 |
15% OFF Phone Price : $41.34
In Stock
Range Oven Door Seal 5303202011
#5

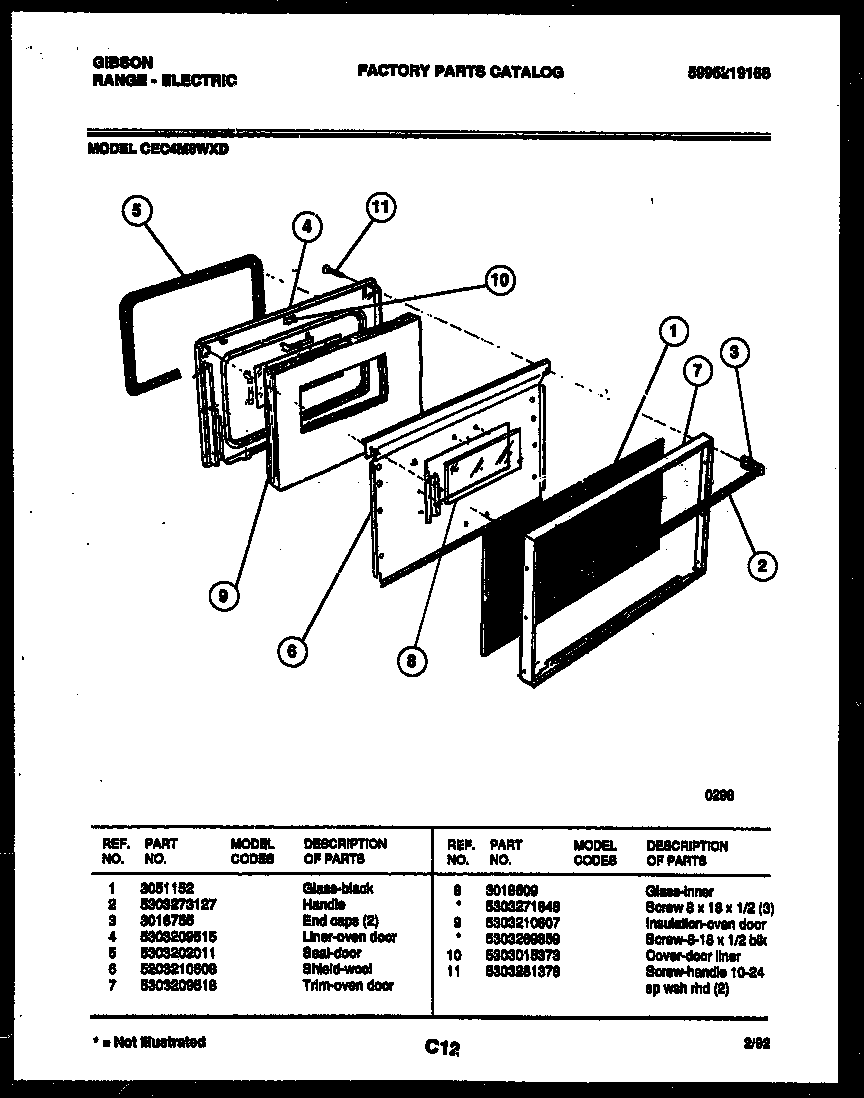

Door parts diagram

Range oven door seal

Part #5303202011

$91.55 |
6% OFF Phone Price : $97.55
In Stock
Range Screw, #8-18 X 1/2-in 5303271648
#8A

Door parts diagram

Range screw, #8-18 x 1/2-in

Part #5303271648

$15.77
In Stock
Clip 5303011805
#21

Body parts diagram

Clip

Part #5303011805

Replaced by #5303284616

?
Manufacturer substitution
This part replaces 5303011805. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
