Kenmore Elite
Bottom-Mount Refrigerator

Model # 79578549801 Official Kenmore Elite bottom-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore Elite 79578549801 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Refrigerator Filter Dryer 5851JA2008U

#317A

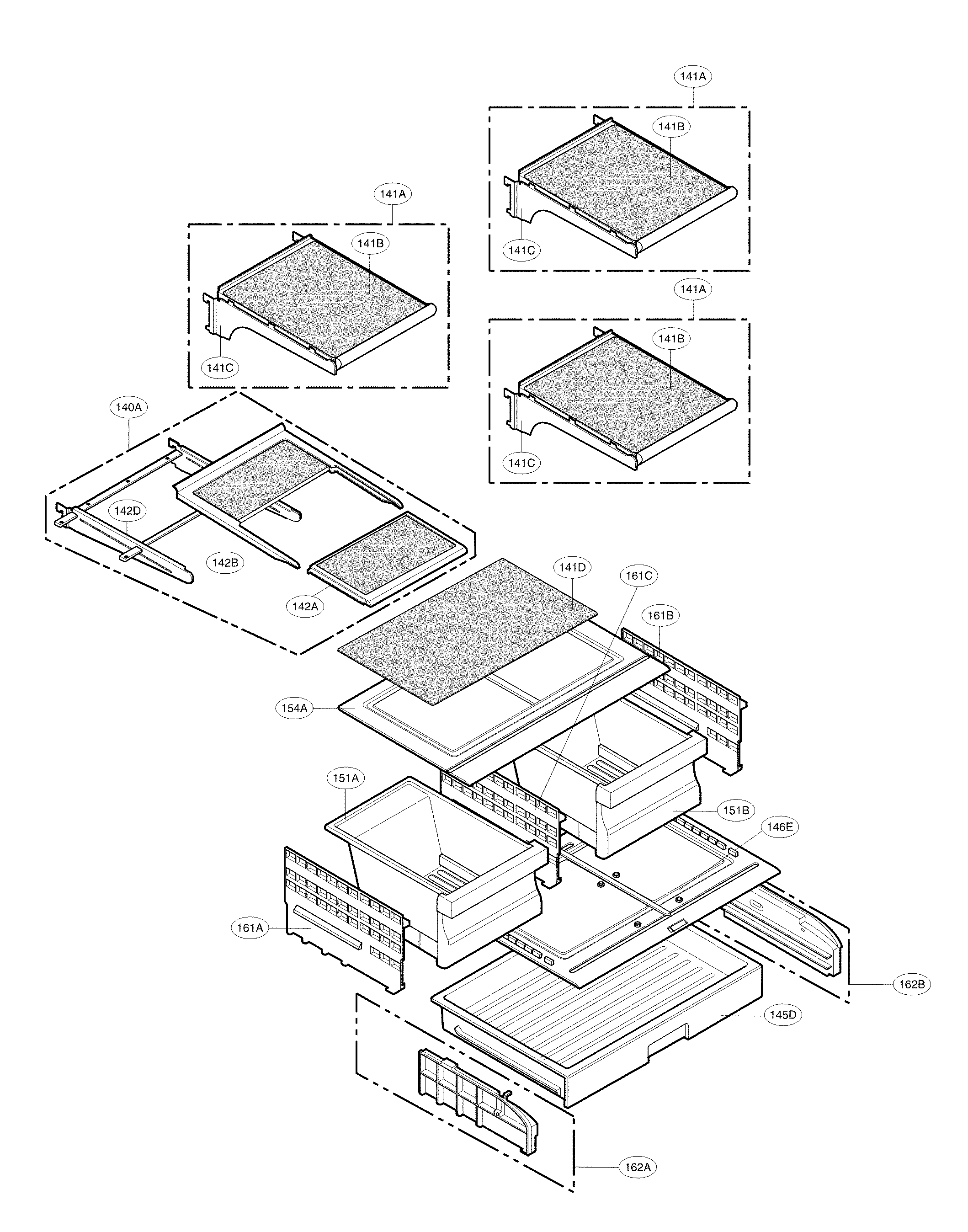

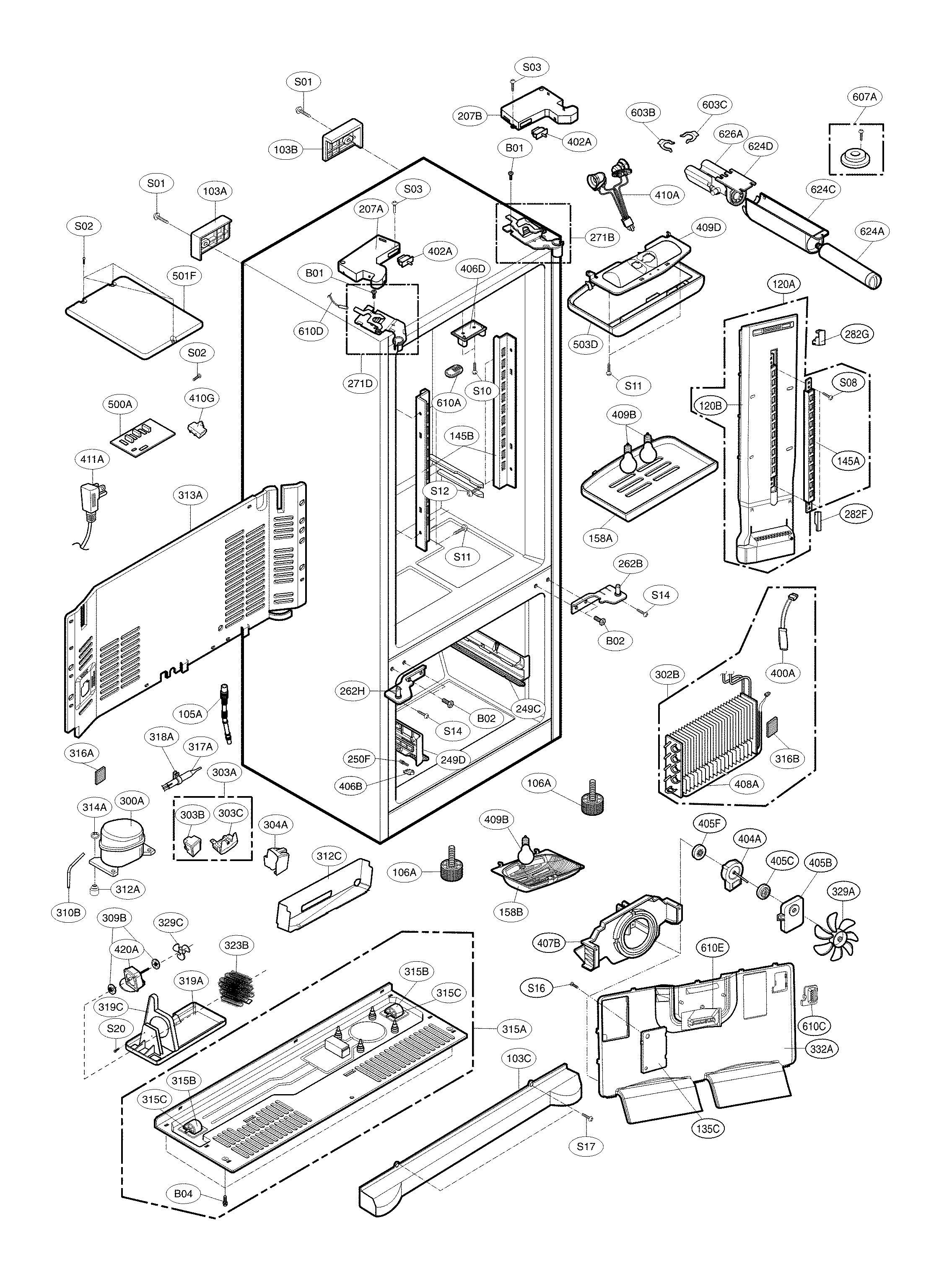

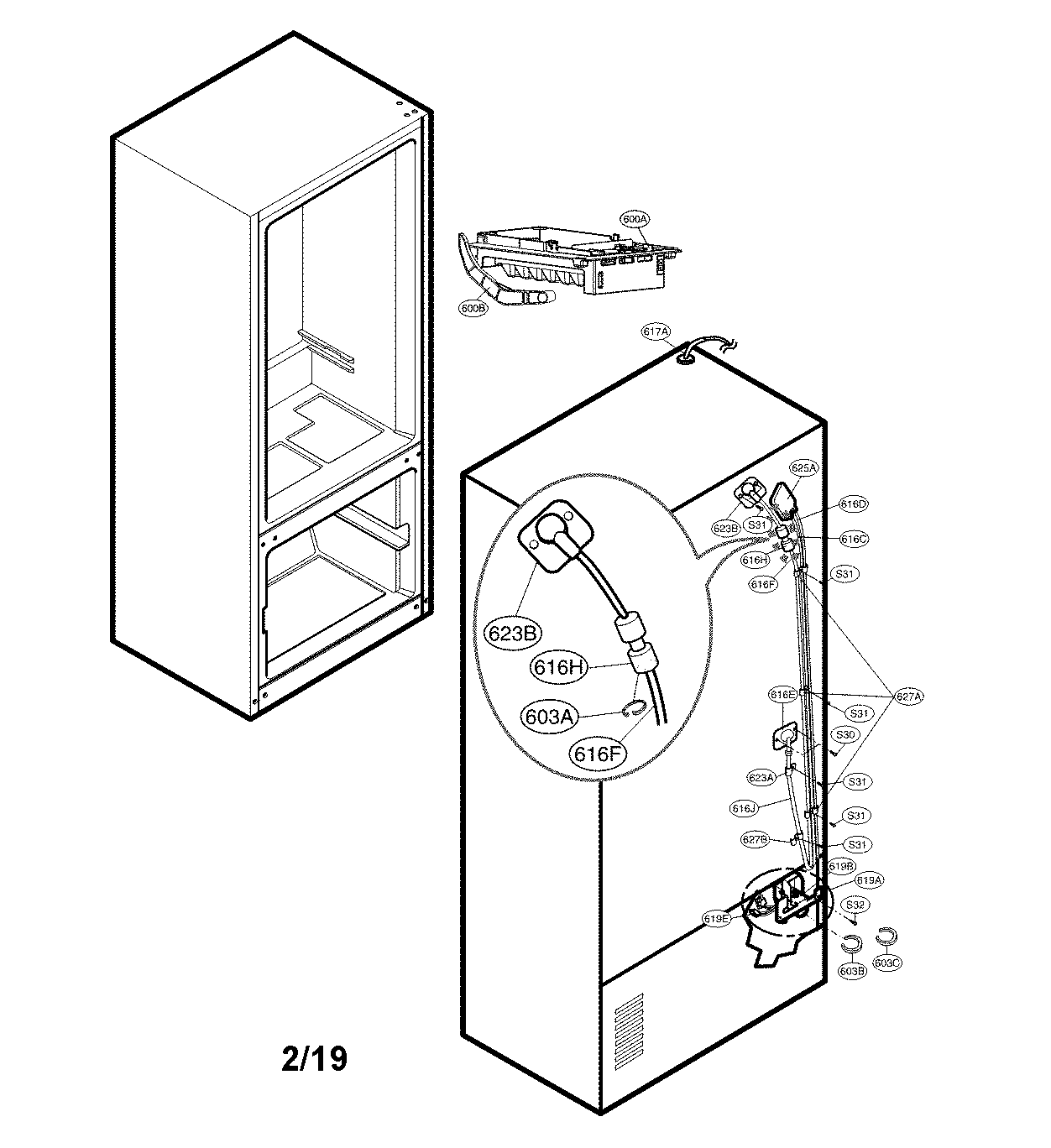

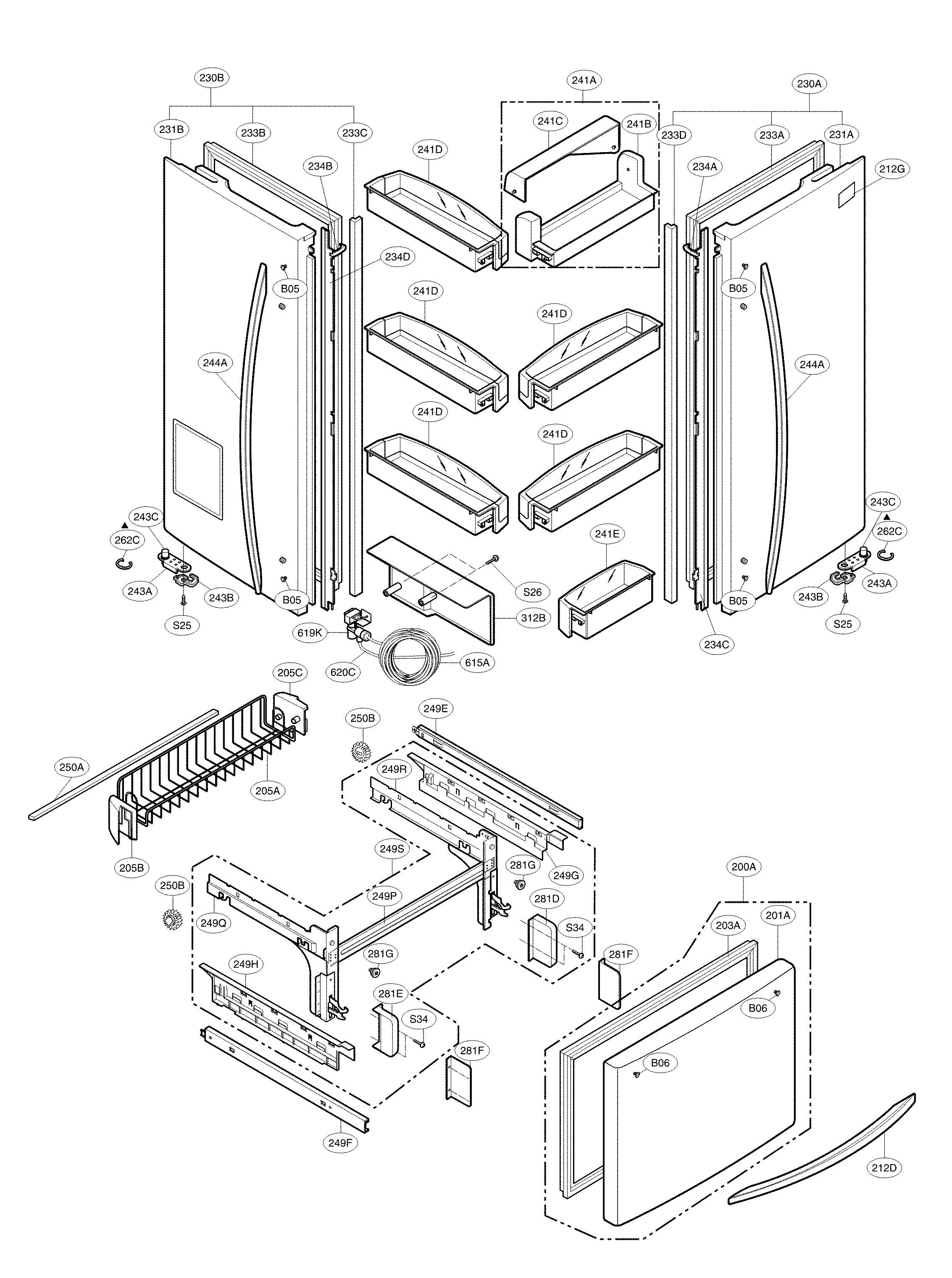

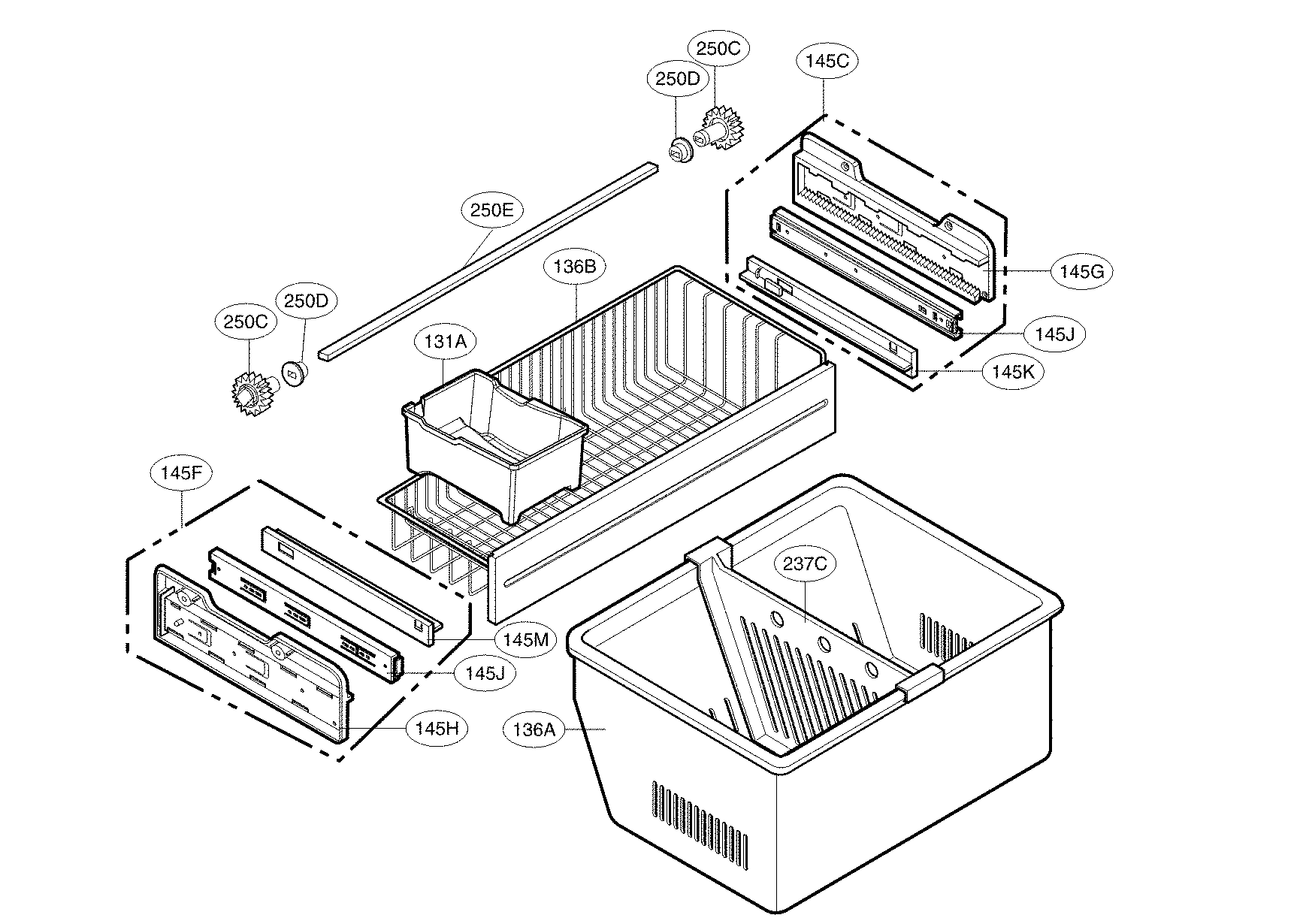

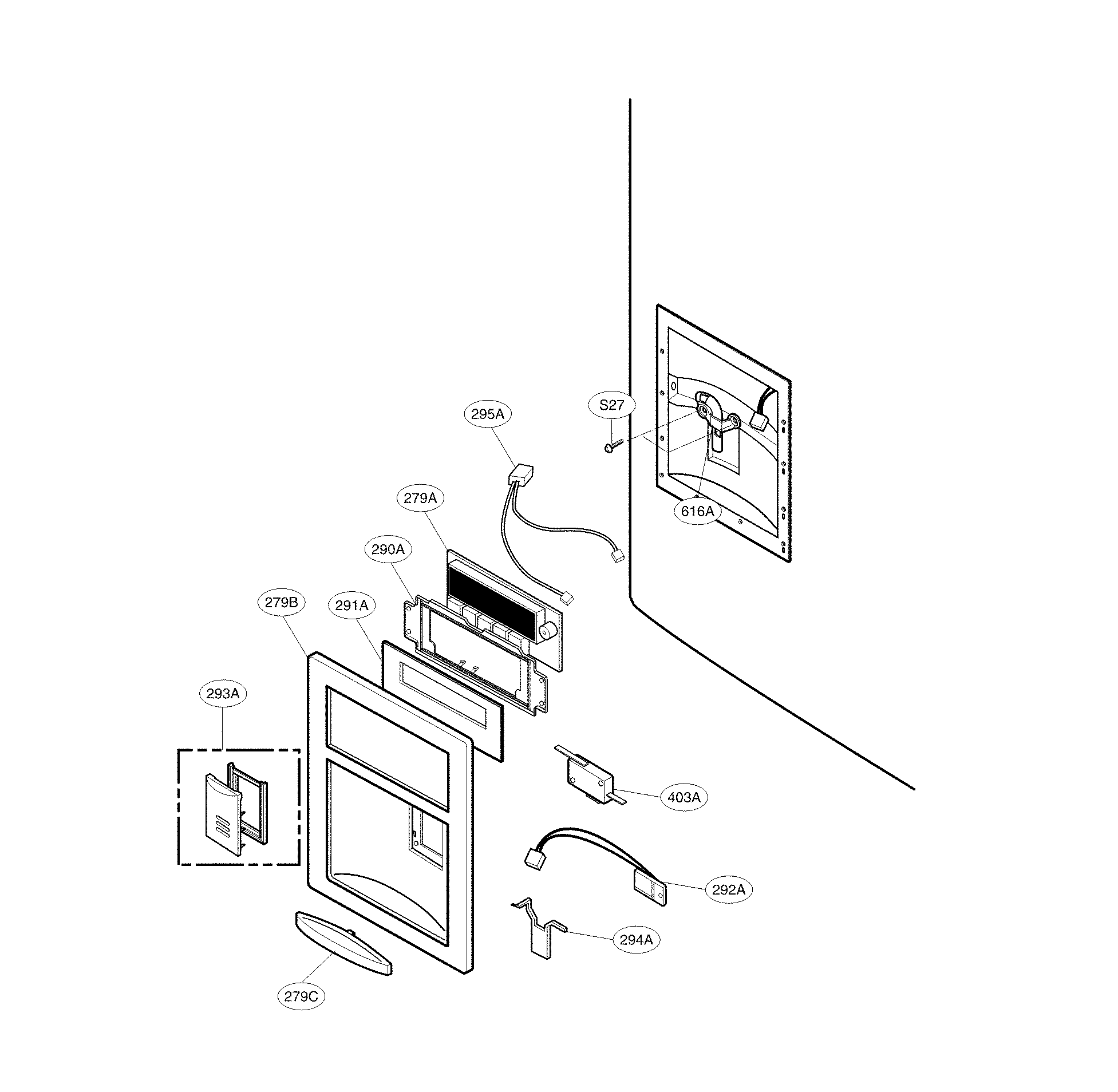

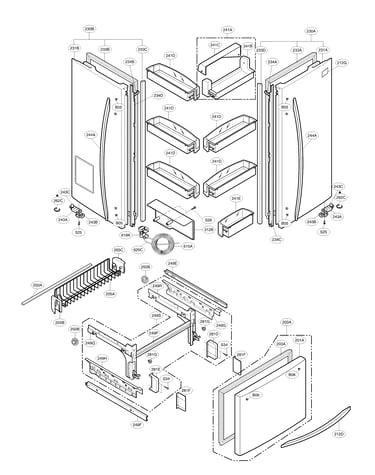

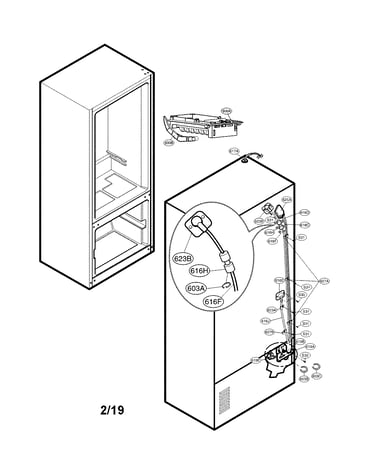

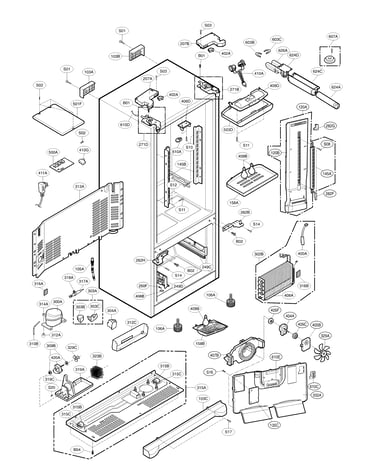

All parts diagram

Refrigerator filter dryer

Part #5851JA2008U

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2008U. Substitute parts can look different from the original.
BEST SELLER
$67.13 |
8% OFF Phone Price : $73.13
In Stock
Kenmore Refrigerator Water Filter 9990 (replaces Cls30320001) 5231JA2006E

#624A

All parts diagram

Kenmore refrigerator water filter 9990 (replaces cls30320001)

Part #5231JA2006E

BEST SELLER

Get free shipping with Automatic Reorder

$54.99
In Stock
Refrigerator Water Tubing 5210JA3004U

#616C

All parts diagram

Refrigerator water tubing

Part #5210JA3004U

Replaced by #MJU62070602

?
Manufacturer substitution
This part replaces 5210JA3004U. Substitute parts can look different from the original.
BEST SELLER
$14.20 |
12% OFF Phone Price : $16.20
In Stock
Refrigerator Water Tubing 5210JA3004R

#616F

All parts diagram

Refrigerator water tubing

Part #5210JA3004R

Replaced by #MJU62070602

?
Manufacturer substitution
This part replaces 5210JA3004R. Substitute parts can look different from the original.
BEST SELLER
$14.20 |
12% OFF Phone Price : $16.20
In Stock
Refrigerator Dispenser Switch (replaces 6600jb3001b, 6600jb3001h) 6600JB3001C

#403A

All parts diagram

Refrigerator dispenser switch (replaces 6600jb3001b, 6600jb3001h)

Part #6600JB3001C

BEST SELLER
$33.22 |
15% OFF Phone Price : $39.22
In Stock
Refrigerator Compressor Process Tube (replaces 4j00977n) 4J00977P

#310B

All parts diagram

Refrigerator compressor process tube (replaces 4j00977n)

Part #4J00977P

BEST SELLER
This item is not returnable
$7.22 |
12% OFF Phone Price : $8.22
In Stock

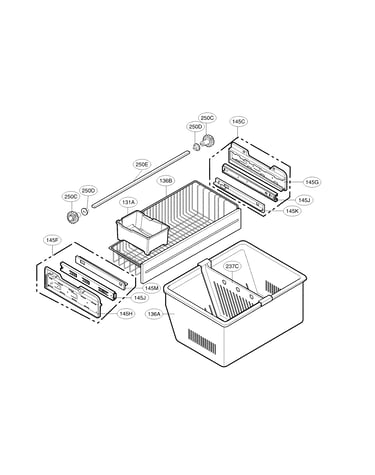

Refrigerator Freezer Basket Support Rail, Left 4932JA1010A

#145M

All parts diagram

Refrigerator freezer basket support rail, left

Part #4932JA1010A

BEST SELLER
$11.70 |
15% OFF Phone Price : $13.70
In Stock
Refrigerator Drain Tube (replaces 5251ja3003a, 5251ja3003e) 5251JA3003D

#105A

All parts diagram

Refrigerator drain tube (replaces 5251ja3003a, 5251ja3003e)

Part #5251JA3003D

BEST SELLER
$11.11 |
15% OFF Phone Price : $13.11
In Stock
Refrigerator Water Tube Fitting MCD38280805

#616H

All parts diagram

Refrigerator water tube fitting

Part #MCD38280805

Replaced by #4932JA3002C

?
Manufacturer substitution
This part replaces MCD38280805. Substitute parts can look different from the original.
BEST SELLER
$16.64 |
11% OFF Phone Price : $18.64
In Stock
Refrigerator Freezer Basket Support Rail, Right 4932JA1010B

#145K

All parts diagram

Refrigerator freezer basket support rail, right

Part #4932JA1010B

BEST SELLER
$19.73 |
9% OFF Phone Price : $21.73
In Stock
