Bosch
Electric Wall Oven

Model # HBN3450UC/04 Official Bosch wall oven

Here are the diagrams and repair parts for Official Bosch HBN3450UC-04 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Bracket 613179
#412

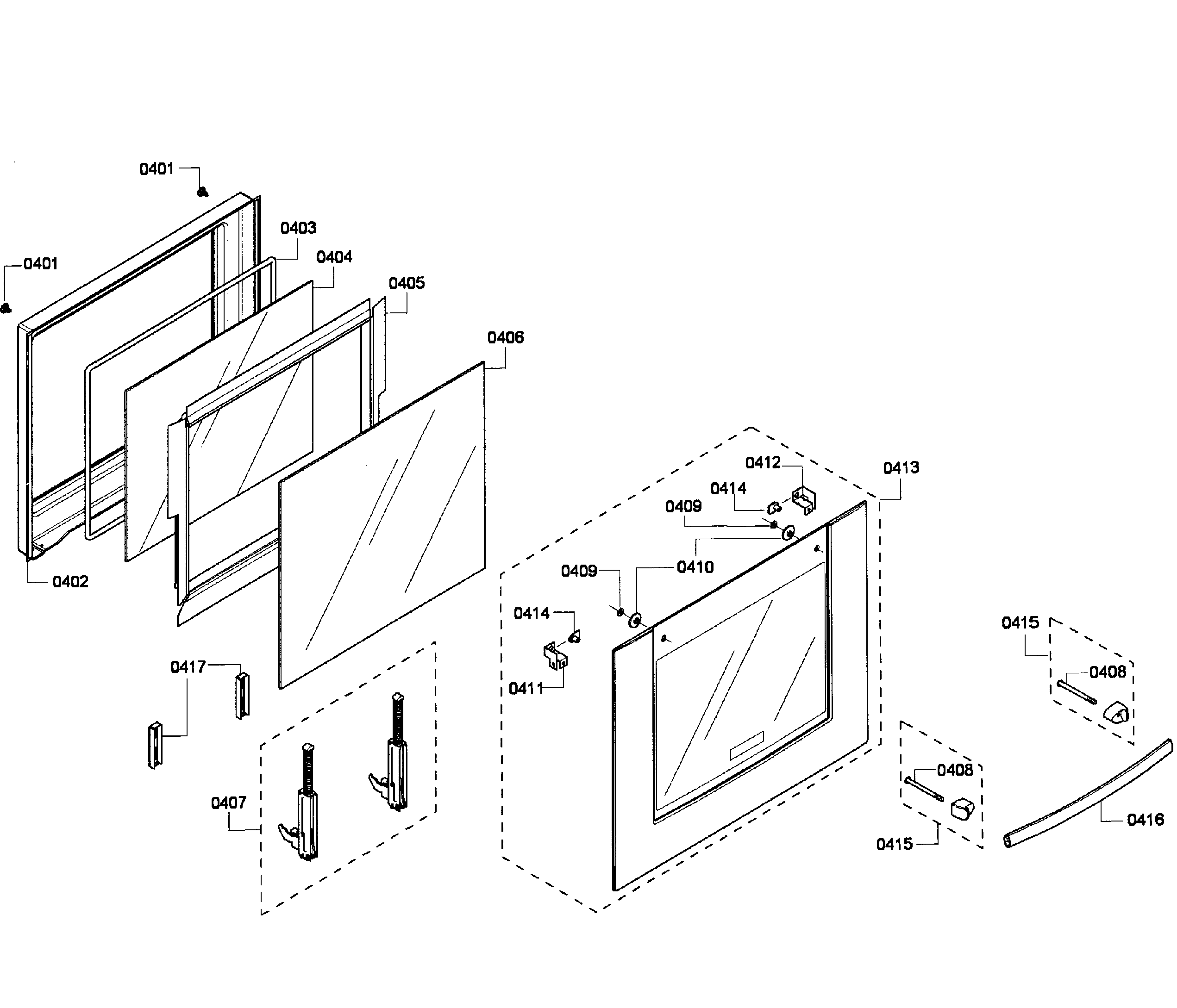

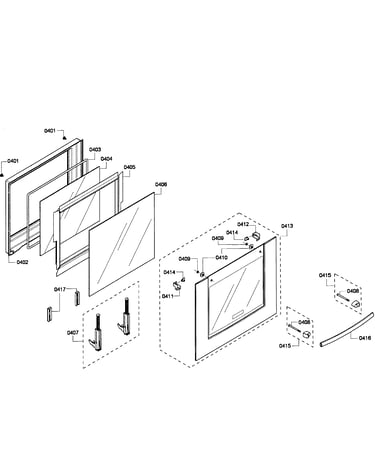

Door assy diagram

Bracket

Part #613179

Replaced by #00613179

?
Manufacturer substitution
This part replaces 613179. Substitute parts can look different from the original.
$23.49
In Stock
Temperature Limit 612548
#206

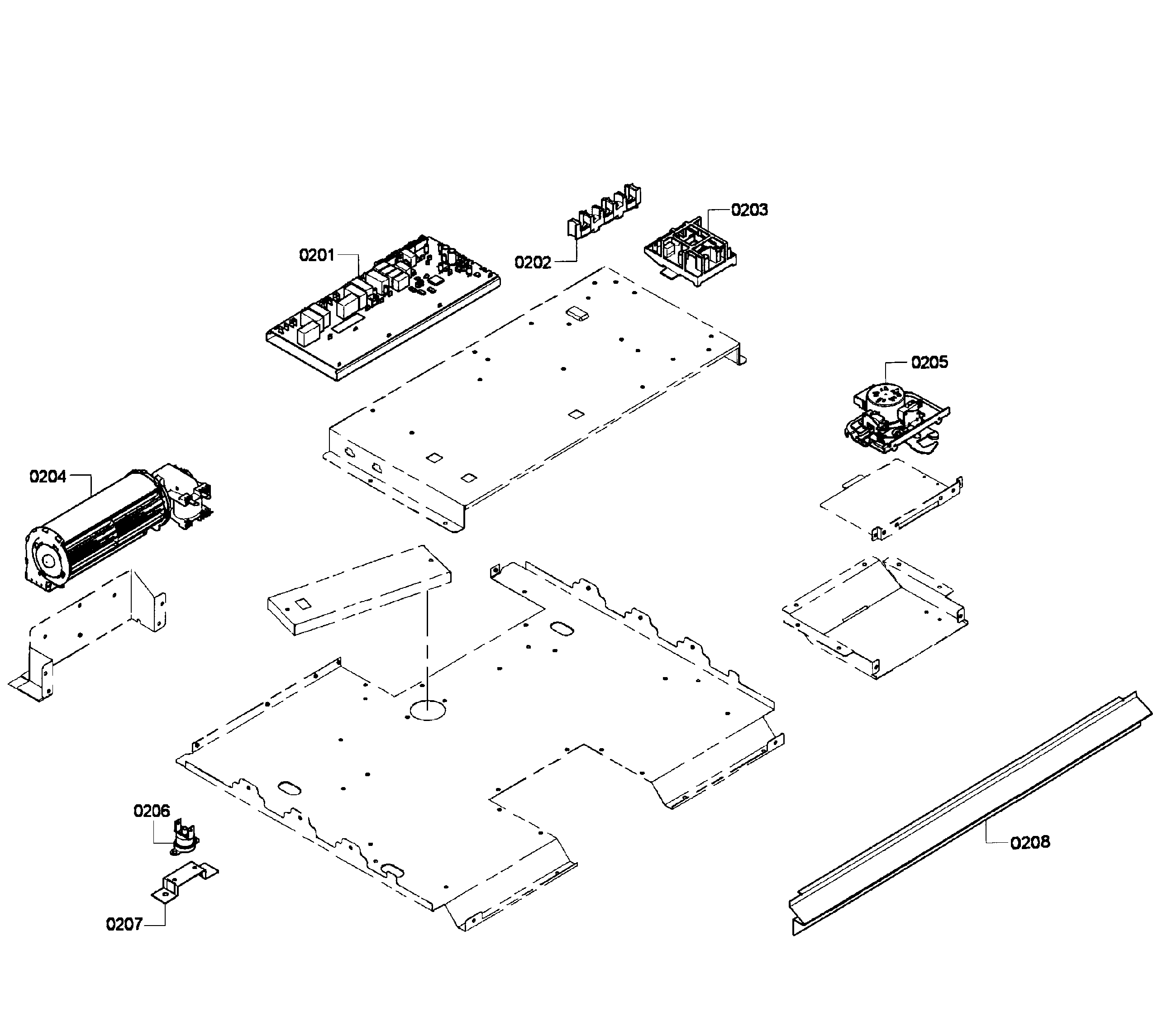

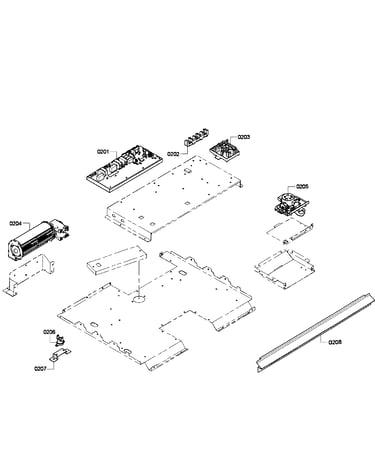

Pcb's assy diagram

Temperature limit

Part #612548

Replaced by #00617877

?
Manufacturer substitution
This part replaces 612548. Substitute parts can look different from the original.
$29.36
In Stock
Fan 665045
#204

Pcb's assy diagram

Fan

Part #665045

Replaced by #00665045

?
Manufacturer substitution
This part replaces 665045. Substitute parts can look different from the original.
$187.14
In Stock
Catalyzer 491572
#303

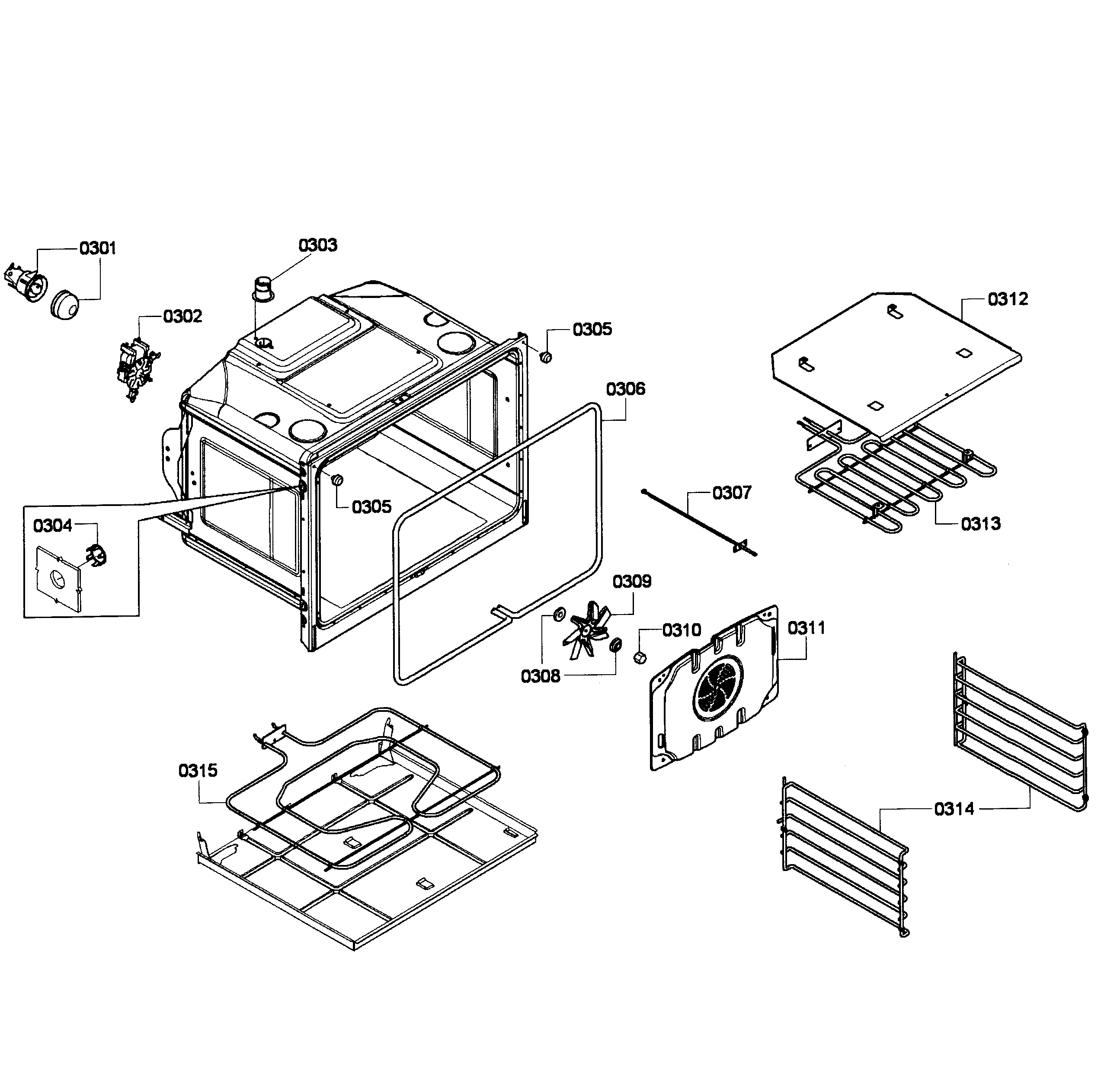

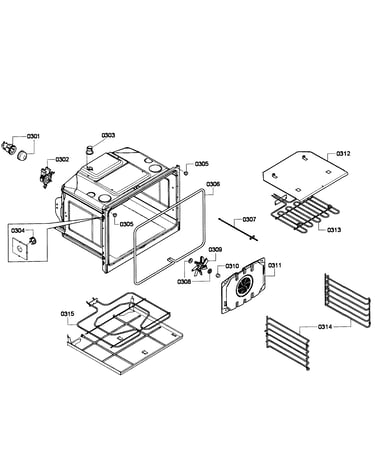

Oven assy diagram

Catalyzer

Part #491572

Replaced by #00491572

?
Manufacturer substitution
This part replaces 491572. Substitute parts can look different from the original.
$59.36
In Stock
Trim Plate 680904
#405

Door assy diagram

Trim plate

Part #680904

Replaced by #00680904

?
Manufacturer substitution
This part replaces 680904. Substitute parts can look different from the original.
$214.01 |
5% OFF Phone Price : $226.01
In Stock
Terminal Box 436364
#202

Pcb's assy diagram

Terminal box

Part #436364

Replaced by #00436364

?
Manufacturer substitution
This part replaces 436364. Substitute parts can look different from the original.
$32.67
In Stock
Sensor 642855
#307

Oven assy diagram

Sensor

Part #642855

Replaced by #00642855

?
Manufacturer substitution
This part replaces 642855. Substitute parts can look different from the original.
$64.49 |
9% OFF Phone Price : $70.49
In Stock
Inner Door 478701
#402

Door assy diagram

Inner door

Part #478701

Replaced by #00688544

?
Manufacturer substitution
This part replaces 478701. Substitute parts can look different from the original.
$332.33 |
$12.00 OFF Phone Price : $344.33
In Stock
Power Supply 663802
#203

Pcb's assy diagram

Power supply

Part #663802

Replaced by #00663802

?
Manufacturer substitution
This part replaces 663802. Substitute parts can look different from the original.
$128.19 |
9% OFF Phone Price : $140.19
In Stock
Grille 449756
#602

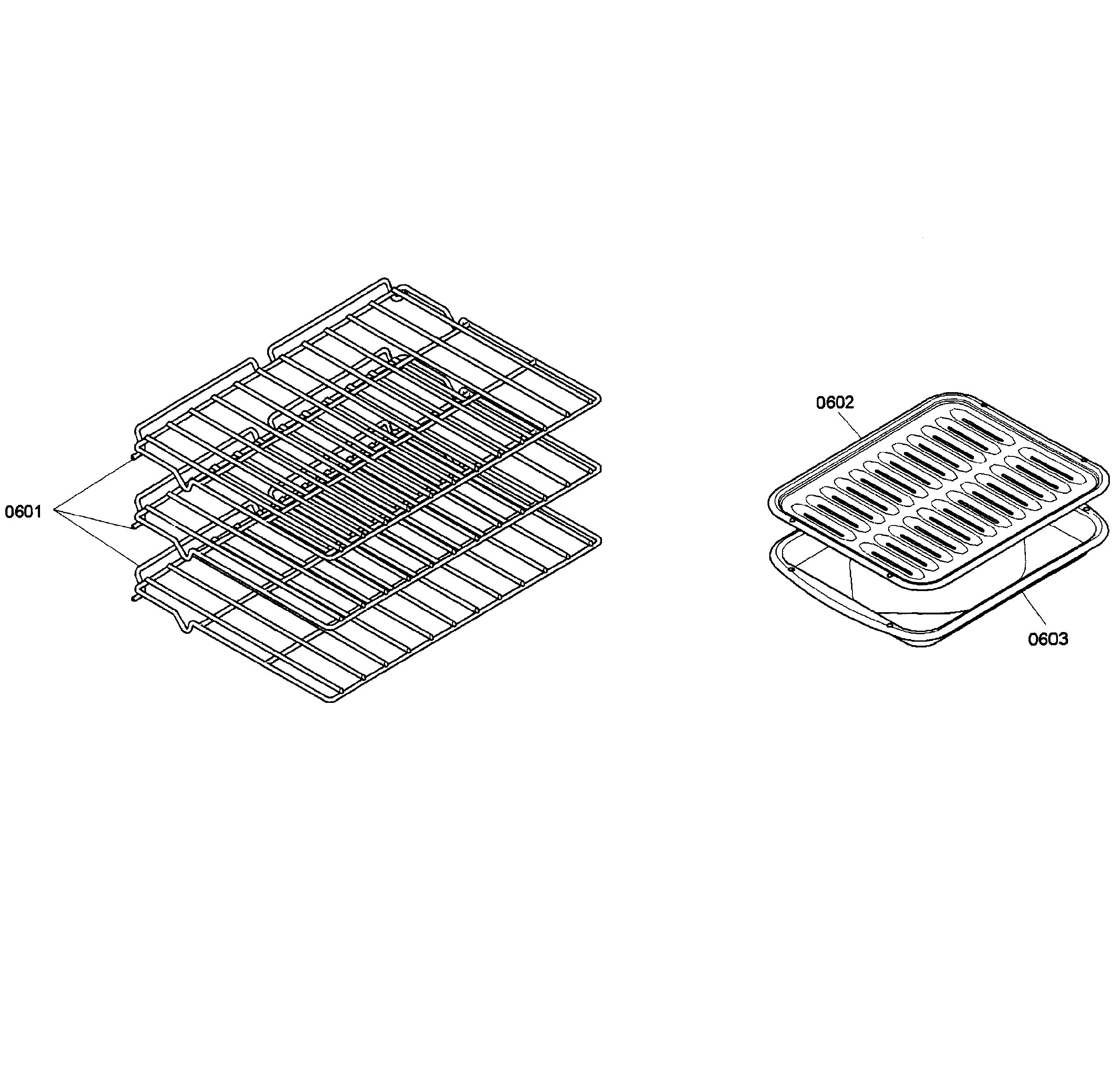

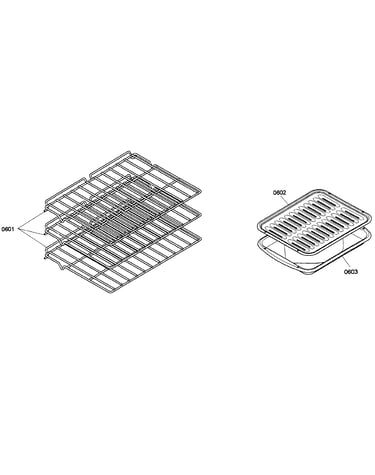

Shelfs diagram

Grille

Part #449756

Replaced by #00449756

?
Manufacturer substitution
This part replaces 449756. Substitute parts can look different from the original.
$57.89
In Stock
