Jenn-Air
Electric Cooktop

Model # CVEX4100B Official Jenn-Air cooktop

Here are the diagrams and repair parts for Official Jenn-Air CVEX4100B cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

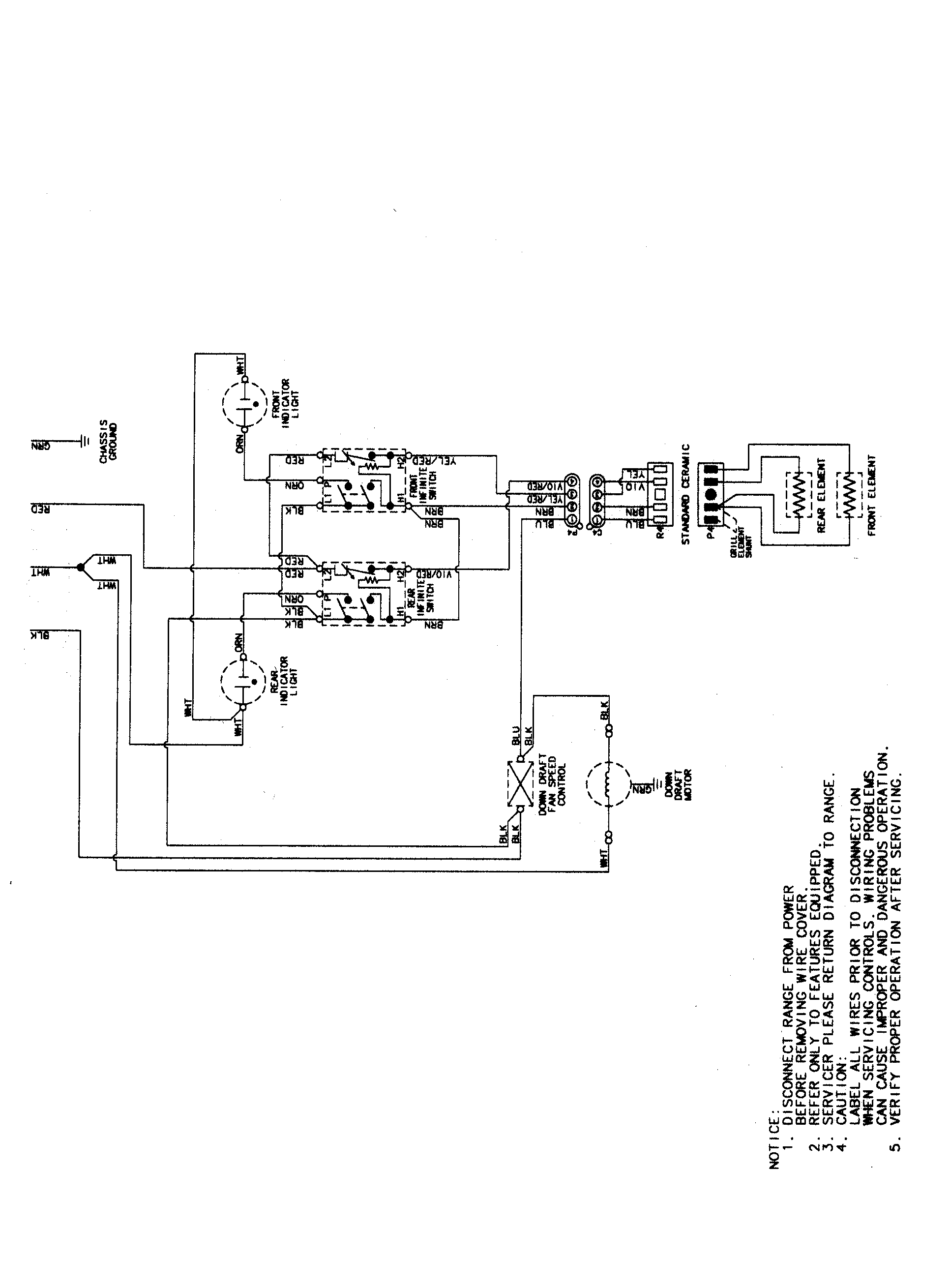

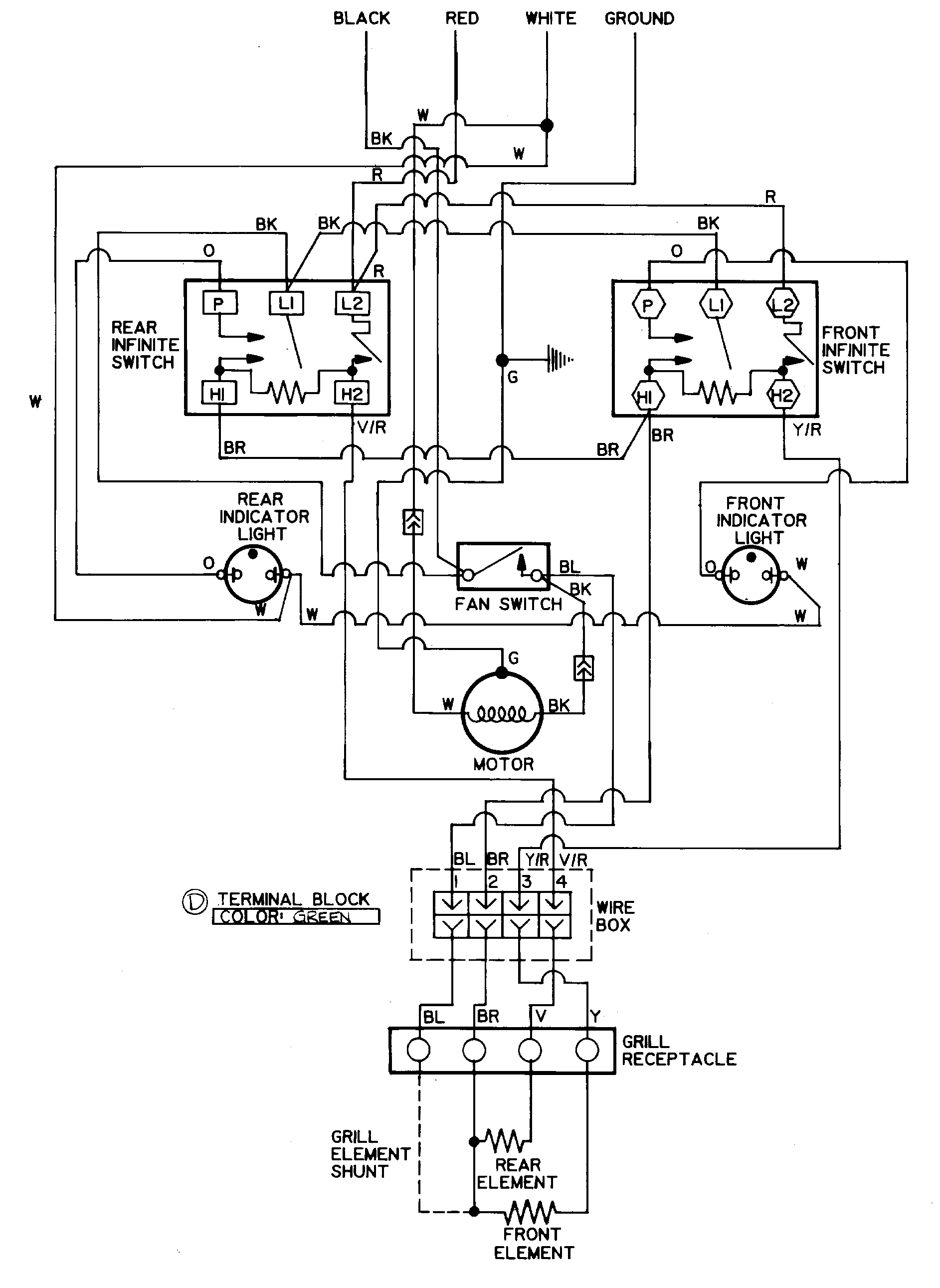

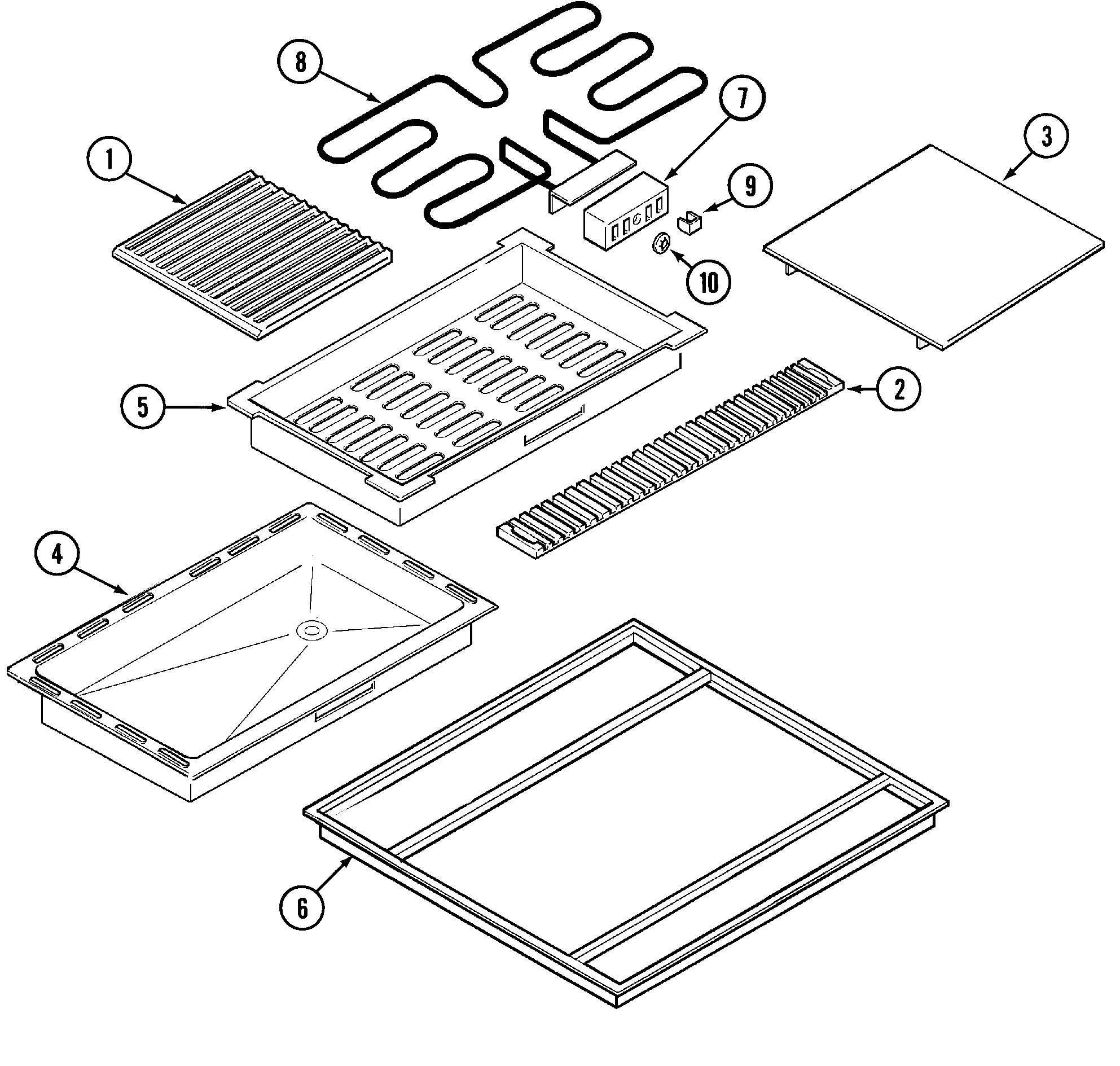

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Range Surface Element Control Switch 703650
#14

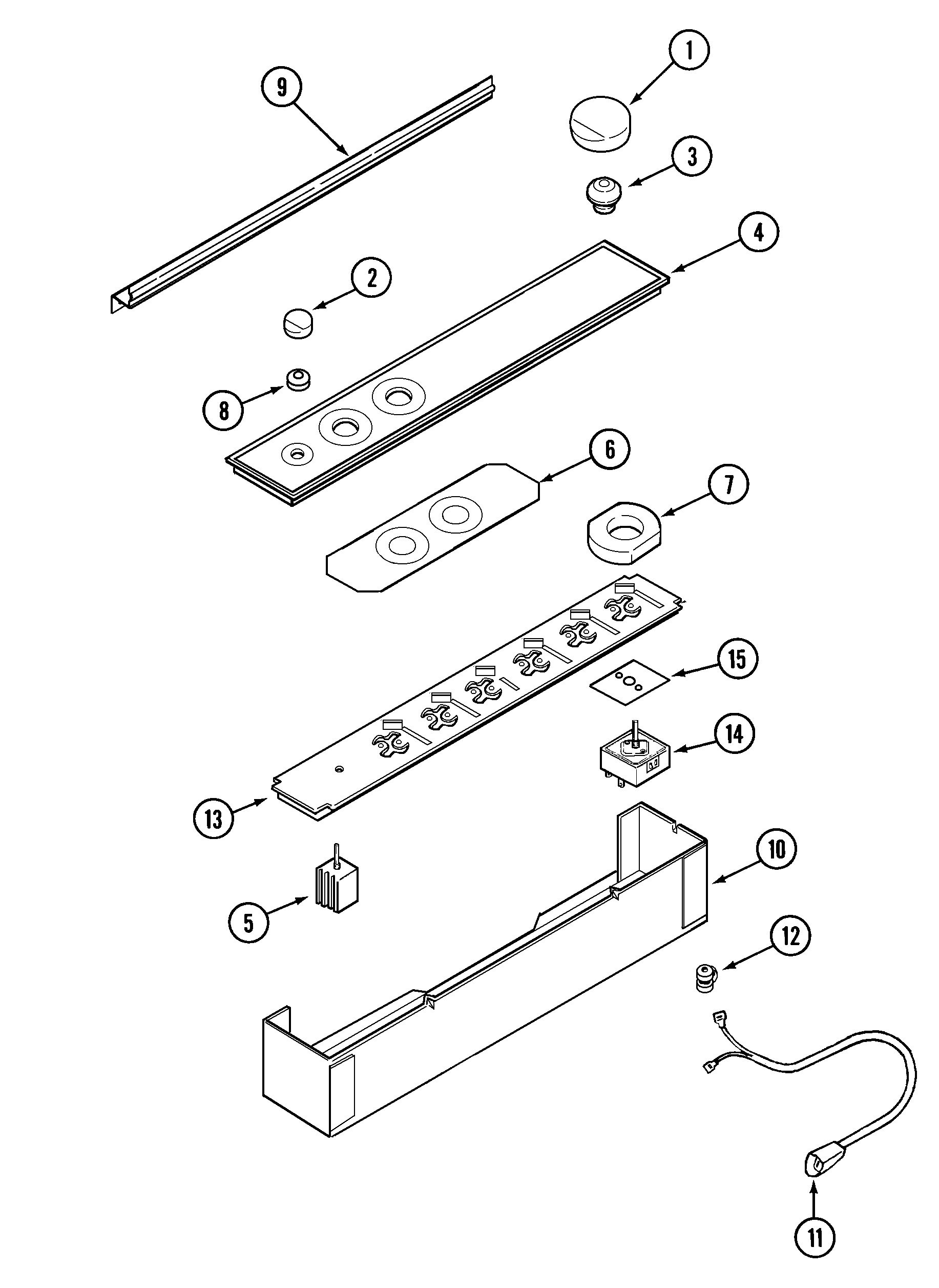

Control panel diagram

Range surface element control switch

Part #703650

Replaced by #W11120791

?
Manufacturer substitution
This part replaces 703650. Substitute parts can look different from the original.
BEST SELLER
$57.06 |
10% OFF Phone Price : $63.06
In Stock
Blower Wheel 707985
#10

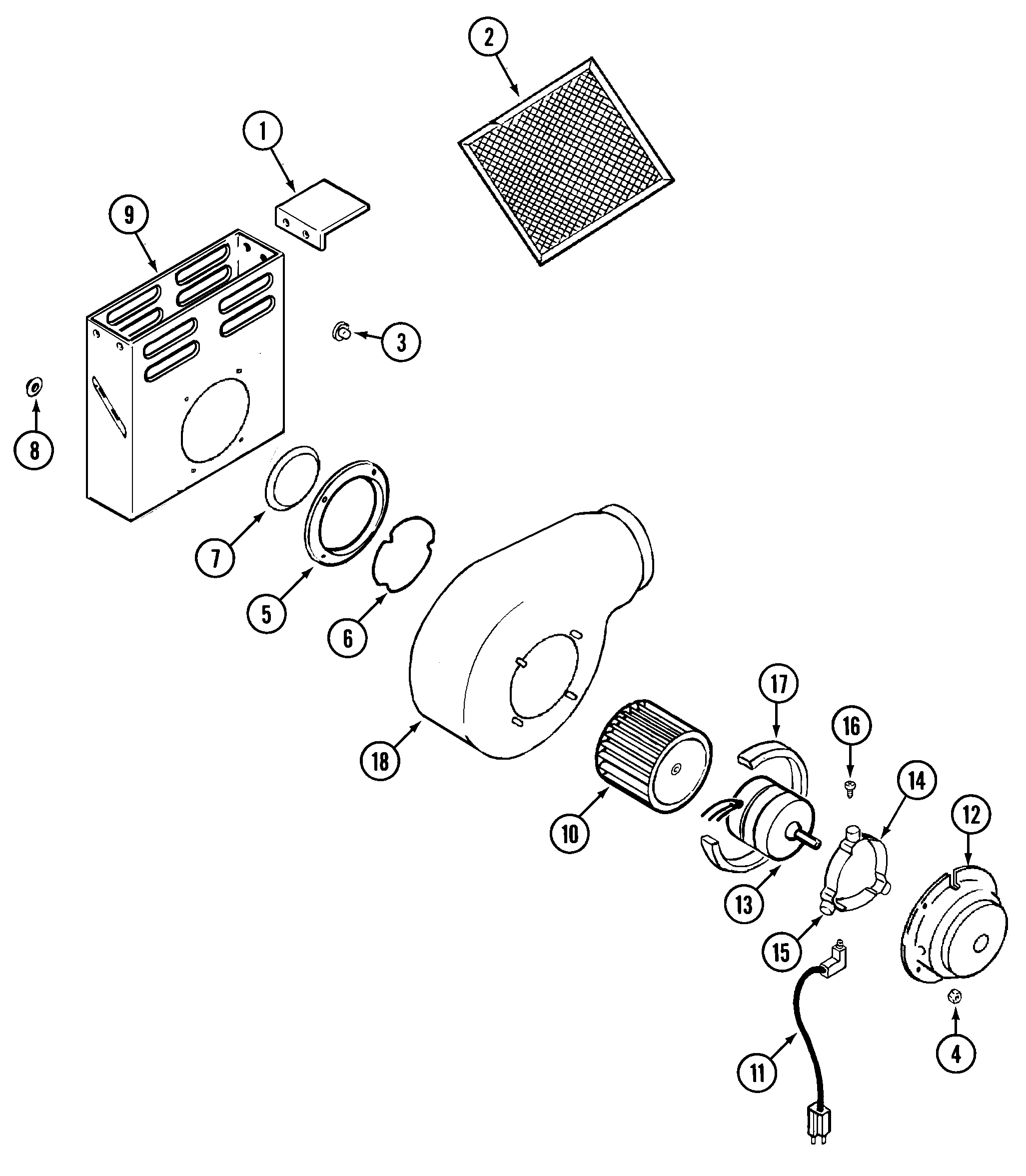

Blower assembly (plenum) diagram

Blower wheel

Part #707985

Replaced by #WPY707985

?
Manufacturer substitution
This part replaces 707985. Substitute parts can look different from the original.
$71.68 |
8% OFF Phone Price : $77.68
In Stock
Filter 706012
#2

Blower assembly (plenum) diagram

Filter

Part #706012

Replaced by #WPY706012

?
Manufacturer substitution
This part replaces 706012. Substitute parts can look different from the original.
$32.64 |
16% OFF Phone Price : $38.64
In Stock
Cooktop Downdraft Vent Fan Knob 74009256
#5

Control panel diagram

Cooktop downdraft vent fan knob

Part #74009256

Replaced by #WP74009256

?
Manufacturer substitution
This part replaces 74009256. Substitute parts can look different from the original.
$104.10 |
10% OFF Phone Price : $116.10
In Stock
Screw 706189
Screw

Part #706189

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 706189. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Cable Tie 701678
#16A

Control panel diagram

Cable tie

Part #701678

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 701678. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Infinite Gasket 71002569
#15

Control panel diagram

Infinite gasket

Part #71002569

Replaced by #WP71002569

?
Manufacturer substitution
This part replaces 71002569. Substitute parts can look different from the original.
This item is not returnable
$7.39 |
12% OFF Phone Price : $8.39
In Stock
Rivet, Jar L 707128
#1

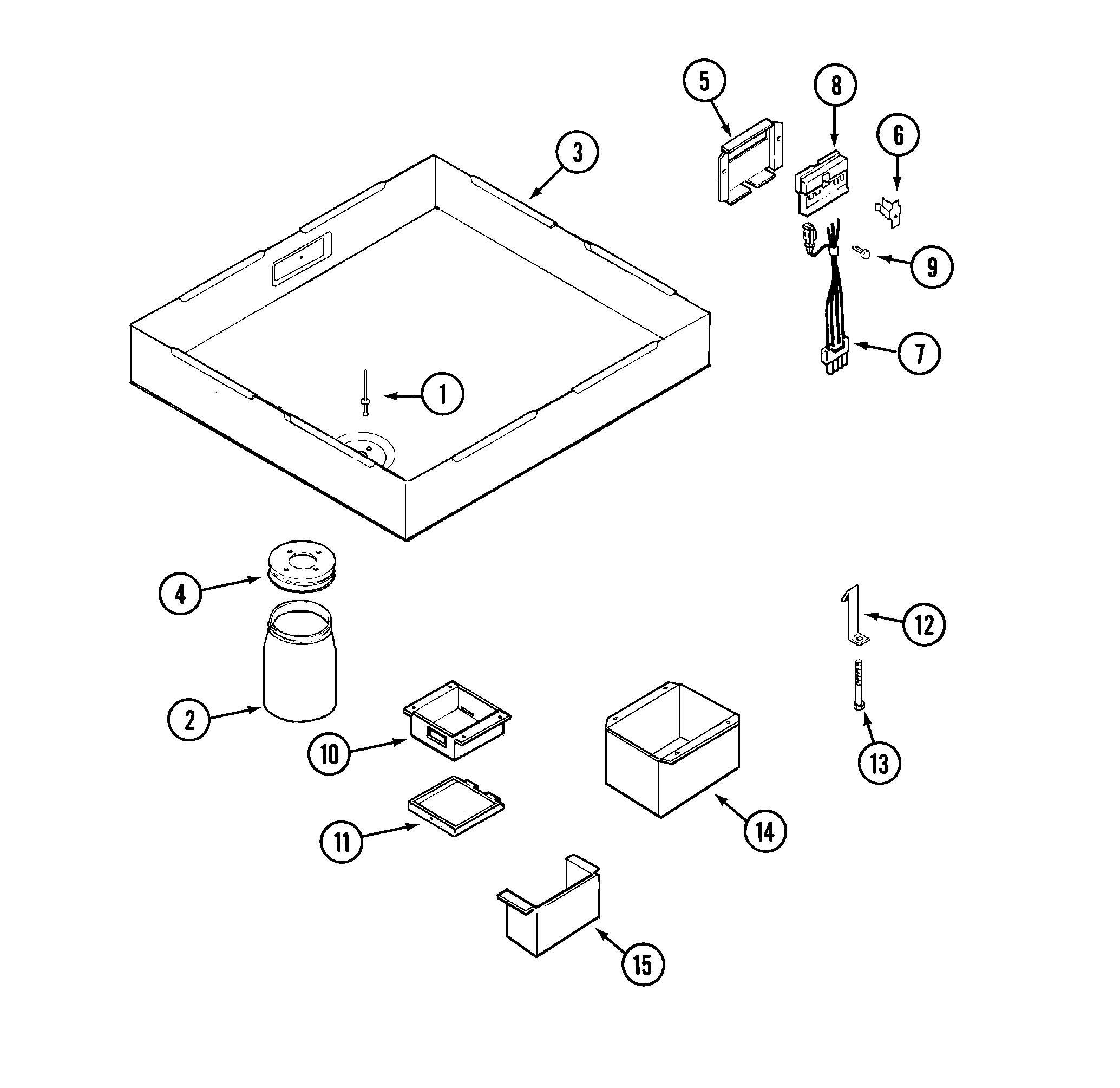

Burner box diagram

Rivet, jar l

Part #707128

Replaced by #WP210720

?
Manufacturer substitution
This part replaces 707128. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Band Motor 707393
#14

Blower assembly (plenum) diagram

Band motor

Part #707393

Replaced by #3415F003-51

?
Manufacturer substitution
This part replaces 707393. Substitute parts can look different from the original.
$31.09 |
16% OFF Phone Price : $37.09
In Stock
Isolator 708926
#15

Blower assembly (plenum) diagram

Isolator

Part #708926

Replaced by #WP71003558

?
Manufacturer substitution
This part replaces 708926. Substitute parts can look different from the original.
This item is not returnable
$9.19 |
10% OFF Phone Price : $10.19
In Stock
