Model # 5648971500 Official Kenmore refrigerator
Here are the diagrams and repair parts for Official Kenmore 5648971500 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for5648971500 Refrigerator
- #7

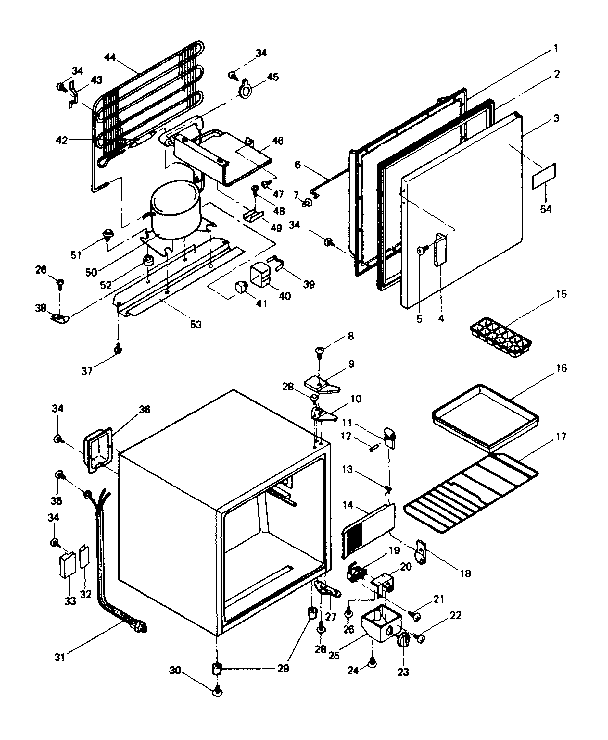

Cabinet parts diagram
Refrigerator door shelf rail end capPart #300499
The manufacturer no longer makes this part, and there's no substitute part
- #34
Cabinet parts diagram
Refrigerator screwPart #300308
The manufacturer no longer makes this part, and there's no substitute part
- #19
Cabinet parts diagram
Craftsman refrigerator temperature control thermostatPart #300204
The manufacturer no longer makes this part, and there's no substitute part
- #16
Cabinet parts diagram
Refrigerator drip trayPart #300150
The manufacturer no longer makes this part, and there's no substitute part
- #31
Cabinet parts diagram
Power cordPart #300158
The manufacturer no longer makes this part, and there's no substitute part
- Bolt
Part #300459
The manufacturer no longer makes this part, and there's no substitute part
- #24
Cabinet parts diagram
ScrewPart #300466
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Refrigerator use and care guidePart #300193
The manufacturer no longer makes this part, and there's no substitute part
- #54
Cabinet parts diagram
Refrigerator nameplatePart #300452
The manufacturer no longer makes this part, and there's no substitute part
- #42
Cabinet parts diagram
DrierPart #300183
The manufacturer no longer makes this part, and there's no substitute part
