Kenmore
Electric Wall Oven

Model # 2784288893 Official Kenmore electric built-in oven

Here are the diagrams and repair parts for Official Kenmore 2784288893 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

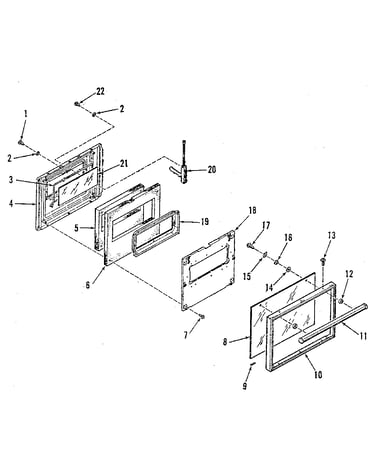

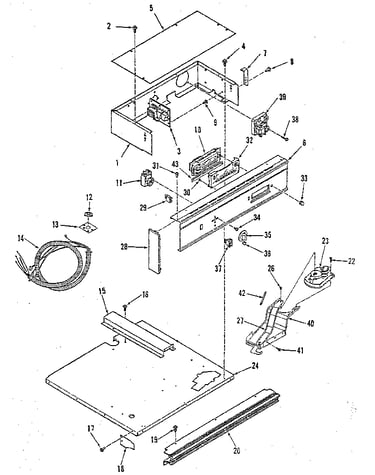

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Sensor 334300
#65

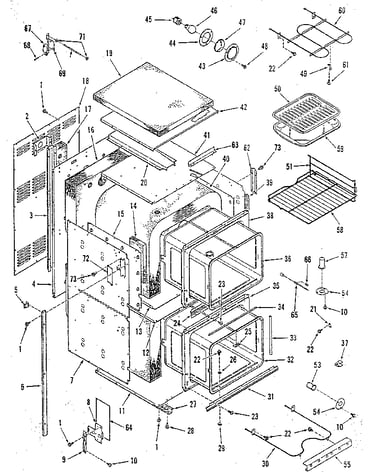

Body section diagram

Sensor

Part #334300

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces 334300. Substitute parts can look different from the original.
BEST SELLER
$144.49 |
8% OFF Phone Price : $156.49
In Stock
Bake Element 335914
#30B

Body section diagram

Bake element

Part #335914

Replaced by #WB44X238

?
Manufacturer substitution
This part replaces 335914. Substitute parts can look different from the original.
$42.32 |
12% OFF Phone Price : $48.32
In Stock
Bake Element 331164
#30A

Body section diagram

Bake element

Part #331164

Replaced by #WB44X238

?
Manufacturer substitution
This part replaces 331164. Substitute parts can look different from the original.
$42.32 |
12% OFF Phone Price : $48.32
In Stock
Screw 327320
Screw

Part #327320

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces 327320. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw 311484
Screw

Part #311484

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 311484. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 295849
#12

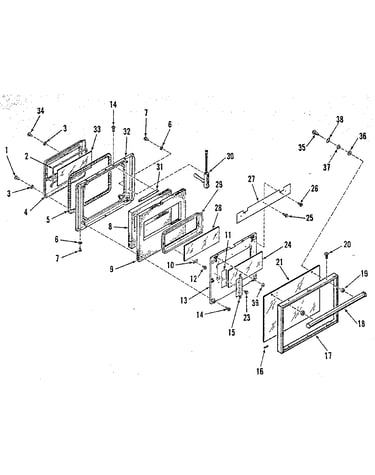

Upper oven door section diagram

Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102428
Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Door Gasket 311873
#5

Upper oven door section diagram

Door gasket

Part #311873

Replaced by #WB32K5038

?
Manufacturer substitution
This part replaces 311873. Substitute parts can look different from the original.
$77.17 |
7% OFF Phone Price : $83.17
In Stock
Seal 302935
Seal

Part #302935

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces 302935. Substitute parts can look different from the original.
This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Grid Broil 326297
#50

Body section diagram

Grid broil

Part #326297

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces 326297. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
