Kenmore
Range Hood

Model # 85054481 Official Kenmore ductless range hood

Here are the diagrams and repair parts for Official Kenmore 85054481 ductless range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Range Hood Blower Wheel 6784
#36

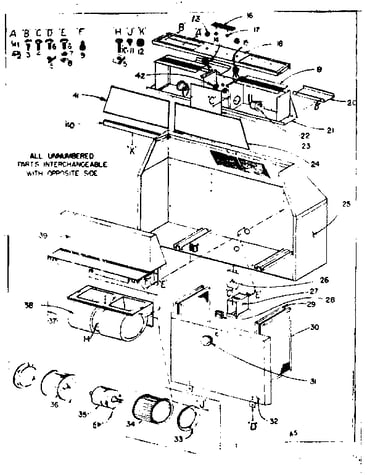

Range hood diagram

Range hood blower wheel

Part #6784

The manufacturer no longer makes this part, and there's no substitute part

Square Nut GM120619
#8

Range hood diagram

Square nut

Part #GM120619

The manufacturer no longer makes this part, and there's no substitute part

Baffle 6803
#20C

Range hood diagram

Baffle

Part #6803

The manufacturer no longer makes this part, and there's no substitute part

Cover 6778
#32C

Range hood diagram

Cover

Part #6778

The manufacturer no longer makes this part, and there's no substitute part

Canopy 6948
#25ZK

Range hood diagram

Canopy

Part #6948

The manufacturer no longer makes this part, and there's no substitute part

Canopy 6953
#25ZL

Range hood diagram

Canopy

Part #6953

The manufacturer no longer makes this part, and there's no substitute part

Canopy 6940
#25ZA

Range hood diagram

Canopy

Part #6940

The manufacturer no longer makes this part, and there's no substitute part

Lamp Cover 6902
#21A

Range hood diagram

Lamp cover

Part #6902

The manufacturer no longer makes this part, and there's no substitute part

Canopy 6958
#25ZM

Range hood diagram

Canopy

Part #6958

The manufacturer no longer makes this part, and there's no substitute part

Panel 6761
#18C

Range hood diagram

Panel

Part #6761

The manufacturer no longer makes this part, and there's no substitute part
