Model # ZGG27N21YSS Official GE gas grill

Here are the diagrams and repair parts for Official GE ZGG27N21YSS gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Monogram Logo WB02X10349
#29

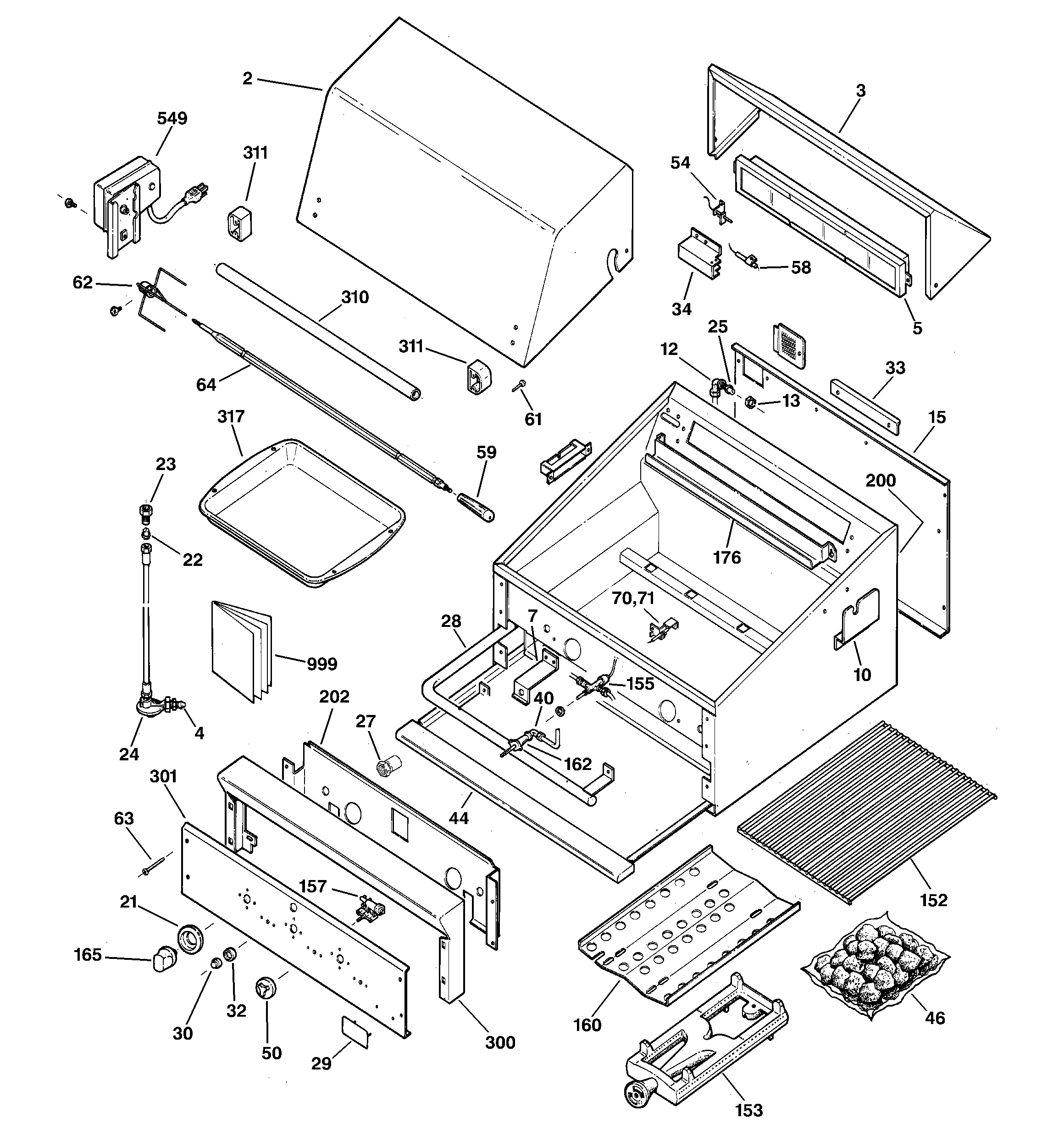

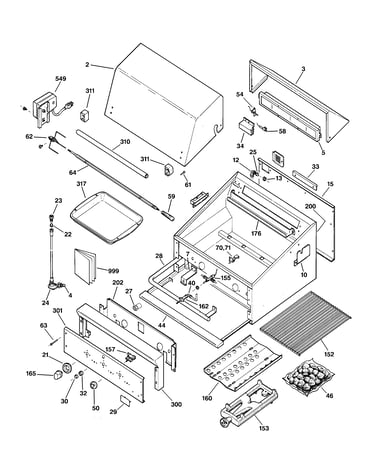

Gas grill parts diagram

Monogram logo

Part #WB02X10349

$21.49
In Stock
Uc Only Outd 49-8822
#999

Gas grill parts diagram

Uc only outd

Part #49-8822

Replaced by #049-80377

?
Manufacturer substitution
This part replaces 49-8822. Substitute parts can look different from the original.
$17.99
In Stock
H-burner WB28X10009
#153

Gas grill parts diagram

H-burner

Part #WB28X10009

Replaced by #WB28X10025

?
Manufacturer substitution
This part replaces WB28X10009. Substitute parts can look different from the original.
$331.42
In Stock
Lid Stop WB02X10426
#33

Gas grill parts diagram

Lid stop

Part #WB02X10426

The manufacturer no longer makes this part, and there's no substitute part

Grill Cooktop Burner Orifice WB21X10012
#27

Gas grill parts diagram

Grill cooktop burner orifice

Part #WB21X10012

The manufacturer no longer makes this part, and there's no substitute part

Roll Top Lid WB63X10007
#2

Gas grill parts diagram

Roll top lid

Part #WB63X10007

The manufacturer no longer makes this part, and there's no substitute part

Rotisserie Orifice WB01X10166
#25

Gas grill parts diagram

Rotisserie orifice

Part #WB01X10166

The manufacturer no longer makes this part, and there's no substitute part

Electrode WB02X10428
#58

Gas grill parts diagram

Electrode

Part #WB02X10428

The manufacturer no longer makes this part, and there's no substitute part

Regulator Hood WB02X10432
#24

Gas grill parts diagram

Regulator hood

Part #WB02X10432

The manufacturer no longer makes this part, and there's no substitute part

Rotisserie H WB15X10005
#59

Gas grill parts diagram

Rotisserie h

Part #WB15X10005

The manufacturer no longer makes this part, and there's no substitute part
