Model # DG4400B TYPE 1 Official DeWalt generator

Here are the diagrams and repair parts for Official DeWalt DG4400B-TYPE-1 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

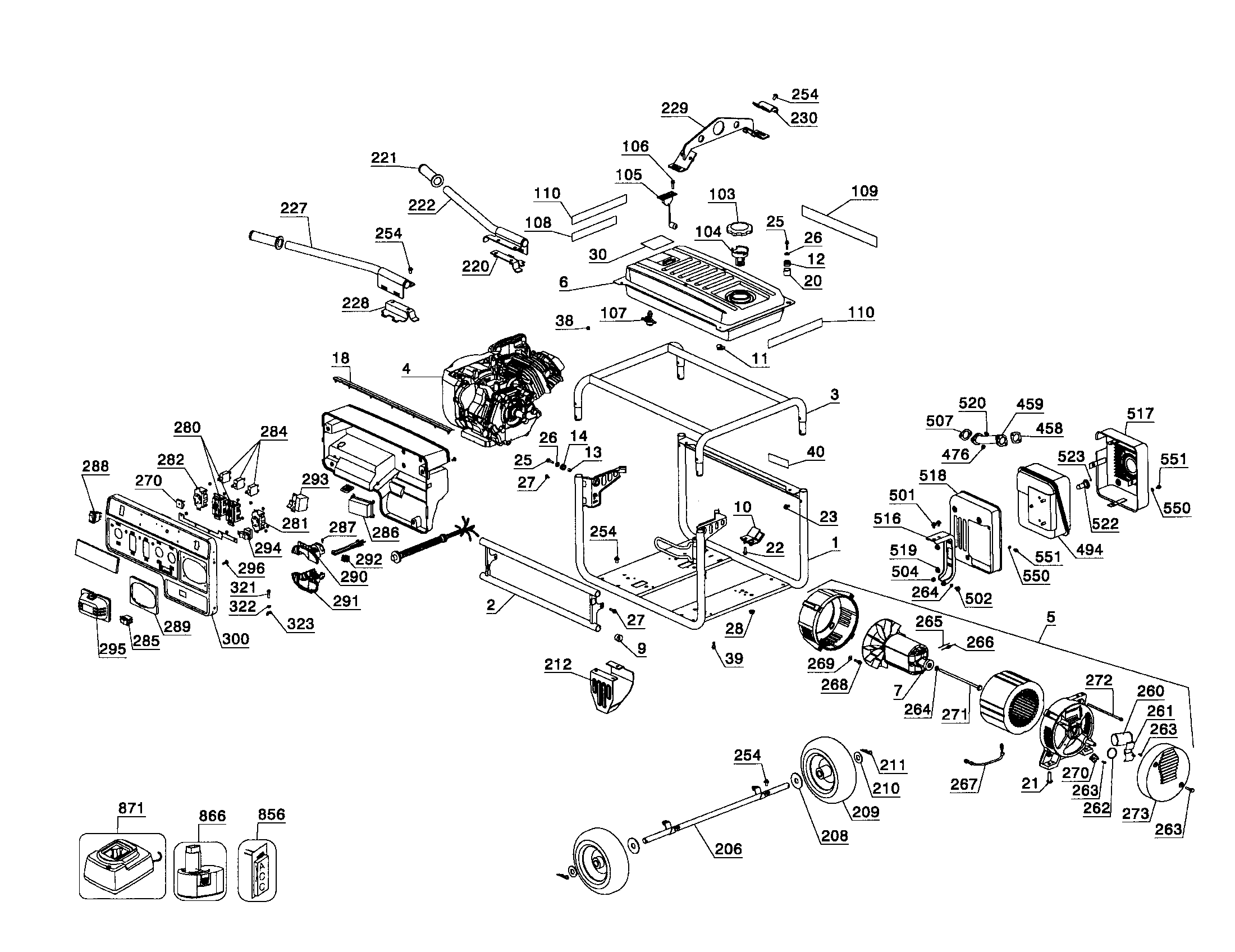

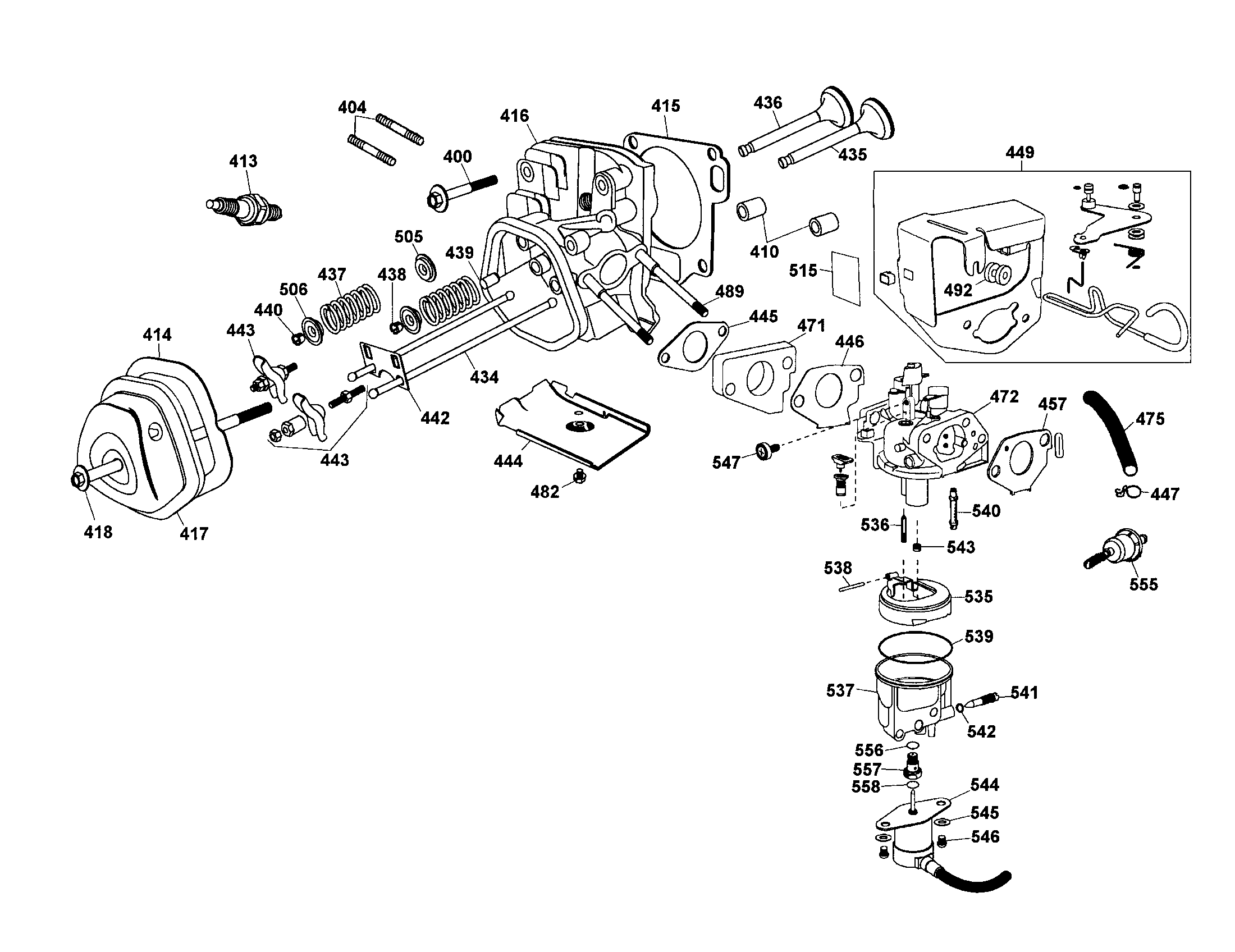

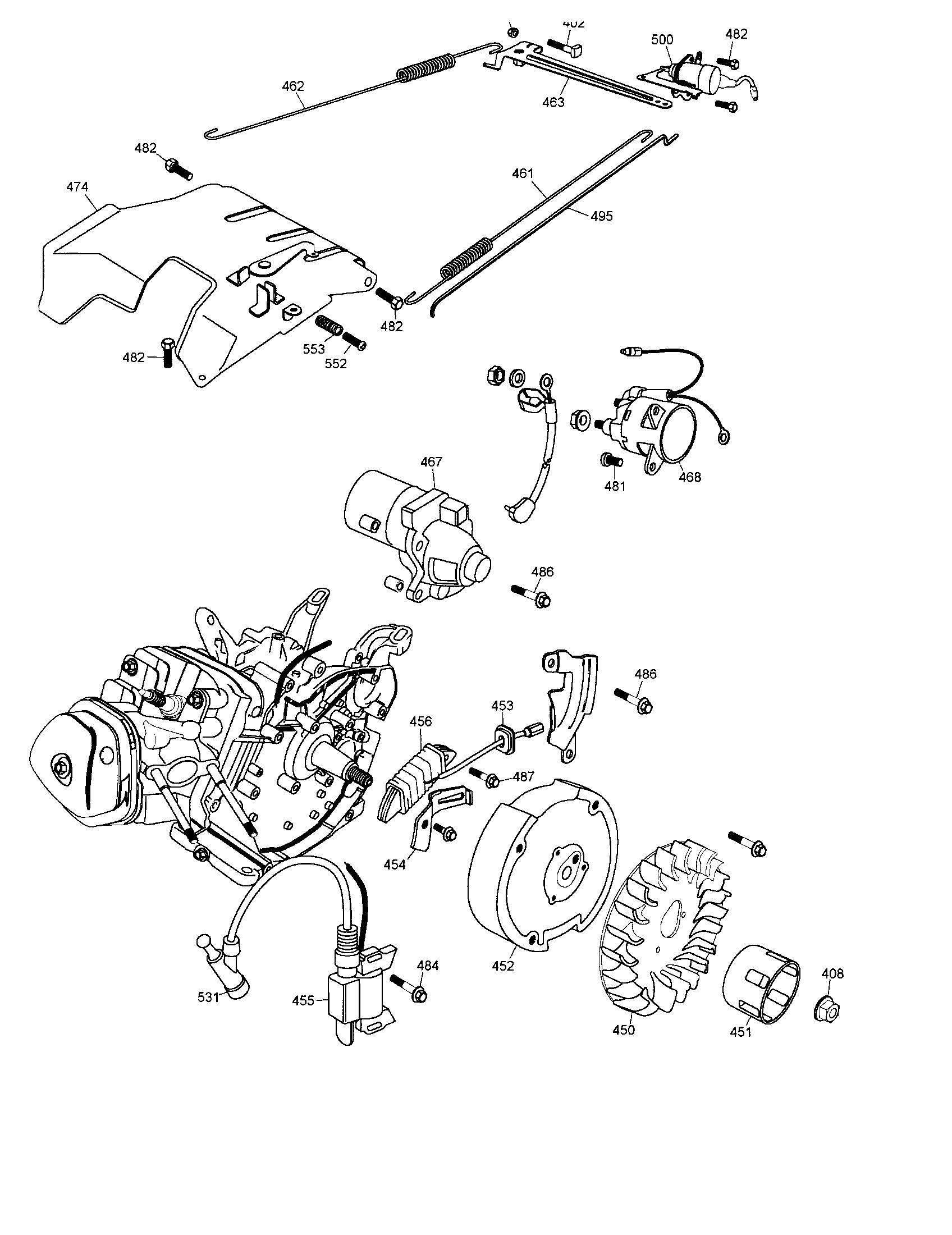

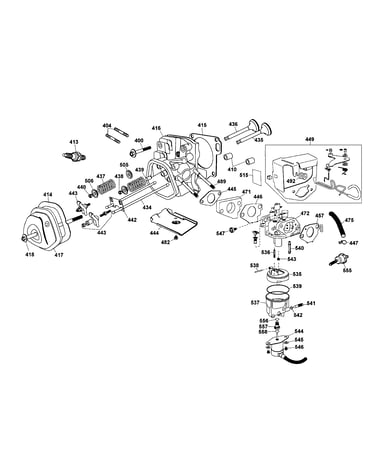

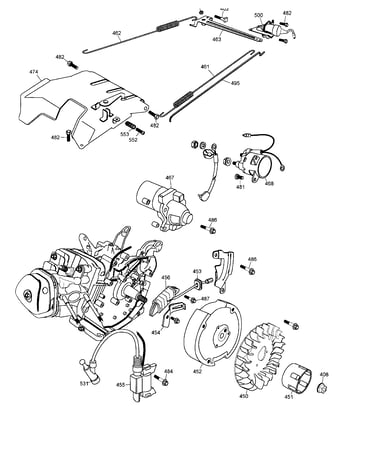

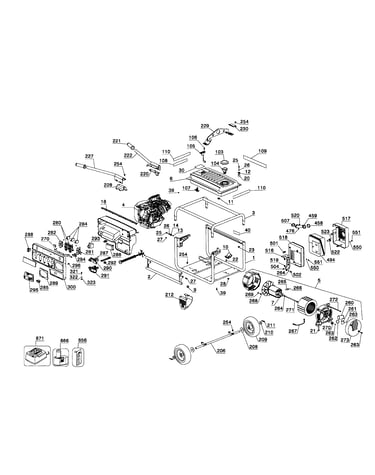

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Lawn & Garden Equipment Screw 330019-13

#287

All parts diagram

Lawn & garden equipment screw

Part #330019-13

The manufacturer no longer makes this part, and there's no substitute part

Pin 285814-58

#429

All parts diagram

Pin

Part #285814-58

The manufacturer no longer makes this part, and there's no substitute part

Id Label 285816-58

#109

All parts diagram

Id label

Part #285816-58

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 125v 20a GS-0480

#282

All parts diagram

Receptacle 125v 20a

Part #GS-0480

The manufacturer no longer makes this part, and there's no substitute part

Nut (12) 645024-00

#28

All parts diagram

Nut (12)

Part #645024-00

The manufacturer no longer makes this part, and there's no substitute part

Screw #10-24 X .563 Th (5) SSF-553-1

#263

All parts diagram

Screw #10-24 x .563 th (5)

Part #SSF-553-1

The manufacturer no longer makes this part, and there's no substitute part

Right Handle 647735-00

#227

All parts diagram

Right handle

Part #647735-00

The manufacturer no longer makes this part, and there's no substitute part

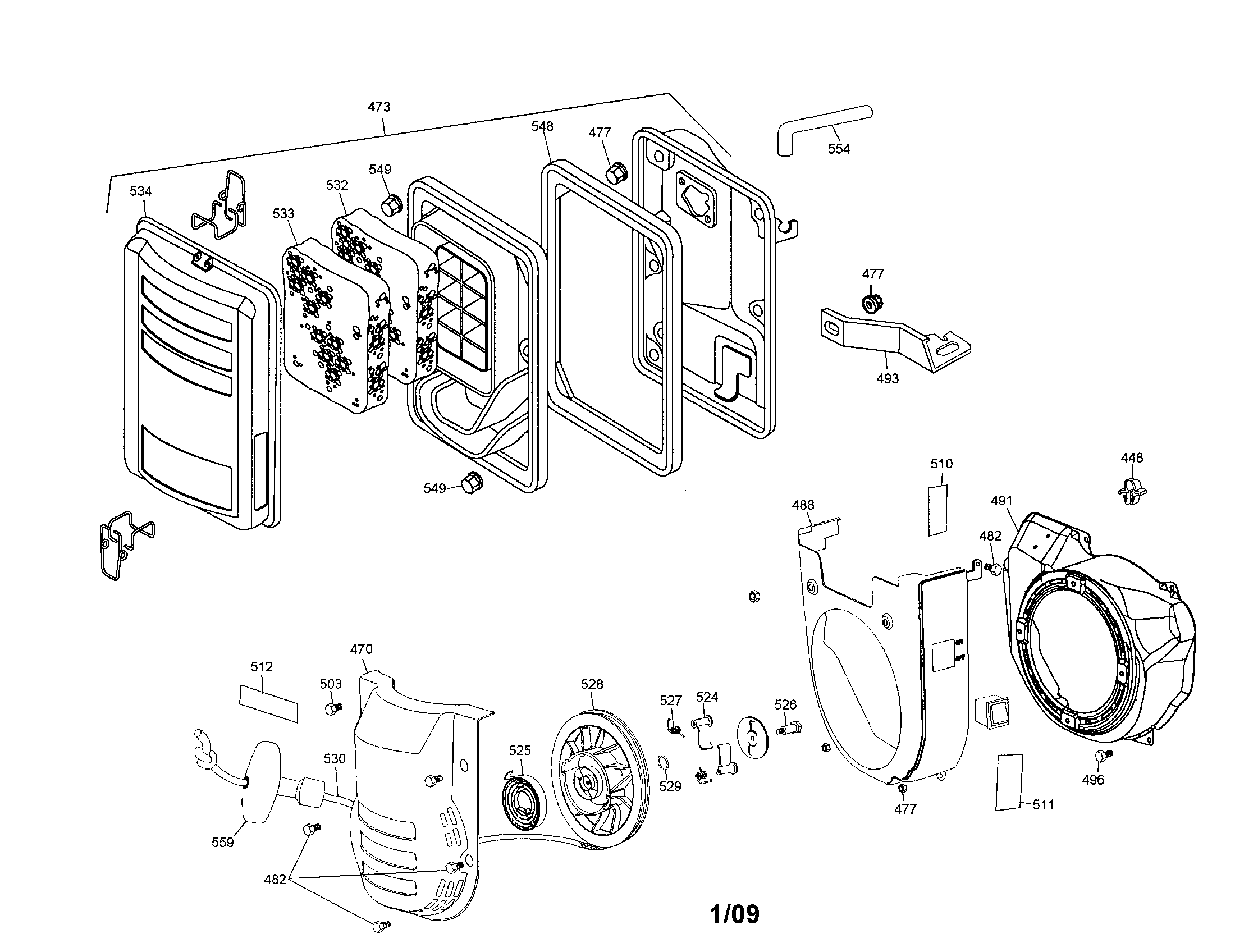

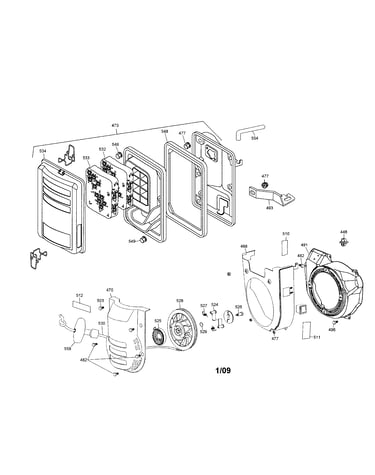

Air Filter 285818-24
Air filter

Part #285818-24

The manufacturer no longer makes this part, and there's no substitute part

Self Tapping Screw (2) 645029-00

#27

All parts diagram

Self tapping screw (2)

Part #645029-00

The manufacturer no longer makes this part, and there's no substitute part

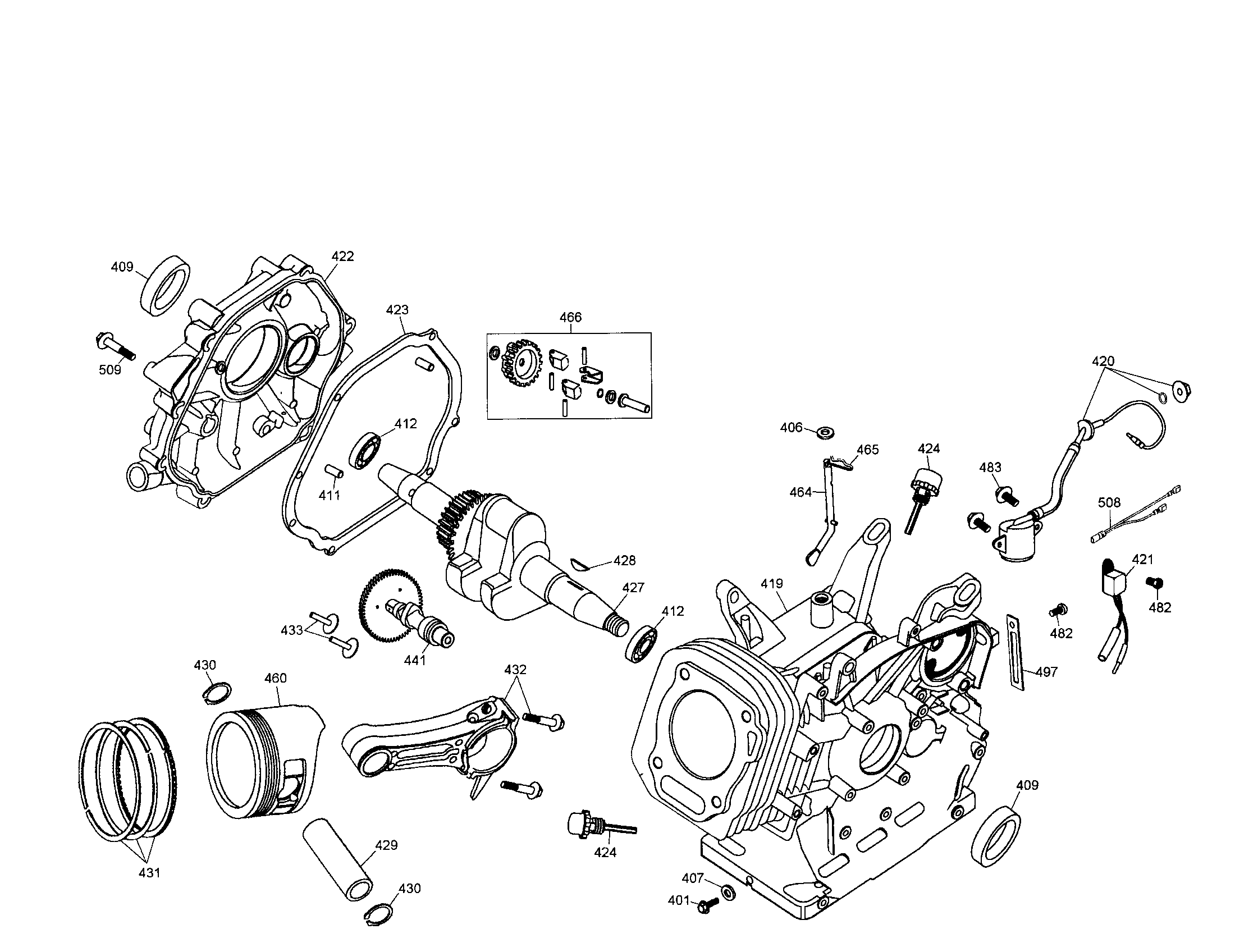

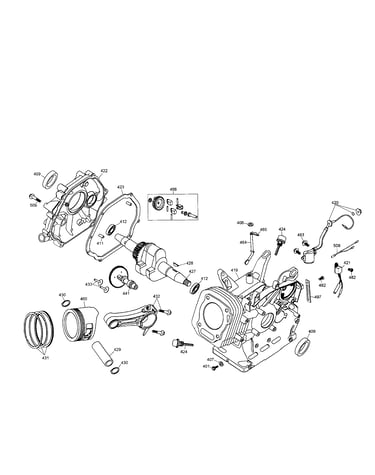

Crankshaft 285814-53

#427

All parts diagram

Crankshaft

Part #285814-53

The manufacturer no longer makes this part, and there's no substitute part
