Model # PFSF5NFCACC Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE PFSF5NFCACC bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

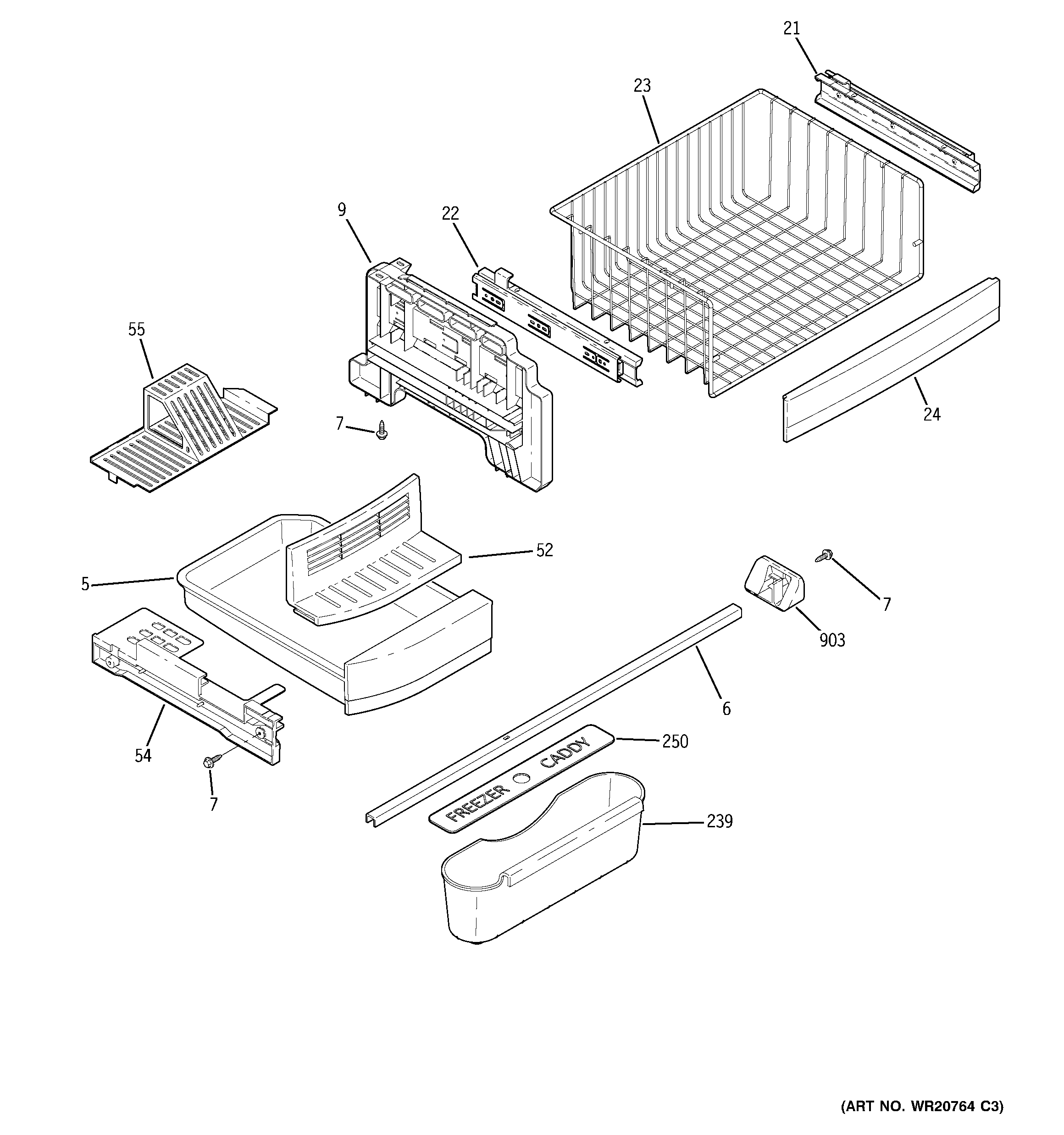

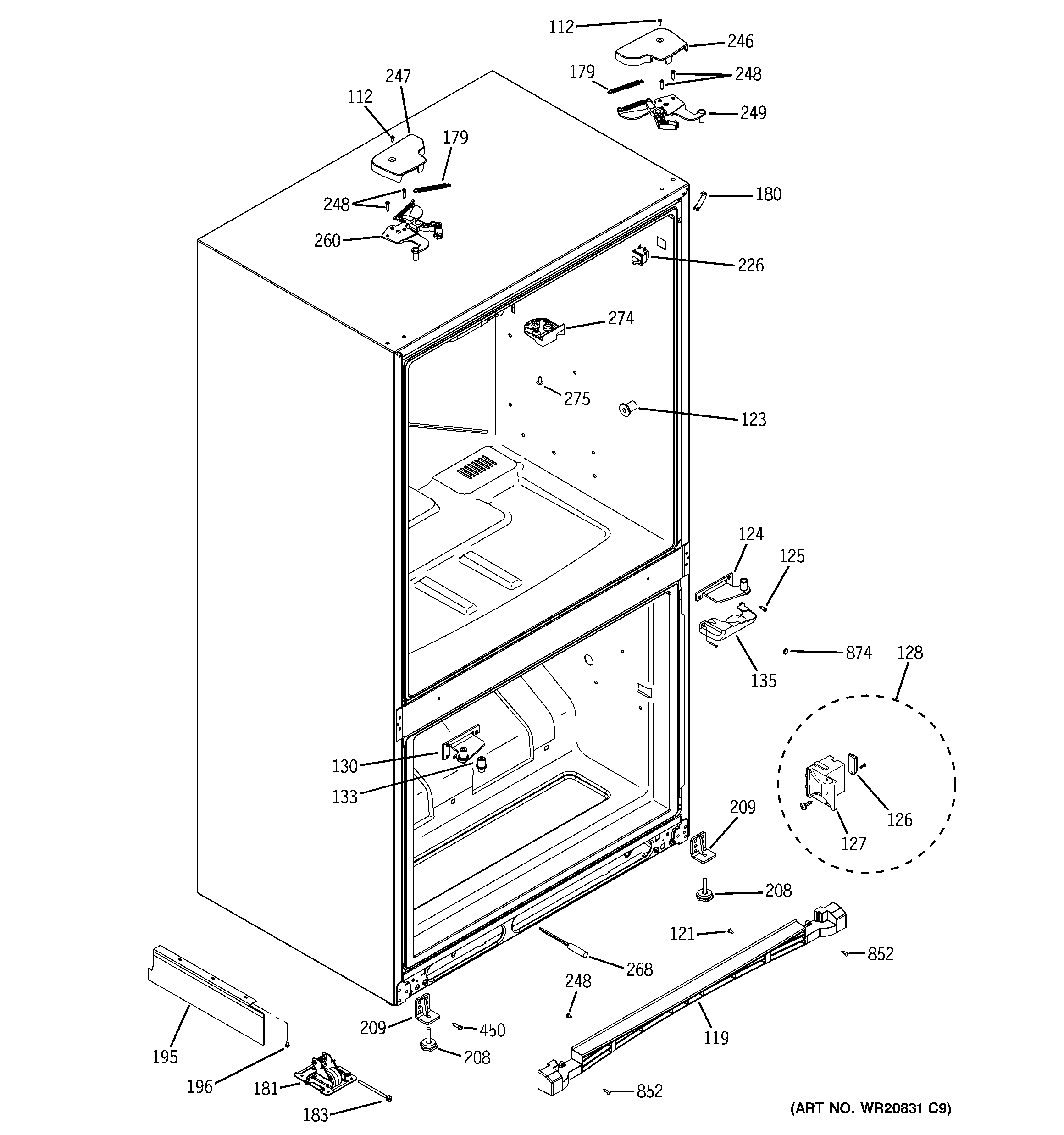

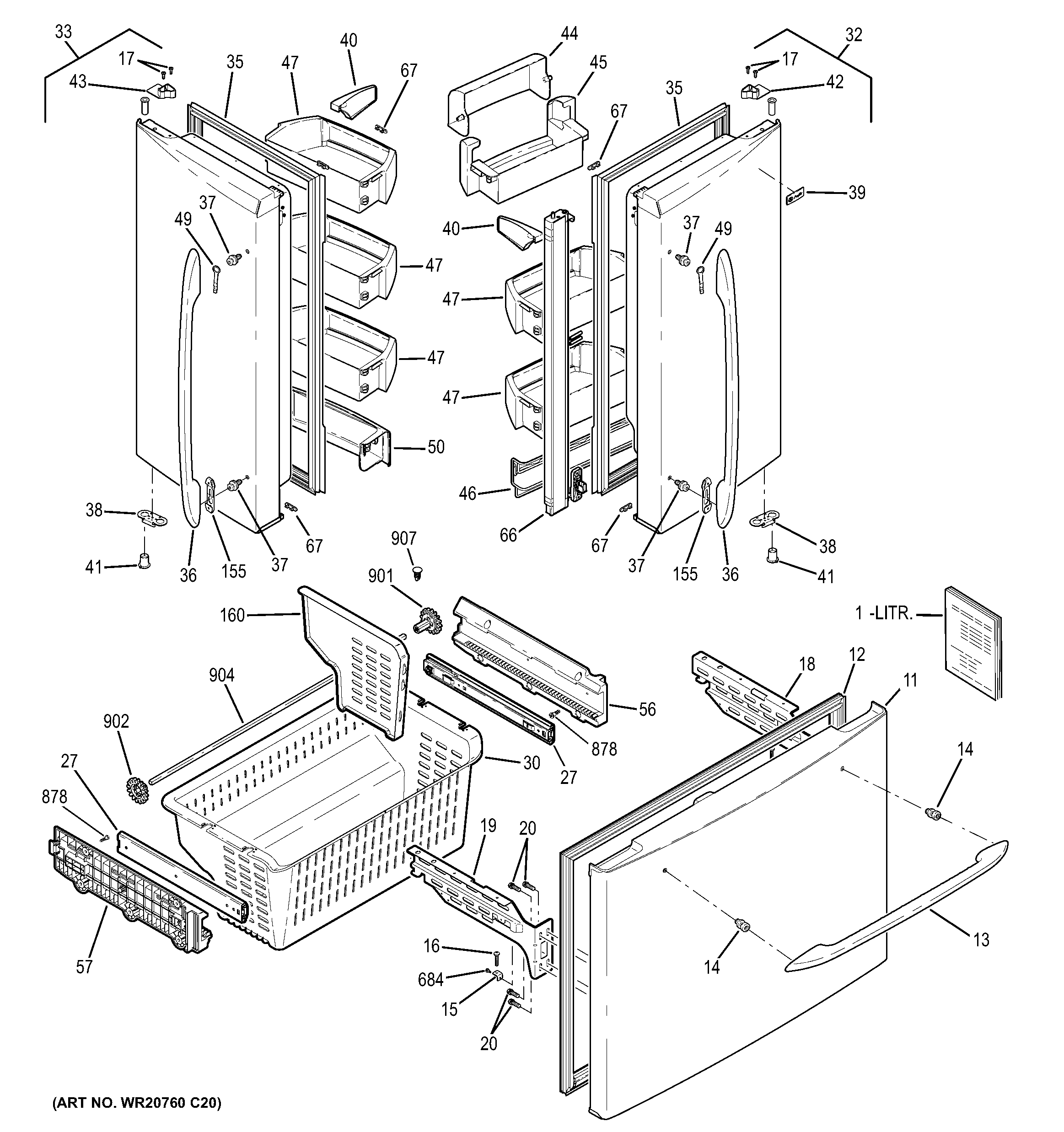

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 277 parts  |
Temperature Sensor WR55X10711
Temperature sensor

Part #WR55X10711

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10711. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Dryer Filter WR86X0096
#740

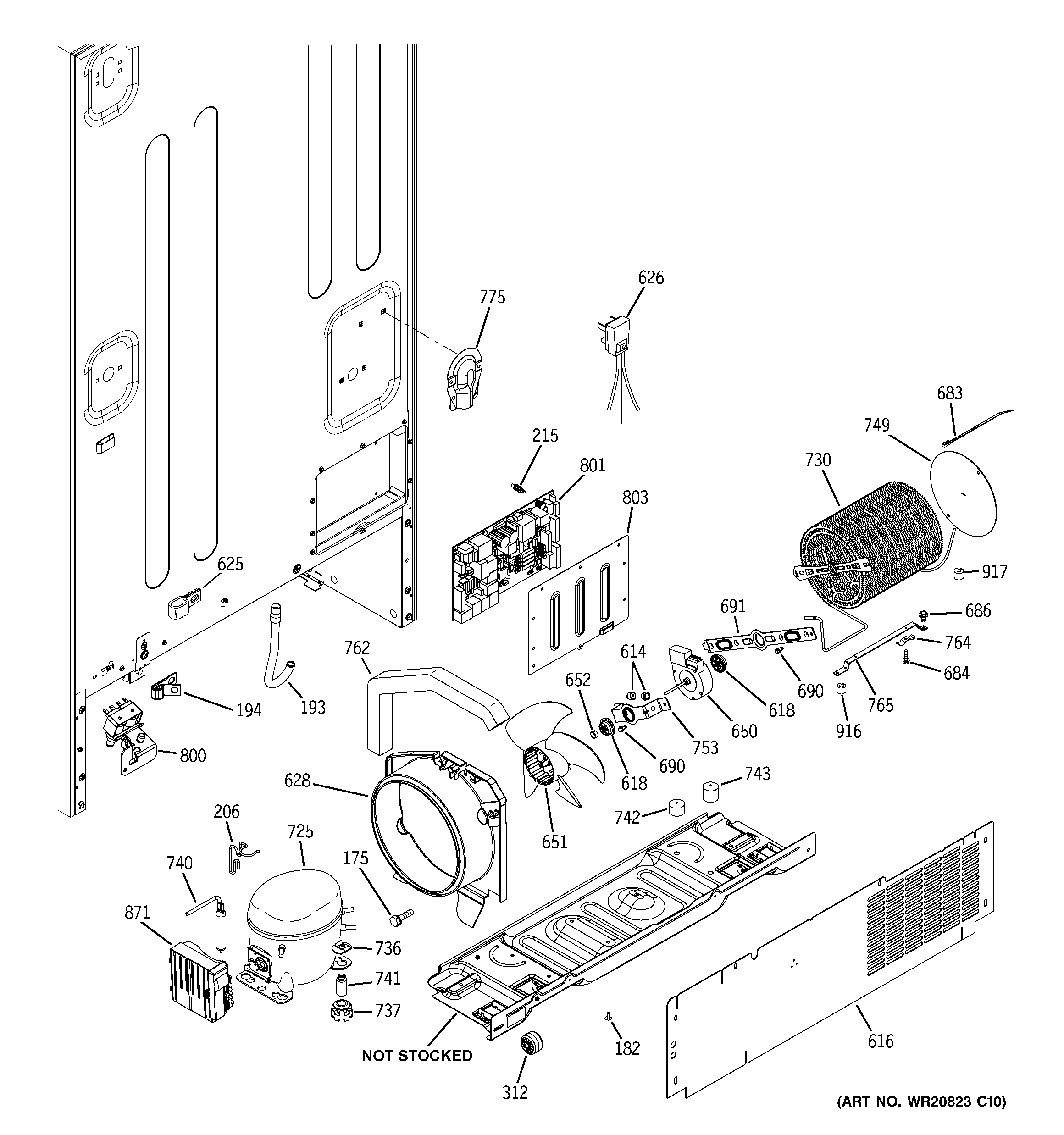

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Lamp WR02X12327
#451

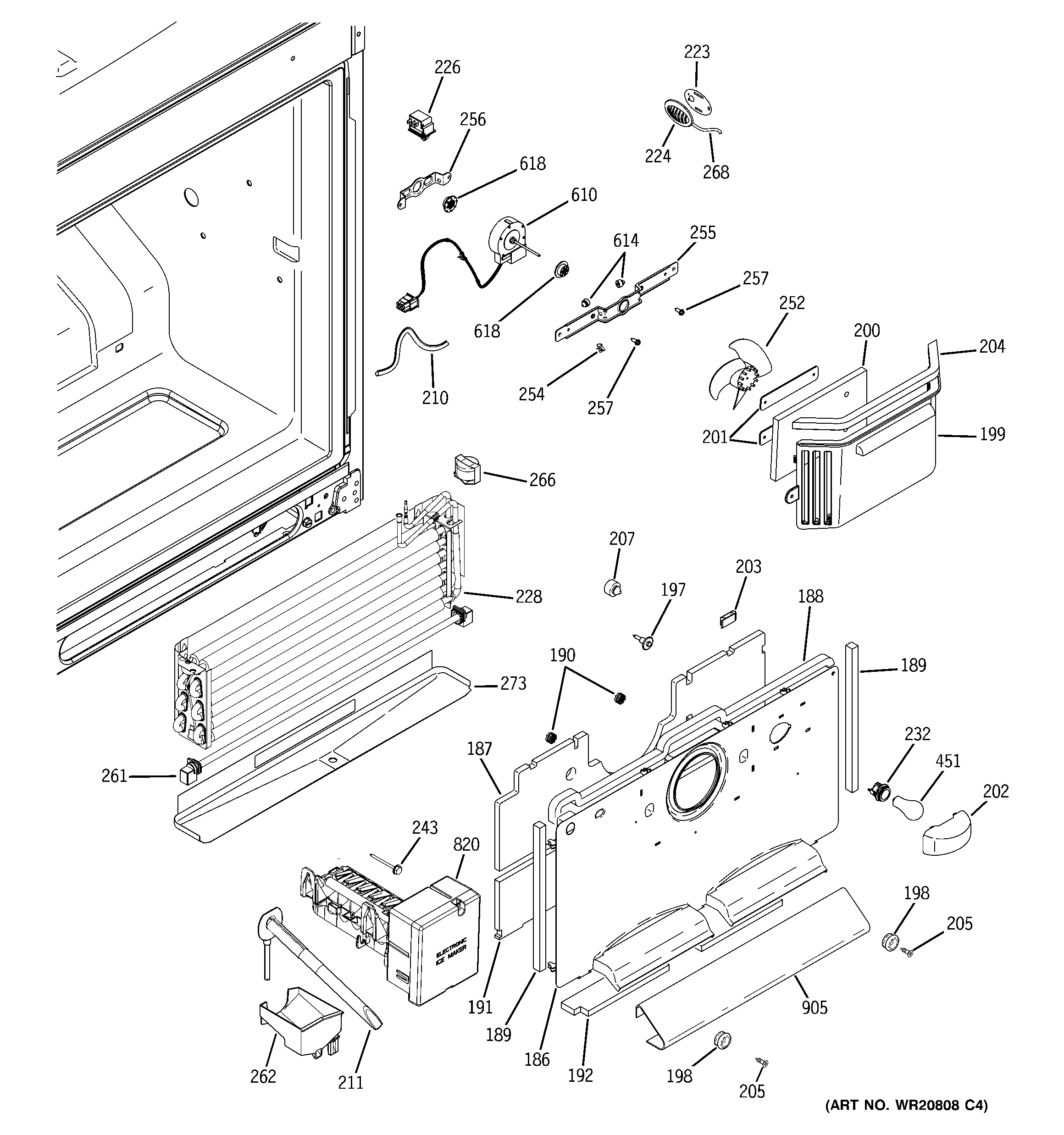

Freezer section diagram

Refrigerator lamp

Part #WR02X12327

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12327. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Lamp WR02X12328
#227

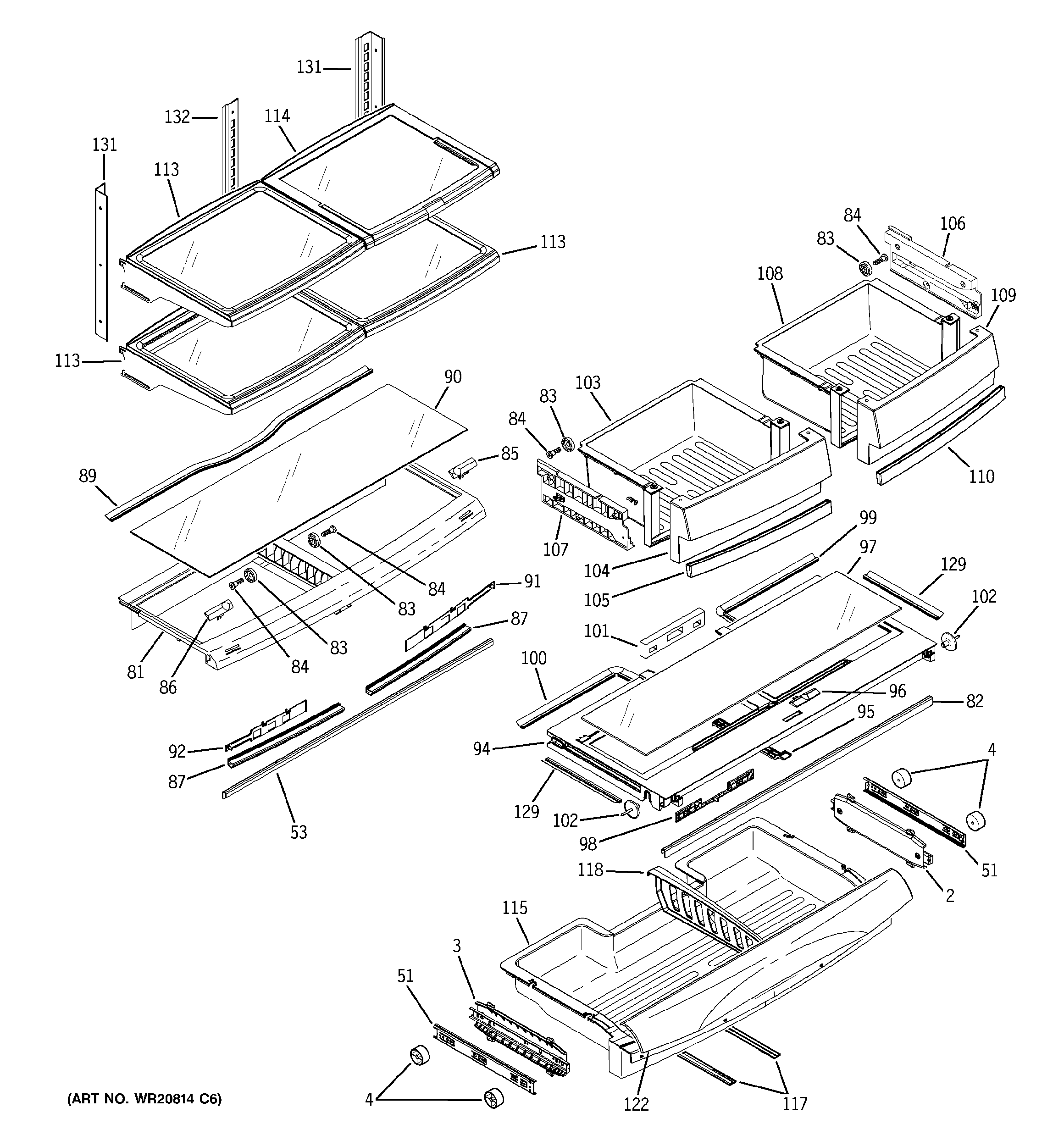

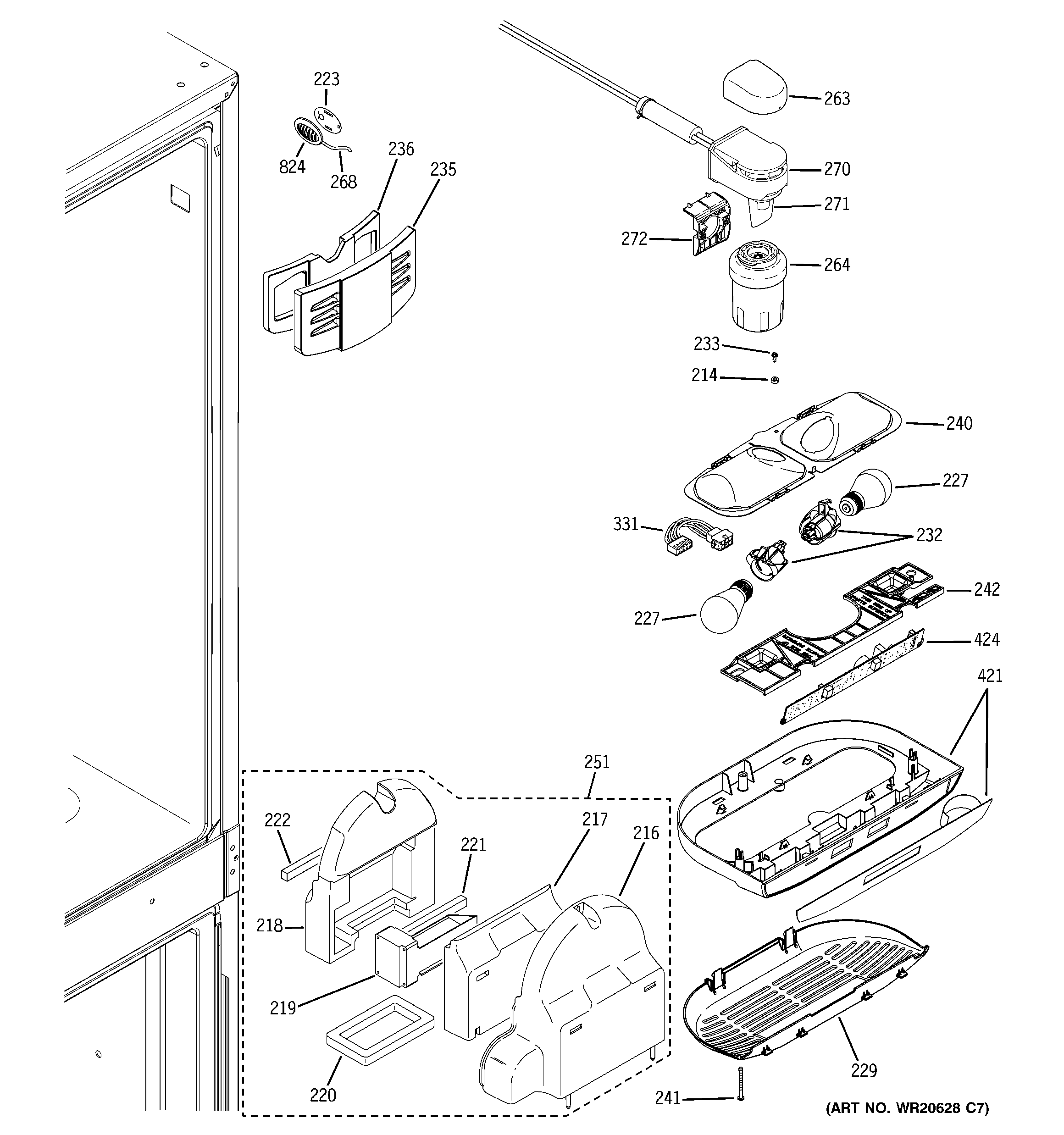

Fresh food section diagram

Refrigerator lamp

Part #WR02X12328

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12328. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Defrost Bi-metal Thermostat WR50X10065
#266

Freezer section diagram

Refrigerator defrost bi-metal thermostat

Part #WR50X10065

BEST SELLER
$49.87 |
11% OFF Phone Price : $55.87
In Stock
Refrigerator Inverter WR55X10979
#871

Machine compartment diagram

Refrigerator inverter

Part #WR55X10979

Replaced by #WR49X10283

?
Manufacturer substitution
This part replaces WR55X10979. Substitute parts can look different from the original.
BEST SELLER
$214.52 |
5% OFF Phone Price : $226.52
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#252

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Compressor WR87X10180
#725

Machine compartment diagram

Compressor

Part #WR87X10180

Replaced by #WR87X10111

?
Manufacturer substitution
This part replaces WR87X10180. Substitute parts can look different from the original.
BEST SELLER
$608.56 |
$12.00 OFF Phone Price : $620.56
In Stock
Technician Refrigerator Air Damper Assembly (replaces Wr17x12456) WR60X10239
#219

Fresh food section diagram

Technician refrigerator air damper assembly (replaces wr17x12456)

Part #WR60X10239

$132.13 |
8% OFF Phone Price : $144.13
In Stock
Board Main C WR55X11062
#801

Machine compartment diagram

Board main c

Part #WR55X11062

Replaced by #WR55X11064

?
Manufacturer substitution
This part replaces WR55X11062. Substitute parts can look different from the original.
This item is not returnable
$223.45 |
5% OFF Phone Price : $235.45
In Stock
