Kenmore
Gas Water Heater

Model # 153335631 Official Kenmore 50-gallon power miser 8 gas water heater

Here are the diagrams and repair parts for Official Kenmore 153335631 50-gallon power miser 8 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Flue Baffle 9000371
#17

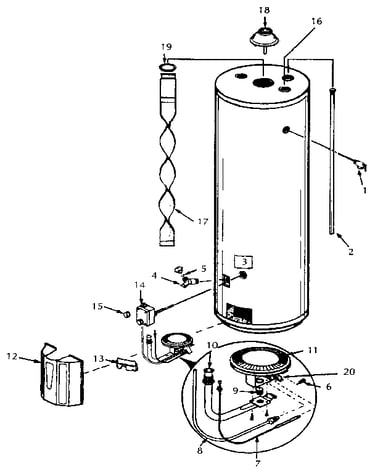

Replacement parts diagram

Flue baffle

Part #9000371

$20.99
In Stock
Water Heater Manifold Inner Door 9000281
#13

Replacement parts diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Dip Tube 9001698
#16A

Replacement parts diagram

Dip tube

Part #9001698

Replaced by #100108709

?
Manufacturer substitution
This part replaces 9001698. Substitute parts can look different from the original.
$26.67
In Stock
Thermocouple 42-9231
#7

Replacement parts diagram

Thermocouple

Part #42-9231

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 42-9231. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Water Heater Vent Draft Hood (replaces 183853-000, 2190144, 9003499) 9000274
#18

Replacement parts diagram

Water heater vent draft hood (replaces 183853-000, 2190144, 9003499)

Part #9000274

Replaced by #100108368

?
Manufacturer substitution
This part replaces 9000274. Substitute parts can look different from the original.
$36.67
In Stock
Kenmore Elite Water Heater Washer (replaces 0540042) 9001584
#5

Replacement parts diagram

Kenmore elite water heater washer (replaces 0540042)

Part #9001584

Replaced by #100108603

?
Manufacturer substitution
This part replaces 9001584. Substitute parts can look different from the original.
$24.44
In Stock
Rplcmnt Mnfd 9001665
#10

Replacement parts diagram

Rplcmnt mnfd

Part #9001665

Replaced by #100108783

?
Manufacturer substitution
This part replaces 9001665. Substitute parts can look different from the original.
$55.56
In Stock
Anode Rod 9000734
#2

Replacement parts diagram

Anode rod

Part #9000734

Replaced by #100108660

?
Manufacturer substitution
This part replaces 9000734. Substitute parts can look different from the original.
$60.00
In Stock
Ring 9000297
#19

Replacement parts diagram

Ring

Part #9000297

Replaced by #100109288

?
Manufacturer substitution
This part replaces 9000297. Substitute parts can look different from the original.
$33.33
In Stock
Burner Orifice 0230124
#9

Replacement parts diagram

Burner orifice

Part #0230124

Replaced by #100109666

?
Manufacturer substitution
This part replaces 0230124. Substitute parts can look different from the original.
$27.78
In Stock
