Tappan
Gas Range

Model # TGF351AWF Official Tappan gas range

Here are the diagrams and repair parts for Official Tappan TGF351AWF gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

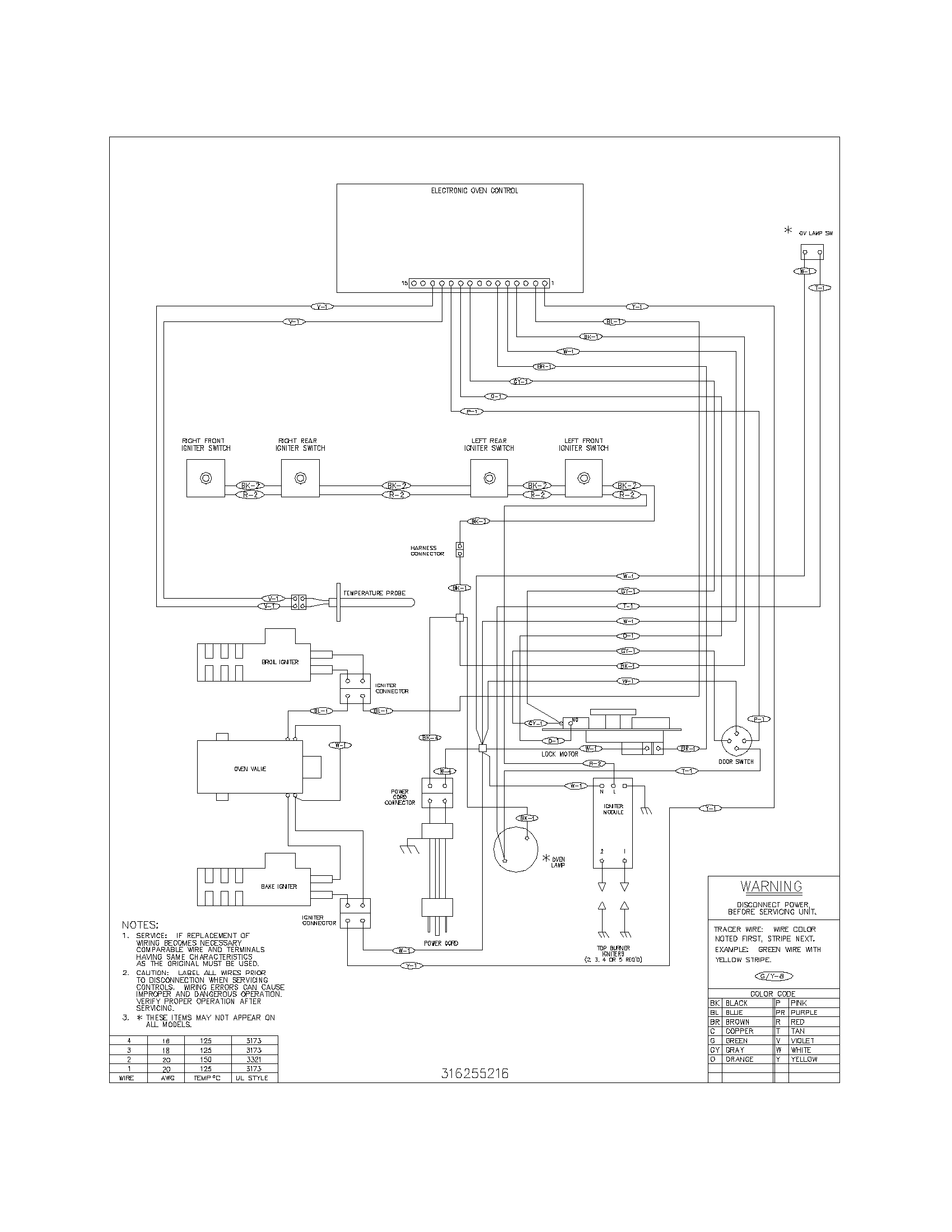

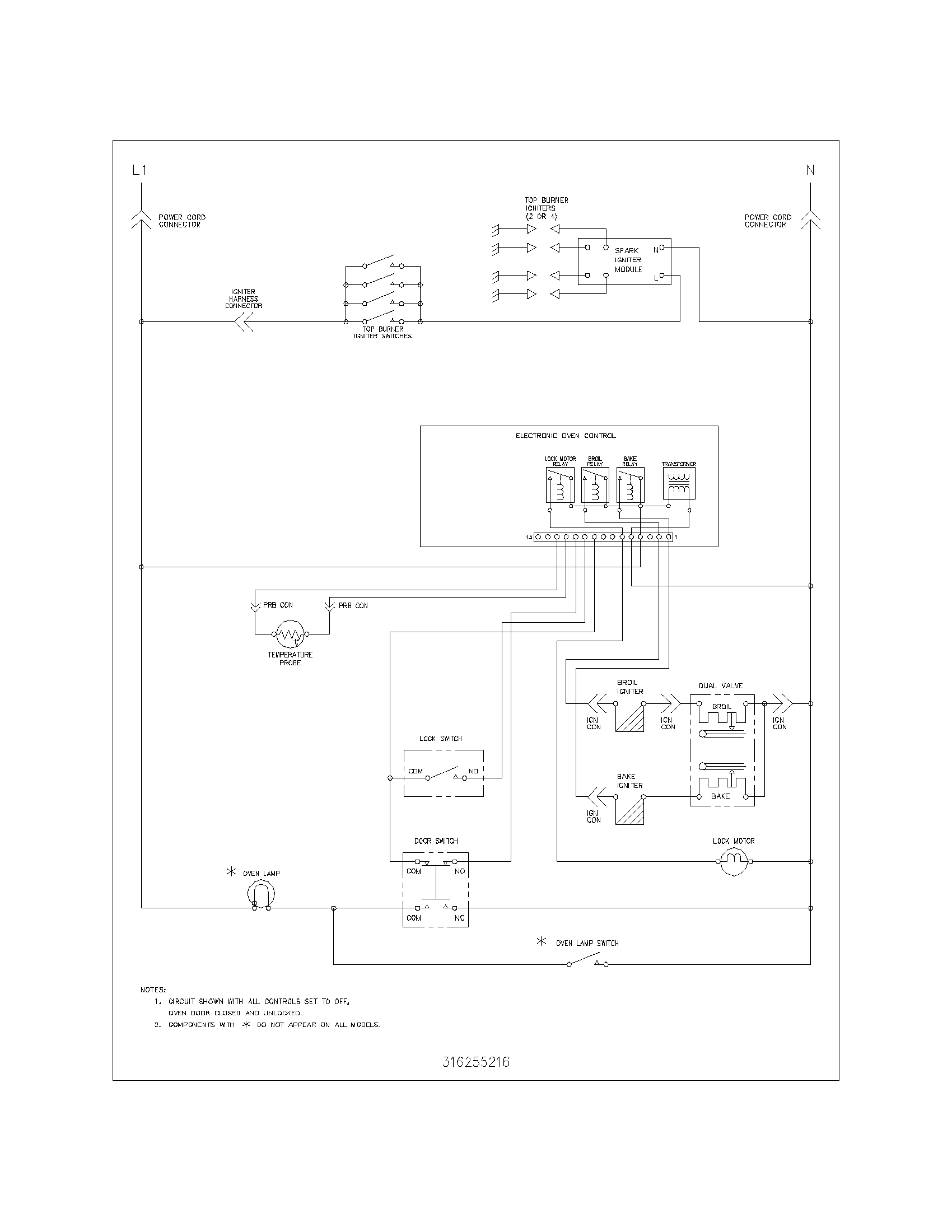

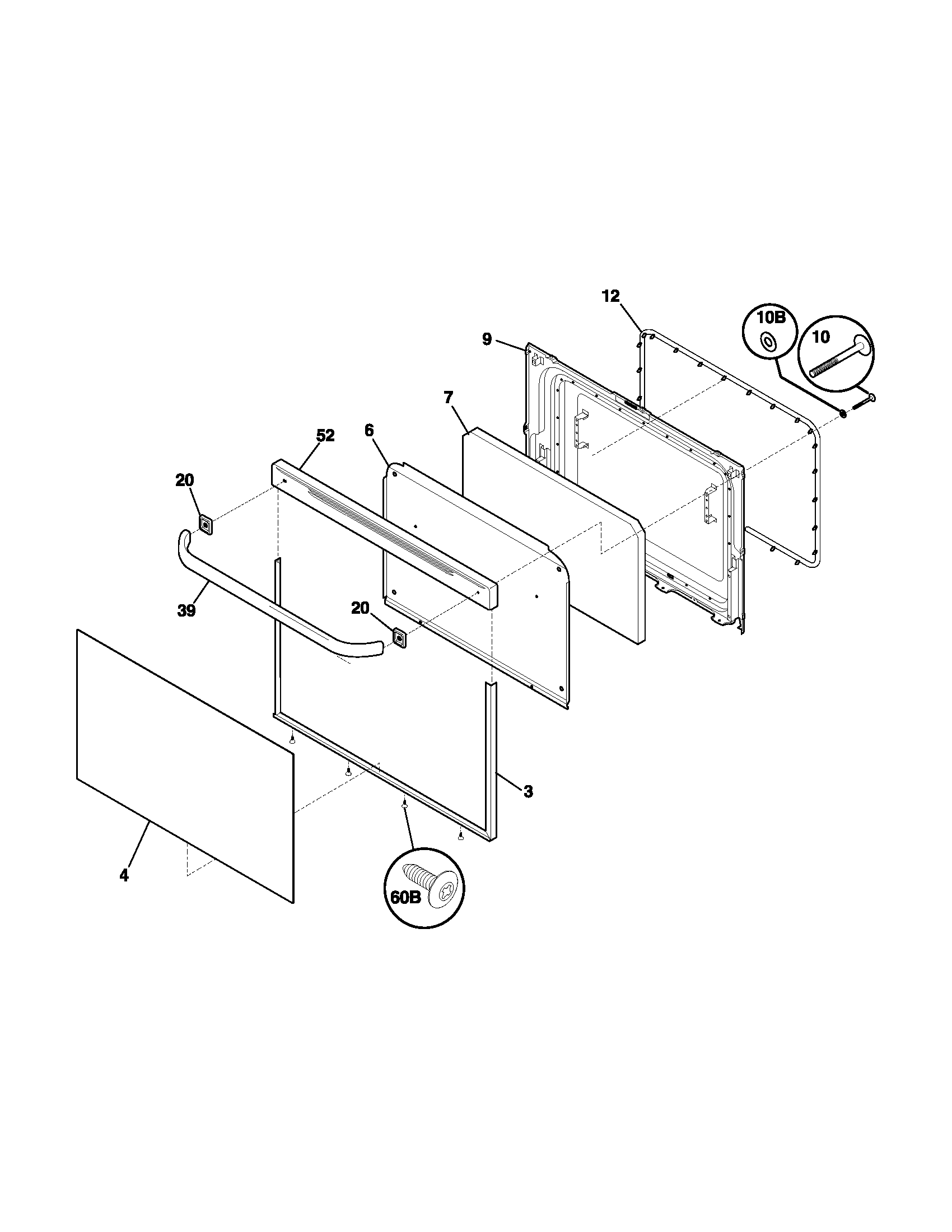

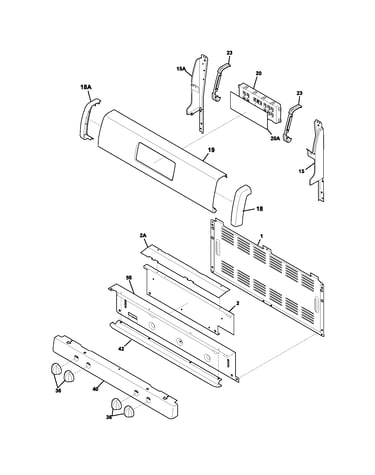

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Range Oven Burner Igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, Ap00205013, Ap205013, Ap205016, P205013, P205016, P205034) 5303935066
#19

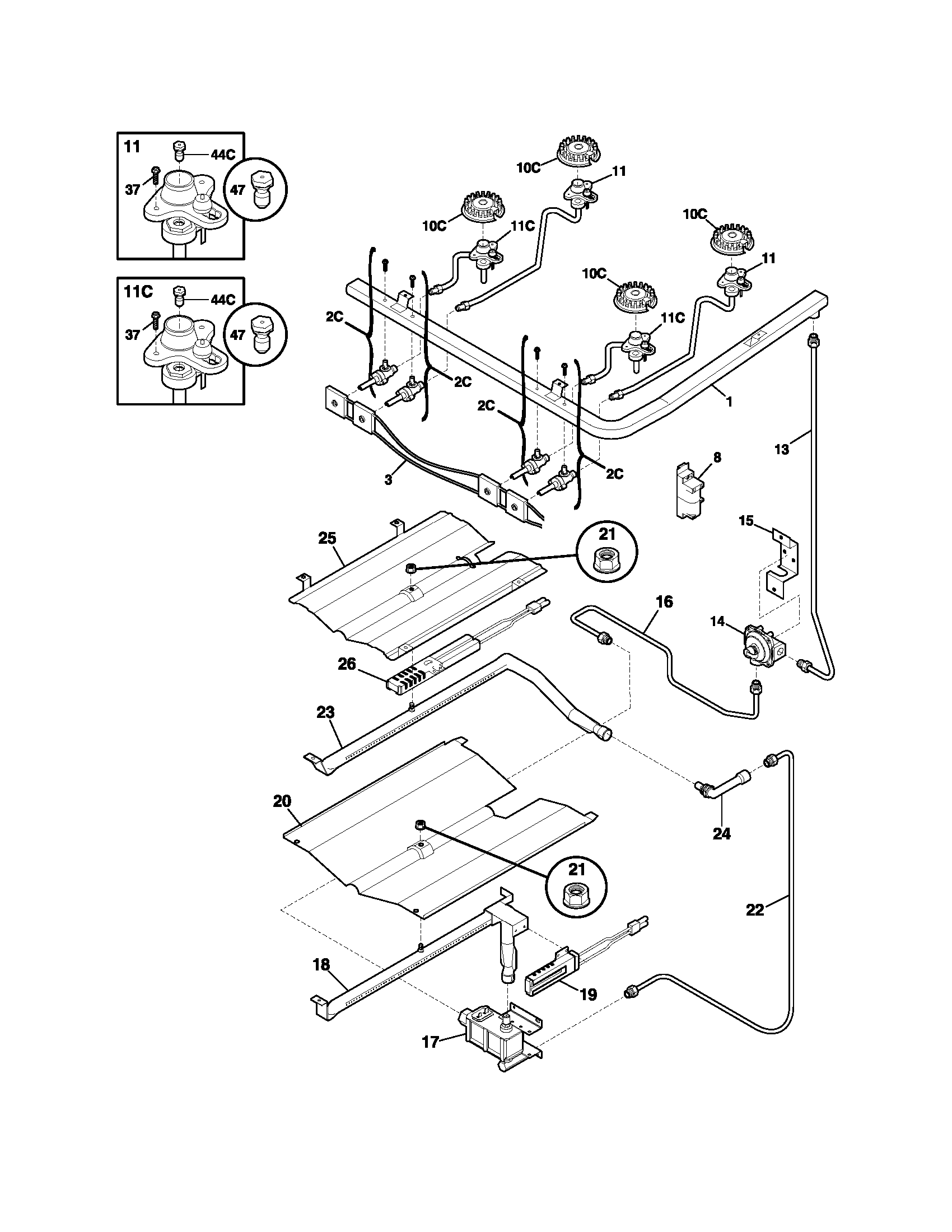

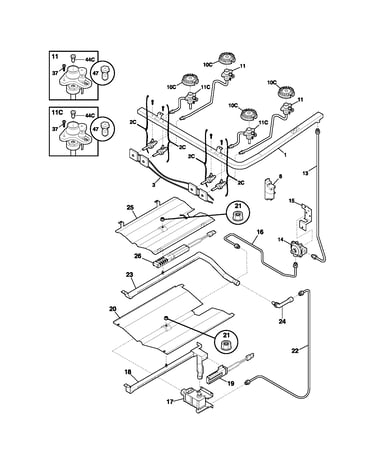

Burner diagram

Range oven burner igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, ap00205013, ap205013, ap205016, p205013, p205016, p205034)

Part #5303935066

BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Igniter 316428600
#26

Burner diagram

Igniter

Part #316428600

Replaced by #318177710

?
Manufacturer substitution
This part replaces 316428600. Substitute parts can look different from the original.
BEST SELLER
$149.65 |
7% OFF Phone Price : $161.65
In Stock
Range Oven Light Bulb 5303013071
#15

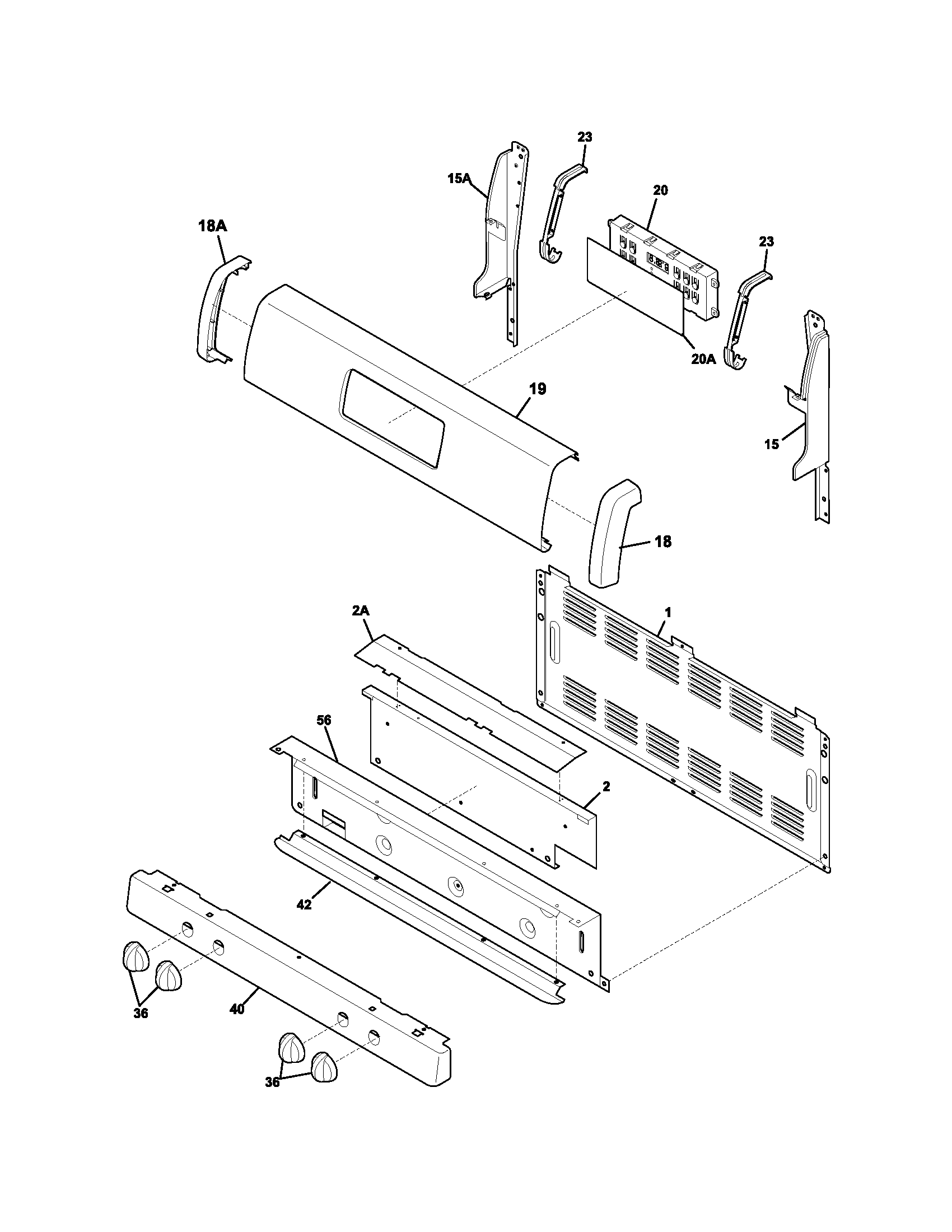

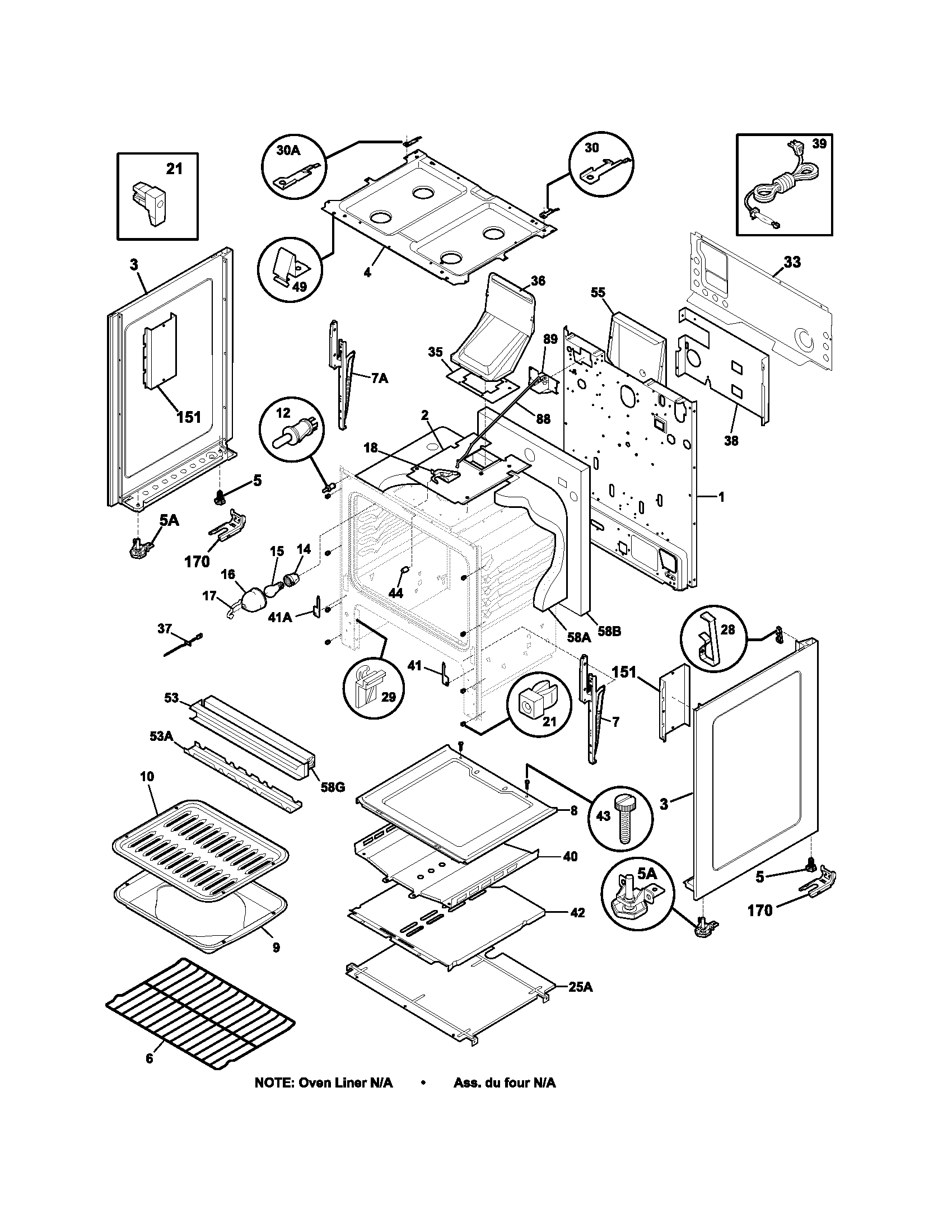

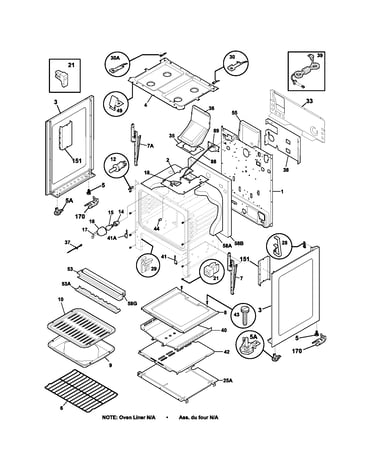

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Igniter And Orifice Holder 316237800
#11C

Burner diagram

Igniter and orifice holder

Part #316237800

Replaced by #316237805

?
Manufacturer substitution
This part replaces 316237800. Substitute parts can look different from the original.
BEST SELLER
$90.44 |
6% OFF Phone Price : $96.44
In Stock
Motor 316415400
#89

Body diagram

Motor

Part #316415400

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316415400. Substitute parts can look different from the original.
BEST SELLER
$41.22 |
13% OFF Phone Price : $47.22
In Stock
Range Drawer Glide, Front (replaces 08067766, 3012698, 3051361, 3131687) 3051162
#29

Body diagram

Range drawer glide, front (replaces 08067766, 3012698, 3051361, 3131687)

Part #3051162

BEST SELLER
This item is not returnable
$3.89 |
20% OFF Phone Price : $4.89
In Stock
Range Surface Burner Head (replaces 7316212400) 316212400
#10C

Burner diagram

Range surface burner head (replaces 7316212400)

Part #316212400

BEST SELLER
$29.85 |
17% OFF Phone Price : $35.85
In Stock
Range Igniter Switch And Harness Assembly (replaces 316219000) 316219004
#3

Burner diagram

Range igniter switch and harness assembly (replaces 316219000)

Part #316219004

BEST SELLER
$94.10 |
6% OFF Phone Price : $100.10
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#7

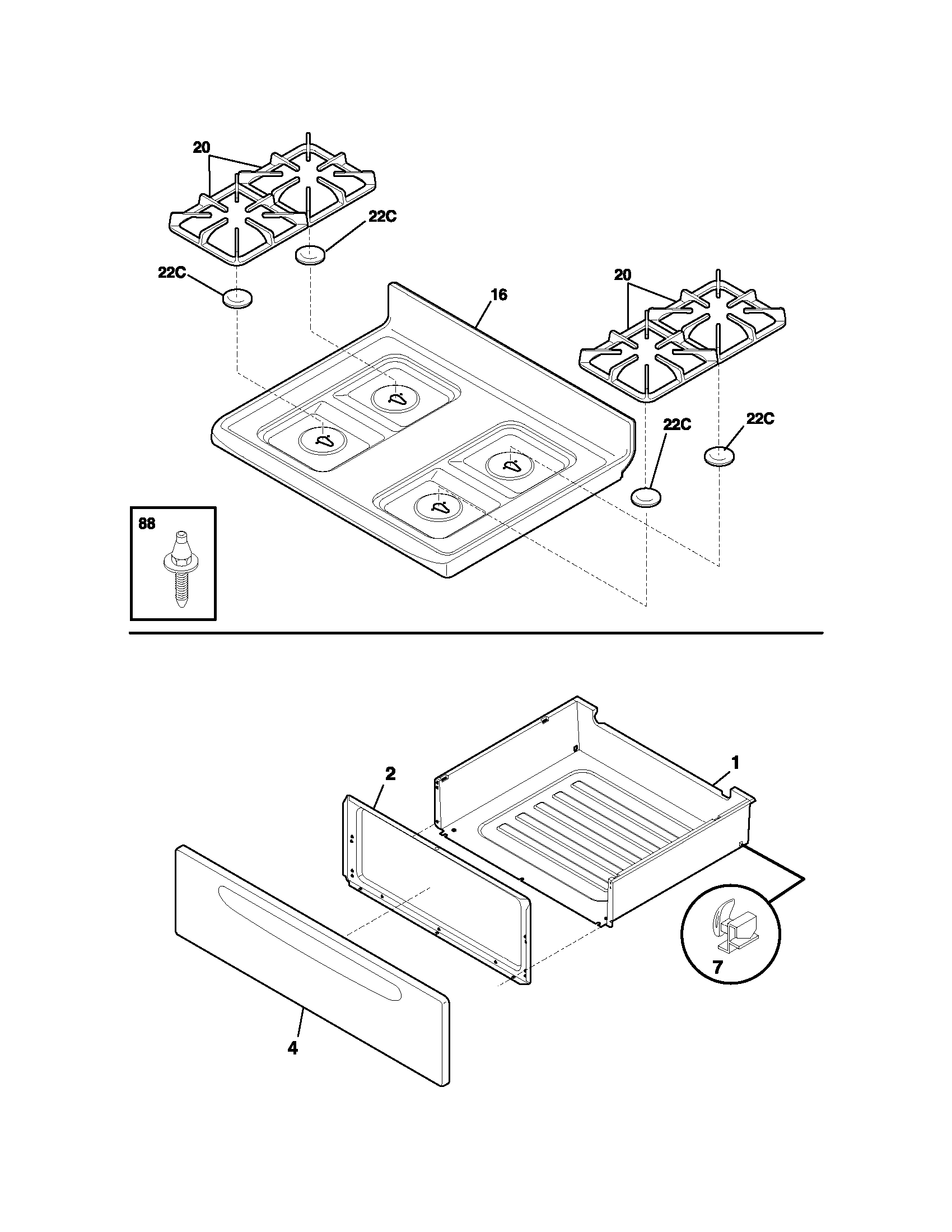

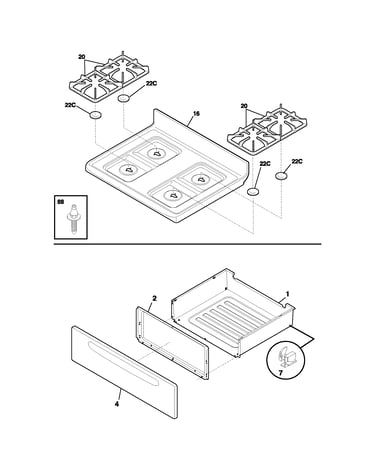

Top/drawer diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
