Craftsman
Power Sander

Model # 315115042 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315115042 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

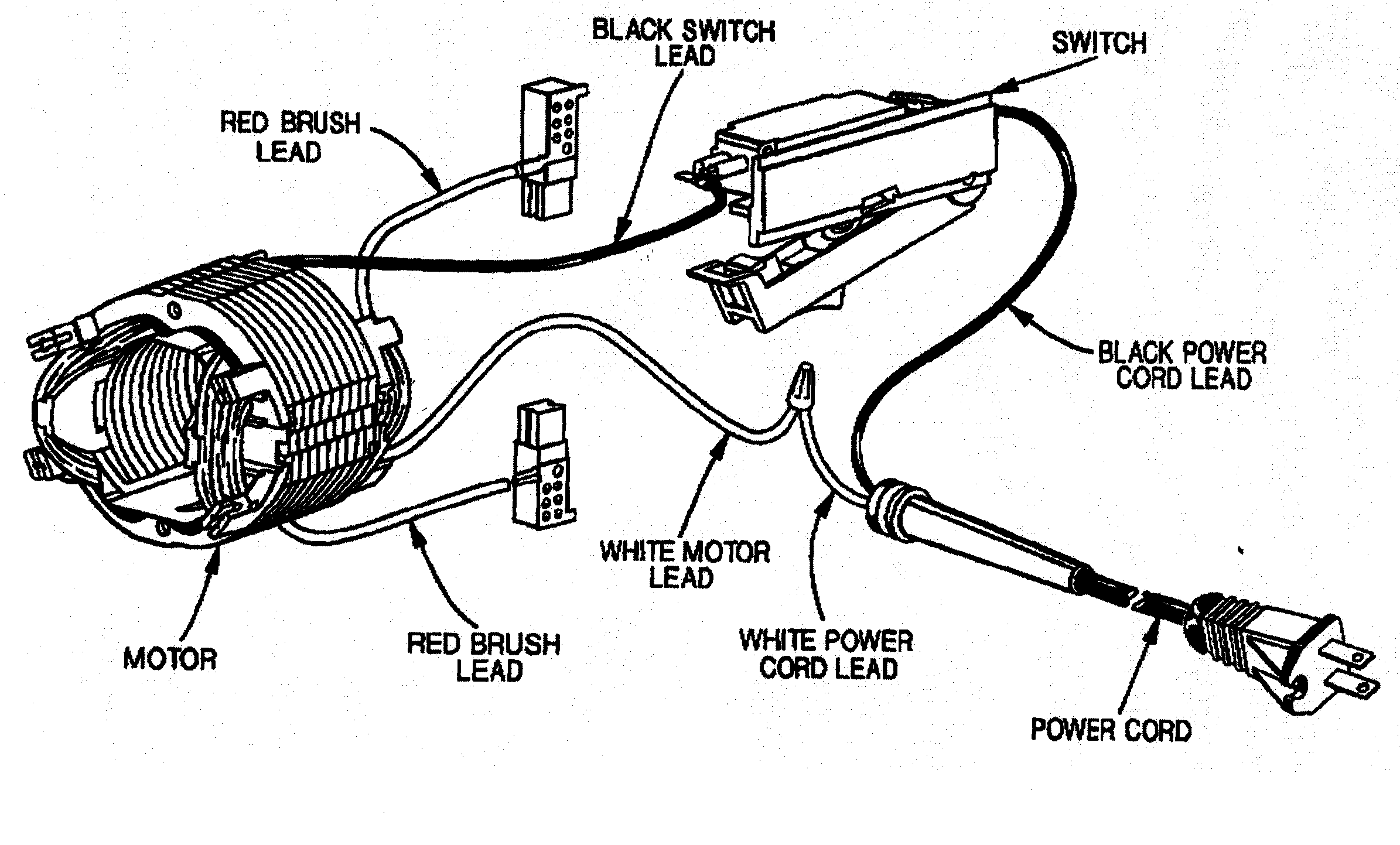

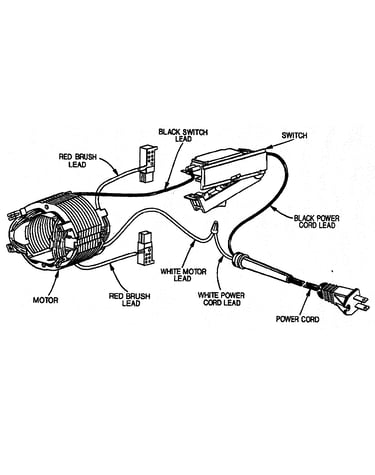

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Screw 617966-007
#36

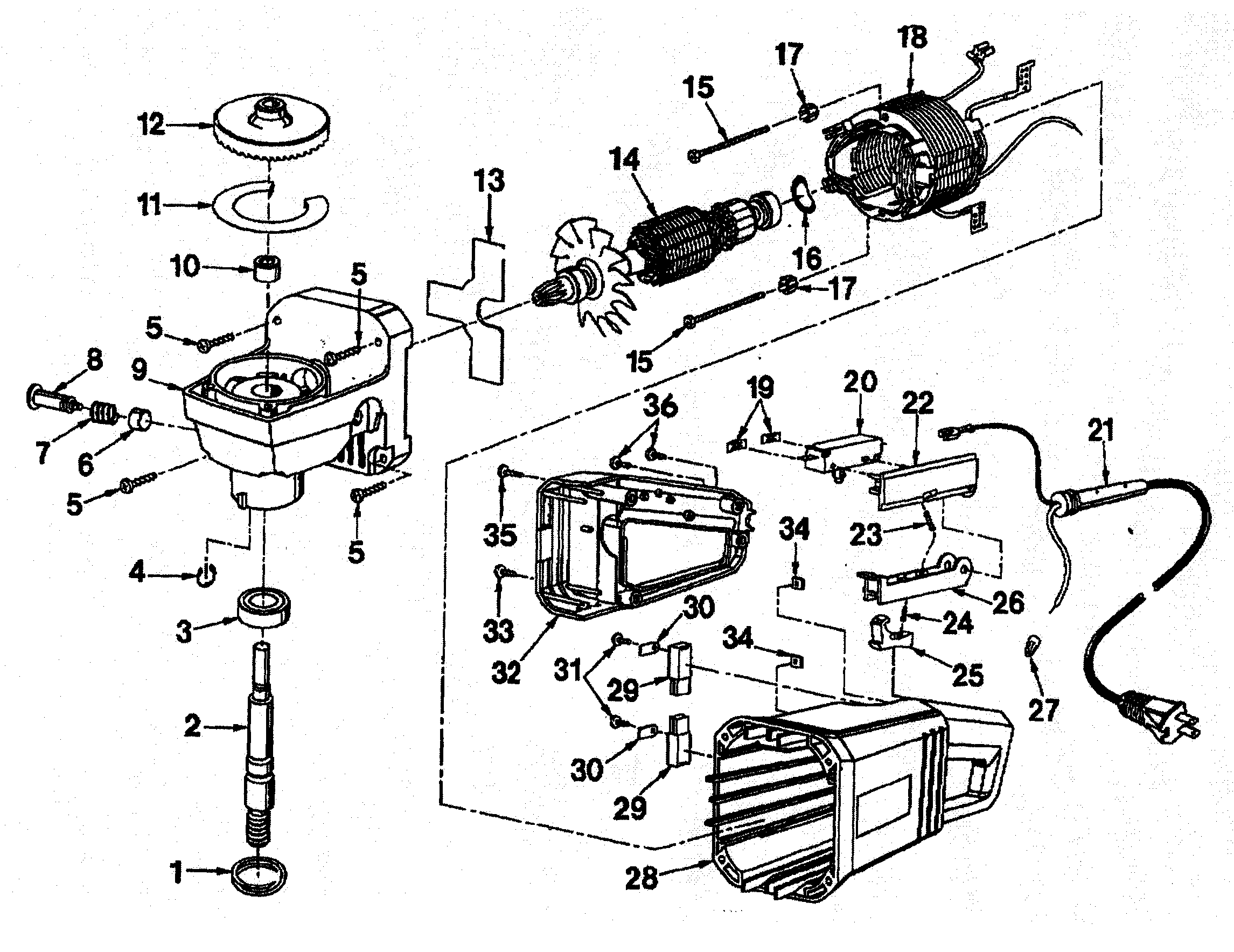

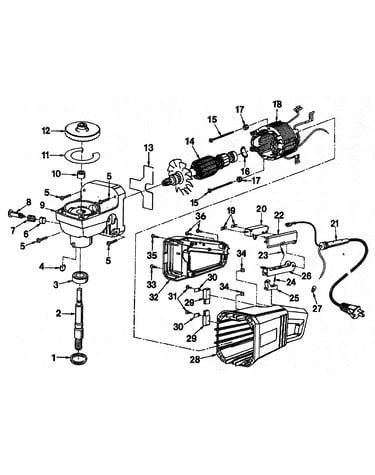

Motor assy diagram

Screw

Part #617966-007

The manufacturer no longer makes this part, and there's no substitute part

Gr Seal 998176-001
#11

Motor assy diagram

Gr seal

Part #998176-001

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 967656-002
#13

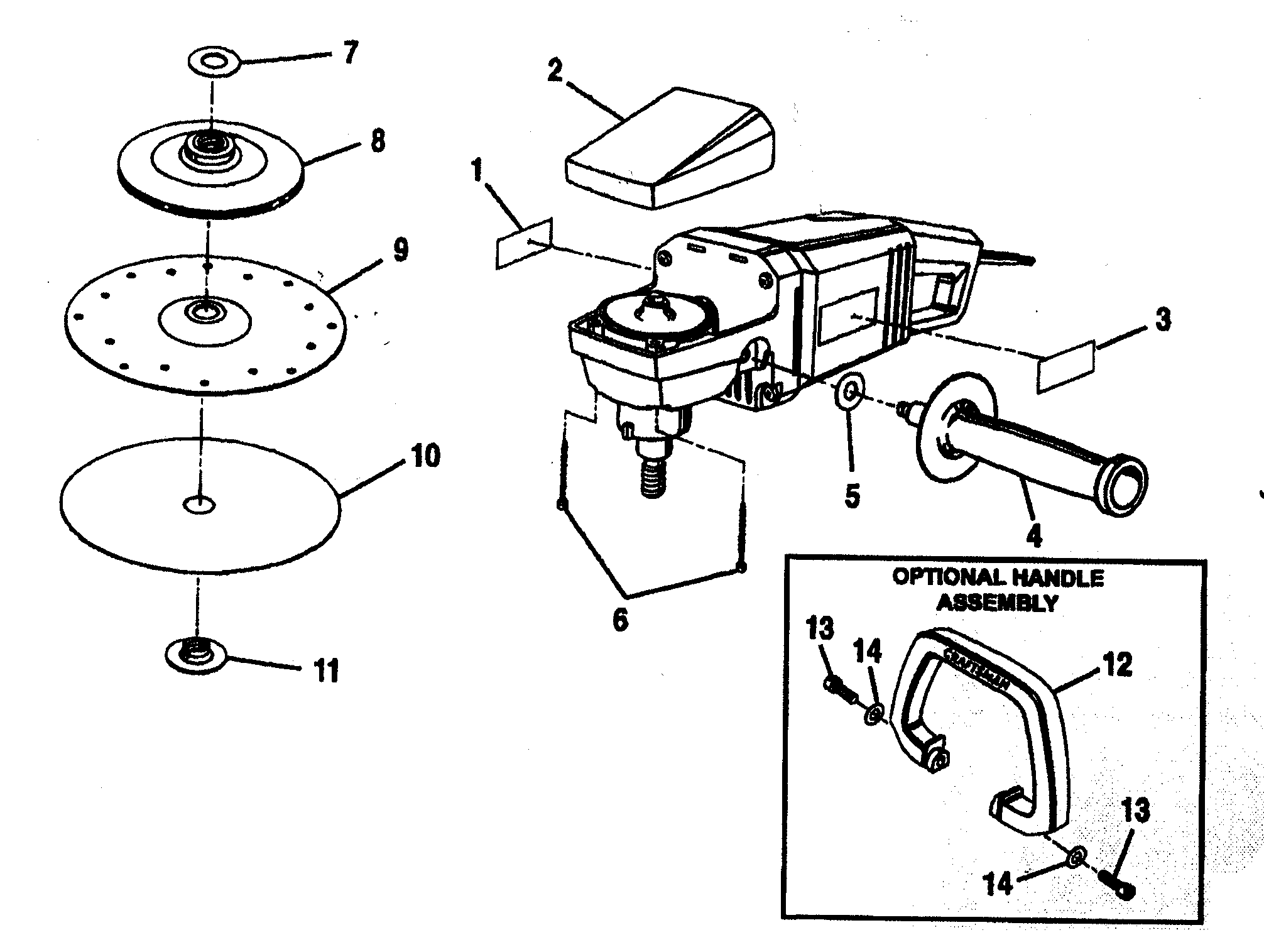

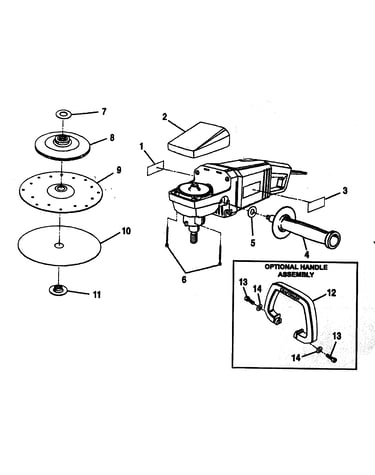

Sander disc diagram

Cap screw

Part #967656-002

The manufacturer no longer makes this part, and there's no substitute part

Gr Hsg Cov 998174-001
#2

Sander disc diagram

Gr hsg cov

Part #998174-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Brq 990115-001
#3

Motor assy diagram

Ball brq

Part #990115-001

The manufacturer no longer makes this part, and there's no substitute part

Clamp 617800-001
#30

Motor assy diagram

Clamp

Part #617800-001

The manufacturer no longer makes this part, and there's no substitute part

Cord 990500-024
#21

Motor assy diagram

Cord

Part #990500-024

The manufacturer no longer makes this part, and there's no substitute part

Screw 967439-001
#5

Motor assy diagram

Screw

Part #967439-001

The manufacturer no longer makes this part, and there's no substitute part

Armature 967498-001
#14

Motor assy diagram

Armature

Part #967498-001

The manufacturer no longer makes this part, and there's no substitute part

Back-up Pad 617291-001
#8

Sander disc diagram

Back-up pad

Part #617291-001

The manufacturer no longer makes this part, and there's no substitute part
