Craftsman
Radial Arm Saw

Model # 11329001 Official Craftsman 10" accra-arm radial saw

Here are the diagrams and repair parts for Official Craftsman 11329001 10" accra-arm radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

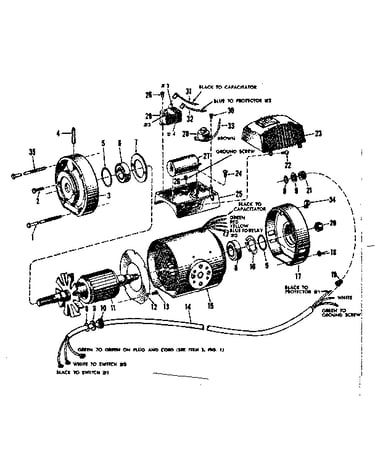

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Oil Sling Washer 30604
#42

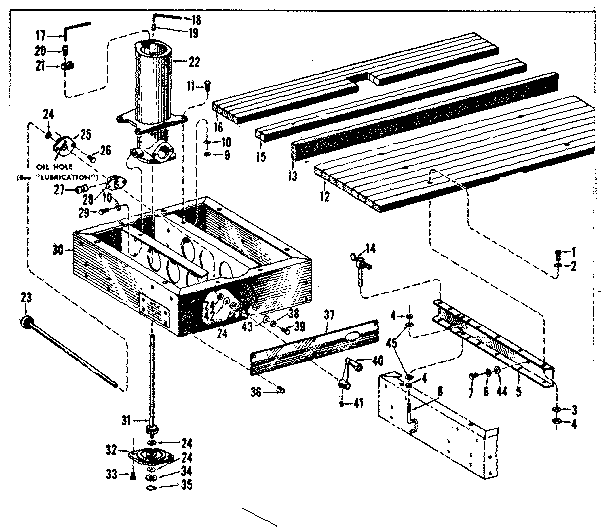

Base assembly diagram

Oil sling washer

Part #30604

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Elevation Crank Shaft 30508
#23

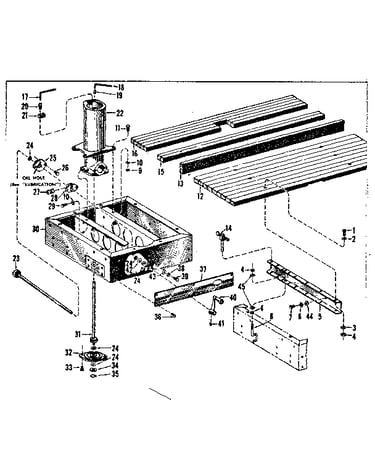

Base assembly diagram

Radial arm saw elevation crank shaft

Part #30508

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Nut 30495
#44

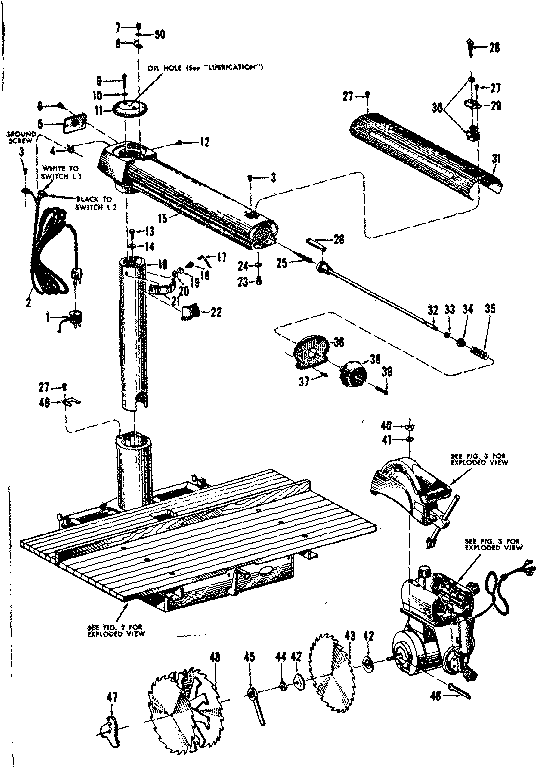

Cover plate assembly diagram

Radial arm saw arbor nut

Part #30495

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Wing Screw, 1/4-in 30540
#28

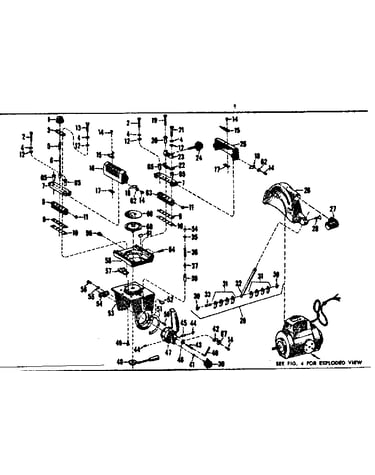

Saw guard assembly diagram

Power tool wing screw, 1/4-in

Part #30540

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Collar 30494
#42

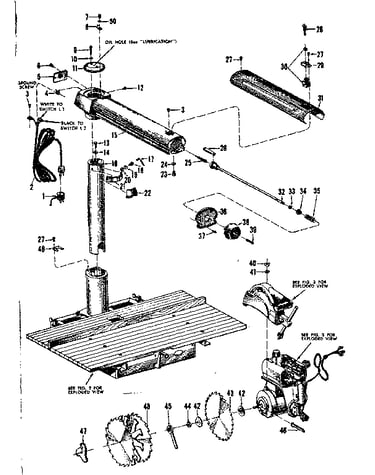

Cover plate assembly diagram

Radial arm saw arbor collar

Part #30494

The manufacturer no longer makes this part, and there's no substitute part

Table 30499
#12

Base assembly diagram

Table

Part #30499

The manufacturer no longer makes this part, and there's no substitute part

Washer 30509
#24

Base assembly diagram

Washer

Part #30509

The manufacturer no longer makes this part, and there's no substitute part

Crank 30518
#40

Base assembly diagram

Crank

Part #30518

The manufacturer no longer makes this part, and there's no substitute part

Knob 30551
#39

Saw guard assembly diagram

Knob

Part #30551

The manufacturer no longer makes this part, and there's no substitute part

Rear Table 30503
#16

Base assembly diagram

Rear table

Part #30503

The manufacturer no longer makes this part, and there's no substitute part
