Model # FRSG1915AV Official Frigidaire frigidaire/refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRSG1915AV frigidaire/refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

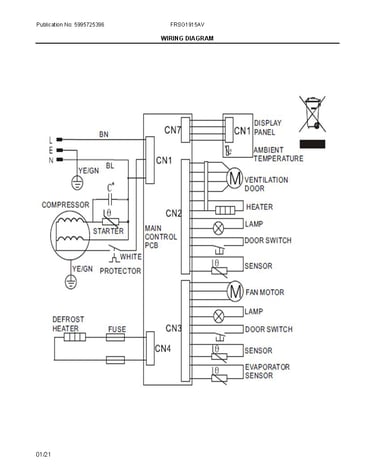

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 71 parts |

#86

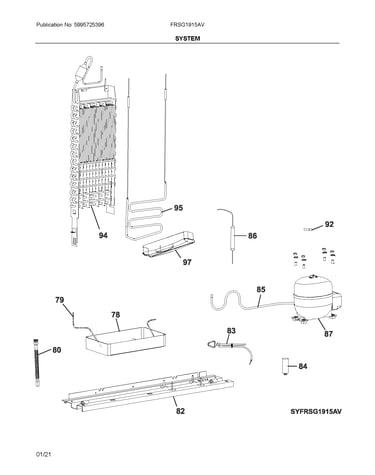

System diagram

Filter-drier

Part #5304525379

Replaced by #A19676501

$81.09

In Stock

Qty

#99

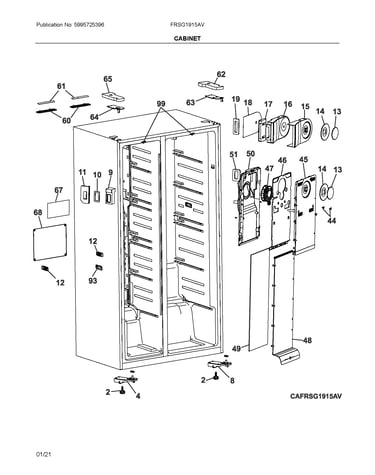

Cabinet diagram

Switch

Part #5304525387

$56.98

In Stock

Qty

Frigidaire Refrigerator Electronic Control Board 5304525366

#67

Cabinet diagram

Frigidaire refrigerator electronic control board

Part #5304525366

$315.69 |

$12.00 OFF Phone Price : $327.69

In Stock

Qty

Frigidaire Refrigerator Shelf 5304525345

#35

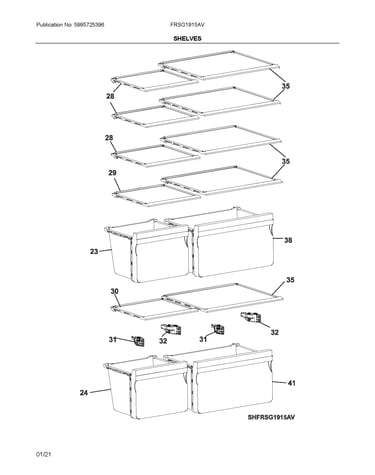

Shelves diagram

Frigidaire refrigerator shelf

Part #5304525345

$81.11

In Stock

Qty

#30

Shelves diagram

Frigidaire shelf

Part #5304525342

$73.18

In Stock

Qty

Tappan Freezer Evaporator Fan Motor 5304521548

#47

Cabinet diagram

Tappan freezer evaporator fan motor

Part #5304521548

$192.99 |

6% OFF Phone Price : $204.99

In Stock

Qty

#72

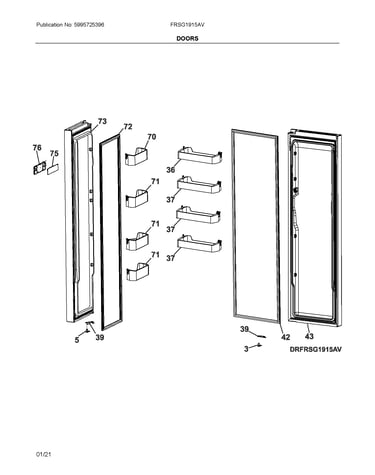

Doors diagram

Gasket

Part #5304525370

Replaced by #5304532588

$105.99

In Stock

Qty

#87

System diagram

Compressor

Part #5304525380

Replaced by #5304532055

$197.35

In Stock

Qty

#41

Shelves diagram

Drawer

Part #5304525350

Replaced by #5304533210

$75.99

In Stock

Qty

#65

Cabinet diagram

Frigidaire cover

Part #5304525365

$29.80

In Stock

Qty
