Model # XE835AR Official Poulan rotary lawn mower

Here are the diagrams and repair parts for Official Poulan XE835AR rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Lawn Mower Washer 532850263
#56

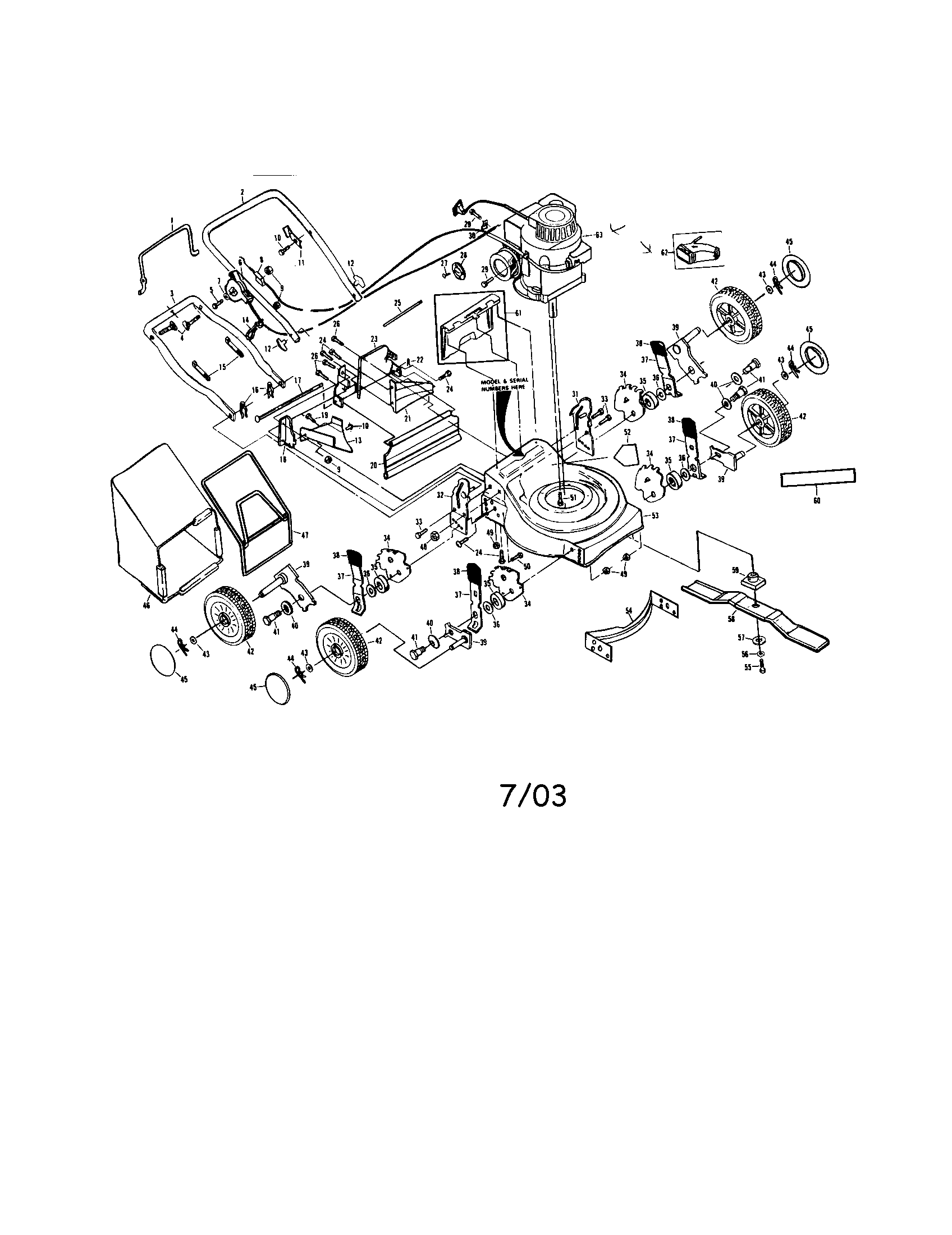

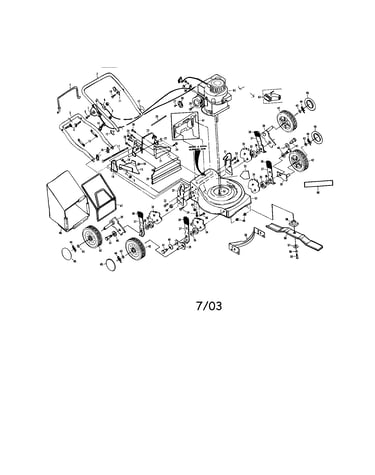

Engine/wheels/housing/handle diagram

Lawn mower washer

Part #532850263

Replaced by #596238701

?
Manufacturer substitution
This part replaces 532850263. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Blade Adapter 532850977
#59

Engine/wheels/housing/handle diagram

Blade adapter

Part #532850977

Replaced by #581547901

?
Manufacturer substitution
This part replaces 532850977. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Lock Nut 532063601
#9

Engine/wheels/housing/handle diagram

Lock nut

Part #532063601

Replaced by #582478602

?
Manufacturer substitution
This part replaces 532063601. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Rope.guide.s 532800357
#14

Engine/wheels/housing/handle diagram

Rope.guide.s

Part #532800357

Replaced by #586122501

?
Manufacturer substitution
This part replaces 532800357. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Selector Knob 532087877
#38

Engine/wheels/housing/handle diagram

Selector knob

Part #532087877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 532087877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Flat Washer 532088348
#36

Engine/wheels/housing/handle diagram

Flat washer

Part #532088348

This item is not returnable
$6.83
In Stock
Screw.hex.wa 532750097
#10

Engine/wheels/housing/handle diagram

Screw.hex.wa

Part #532750097

Replaced by #817021008

?
Manufacturer substitution
This part replaces 532750097. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Handle Knob 532063688
#12

Engine/wheels/housing/handle diagram

Handle knob

Part #532063688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 532063688. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Handle Bolt 532058714
#4

Engine/wheels/housing/handle diagram

Handle bolt

Part #532058714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 532058714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Selector Spring 532850856
#37

Engine/wheels/housing/handle diagram

Selector spring

Part #532850856

Replaced by #532401621

?
Manufacturer substitution
This part replaces 532850856. Substitute parts can look different from the original.
$8.54
In Stock
