Model # WZSE5310T1WW Official GE washer

Here are the diagrams and repair parts for Official GE WZSE5310T1WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Use And Care Guide 49-9883
#1A

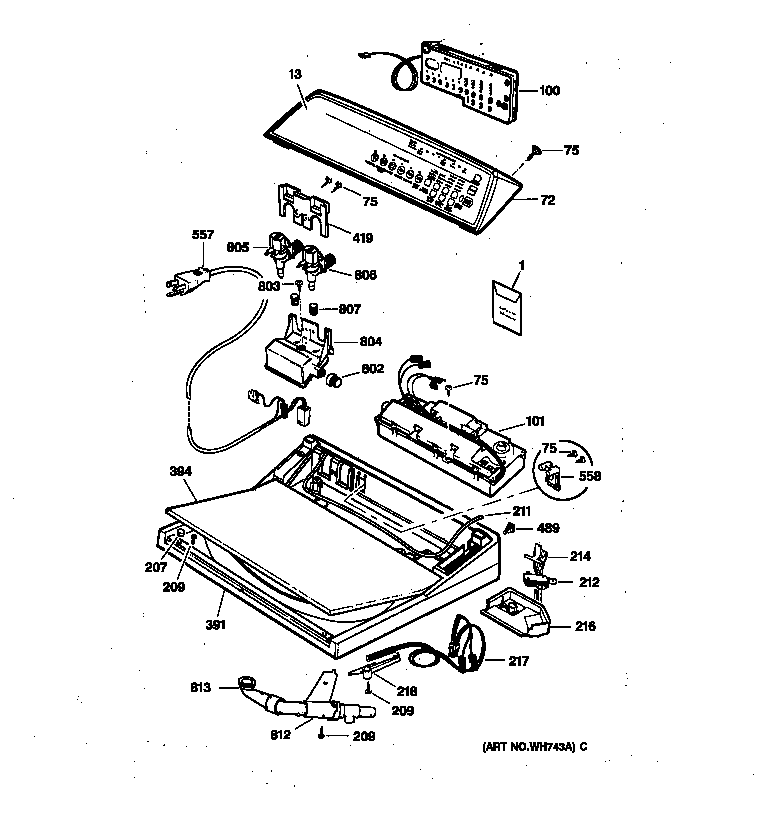

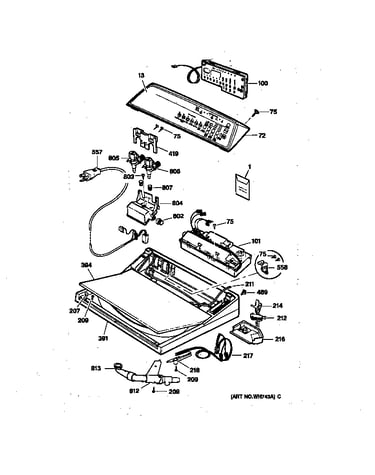

Control & cover assembly diagram

Use and care guide

Part #49-9883

$17.99
In Stock
Clip Switc WH1X2771
#218

Control & cover assembly diagram

Clip switc

Part #WH1X2771

The manufacturer no longer makes this part, and there's no substitute part

Mini Manual 31-1044
#1C

Control & cover assembly diagram

Mini manual

Part #31-1044

The manufacturer no longer makes this part, and there's no substitute part

Bearing WH4X110
#739

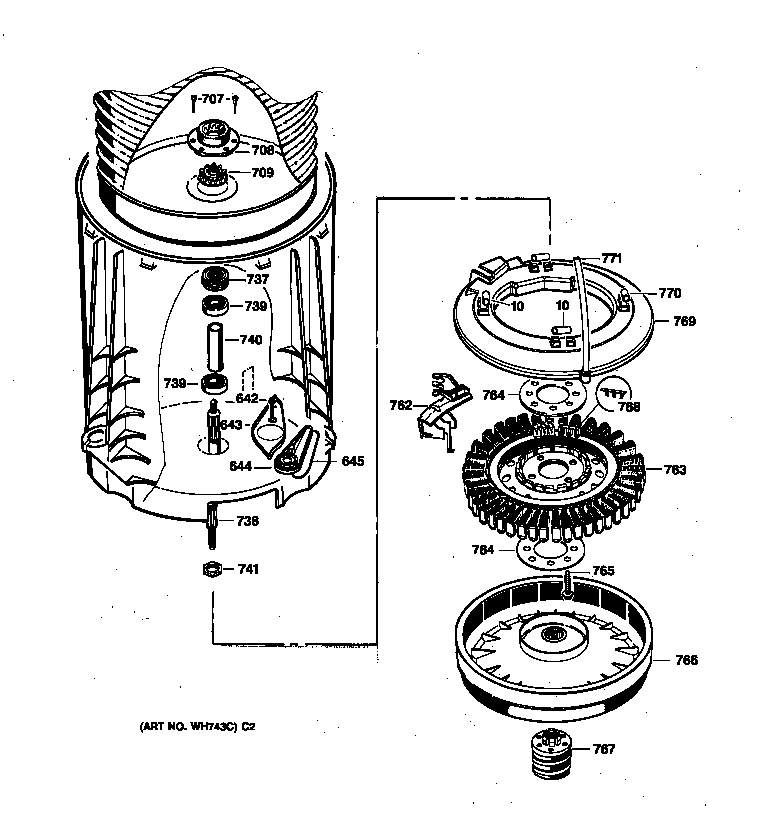

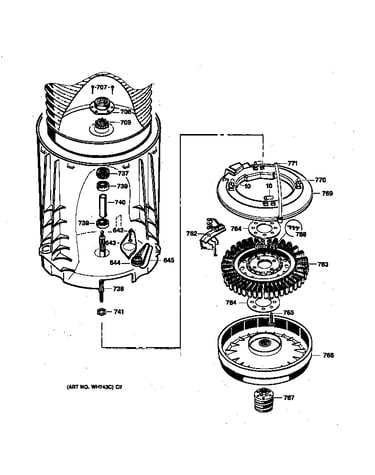

Shaft & motor diagram

Bearing

Part #WH4X110

The manufacturer no longer makes this part, and there's no substitute part

Clip Pump WH1X2777
#646

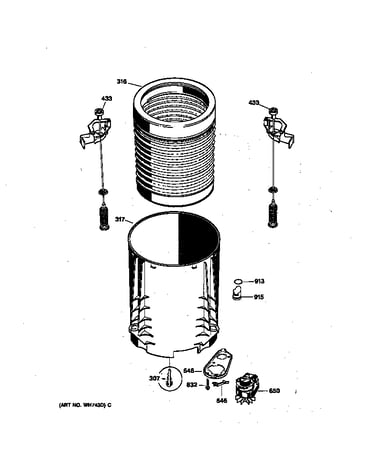

Tub & suspension diagram

Clip pump

Part #WH1X2777

The manufacturer no longer makes this part, and there's no substitute part

Spring Clip WH1X2774
#328

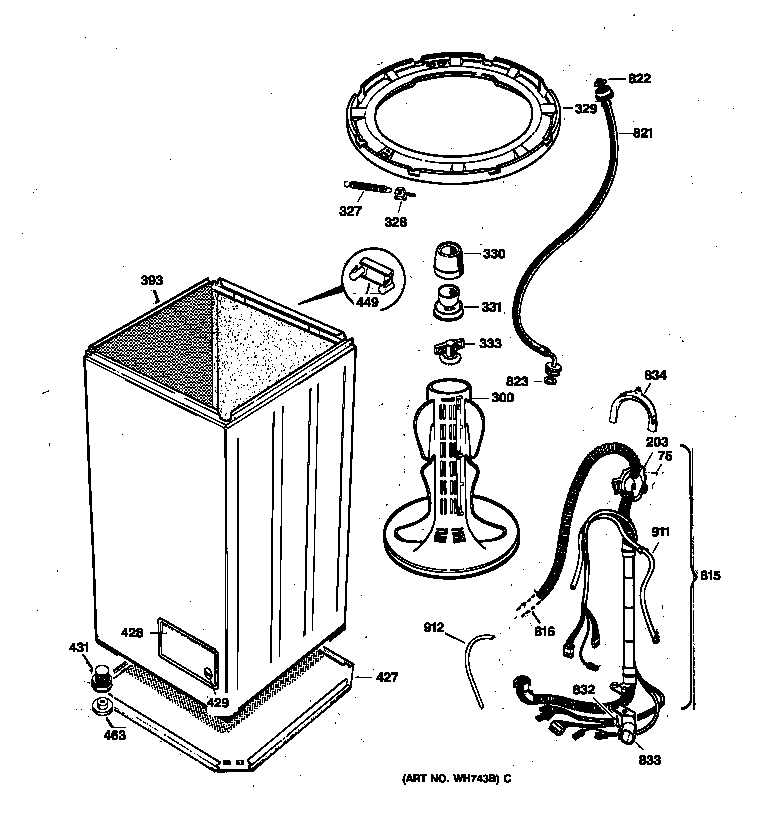

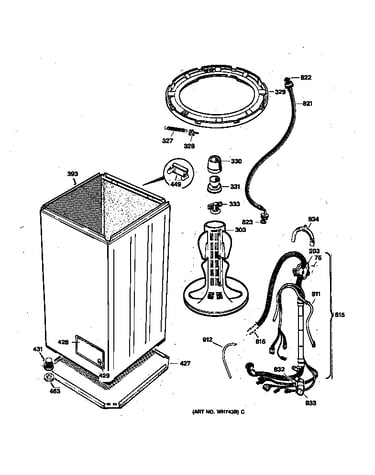

Cabinet & agitator diagram

Spring clip

Part #WH1X2774

The manufacturer no longer makes this part, and there's no substitute part

Actuator O/b WH12X1046
#214

Control & cover assembly diagram

Actuator o/b

Part #WH12X1046

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon WH42X2499
#72

Control & cover assembly diagram

Escutcheon

Part #WH42X2499

The manufacturer no longer makes this part, and there's no substitute part

Screw Clut WH2X1228
#707

Shaft & motor diagram

Screw clut

Part #WH2X1228

The manufacturer no longer makes this part, and there's no substitute part

Inlet Hose WH41X381
#821

Cabinet & agitator diagram

Inlet hose

Part #WH41X381

The manufacturer no longer makes this part, and there's no substitute part
